Aerocool VX PLUS 750W Power Supply Unit (Active PFC, 230V Input, Silent 120mm Fan, Non-Modular ATX, UK Box, ACPN-VS75AKY.11)

The Aerocool VX PLUS 750 (Model: ACPN-VS75AKY.11) is a cost-effective, high-capacity power supply unit specifically tailored for entry-level system builders, mainstream office terminals, and budget gaming PC setups. Focused on delivering reliable quality and simplified installation, this standard ATX power supply provides a continuous 750W output layout, giving your system ample energy headroom to accommodate multi-core processors and mid-to-high performance graphics cards safely.

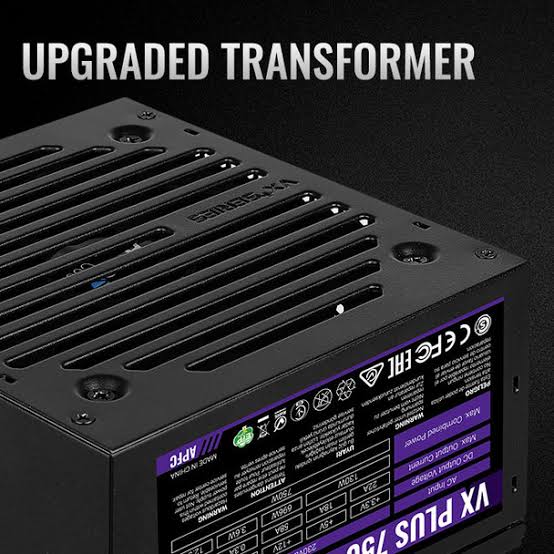

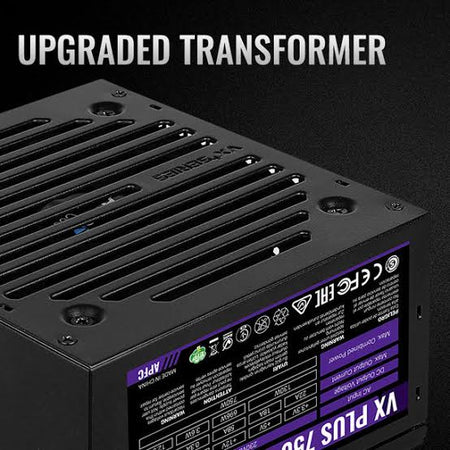

Built with an Active Power Factor Correction (APFC) circuit rating greater than 0.9, the VX PLUS 750 optimizes energy usage and enhances voltage stability across all internal rails. It features an upgraded power transformer engineered to comfortably handle heavy 12V loading, alongside a high-amperage single +12V rail (58A) that delivers clean, compatible DC output directly to demanding hardware configurations. Housed in a durable black steel chassis, the unit relies on a thermally regulated 120mm silent fan that alters its speed dynamically based on system load, minimizing noise while maintaining an optimal operating temperature.

Key Features

• Ample 750W Power Delivery: Provides robust, continuous power ideal for entry-level and mainstream custom PC builds equipped with mid-range dedicated GPUs.

• Built-in Active PFC: Incorporates an advanced Active Power Factor Correction matrix to stabilize input voltage, maximize electrical efficiency, and protect delicate components.

• High-Amp Single +12V Rail: Drives up to 58A on a dedicated single +12V rail, guaranteeing seamless power delivery for high-draw hardware configurations and modern graphics cards.

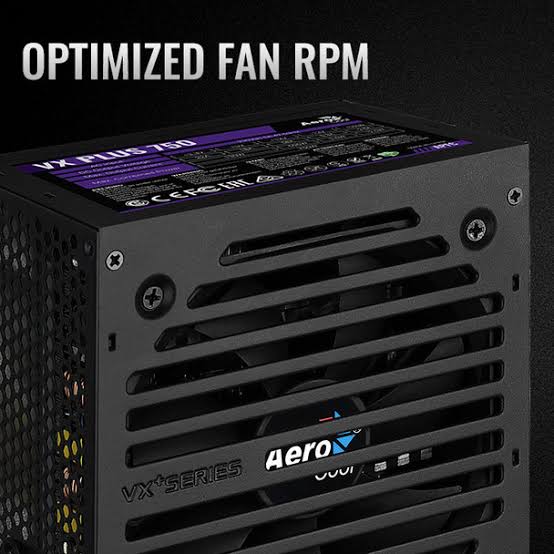

• Thermal Speed Controlled 120mm Fan: Features an ultra-quiet 12cm internal fan with intelligent thermal sensors that adjust RPMs to balance quiet performance with effective cooling.

• Comprehensive Electrical Protection: Outfitted with an industrial-grade multi-protection suite including OPP, OVP, UVP, SCP, and SIP to instantly safeguard hardware against sudden current faults or spikes.

• Optimized ATX Layout: Fully compatible with standard ATX 12V version 2.3 case footprints, featuring a non-modular cable setup with specialized long leads for easy routing.

Technical Specifications

• Model: ACPN-VS75AKY.11

• Series: Aerocool VX PLUS Series

• Form Factor: ATX 12V v2.3

• Maximum Power Output: 750 Watts

• Wiring Configuration: Non-Modular (Fixed Cable Assembly)

• Power Factor Correction: Active PFC (APFC Rates Greater Than 0.9)

• AC Input Requirements: 230VAC, 5A, 47–63Hz Frequency Range

• DC Output Power Rails:

  • +3.3V: 22A

  • +5V: 18A

  • Combined Max (+3.3V & +5V): 130W

  • +12V: 58A (Max Combined: 696W)

  • -12V: 0.3A (3.6W)

  • +5VSB: 2.5A (12.5W)

• Cooling Fan Profile: 1 × 120mm Silent Fan with Optimized Thermal Speed Controls

• Hardware Protection Standards: OPP (Over Power), OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), and SIP (Surge & Inrush Protection)

• Chassis Finish: High-Durability Textured Matte Black

• Retail Packaging: UK Box Edition (Includes standard localized AC power cord)

• Cable Connector Array:

  • 1 × 20+4 Pin Motherboard Main Connector

  • 1 × 4+4 Pin CPU ATX 12V Connector

  • 2 × 6+2 Pin PCI-E Graphics Card Connectors

  • 4 × SATA Storage Drive Connectors

  • 2 × 4-Pin Molex Peripheral Connectors
