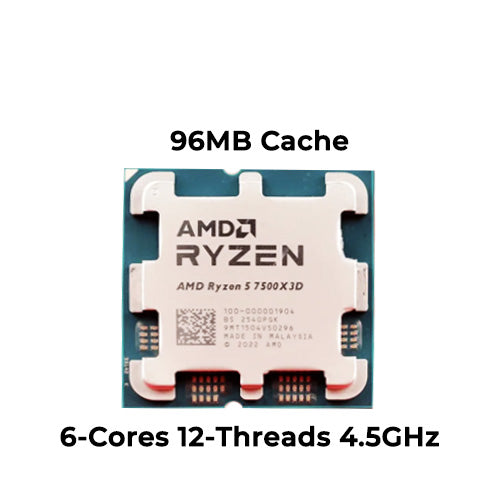

AMD Ryzen 5 7500X3D Tray - 6-Core, 12-Thread AM5 Desktop Processor - Supports DDR5 & PCIe 5.0, 96MB L3 3D V-Cache, 65W TDP - Without CPU Cooler

Supercharge your gaming builds with the AMD Ryzen 5 7500X3D Desktop Processor. Engineered specifically for pure gaming value, this CPU utilizes AMD’s groundbreaking 3D V-Cache™ technology to dramatically lower in-game latency and boost frame rates across modern, demanding titles.

Built on the efficient Zen 4 architecture and a 5nm production node, it packs 6 cores and 12 threads into a lean, energy-conscious 65W default TDP design. As a Tray version shipping without a bundled stock thermal solution, it gives PC builders the freedom to pair the processor with high-performance aftermarket liquid or air cooling configurations right out of the box. Pair it with the modern AM5 platform to tap into high-bandwidth DDR5 memory speeds and future-ready PCIe 5.0 expansion lanes.

Key Features

• Next-Gen 3D V-Cache™ Technology: Stacks a massive 96 MB of L3 cache vertically onto the processor die, heavily accelerating game engine physics, frame processing, and texture streaming.

• Highly Efficient 65W TDP: Consumes less power and generates less thermal heat than standard enthusiast chips, making it an ideal choice for cool, ultra-quiet, or compact system designs.

• Next-Generation Platform Ready: Native support for high-speed dual-channel DDR5 system memory and lightning-fast PCIe Gen 5.0 connections for next-gen graphics and M.2 NVMe SSD configurations.

• Integrated Radeon™ Graphics: Features 2 built-in AMD Radeon graphics cores to handle everyday computing tasks, display configurations, and basic diagnostic troubleshooting without requiring a standalone GPU.

• Advanced AMD Optimization: Take advantage of precision performance tuning through AMD EXPO™ simple memory overclocking profiles and active Precision Boost 2 engine optimizations.

Hardware Compatibility

➢ CPU Socket Support: AMD Socket AM5 (Compatible with X670E, X670, B650E, B650, A620, X870E, X870, B850, and B840 chipsets)

➢ System Memory Support: DDR5 UDIMM | Dual-Channel Architecture | Up to 5200 MT/s native speed (Supports higher via AMD EXPO overclocking)

➢ Maximum Memory Capacity: Up to 128 GB DDR5 RAM

➢ PCI Express Interface: PCIe 5.0 Support with up to 28 total lanes (24 usable lanes)

➢ ECC Memory Support: Yes (Requires compatible ECC-enabled motherboard)

➢ Thermal Cooling Requirements: No cooler included (Tray item) | High-quality aftermarket air tower or Liquid AIO cooler strongly recommended

Technical Specifications

➢ Processor Model: AMD Ryzen™ 5 7500X3D

➢ Core & Thread Count: 6 CPU Cores / 12 System Threads

➢ Clock Speeds: 4.0 GHz Base Clock | Up to 4.5 GHz Max Boost Clock

➢ Processor Architecture: Zen 4 Architecture (Raphael AM5)

➢ Silicon Lithography: TSMC 5nm FinFET for CPU Cores | TSMC 6nm FinFET for I/O Die

➢ Total On-Chip Cache: 102 MB Total (~384 KB L1 + 6 MB L2 + 96 MB L3)

➢ Thermal Parameters: 65W Default TDP | 88W Maximum PPT | 89°C Maximum Operating Temperature (TjMax)

➢ Integrated GPU Specs: AMD Radeon™ Graphics | 2 Graphics Cores | 2200 MHz Frequency

➢ Operating System Support: Windows 11 (64-Bit), Windows 10 (64-Bit), RHEL x86 (64-Bit), Ubuntu x86 (64-Bit)

➢ Packaging Configuration: Tray / OEM Microprocessor (Ships securely in alternative protective clamshell/tray packaging)

Ideal For

• Budget-Conscious Serious Gamers: Perfect for consumers trying to build a premium, high-frame-rate gaming machine utilizing the massive perks of 3D V-Cache technology without stepping up to premium price points.

• SFF & ITX Compact Form Factor Builders: Highly optimized for Small Form Factor cases where strict internal thermal limitations require an efficient 65W TDP processor that runs cool under heavy workloads.

• AM5 Long-Term Upgraders: PC builders entering the modern AM5 motherboard ecosystems who want top-tier gaming metrics today while keeping their configuration open for easy drop-in chip upgrades down the road.
