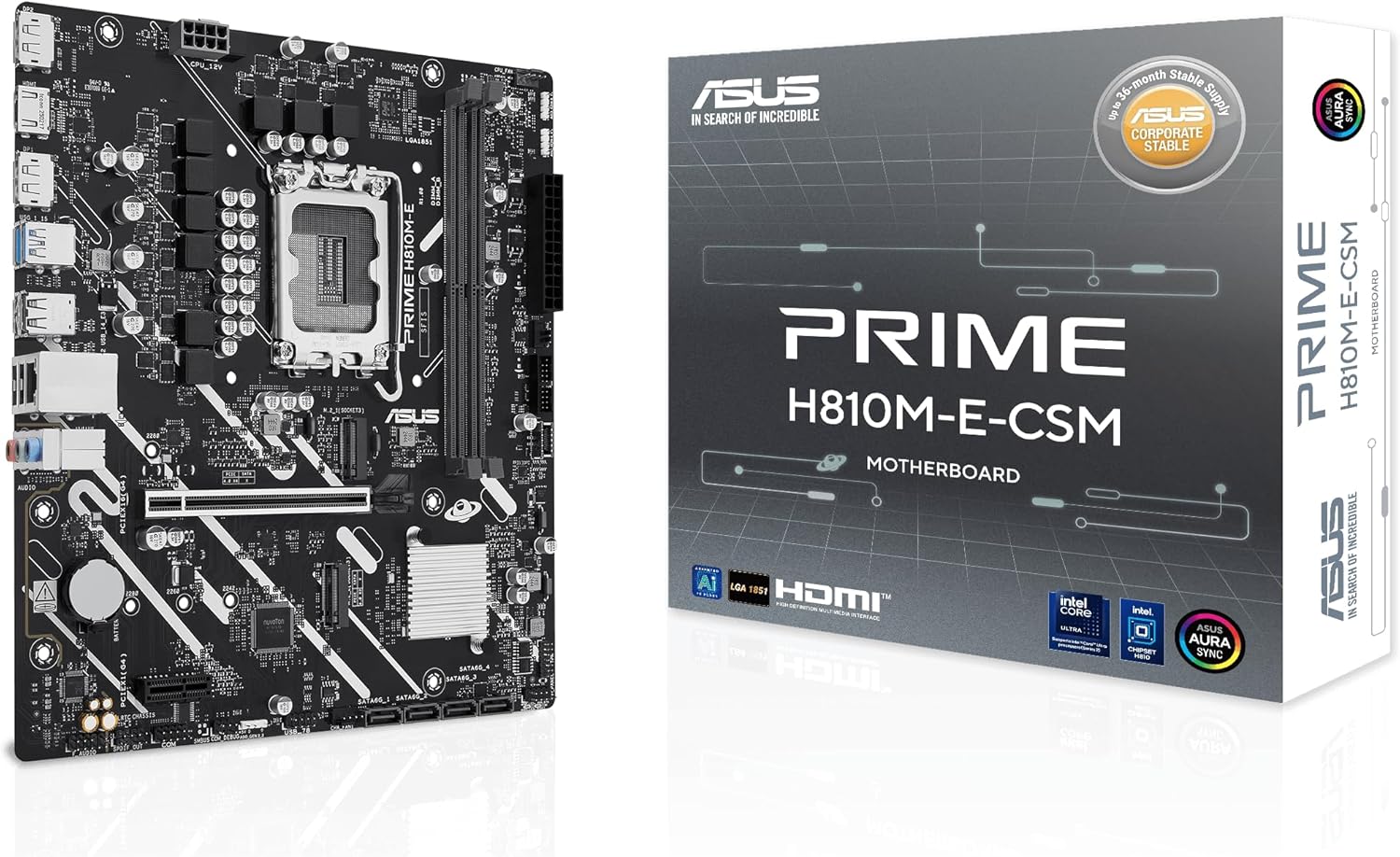

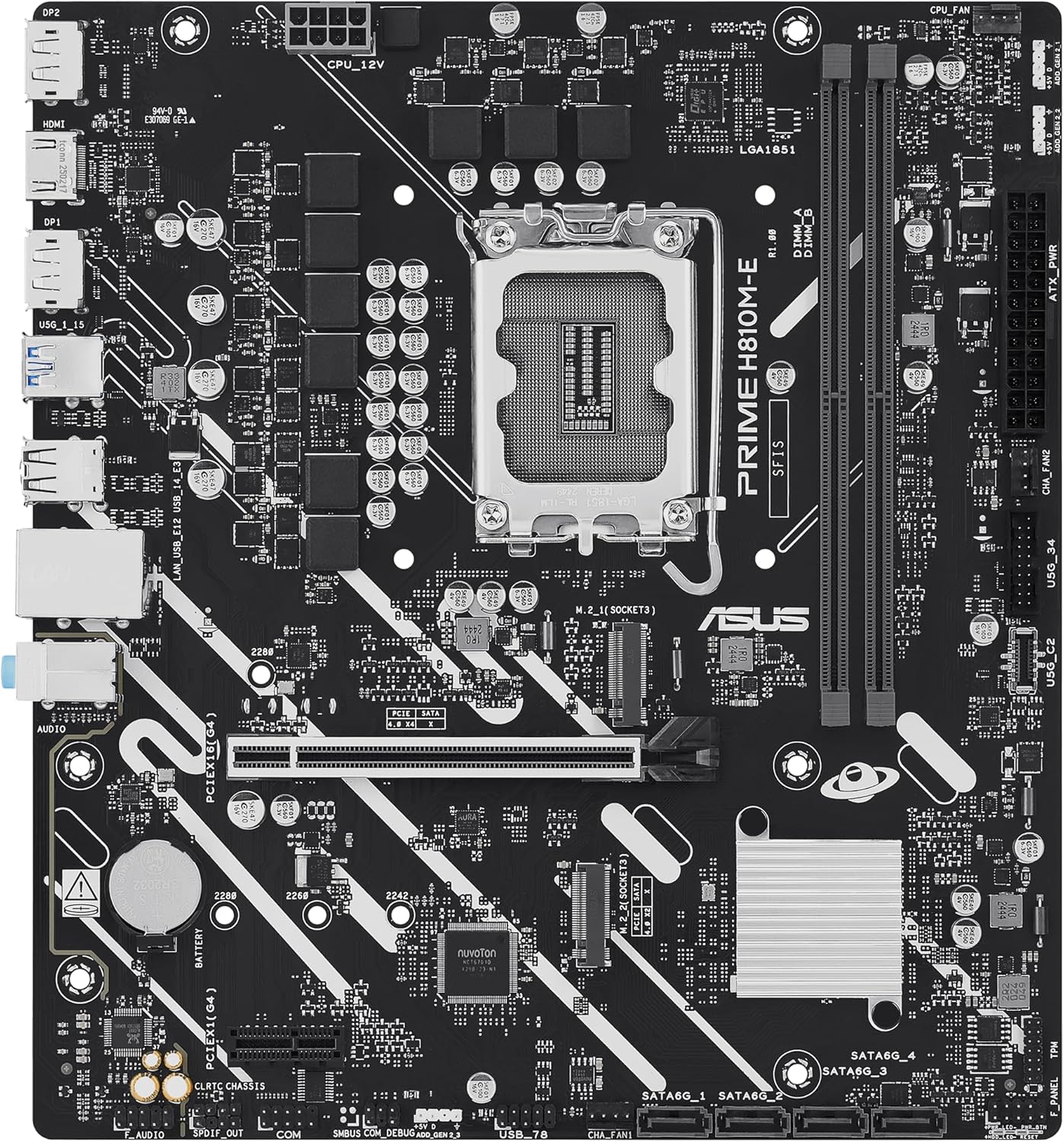

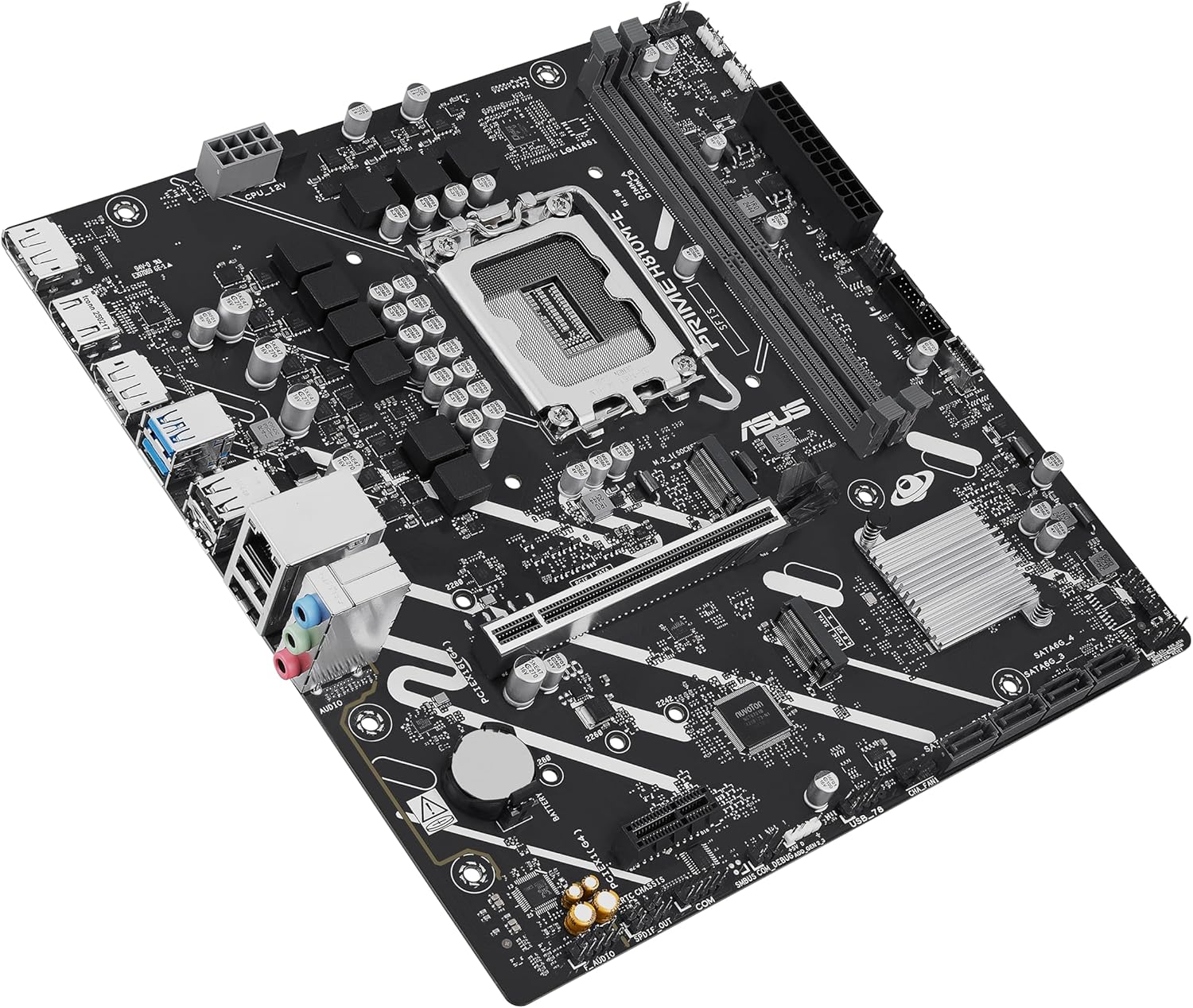

ASUS Prime H810M-E-CSM Intel® H810 mATX Commercial CSM Motherboard, LGA 1851, DDR5, PCIe 4.0, M.2, 1G LAN, HDMI, USB 3.2, AI PC-Ready, ASUS Control Center Express Support for SMB & IT Deployments

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Digital Power Design

Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2).The PRIME H810M-E-CSM features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel processors plus steady performance for day-to-day use.

- 6 VCCCORE power

- 1 VCCGT power

- 1 VCCSA power

- 1 VNNAON power

DIMM Fit / DIMM Fit Pro

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.

Two M.2 slots (up to 64Gbps)

PRIME H810M-E-CSM offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 64Gbps via PCIe 4.0, one that supports 32Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.*

*Actual transmission speeds will be lower than the theoretical maximum speed.

Cooler by design

The PRIME H810M-E-CSM motherboard is engineered with onboard chipset heatsink and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

ASUS Fan Xpert 2+

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.*

*Image(s) or Video(s) for reference only.

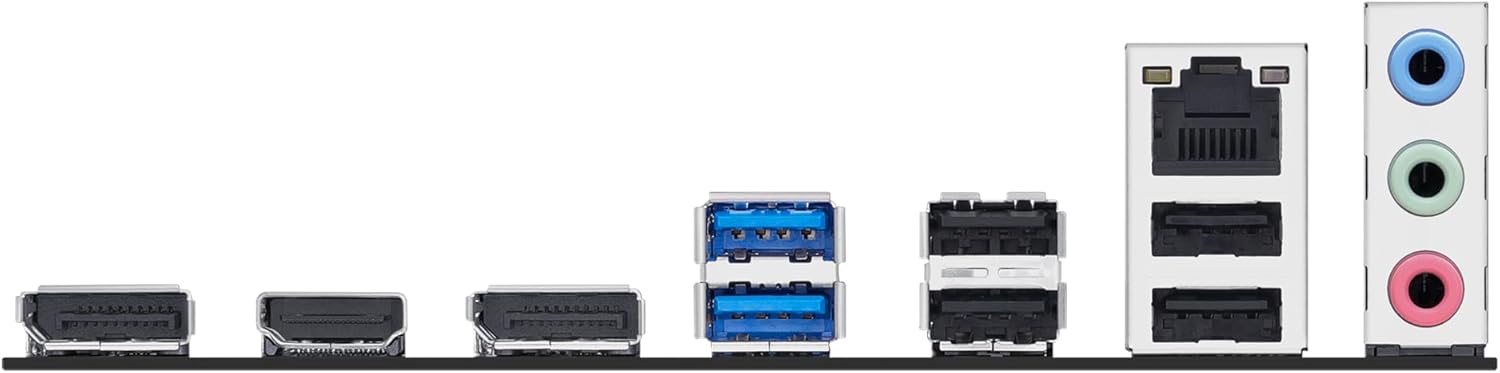

Empowering connections

This motherboard offers a versatile range of connectivity, including support for PCIe 4.0 M.2, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C connection.

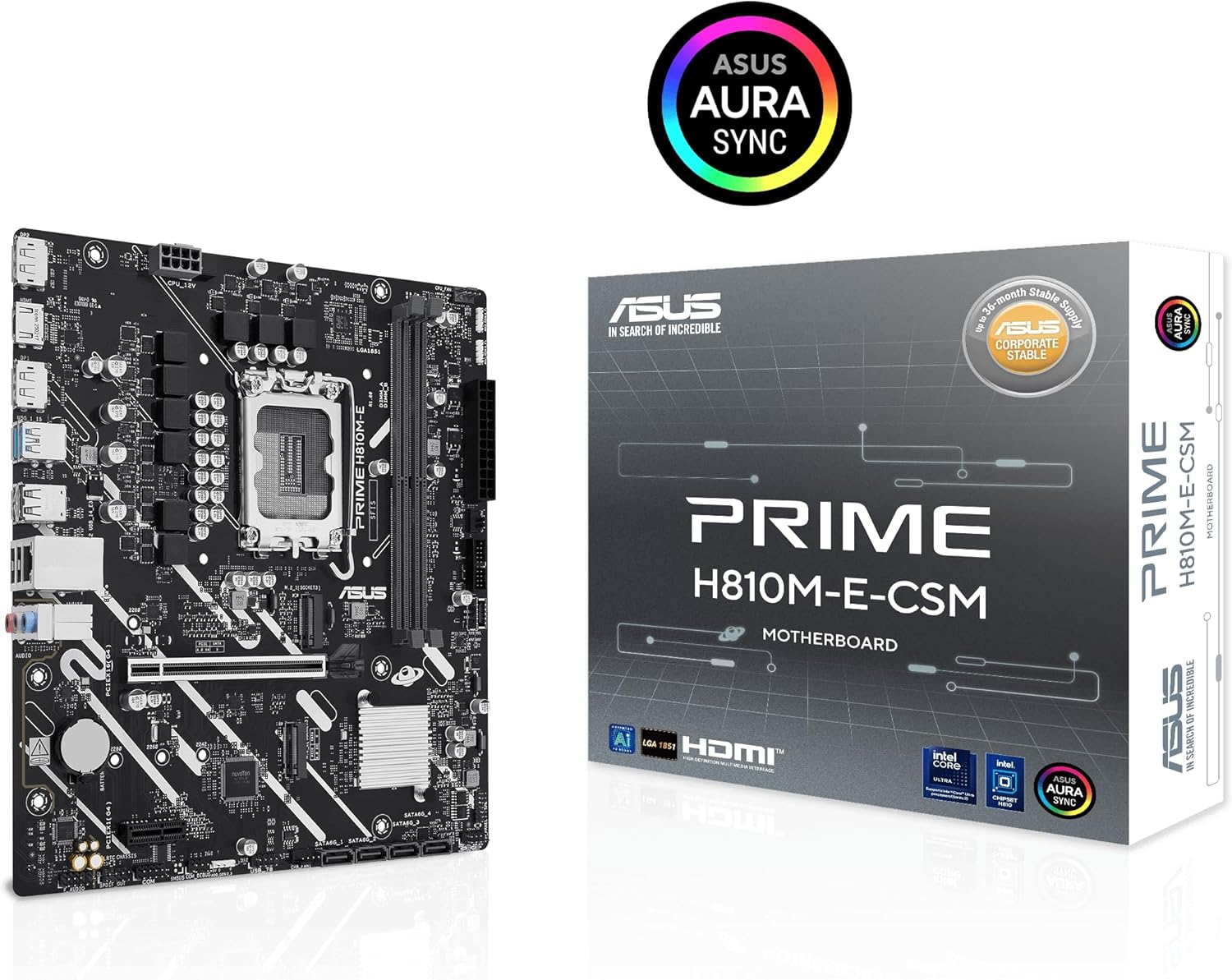

Aura Sync

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

SafeSlot Core+

SafeSlot Core+ is a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

ASUS PRIME H810M-E-CSM is engineered for Intel® Core™ Ultra (Series 2) processors, delivering robust power, reliable cooling, and intelligent tuning. Designed for commercial and AI PC readiness, it features enterprise-grade stability, essential connectivity, and ASUS Control Center Express for streamlined IT management—ideal for SMBs and professional system builders.

• Optimized for Intel Core Ultra Processors (Series 2): Built on the Intel H810 chipset with LGA1851 socket, delivering stable performance and compatibility for next-gen AI PC applications.
• Commercial-Grade Reliability with CSM Support: ASUS Corporate Stable Model (CSM) provides extended product lifecycle, EOL notice, and IT-focused features for managed commercial deployments.
• ASUS Control Center Express (ACCE): Streamline IT management with real-time monitoring, remote BIOS updates, and asset tracking—ideal for SMBs and enterprise fleets.
• Essential Connectivity and Expansion: Features PCIe 4.0, DDR5 support, M.2 slot, HDMI, D-Sub, USB 3.2 Gen 1, and Realtek 1Gb LAN for modern commercial needs.
• Advanced Cooling and Power Design: Comprehensive cooling with VRM and PCH heatsinks, plus robust 6+1+1 power stages ensure stable power delivery and thermal efficiency.
• AI PC-Ready Platform: Designed to meet the demands of AI-enhanced commercial desktops with optimized performance, cooling, and connectivity for modern workloads.
