ASUS TUF GAMING B760-PLUS WIFI (13th and 12th Gen)LGA 1700 ATX motherboard with PCIe 5.0, 3xPCIe 4.0 M.2 slots,DDR5,2.5Gb LAN,USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt 4, AEMP II
Couldn't load pickup availability
ASUS is one of Fortune magazine’s World’s Most Admired Companies and is one of the top motherboard and gaming brands as well as a top-three consumer notebook vendor. ASUS is driven by passion and innovation and dedicated to creating quality products for a future smart life, designing and manufacturing products that perfectly meet the needs of today's digital home, office and person. Our wide portfolio includes MG248Q, Chromebox and a range of devices and components, along with AR and VR.
TUF GAMING B760-PLUS WIFI
ASUS TUF GAMING B760-PLUS WIFI, an Intel B760 LGA 1700 ATX motherboard with DDR5, PCIe 5.0, three PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt (USB4) support, Aura Sync
- Intel LGA 1700 Socket: Ready for 13th & 12th Gen Intel Core processors
- Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
- Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
- Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 2 Type-C and Thunderbolt (USB4) header support
- Made for online gaming: Intel WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Power Saving
All-Around Energy Efficiency
The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Driver and MOSFET
DrMOS Power Stages
12+1 power stages combine high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.
Multilayer PCB
Six-Layer PCB Design
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
DRAM Overclocking Performance
Unleash DDR5 With AEMP II
ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.
Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.
PCIe 4.0 M.2
PCIe 4.0 Support
The three PCIe 4.0 M.2 slots support up to one 22110 device and the data-transfer speeds are up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

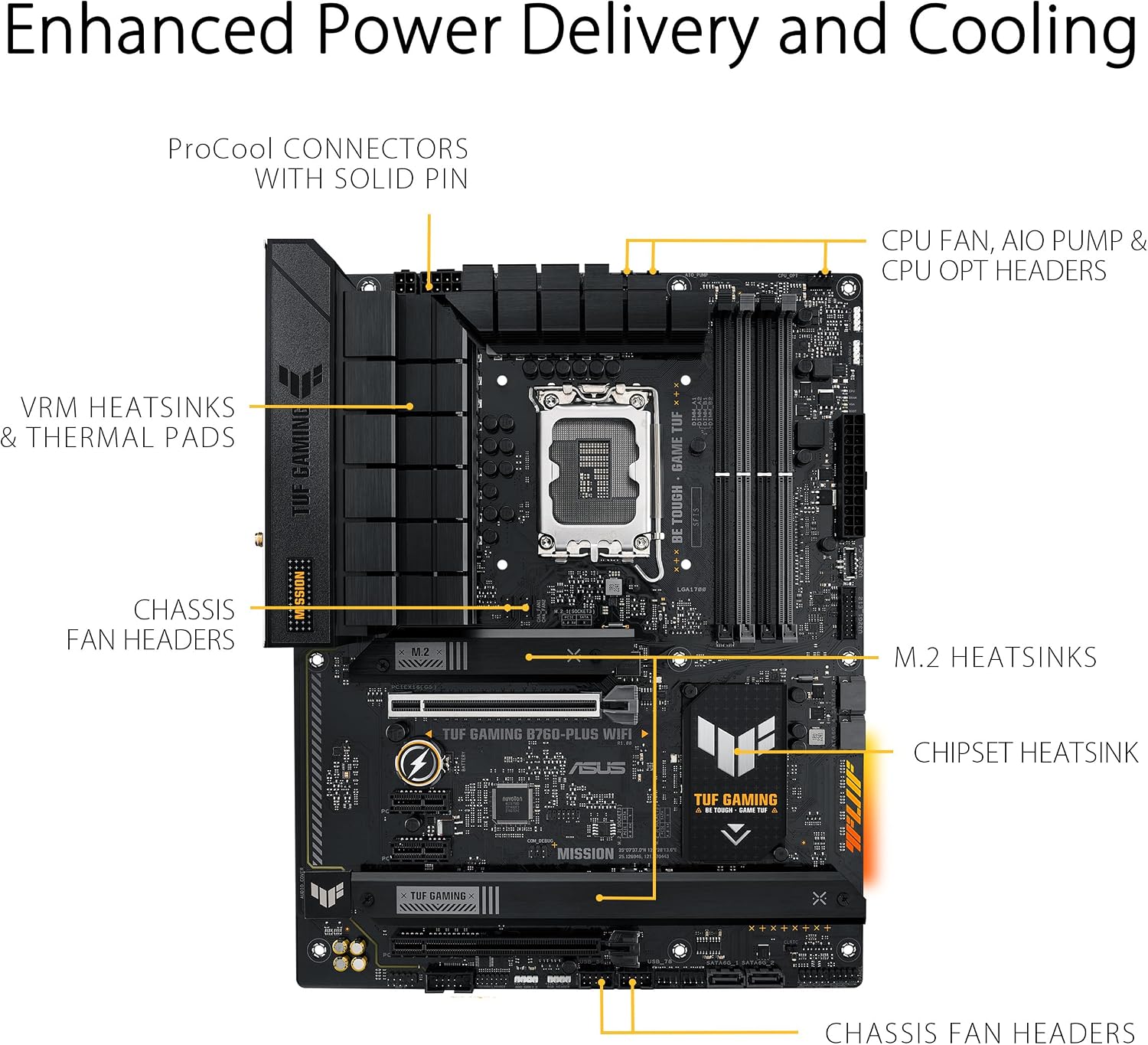

Cooler By Design
The TUF GAMING B760-PLUS WIFI is armed with an enlarged VRM heatsink, while three M.2 slots and the PCH feature heatsinks that provide the perfect balance of mass and surface area for heat dissipation.

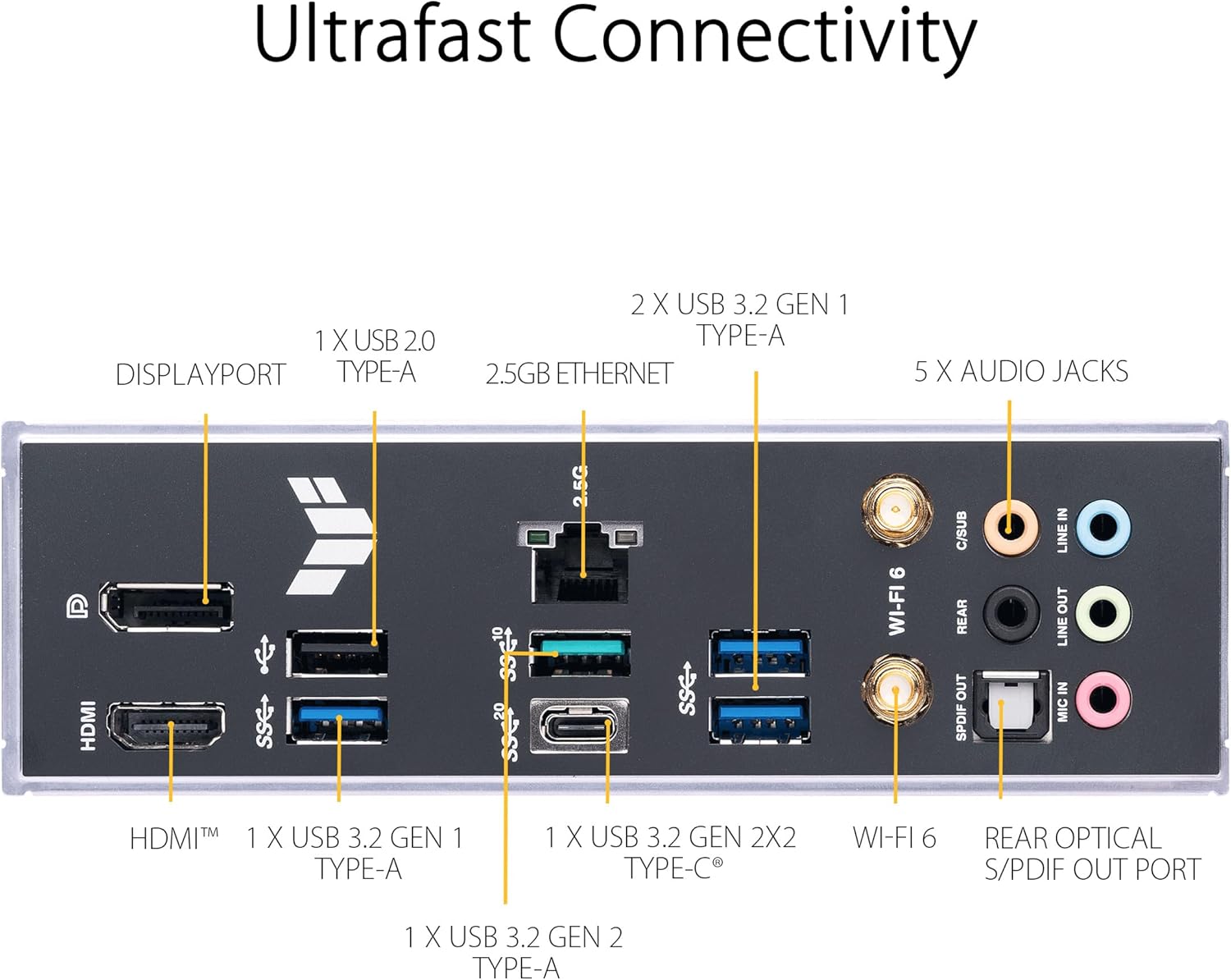

Connectivity
The TUF GAMING B760-PLUS WIFI reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes two Type-C connections, and Thunderbolt 4 expands compatibility and bandwidth even further.
TUF Gaming Alliance
Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
TUF Protection
SafeSlot Core+ & SafeDIMM
SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot Core+ ― all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence
