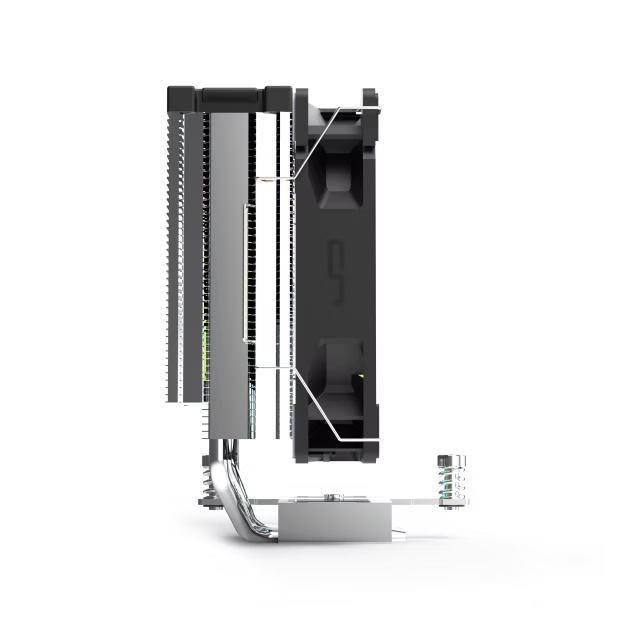

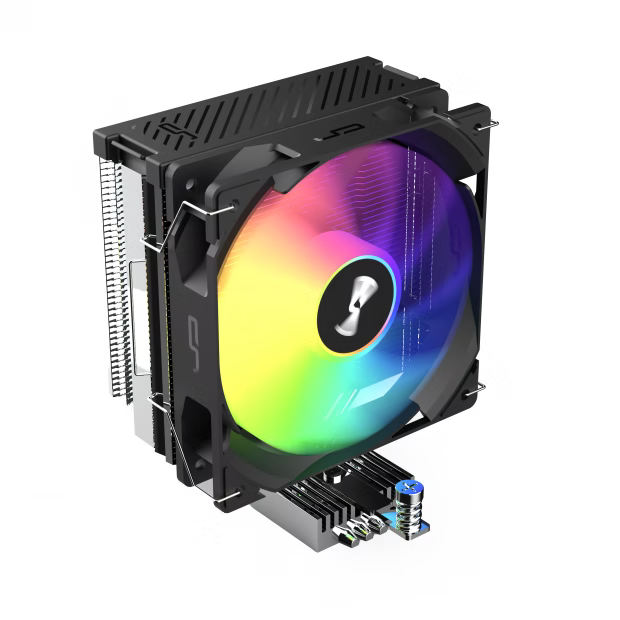

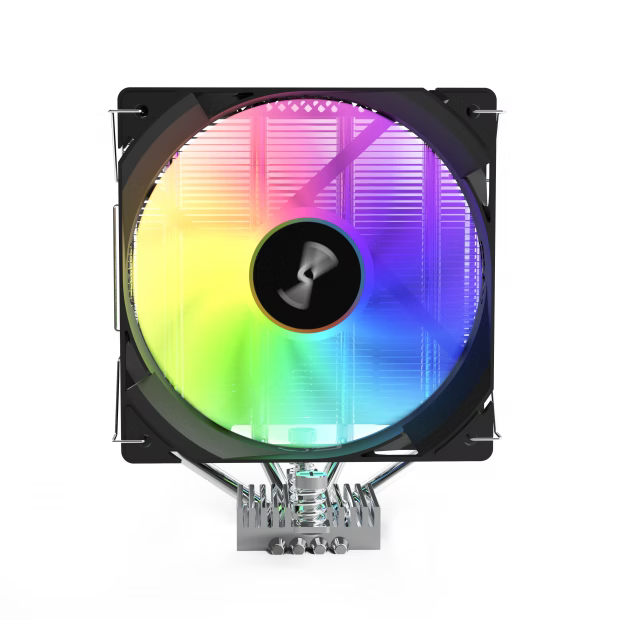

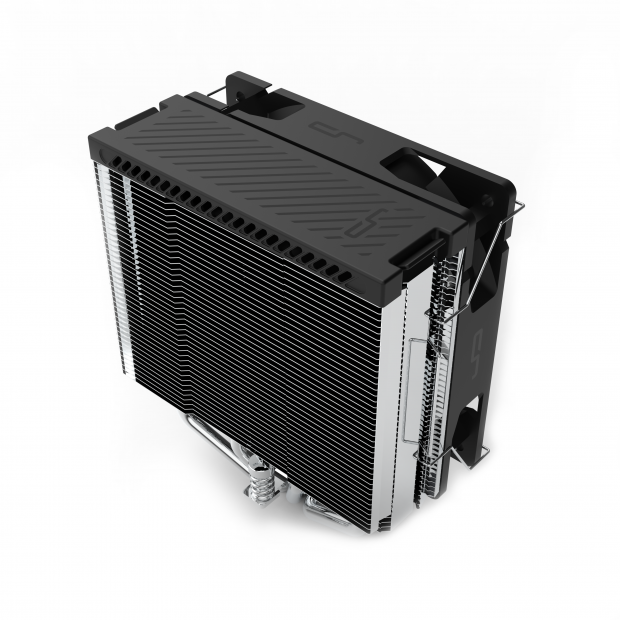

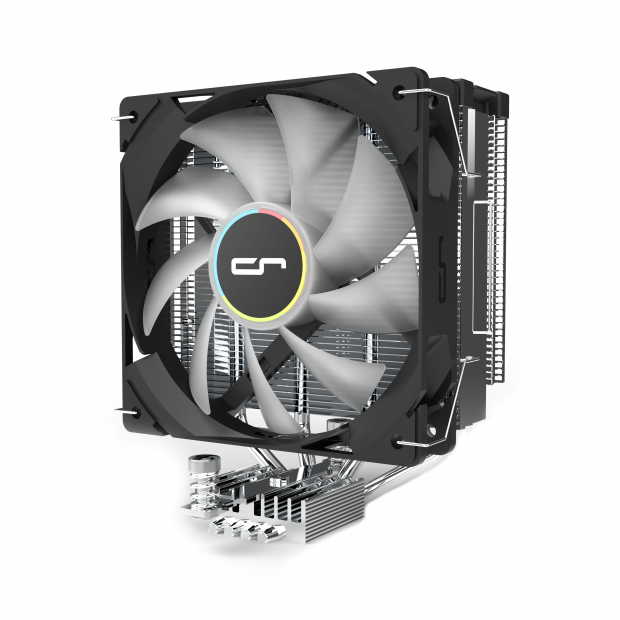

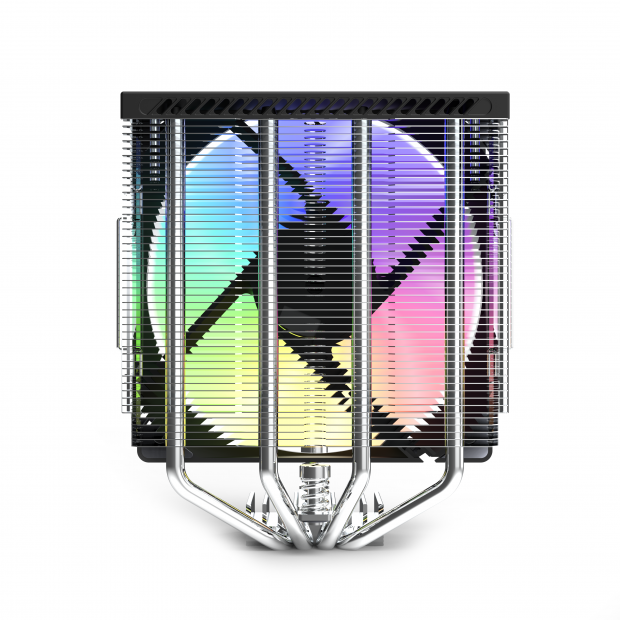

Keep your system cool, quiet, and perfectly illuminated with the CRYORIG H4 ARGB CPU Air Cooler. Engineered with a highly smart, asymmetric layout, this single-tower cooler solves common building headaches by implementing a specialized L-shaped heat pipe offset. This intentional curvature moves the entire cooling fin stack away from your motherboard's memory banks, granting 100% unrestricted physical clearance for tall enthusiast RAM modules.
At its core, four premium 6 mm direct-contact copper heat pipes sit flush against your CPU lid to pull thermal energy directly away from the silicon. The heat is pushed rapidly up into a dense stack of 46 high-efficiency aluminum fins, which are chilled by an ultra-smooth, magnetically stabilized 120 mm ARGB PWM fan. Rated for an impressive 180W TDP cooling capacity, the CRYORIG H4 delivers robust thermal overhead for high-framerate gaming or rendering setups while keeping noise levels whisper-quiet.
Key Features
-
Asymmetric L-Shaped Engineering: Advanced heat pipe angling intentionally shifts the cooling stack backward. This ensures zero interference with tall RGB RAM sticks and motherboard VRM heatsinks.
-
Direct Contact Thermal Pipeline: Four 6 mm high-performance copper heat pipes make direct, seamless contact with the CPU surface to maximize heat transfer efficiency.
-
Magnetic Stability Fan Technology: Features an advanced magnetic stabilization design within the fan motor. This corrects internal shaft alignment, eliminates micro-vibrations, and ensures smooth rotation.
-
Silent 120mm PWM & ARGB Lighting: The dynamic 800–1800 RPM fan scales up automatically under heavy workloads. Its highly vibrant addressable RGB (ARGB) lighting uses standard 3-pin headers for immediate motherboard software synchronization.
-
Swap Top Cover Compatibility: Designed with a convenient magnetic top cover layout, allowing system modders to easily swap out the plate for custom look alignments down the road.
-
2-Year Secure Warranty: Built with long-term reliability in mind, backed by a comprehensive 2-year manufacturer warranty.
Hardware Compatibility
➢ Motherboard Support: Intel: LGA 1851, 1700, 1200, 115X (1150/1151/1155/1156), 1366 | AMD: Socket AM5, AM4
➢ Maximum Cooling Capacity (TDP): Up to 180W continuous thermal design power
➢ Memory (RAM) Clearance: Unrestricted / 100% High-Profile RAM compatible via L-Shaped offset design
➢ Fan Configuration Headers: 1x 4-pin PWM (Fan Power) + 1x 3-pin +5V ARGB (Lighting Control)
➢ Chassis Height Clearance: Standard mid-tower and compact cases accepting CPU coolers at or above 148 mm in height
Technical Specifications
➢ Cooler Type: Single-Tower Air CPU Cooler
➢ Product Dimensions (With Fan): 122 x 68 x 148 mm
➢ Product Dimensions (Heatsink Only): 122 x 43 x 148 mm
➢ Net Weight (With Fan): 430 g
➢ Heat Pipe Material: 4 x 6 mm Copper Heat Pipes (Direct Contact Layer)
➢ Fin Stack Configuration: 46 x High-Density Aluminum Fins
➢ Fan Dimensions: 120 x 120 x 25 mm
➢ Fan Rotation Speed: 800 – 1800 ±10% RPM
➢ Maximum Airflow Rate: 75.09 CFM
➢ Static Air Pressure: 1.95 mmH2O
➢ Maximum Fan Acoustics: Up to 31.52 dBA
➢ Operating Voltage / Current: 12V / 0.3A
➢ Manufacturer Warranty: 2 Years
Ideal For
-
RGB Enthusiasts with Tall RAM: Perfect for builders utilizing thick, tall premium RGB memory kits who want a powerful air cooling tower without covering up or blocking their RAM lighting layout.
-
Quiet Living Rooms & Workspaces: Excellent for users who prioritize silent acoustics, as the magnetic stability core prevents common clicking or structural fan noises.
-
Mainstream System Setups: Tailor-made for performance mid-tier builds running demanding modern processors (like AMD Ryzen 5/7 or Intel Core i5/i7 models) that require continuous thermal stability.
