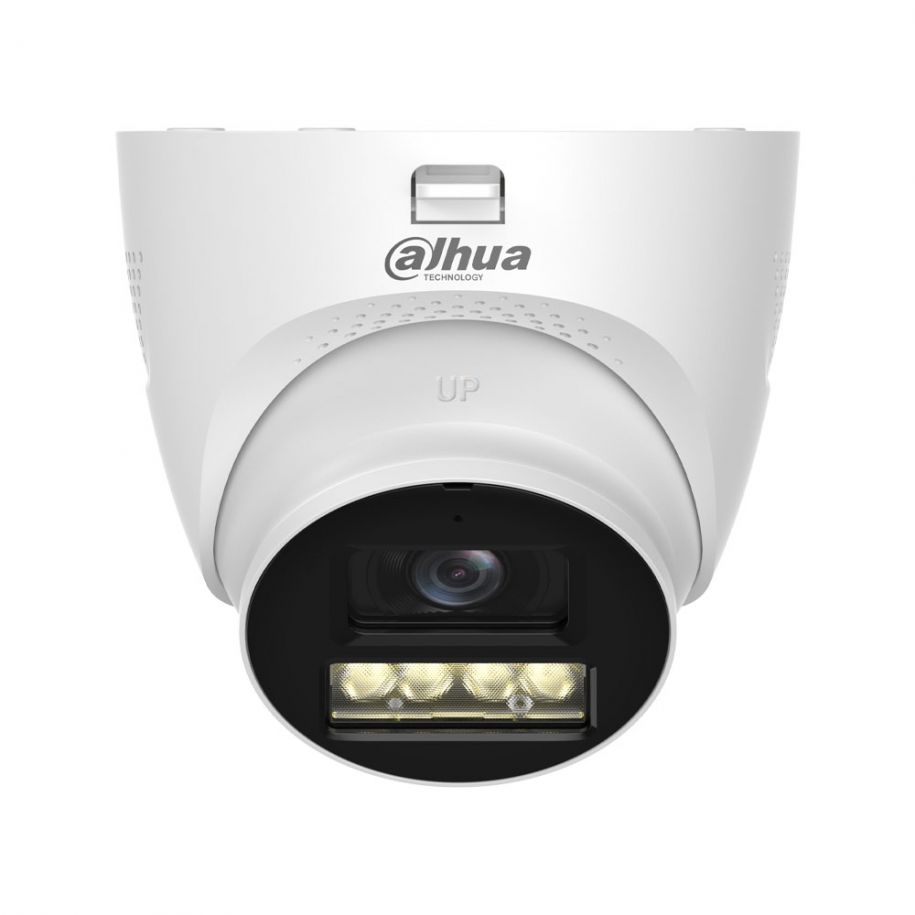

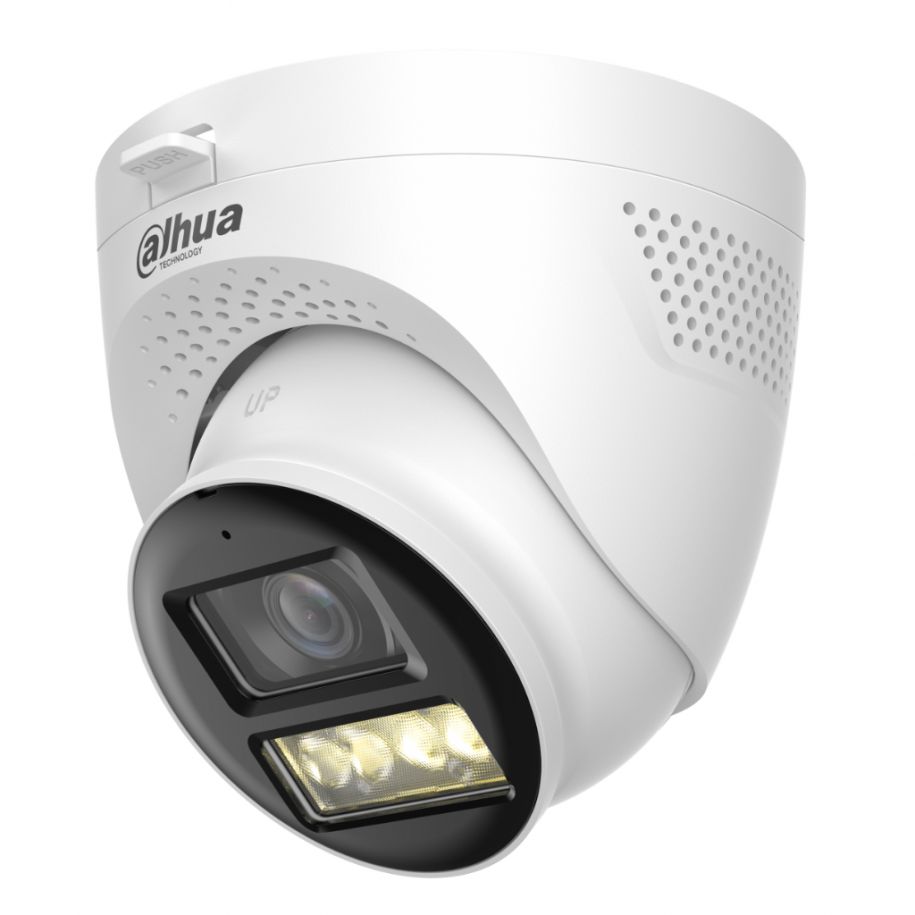

Dahua 2MP Smart Dual Light HDCVI Two-way Talk Fixed-focal Eyeball Camera

Only 2 left
SKU: DH-HAC-HDW1200TQP-IL-T
Usually ships within 24 hours
Rs 1,450.00 inc. VAT
Product details
  • SKU DH-HAC-HDW1200TQP-IL-T

Do you have questions about this product?

Ask an expert!

Payment details

    Help your customers identify what payments are accepted by your store.

    Description Shipping information Reviews (0)

    Camera

    Image Sensor

    2 MP CMOS

    Max. Resolution

    1920 (H) × 1080 (V)

    Scanning System

    Progressive

    Electronic Shutter Speed

    PAL: 1/25 s–1/100,000 s
    NTSC: 1/30 s–1/100,000 s

    Min. Illumination

    0.01 lux@F2.0 (Color, 30 IRE)
    0.001 lux@F2.0 (B/W, 30 IRE)
    0 lux (Illuminator on)

    S/N Ratio

    >65 dB

    Illumination Distance

    40 m (131.23 ft)

    Illuminator On/Off Control

    Auto;Manual

    Illuminator Number

    4 (Multi-core light)

    Angle Adjustment

    Pan: 0°–360°
    Tilt: 0°–78°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M12

    Focal Length

    2.8 mm; 3.6 mm

    Max. Aperture

    F2.0

    Field of View

    2.8 mm: H: 111.3°; V: 60.8°; D: 134.2°
    3.6 mm: H: 89°; V: 48.2°; D: 109.1°

    Close Focus Distance

    2.8 mm: 0.5 m (1.64 ft)
    3.6 mm: 0.7 m (2.30 ft)

    DORI Distance
    Lens Detect Observe Recognize Identify
    2.8 mm 40.6 m
    ( 133.20 ft)    		 16.2 m
    ( 53.15 ft)    		 8.1 m
    ( 26.57 ft)    		 4.1 m

    ( 13.45 ft)
    3.6 mm 49.9 m
    ( 163.71 ft)    		 20.0 m
    ( 65.62 ft)    		 10.0 m
    ( 32.81 ft)    		 5.0 m

    ( 16.40 ft)
    *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Video

    Video Frame Rate

    CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
    AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
    TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
    CVBS: PAL: 960H; NTSC: 960H

    Resolution

    1080p (1920 × 1080); 960H (960 × 576/960 × 480)

    Day/Night

    Auto(ICR)/Color/B/W

    BLC

    BLC; HLC; WDR; HLC-Pro

    WDR

    DWDR

    White Balance

    Auto

    Gain Control

    Manual;Auto

    Noise Reduction

    3D NR

    Illumination Mode

    Smart IR&WL (CVI, TVI); WL Mode; IR Mode

    Mirror

    Yes

    Pick-up Distance

    8 m (26.25 ft)

    Certification

    Certifications

    CE-LVD: EN 62368-1;
    CE-EMC: EN 55032; EN 55035;

    Audio

    Built-in Mic

    Yes, up to 8 m (26.25 ft)

    Camera Audio

    CVI; TVI

    Two-way Talk

    Yes (CVI, TVI)

    Speaker

    Yes, up to 8 m (26.25 ft)

    Port

    Video Output

    Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

    Power

    Power Supply

    12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera)

    Power Consumption

    Max 9.37 W (12 VDC, IR on)

    Environment

    Operating Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Operating Humidity

    <95% (RH), non-condensing

    Storage Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Storage Humidity

    <95% (RH), non-condensing

    Protection

    IP67

    Anti-corrosion Level

    Basic Protection

    Structure

    Casing Material

    Dome (metal + plastic) + plastic enclosure

    Product Dimensions

    Φ109.9 mm × 105.9 mm (Φ4.33" × 4.17")

    Net Weight

    0.32 kg (0.71 lb)

    Gross Weight

    0.44 kg (0.97 lb)

    Installation

    Wall mount; ceiling mount; vertical pole mount
