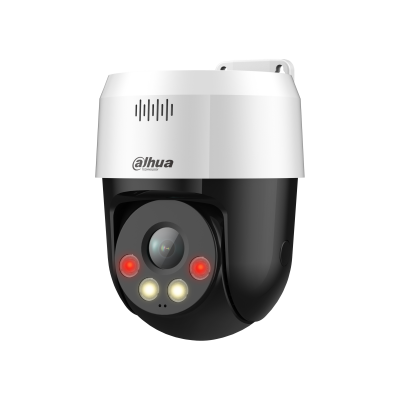

DH-SD2A500NB-GNY-A-PV 5M Smart Dual Light

Camera

Image Sensor

1/2.8" CMOS

Pixel

5 MP

Max. Resolution

2560 (H) × 1920(V)

ROM

128 MB

RAM

128 MB

Electronic Shutter Speed

1 s–1/100,000 s

Scanning System

Progressive

Min. Illumination

0.05 lux@F1.6 (Color, 30 IRE);

0.005 lux@F1.6 (B/W, 30 IRE);

Illumination Distance

30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR);

Illuminator On/Off Control

Manual; auto; off

Illuminator Number

2 (IR light); 2 (warm light)

Lens

Focal Length

4.0 mm

Max. Aperture

F1.6

Field of View

H: 80.4°; V: 58.1°; D: 104.8°

Close Focus Distance

0.3 m (0.98 ft)

Iris Control

Fixed

DORI Distance

Lens

Detect

Observe

Recognize

Identify

4.0 mm

77.4 m

( 253.94 ft)

31.0 m

( 101.71 ft)

15.5 m

( 50.85 ft)

7.74 m

( 25.39 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 345°;

Tilt: 0° to +80°

Manual Control Speed

Pan: 0.1°–74°/s;

Tilt: 0.1°–36.4°/s

Preset Speed

Pan: 0.1°–62°/s;

Tilt: 0.1°–36.3°/s

Preset

300

Power-off Memory

Yes

Idle Motion

Preset

Smart Event

IVS

Tripwire; intrusion

Human Detection

Yes

Intelligence

SMD

SMD 3.0

Active Deterrence

Light Warning

Warm light warning;

Flash duration: 5 s–30 s;

Flash frequency: high, medium, low

Sound Warning

Offers 1 sound alarm and 10 custom sound alarms can be imported;

Sound can be set from 0%–100%;

Play times can be set from 1-10.

Video

Video Compression

Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Streaming Capability

2 streams

Resolution

5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)

Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 104 kbps-8,192 kbps

H265: 41 kbps-8,192 kbps

Day/Night

Auto (ICR); Color/B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Electronic

Image Rotation

180°

Privacy Masking

4 area

S/N Ratio

≥55 dB

Audio

Audio Compression

PCM；G.711a；G.711Mu；G.726；AAC；

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP

Interoperability

CGI;SDK;ONVIF (Profile S & Profile T);RTMP;P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (256 GB); FTP

Browser

IE: IE 7 and later versions; Chrome; Firefox; Safari

Management Software

Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player

Mobile Client

iOS;Android

Certification

Certifications

CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-

3-2/EN55024/EN55035/EN62368-1

FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

Port

Audio Input

1 channel (built-in mic)

Audio Output

1 channel (built-in speaker)

Alarm Linkage

Capture; preset; recording; audio; sending email

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

12 VDC/1.5 A ± 10% PoE (802.3af)

Power Consumption

Basic: 3.5 W;

Max: 10 W (illuminator)

Power Adapter

Optional

Environment

Operating Temperature

–30 °C to +55 °C (–22 °F to +131 °F)

Operating Humidity

≤95%

Protection

TVS 2000 V lightning proof; surge protection; voltage transient protection;Waterproof and Dustproof

Structure

Product Dimensions

140.5 mm × Φ111.0 mm (5.53" × Φ4.37")

Net Weight

0.5 kg (1.10 lb)

Gross Weight

1 kg (2.20 lb)

Filter

Remarks

* The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model
