FAST CLICK

DH-SDT2A200-2F-NB-A-PV 2+2MP Smart Dual Light

In stock
SKU: 1.0.01.07.15677
Usually ships within 24 hours
Rs 4,590.00 inc. VAT
Product details
  • SKU 1.0.01.07.15677

Do you have questions about this product?

Ask an expert!

Payment details

    Help your customers identify what payments are accepted by your store.

    Description Shipping information Reviews (0)

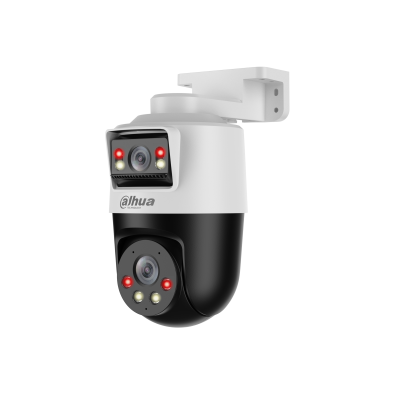

    DH-SDT2A200-2F-NB-A-PV 2+2MP Smart Dual Light

    Key Points

    Captures a Large Area and Great Details at the Same Time

    High-Quality Imaging with 2MP Resolution for Bullet Channel, 2MP for PTZ Channel

    Real-Time Communication via Built-In Two-Way Talk

    Active Deterrence: Audible and Visual Alarms Can Be Triggered by Certain Events to Drive Away the Target

    Supports Manual Adjustment of Fixed Lens (Vertical: -10° to 15°)

    IP66 & TVS 6000V Protection with Lightning/Surge/Voltage Transient Resistance

    Specifications

    Camera

    Image Sensor Fixed lens: 1/2.8" CMOS;
    PT lens: 1/2.8" CMOS
    Pixel Fixed lens: 2 MP;
    PT Lens: 2 MP
    Max. Resolution Fixed lens: 1920 (H) × 1080 (V);
    PT Lens: 1920 (H) × 1080 (V)
    ROM 128 MB
    RAM 128 MB
    Electronic Shutter Speed Fixed lens: 1 s–1/100,000 s;
    PT Lens: 1 s–1/100,000 s
    Scanning System Progressive
    Min. Illumination Fixed lens:
    0.05 lux@F1.6 (Color, 30 IRE);
    0.005 lux@F1.6 (B/W, 30 IRE);
    0 lux (Illuminator on);
    PT Lens:
    0.05 lux@F1.6 (Color, 30 IRE);
    0.005 lux@F1.6 (B/W, 30 IRE);
    0 lux (Illuminator on)
    Illumination Distance Fixed lens: 4 mm;
    PT Lens: 4 mm: Fixed lens:
    30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR);
    PT Lens:
    30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR)
    Illuminator On/Off Control Fixed lens: Manual; Auto; Off;
    PT Lens: Manual; Auto; Off
    Illuminator Number Fixed lens: 2 (IR); 2 (warm light);
    PT Lens: 2 (IR); 2 (warm light)

    Lens

    Focal Length Fixed lens: 4 mm;
    PT Lens: 4 mm
    Max. Aperture Fixed lens: F1.6;
    PT Lens: F1.6
    Field of View Fixed lens: 4 mm;
    PT Lens: 4 mm: Fixed lens: H: 85.7°; V: 47.1°; D: 100°;
    PT Lens: H: 85.7°; V: 47.1°; D: 100°
    Close Focus Distance Fixed lens: 4 mm;
    PT Lens: 4 mm: Fixed lens: 0.8 m (2.62 ft);
    PT Lens: 0.8 m (2.62 ft)
    Iris Control Fixed lens: Fixed iris;
    PT Lens: Fixed iris
    DORI Distance
    Lens Detect Observe Recognize Identify
    Fixed lens: 4 mm;
    PT Lens: 4 mm    		 53.6 m
    ( 175.82 ft)    		 21.2 m
    ( 69.55 ft)    		 10.7 m
    ( 35.10 ft)    		 5.3 m

    ( 17.39 ft)
    *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    PTZ

    Pan/Tilt Range Fixed lens: Manual adjustment Pan：0°–326°; Tilt: –10°–15° PT Lens: Electric adjustment Pan：0°–350°; Tilt: 0°–90°
    Manual Control Speed Pan: 0.1°–36°/s; Tilt: 0.1°–25°/s
    Preset Speed Pan: 36°/s; Tilt: 25°/s
    Preset 50
    Power-off Memory Yes
    Idle Motion Preset

    Smart Event

    Human Detection Fixed lens: Yes;
    PT Lens: Yes
    Vehicle Detection Fixed lens: Yes; PT Lens: Yes

    Intelligence

    SMD SMD 3.0

    Active Deterrence

    Light Warning White light warning;
    Flash duration: 5 s–30 s;
    Flash frequency: high, medium, low
    Sound Warning Offers 3 sound alarm and 10 custom sound alarms can be imported.
    Sound can be set from 0%–100%.
    Play times can be set from 1-10.

    Video

    Video Compression Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H
    Streaming Capability 2 streams
    Resolution Fixed lens:
    1080p (1920 × 1080); 720p (1280 × 720); 640 × 360 (640 × 360); QVGA (320 × 240);
    PT Lens:
    1080p (1920 × 1080); 720p (1280 × 720); 360p (640 × 360); QVGA (320 × 240);
    Video Frame Rate Fixed lens:
    Main stream: 1080p/720p/640x360@(1–25/30 fps)
    Sub stream 1: 640x360/QVGA@(1–25/30 fps)
    PT Lens:
    Main stream: 1080p/720p/640x360@(1–25/30 fps)
    Sub stream 1: 640x360/QVGA@(1–25/30 fps)
    Bit Rate Control CBR/VBR
    Video Bit Rate H264: 48 kbps–4,096 kbps
    H265: 19 kbps–4,096 kbps
    Day/Night Fixed lens: Auto (ICR)/Color/B/W;
    PT Lens: Auto (ICR)/Color/B/W
    BLC Yes
    WDR DWDR
    HLC Yes
    White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
    Gain Control Auto; manual
    Noise Reduction 2D NR; 3D NR
    Motion Detection Yes
    Image Rotation 180°
    Privacy Masking 4 areas
    S/N Ratio ≥55 dB

    Audio

    Audio Compression PCM; G.711a; G.711Mu; G.726

    Network

    Network Port RJ-45 (10/100 Base-T)
    Network Protocol HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;DHCP;DNS;DDNS;IPv6;SSL;ARP;RTCP;RTP;IP Filter
    Interoperability CGI;SDK;ONVIF (Profile S & Profile T)
    Streaming Method Unicast/Multicast
    User/Host 20 (total bandwidth: 64 M)
    Storage Micro SD card (256 GB)
    Browser IE 7 and later versions;
    All Chrome versions;
    All Firefox versions;
    All Safari versions

    Certification

    Certifications CE: EN55032/EN55024/EN50130-4

    Port

    Audio Input 1 channel (built-in mic)
    Audio Output 1 channel (built-in speaker)
    Alarm Linkage Capture; recording; audio; warning light; preset
    Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

    Power

    Power Supply 12 VDC/1.5 A ± 10%
    PoE (802.3af)
    Power Consumption Basic: 4 W;
    Max: 12 W (illuminator + PTZ +sound and light warning)
    Power Adapter Optional

    Environment

    Operating Temperature –20 °C to +50 °C (–4 °F to +122 °F)
    Operating Humidity ≤95%
    Protection IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection

    Structure

    Product Dimensions 159.4 mm × 110.0 mm × 210.1 mm (6.28" × 4.33"× 8.27") (L × W × H）
    Net Weight 1 kg (2.20 lb)
    Gross Weight 1.5 kg (3.31 lb)

    Filter

    Remarks The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
