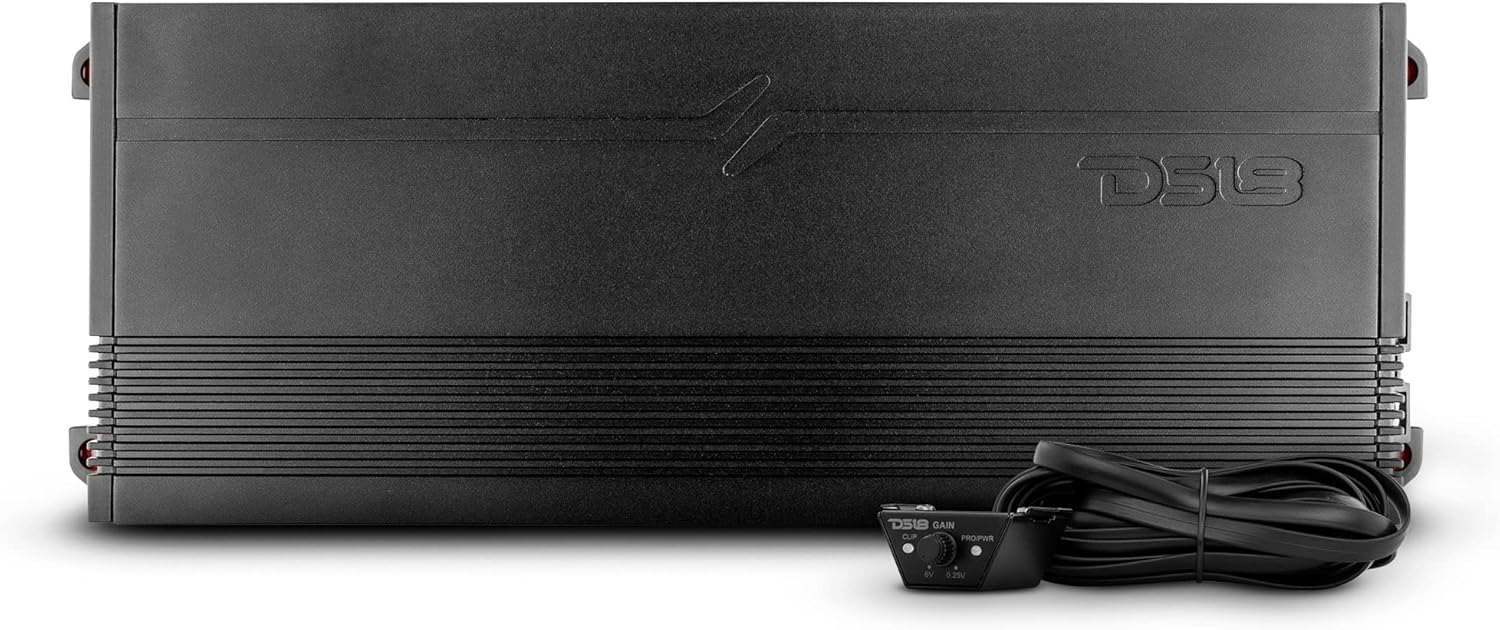

DS18 G4000.5D Generation-X 5-Channel Class D Full-Range Amplifier, 4000 Watts Max, 2/4 Ohm Stable, Bridgeable Car and Truck Stereo Amp with Remote Bass Knob Included
Couldn't load pickup availability
- SKU G4000.5D
Do you have questions about this product?
Help your customers identify what payments are accepted by your store.





- HUGE POWER IN A SMALL PACKAGE - 4000 Watts gives you all the power you need tucked away and out of sight, keeping your vehicle looking clean and neat. The G4000.5D has a power output of 420W x 2 CH bridged at 4-ohms, 220W x 4 CH at 2-ohms, 130W x 4 CH at 4-ohms
- WIDE RANGE OF APPLICATIONS - Ranging from 1-4 ohms, this amplifier will allow you to use a variety of speakers for your specific application. Never again will you need to worry about having the right amp for the job

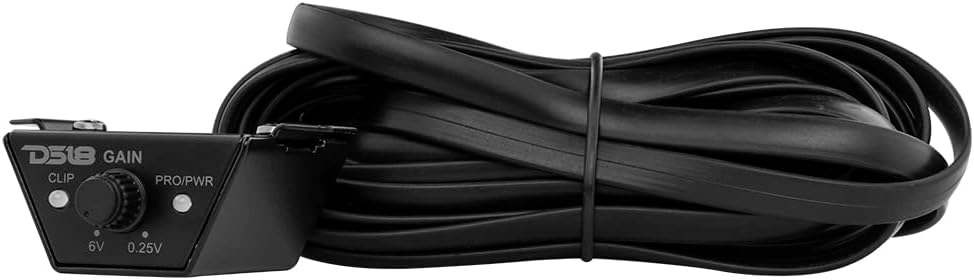

- BASS KNOB INCLUDED - The G4000.5D amplifier comes with a remote bass knob included. Always have control over the bass levels depending on what genre music you're listening to
- COMPACT MINI DESIGN - When we say compact we mean it. This powerhouse Amp is only 12.8'" x 4.72" x 1.96". With those dimensions, you can put this just about anywhere!
- MAXIMUM PERFORMANCE - Get superior sound quality with our new redesigned and renowned G4000.5D - Build to surpass the expectations of the competitors and enthusiasts in our community looking to complete the system of their dreams
SPECIFICATIONS
Power
Total Watts (Peak) 4000W
RMS Power @ 4 ohm 4 x 130W / SUB: 300W
RMS Power @ 2 ohm 4 x 220W / SUB: 600W
RMS Power @ 1 ohm SUB: 900W
RMS Power @ 4 ohm Bridge 2 x 420W
Audio
Frequency Response 20Hz-20Khz
Signal to Noise Ratio >90dB
Efficiency @ 4ohm 0.83
Damping Factor 78
Input Impedance 22K
Channel Separation 55dB
Total Harmonic Distortion (THD) 0.0001

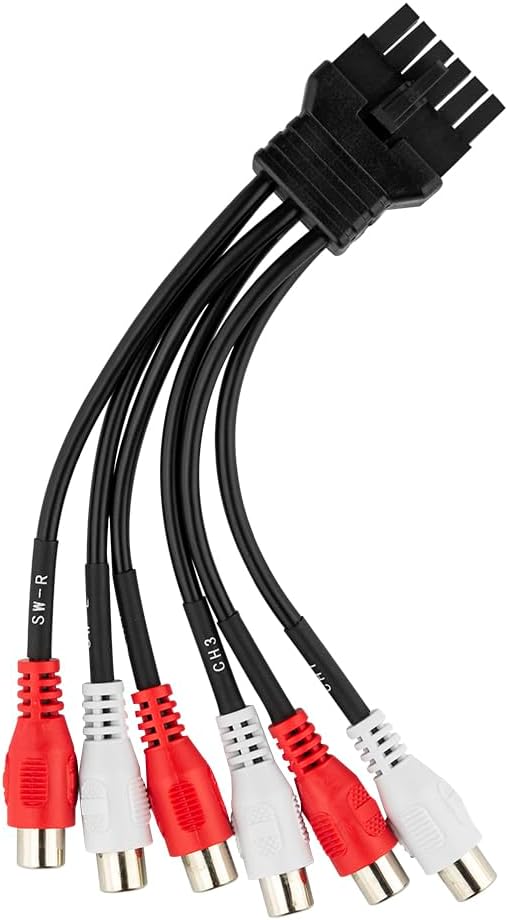

Low Level Input Range 0.25-6V
High Level Input No

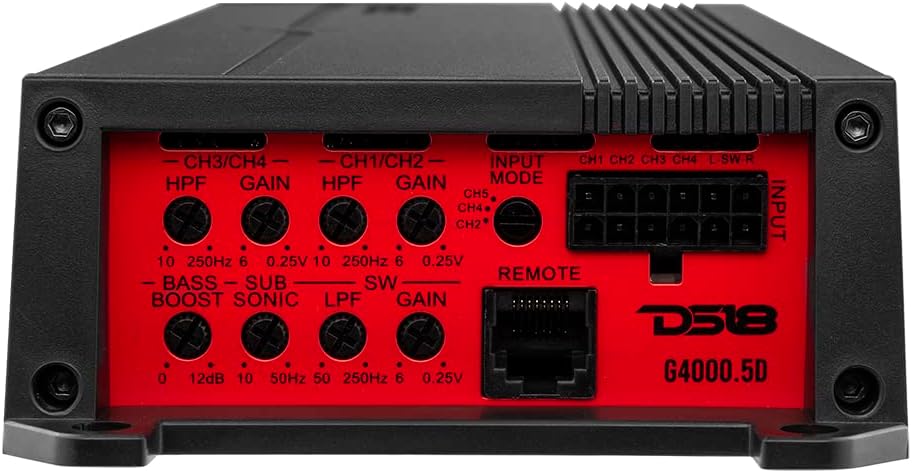

Selectable X-Over HPF/LPF
X-Over Filter Range HPF:10-250Hz / LPF:50-250Hz
Bass Boost Range 0-12dB
Bass Boost Frequency Fixed @ 45Hz
Infrasonic Filter 10-50Hz
Phase Selector No
Features
Amplifier Class Digital (D)
Amplifier Type 5CH Full Range
Number of Channels 5CH
Minimum Impedance 2ohm St / 4ohm Bridge / 1ohm Sub
Led Indicator Power / Protection / Clip

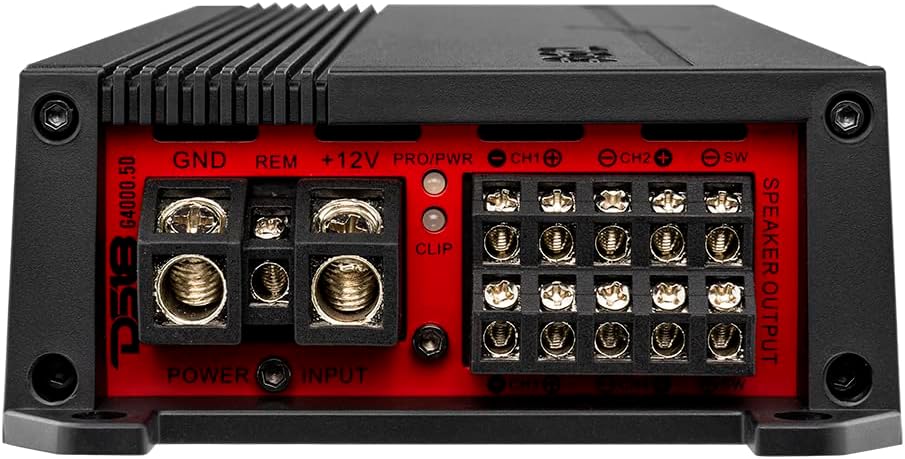

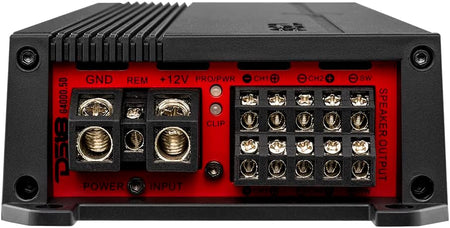

Power Input Terminal Size 4ga
Fuse Size 160A
Remote Level Control Yes
Cooling Fan No
Voltmeter No
Thermal Protection Yes
Over-Load Protection Yes
DC Output Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes
Clipping Protection Yes
Body Color / Finish Matte black
Measurement
Overall Length 12.8" / 325mm
Overall Wide 4.72" / 120mm
Overall Height 1.96" / 50mm
Heatsink Length 10.9" / 278mm
Gross Single Unit Weight 2.2KG
