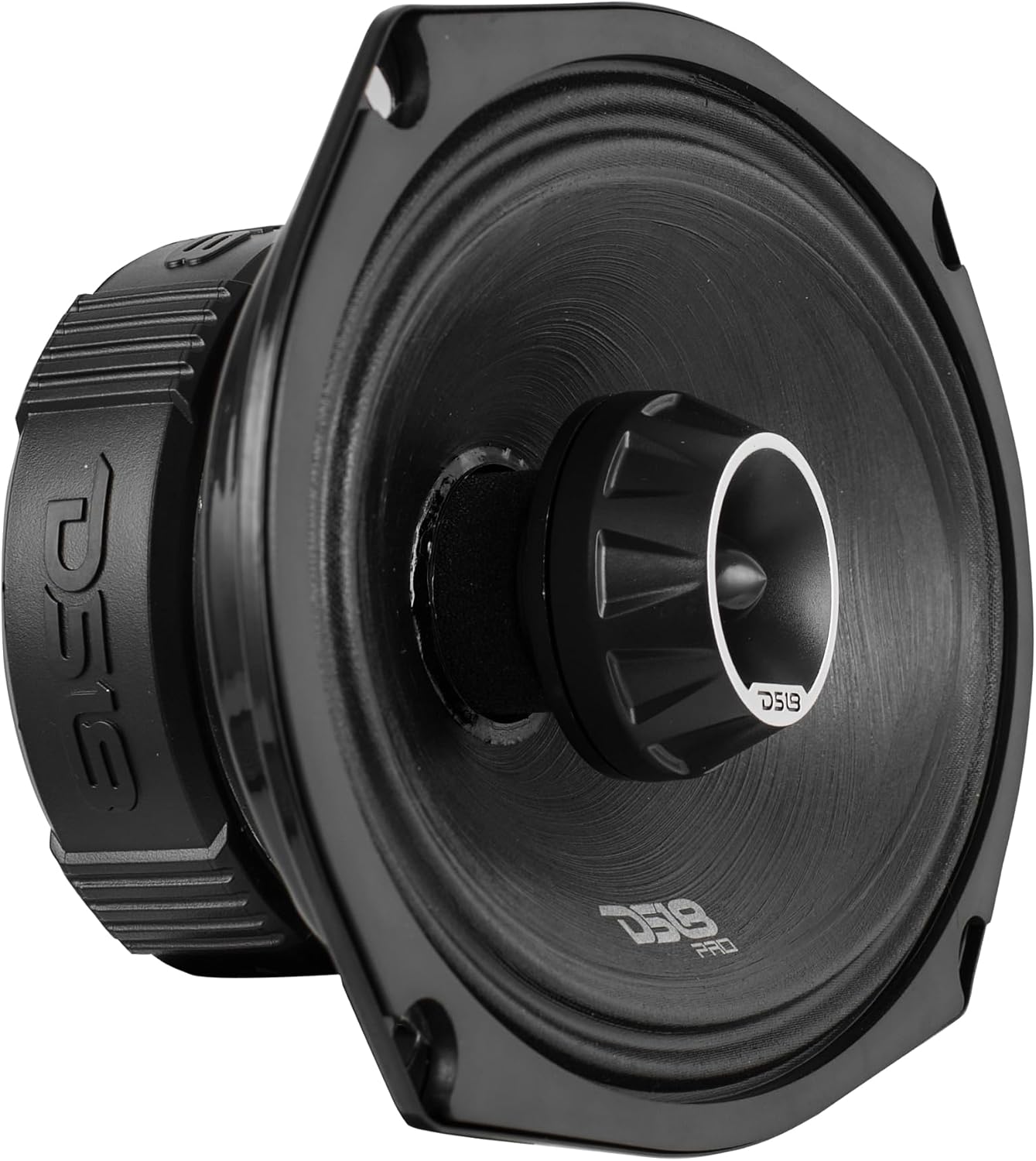

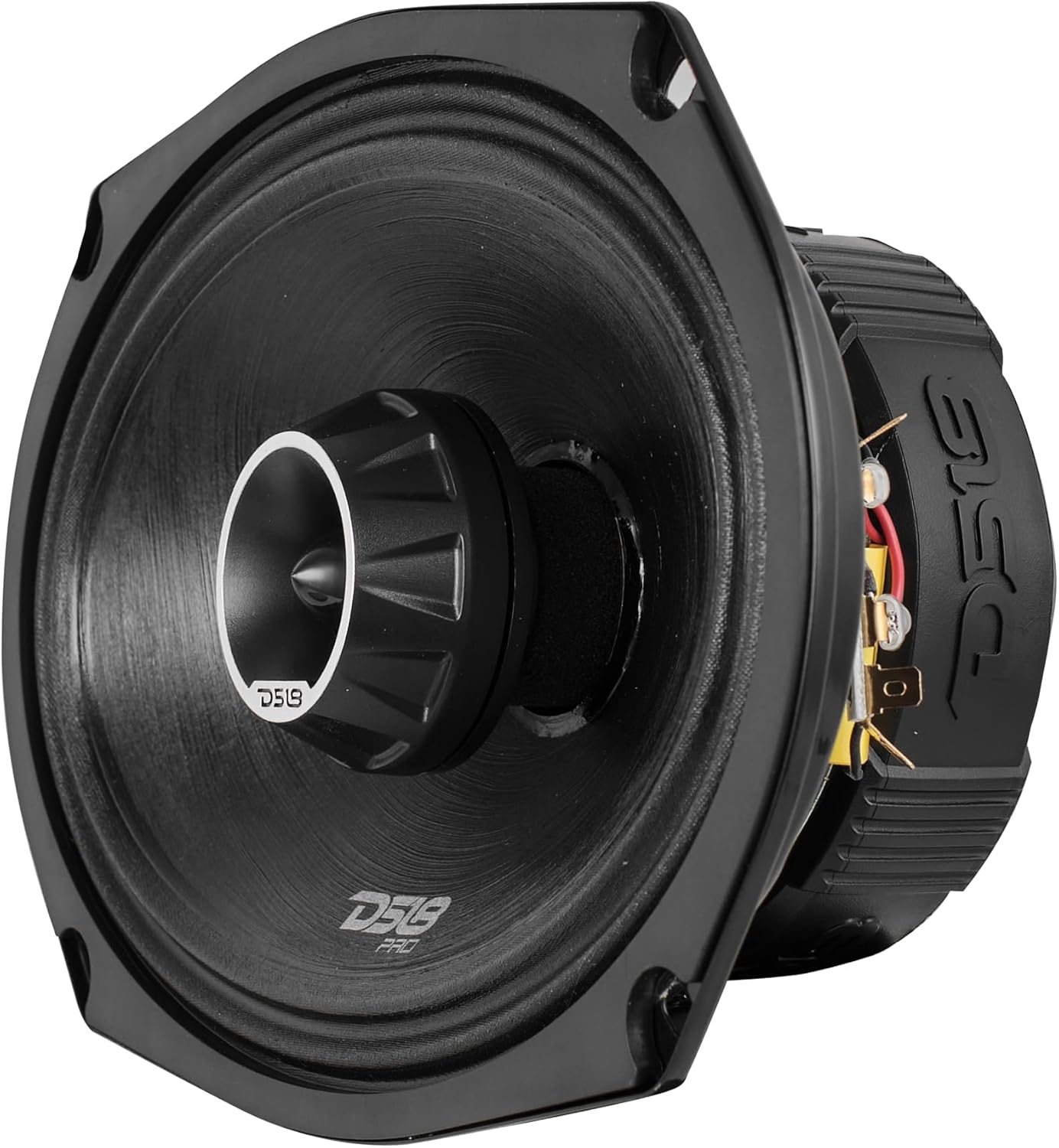

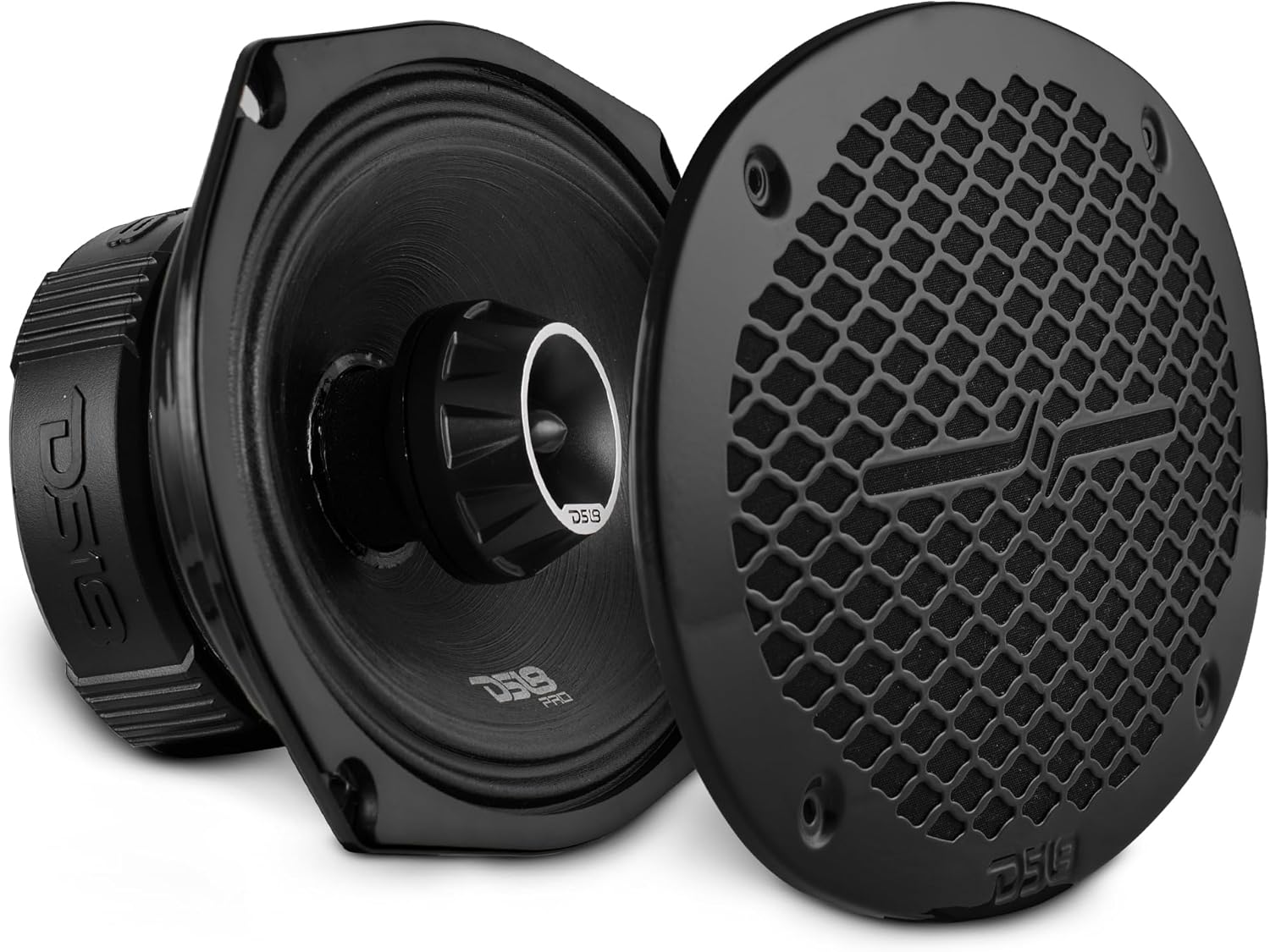

DS18 PRO-ZT69 Audio Coaxial 6x9-Inch Midrange Loudspeaker, Built-In Bullet Tweeter, Water Resistant, 550 Watts Max, 275 Watts RMS, 4-Ohm High-Output Car and Truck Speaker with Black Metal Mesh Grill (Single)
Usually ships within 24 hours
Regular price
Rs 10,000.00
inc. VAT
Couldn't load pickup availability

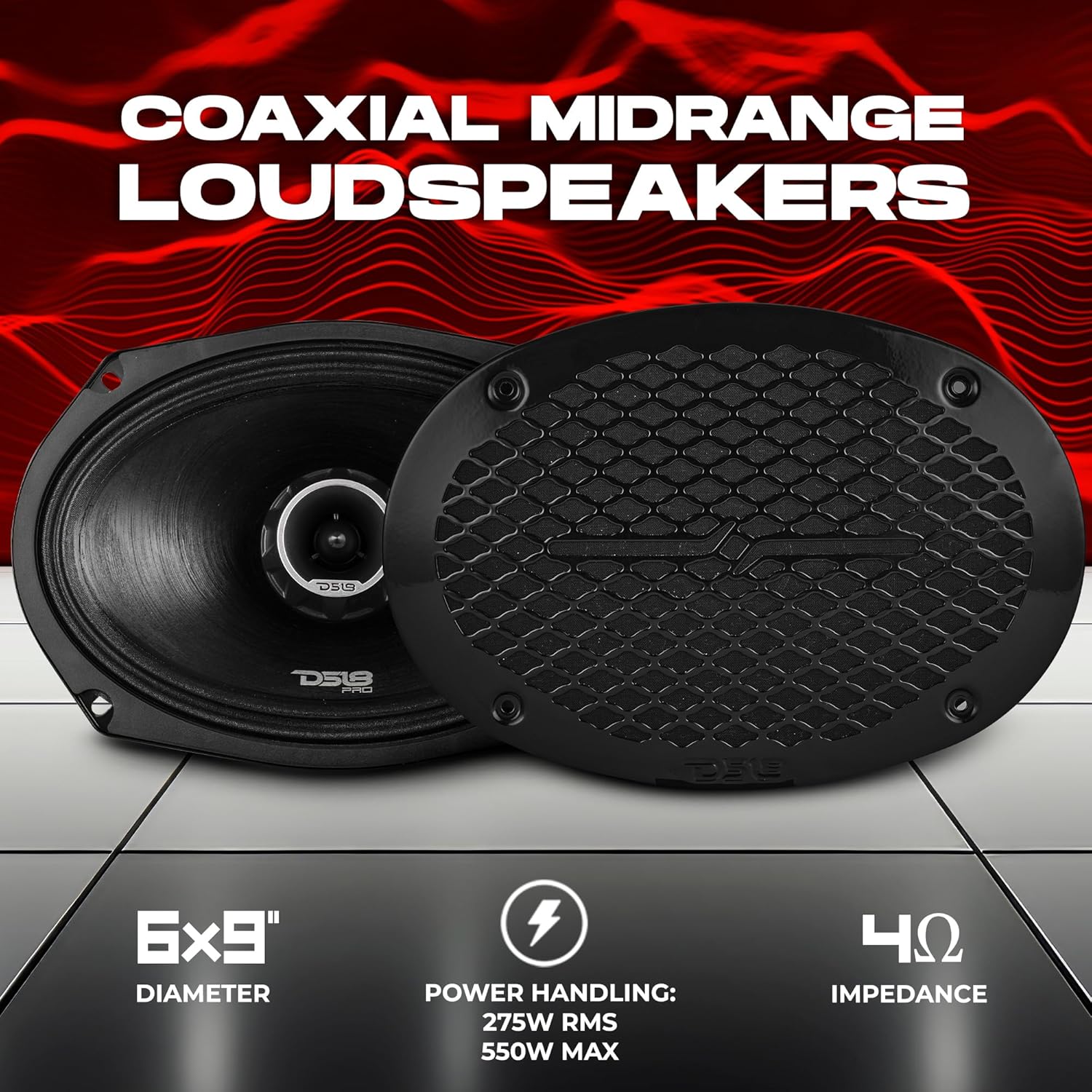

- Power Handling - The DS18 PRO-ZT69 delivers 275W RMS and 550W MAX power with a 4-ohm impedance and 98dB sensitivity, ensuring loud and efficient performance.
- Wide Frequency Response - With a 60Hz - 22KHz range and an integrated filter, it provides a smooth, balanced sound with a recommended 80Hz high-pass crossover for optimal clarity.

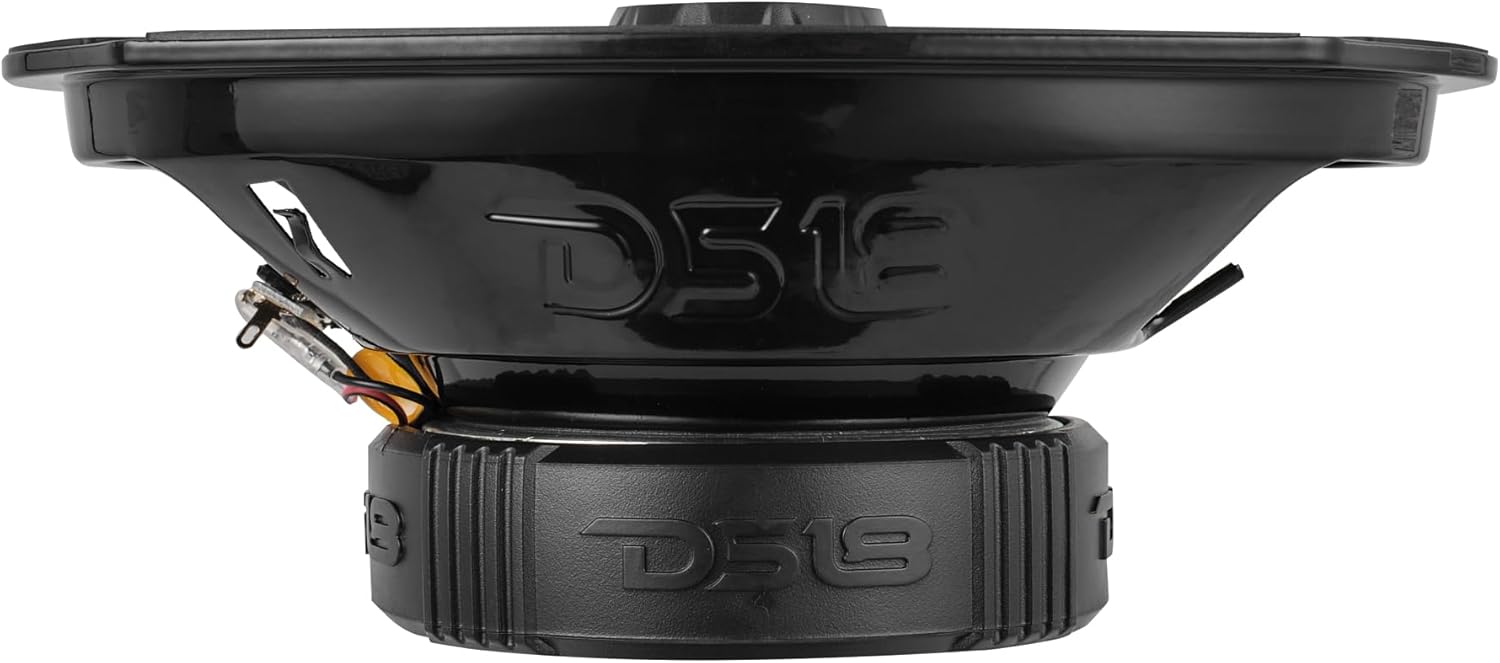

- Rugged Midrange Construction - Built with a steel basket, 1.5” Kapton voice coil, and a 27 oz ferrite magnet, it delivers deep bass and durability for long-lasting performance.

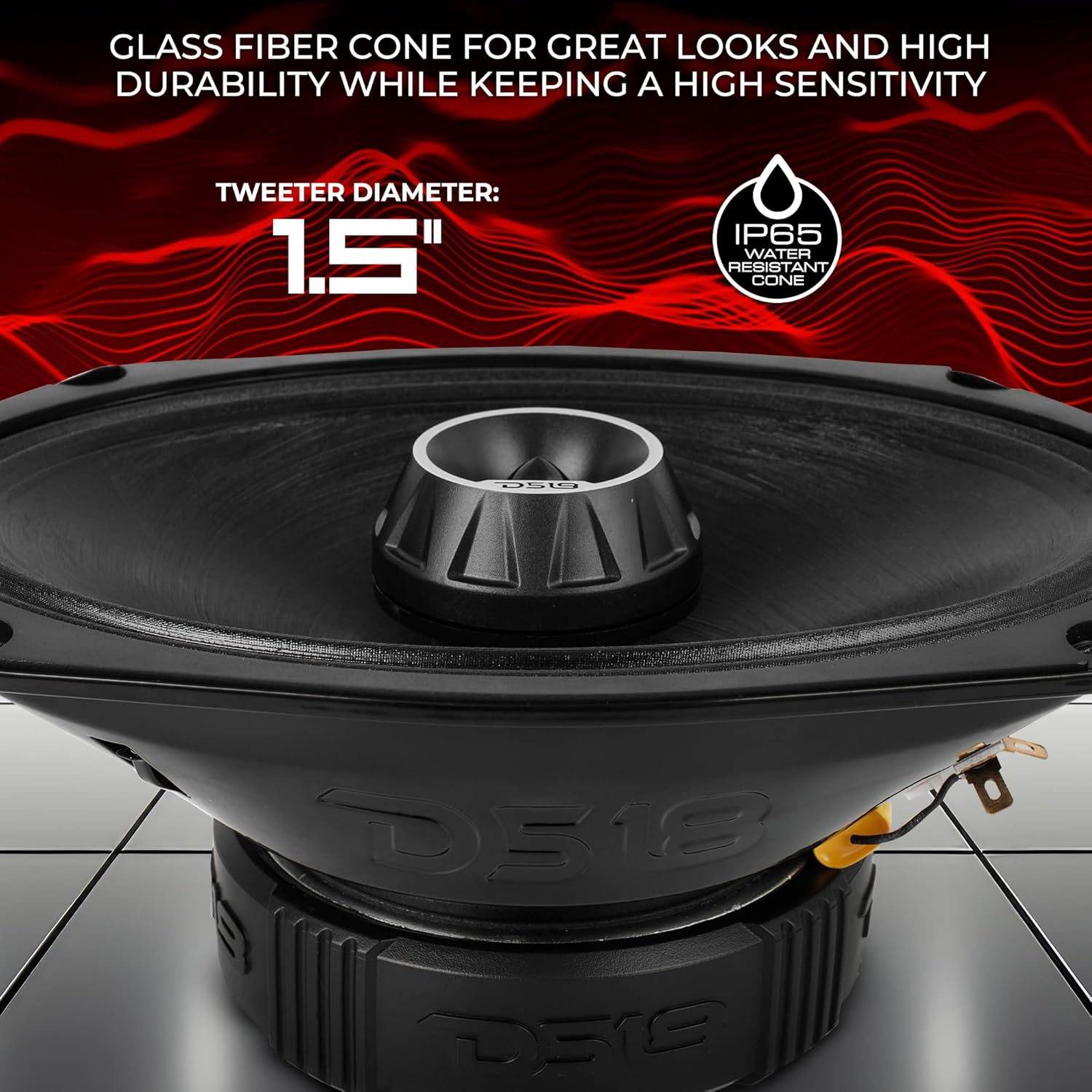

- Powerful Bullet Tweeter - Featuring a 1” aluminum alloy diaphragm, Neodymium (N38H) magnet, and Kapton voice coil, it ensures crisp and detailed high frequencies.
- Optimized Audio Performance - With a Vas of 14.6927 LTR, Xmax of 16mm, and Fs of 85Hz, it provides a well-balanced output for superior sound dynamics.

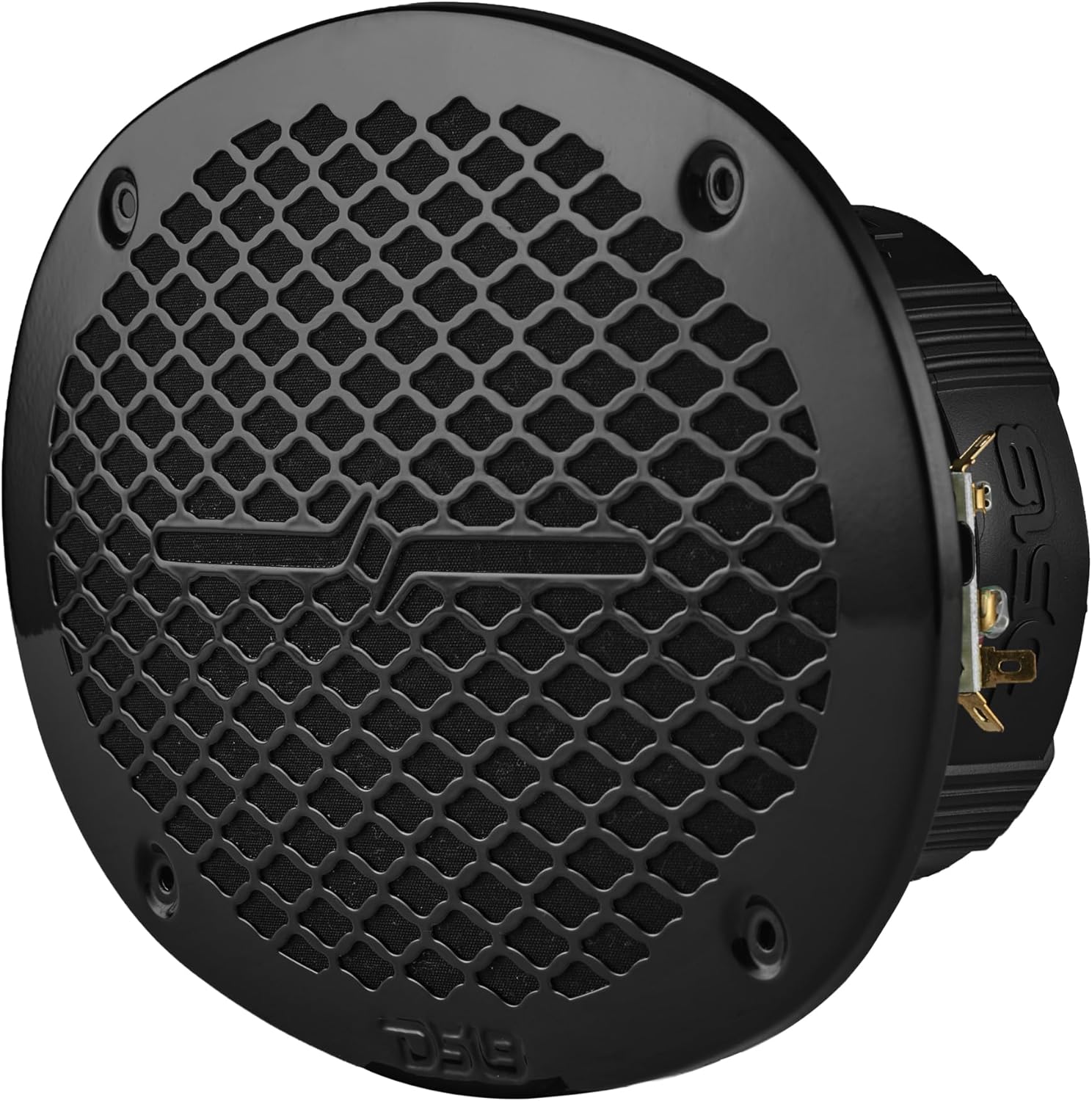

- Easy Installation - Designed with a 260 x 180 mm overall diameter, 85 mm mounting depth, and an included protective grill, it fits seamlessly into various setups while staying protected.
More information

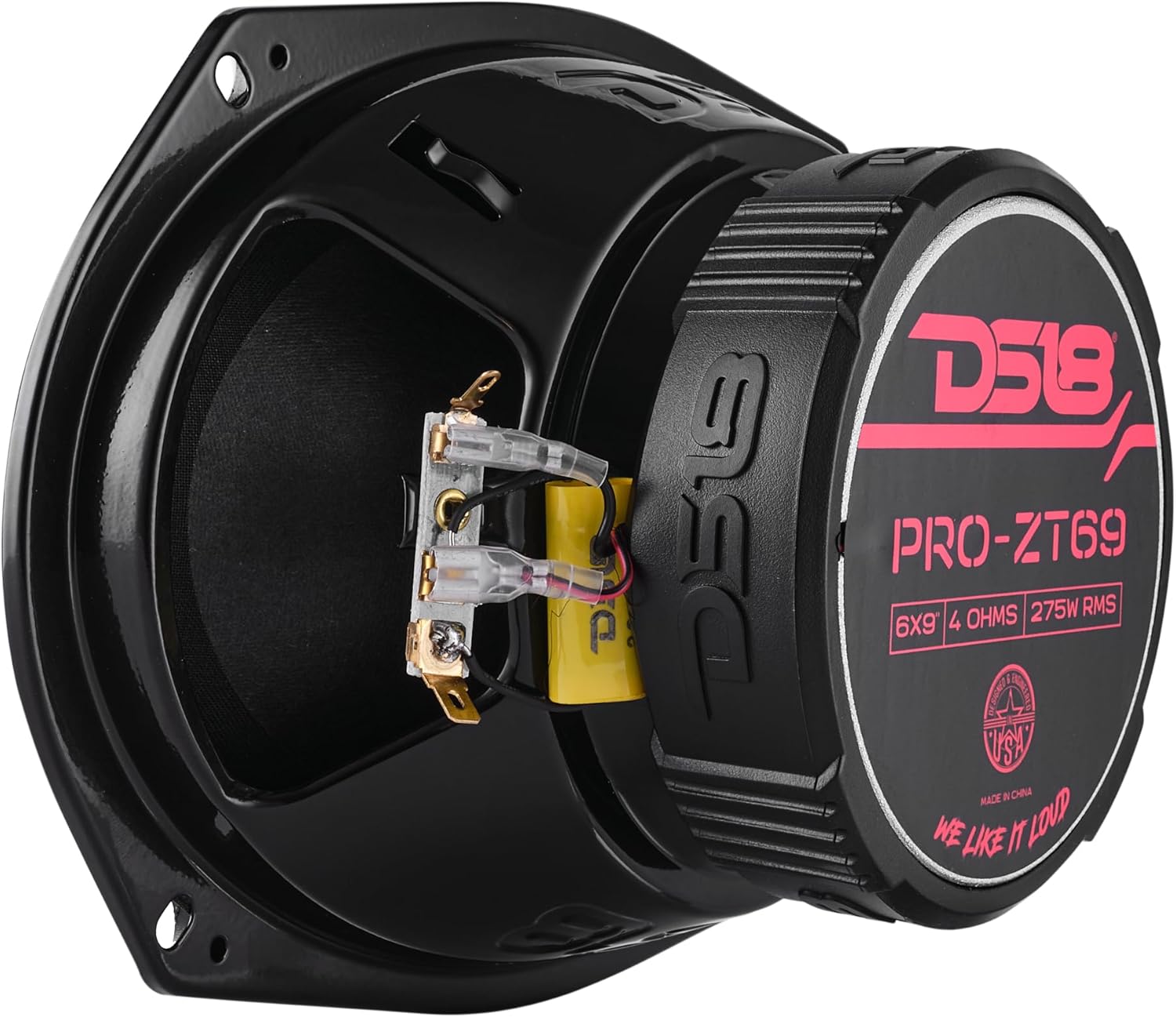

PRO-ZT69
General
Nominal Diameter: 6 x 9"
Nominal Impedance: 4 Ohms
RMS Power Handing: 275 Watts
MAX Power Handing: 550 Watts
Sensivity (1w/1m): 98dB
Frequency Response: 60Hz - 22KHz
Recommended Hi Pass Crossover: 80Hz
Midrange
Voice Coil Diameter: 1.5" (38.1mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Basket Material: Steel
Magnet Weight: 27 oz
Tweeter
Voice Coil Diameter: 1"
Voice Coil Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminum Alloy
Magnet Weight: 0.44 oz
Magnet Material: Neodymium
Thiele & Small Parameters
Equivalent Volume / Vas: 14.6927 LTR
Excursion / Xmax: 1.6mm
Free Air Resonance / Fs: 85Hz
Mechanical Factor / Qms: 3.906
Electrical Factor / Qes: 0.639
Total Factor / Qts: 0.602
DC Resistance / Re: 3.2 ohms
Measurements
Overall Diameter: 260 x 180mm (10.24 x 7.09")
Front Mount Baffle Cutout: 219 x 150 (8.62 x 5.91")
Mounting Depth: 85 mm (3.35")
Overall Depth: 97 mm (3.81")
