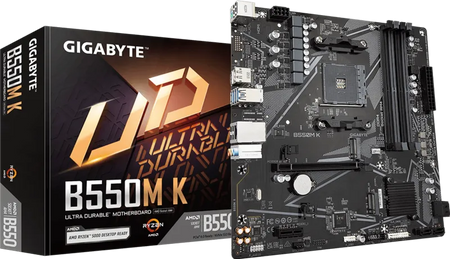

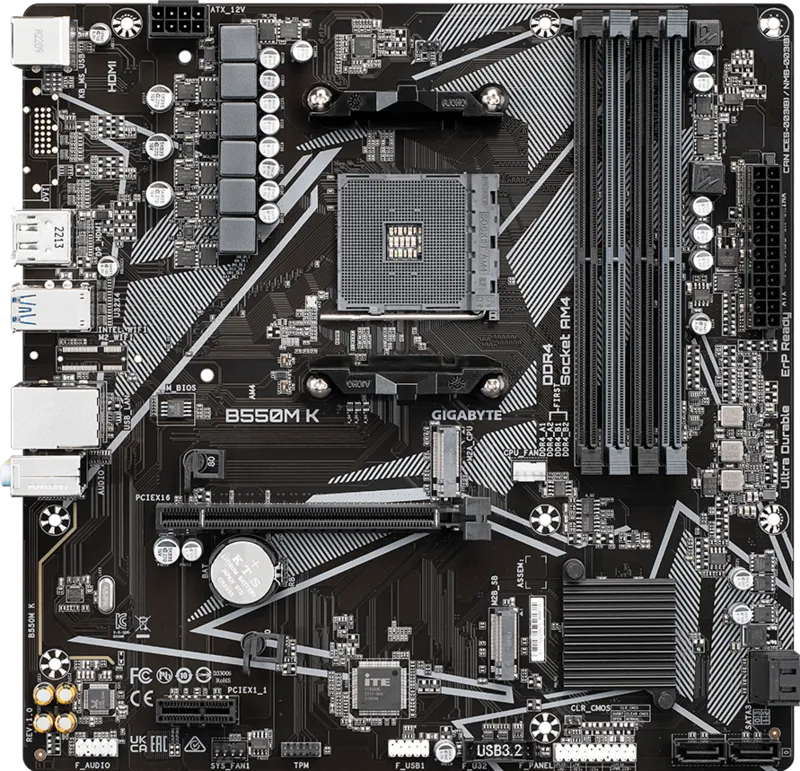

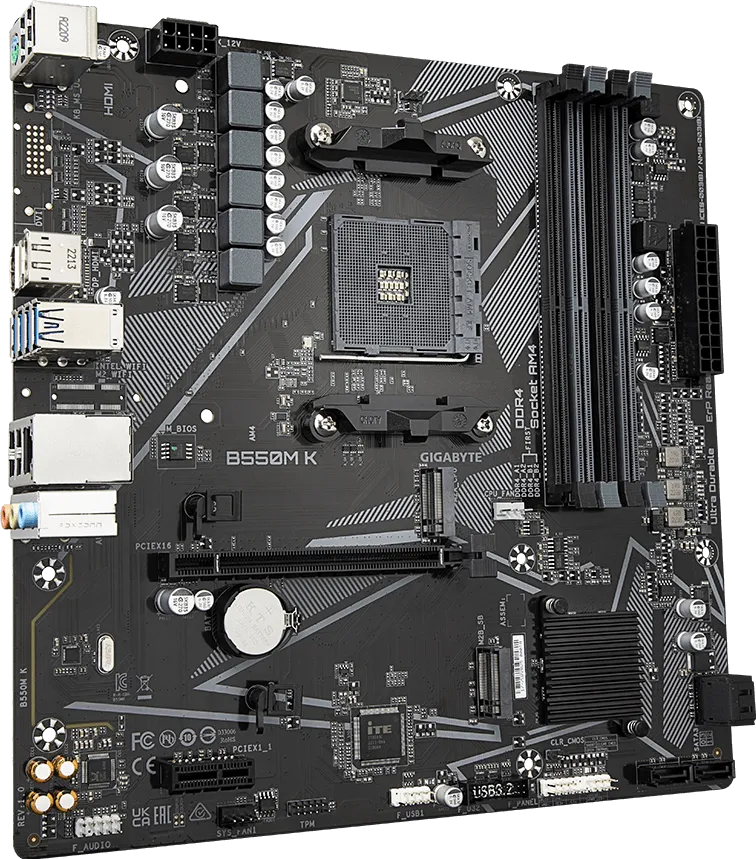

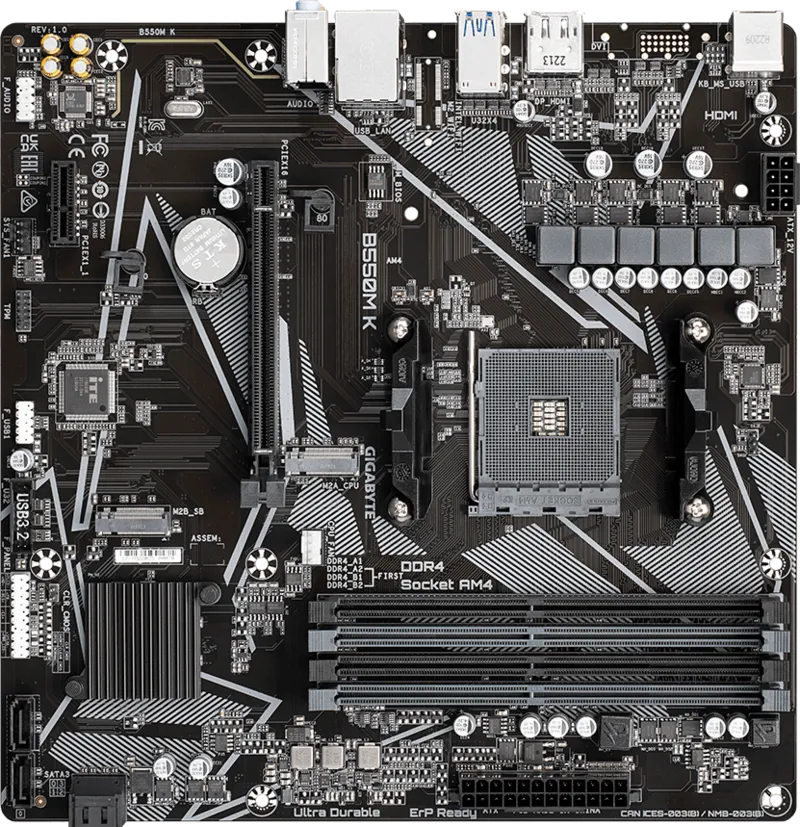

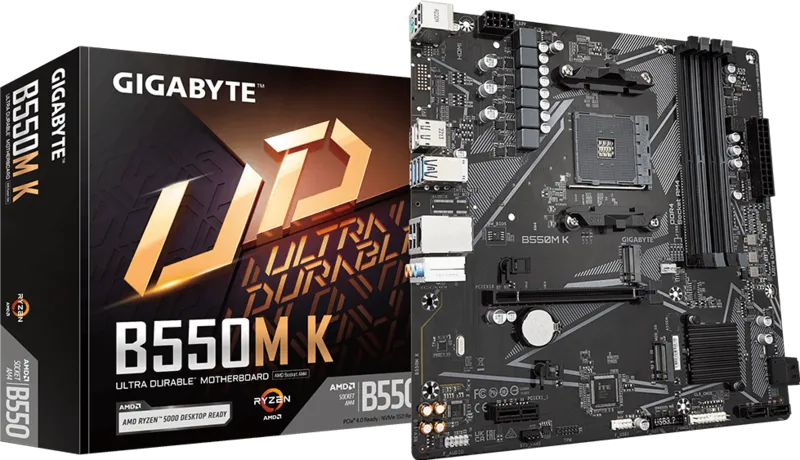

GIGABYTE B550M K AMD AM4 Micro-ATX Motherboard, Supports Ryzen 5000/4000/3000 Series Processors, DDR4, 3+3 Power Phase, 2X M.2, PCIe 4.0, USB 3.2 Gen 1, GbE LAN, Q-Flash

Out of stock
Usually ships within 24 hours
Rs 5,790.00 inc. VAT

Do you have questions about this product?

Ask an expert!

Payment details

    Help your customers identify what payments are accepted by your store.

    Description Shipping information Reviews (0)
    • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
    • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
    • Ultra Durable™ PCIe 4.0 Ready x16 Slot
    • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
    • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
    • GbE LAN with Bandwidth Management

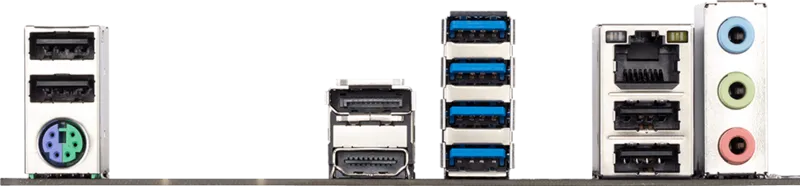

    • Rear DisplayPort and HDMI for Multi-display Support
    • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Anti-Sulfur Resistors Design

    SPEC OVERVIEW
    PERFORMANCE
    CONNECTIVITY
    COOLING
    AUDIO
    ULTRA DURABLE
    Solid Pin Power Connector
    USB 2.0*4
    DisplayPort + HDMI
    USB 3.2 Gen 1* 4
    GbE LAN
    Ultra Durable PCIe Slot
    1. PCIe® 4.0 Slot
    2. Running 1 x16
    Audio Noise Guard
    High-End Audio Capacitors
    Dual Channel DDR4, 4 DIMMs
    Supports AMD Ryzen™ Processors
    Dual M.2 Connectors
    1. 2280 M.2
    1. NVMe PCIe® 4.0/3.0 x4 & SATA Mode (from CPU)
    2. 1x PCIe 4.0® M.2 Slot
    2. 2280 M.2
    1. NVMe PCIe 3.0 x2 (from Chipset)
    SATA3*4
    Smart Fan 5 + FAN STOP
    1. 2 Fan Connectors
    2. 5 Temperature Sensors
    PERFORMANCE
    PCIe 4.0* Hardware Design
    PCIe 4.0 Slot
    PCIe 4.0 x16 slot with faster bandwidth and lower impedance.
    M.2 PCIe 4.0 Slot
    M.2 PCIe 4.0 x4 slot with Lower impedance.
    CONNECTIVITY
    Dual NVMe PCIe 4.0*/3.0 M.2 Connectors
    With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

    *Actual support may vary by CPU.



    GbE LAN with Bandwidth Management
    GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
    HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support
    HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.
    Note: Only New Gen AMD Ryzen™ with Radeon™ Graphics processors support displaying function.
    The Industry's Leading LAN Static-Electricity & Surge Protection
    GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
    COOLING

    Smart Fan 5

    With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.


    Fan Connectors
    Internal Temperature Sensors
    Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

    Temperature Sensors

    Hybrid Fan Headers
    ■ 5 Temperature Sensors
    ■ 2 Fan Pin Headers
    ■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
    ■ Interoperable Fans and Sensors
    ■ Intuitive UI for Fan Control
    FAN STOP
    Hybrid FAN Header
    Smart Fan 5 Software

    Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.


    Intelligent Fan Control Design
    AUDIO
    High-End Audio Capacitors
    GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
    Audio Noise Guard
    GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
    ULTRA DURABLE
    GIGABYTE Patented Double Locking Bracket
    Solid Pin Power Connectors
    B550 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.

    Solid Pin Power connector advantages
    1. Larger contact area for electricity
    2. More metal quantity to sustain higher power and generated heat
    3. Ultra durable and longer lifespan
    START SULFURIZATION PROTECTION

    Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

    The Industry's Leading Surge Protection
    GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.
    Humidity Protection Glass Fabric PCB
    There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.
    High Temperature Protection Lower RDS(on) MOSFETs Design
    GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.
    GIGABYTE EXCELLENCE
    GIGABYTE BIOS & Applications
    BIOS
    APP CENTER
    EasyTune
    @BIOS
    System Information Viewer
    Refreshed BIOS
    The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

    * Photos are for reference only. Product features may vary by model.
