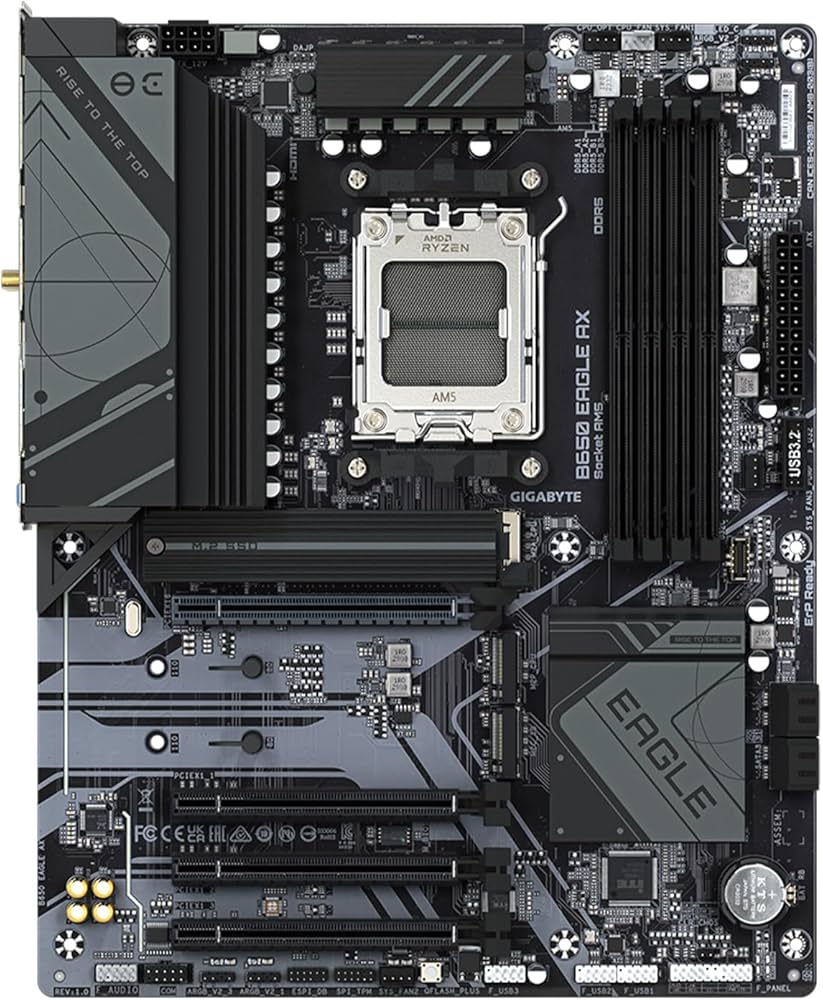

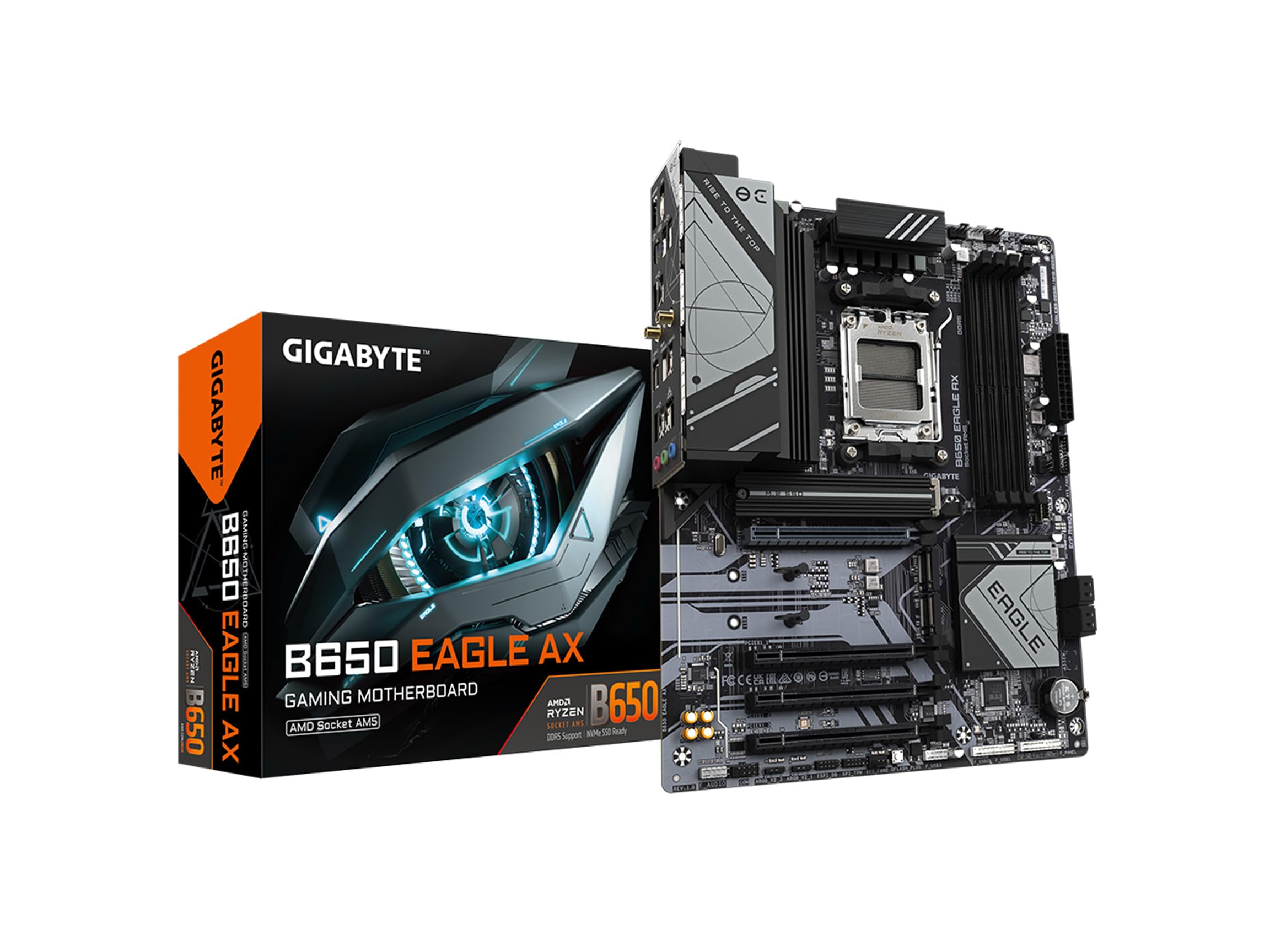

GIGABYTE B650 Eagle AX AM5 LGA 1718 AMD B650 ATX, DDR5 Triple M.2, PCIe 5.0, USB 3.2 Gen2x2 Type-C, AMD Wi-Fi 6E, Realtek GbE LAN

In stock
SKU: B650 EAGLE AX
Usually ships within 24 hours
Rs 13,990.00 inc. VAT
Product details
  • SKU B650 EAGLE AX
  • Barcode 889523041703

Do you have questions about this product?

Ask an expert!

Payment details

    Help your customers identify what payments are accepted by your store.

    Description Shipping information Reviews (0)




    B650 EAGLE AX

    • AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
    • Unparalleled Performance：12+2+2 Phases Digital VRM Solution
    • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
    • SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
    • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
    • EZ-Latch：PCIe x16 Slot with Quick Release Design
    • Fast Networks：Wi-Fi 6E 802.11ax & GbE LAN
    • Extended Connectivity：DP, HDMI, Rear USB® 10Gb/s
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

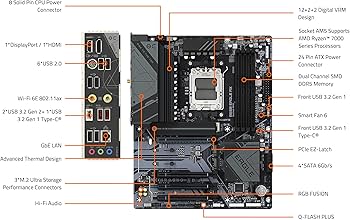

      • 8 Solid Pin CPU Power Connector

      • 6*USB 2.0

      • Wi-Fi 6E 802.11ax

      • 1*DisplayPort / 1*HDMI

      • 2*USB 3.2 Gen 2+ 1*USB 3.2 Gen 1 Type-C®

      • GbE LAN

      • Advanced Thermal Design

        • Fully Covered MOSFET Heatsinks
        • 5 W/mk Thermal Conductivity Pad
        • Integrated I/O Shield

      • 3*M.2 Ultra Storage Performance Connectors

        • 1*PCIe 5.0+2*PCIe 4.0 M.2
        • 1*M.2 Thermal Guard

      • Hi-Fi Audio

        • 8-Ch HD Audio
        • Audio Noise Guard
        • High-End Audio Capacitor

      • 12+2+2 Digital VRM Design

        • 6-Layer PCB
        • PCIe 5.0 Ready Mid-Loss PCB

      • Socket AM5 Supports
        AMD Ryzen™Series Processors

      • 24 Pin ATX Power Connector

      • Dual Channel SMD DDR5 Memory

      • Front USB 3.2 Gen 1

      • Smart Fan 6

        • 5*PWM/DC Fan Headers
        • Dual Fan Curve Mode

      • Front USB 3.2 Gen 1 Type-C®

      • PCIe EZ-Latch

      • 4*SATA 6Gb/s

      • RGB FUSION

        • 3*Addressable LED Header
        • 1*RGB LED Header

      • Q-FLASH PLUS

      Durable Performance

      GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

      Digital VRM Design

      The best VRM design ever built with the highest quality components.



      • 12+2+2 Phases digital PWM + Low RDS(on) MOSFETs
      • Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.



      * Photo for reference only.

      EXPO & XMP Support

      DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond*

      GIGABYTE is offering a tested and proven platform with extreme memory performance boost.




      Shielded Memory Routing

      All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

      EXPO & XMP Support

      Unlock DDR5 Voltage

      GIGABYTE Exclusive DDR5 Circuit Design Increases DDR5 memory overclocking performance and capability by transforming Native DDR5 memory module to Overclocked DDR5 memory.


      Secure Mode

      MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.

      • Unlocks Native DDR5 PMIC secure mode into programmable mode and controls Native DDR5 voltage with wide range.
      • Supports all PMIC vendors for maximum compatibility
      * Memory overclocking capabiblity will vary based on users' hardware configuration

      EXPO & XMP Support

      Maximum Compatibility for Memory O.C

      GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.

      EXPO & XMP Support

      DDR5 Auto Booster

      Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.

      EXPO & XMP Support

      AMD EXPO™ and Intel® XMP 3.0 User Profile

      Easily create overclocked memory performance by defining and creating your own SPD profile into Native and XMP 3.0 memory modules, or applying the pre-tuned profiles to XMP 3.0 User Profile.


      - Performance Simulation:

      • based on user input clock and timing parameters

      - User-defined profile can be:

      • - saved and cleared
      • - loaded either locally or from/to an external storage device
      • - carried to next computer
      • - share your memory parameters online


      Thermal

      Fully Covered MOSFET Heatsink

      3X Large Surface
      Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.

      Real One-piece Build
      TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.

      Thermal

      M.2 Thermal Guard

      The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

      Future Connectivity

      The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

      802.11ax Wi-Fi 6E

      The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

      * Photo for reference only.
      LEARN MORE

      GbE LAN with Bandwidth Management

      Helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

      PCIe 4.0 Hardware Design

      Featuring one or multiple PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

      * The picture is for reference and may vary by mode.

      Hi-Fi Audio

      * Photo for reference only.

      Easy Friendly

      Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

      EZ-Latch

      Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.


      Q-Flash Plus

      Update the BIOS easily without installing the CPU, memory, and graphics card.

      • STEP 1: PPlug the 24-pin and 8-pin power supply cables into the motherboard.
      • STEP 2: Download the motherboard BIOS file and rename it to "gigabyte.bin". Save it to a USB flash drive formatted in FAT32. Insert the USB flash drive into the Q-FLASH PLUS USB port.
      • STEP 3: Press the Q-FLASH PLUS button, and the motherboard will start updating the BIOS automatically.

      Smart Fan 6

      ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.

      • High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.
      • Precision Control: Multiple temperature/fan speed control points for precise fan curve.
      • Dual Curve Mode: Slope/Stair dual mode for different user scenario.
      • Fan Stop: Fan can stop completely below users' specified temperature point.

      Smart Fan 6 BIOS UI

      • Enhance Fan Curve UI : Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.
      • Slope/Stair Dual Graph Mode : Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.
      • Manual Input : For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.
      • EZ Tuning : Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.
      • Fan Curve Profile : Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

      Note: The picture is for reference and may vary by model.

      OC GUIDE

      GIGABYTE Control Center

      Unified software platform for all Gigabyte supported products.

      • - Intuitive user interface
      • - Modularized control
      • - Auto update
