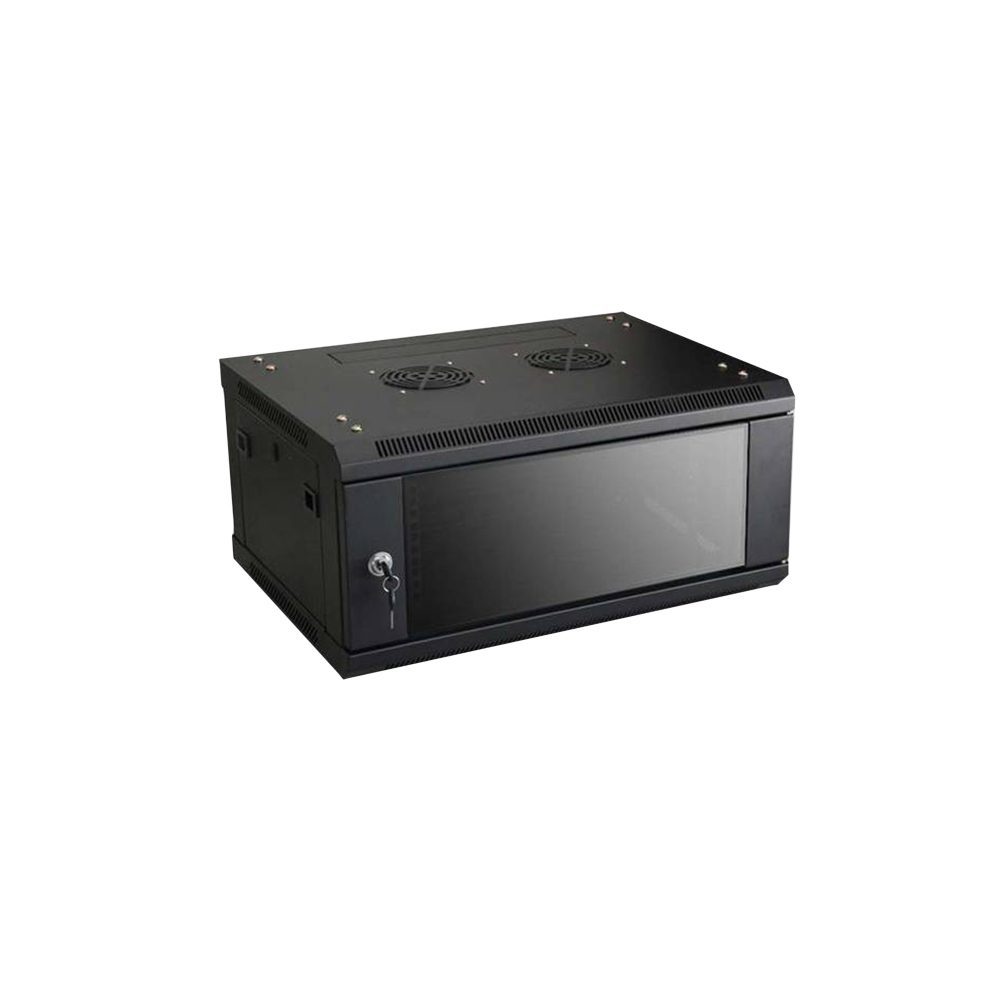

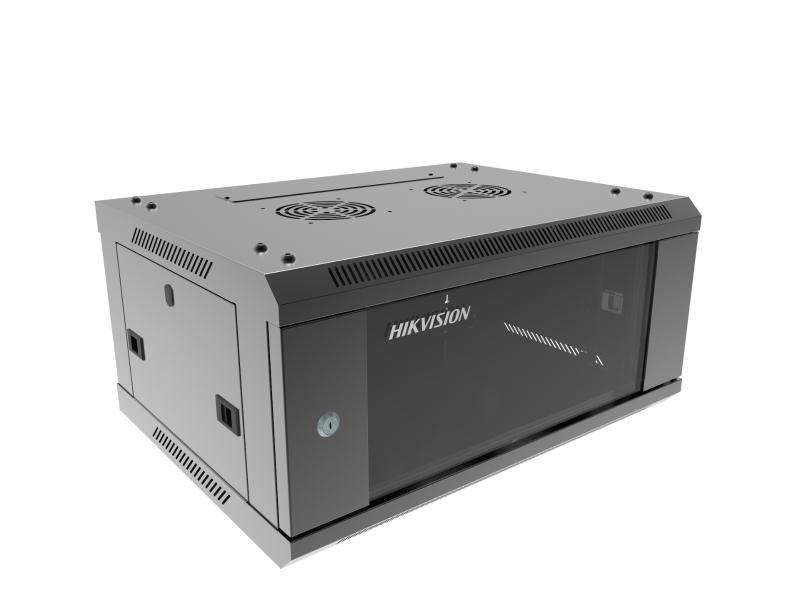

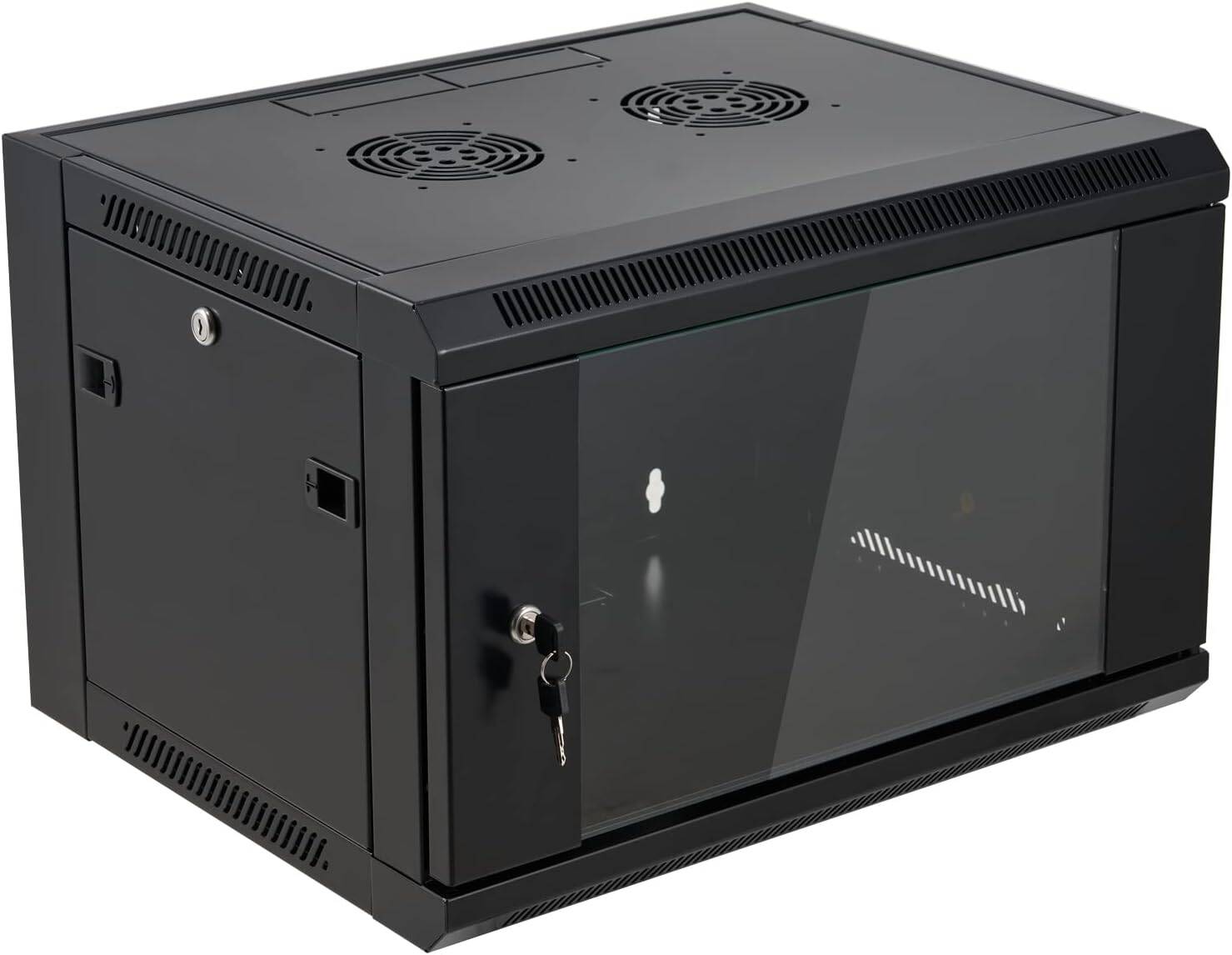

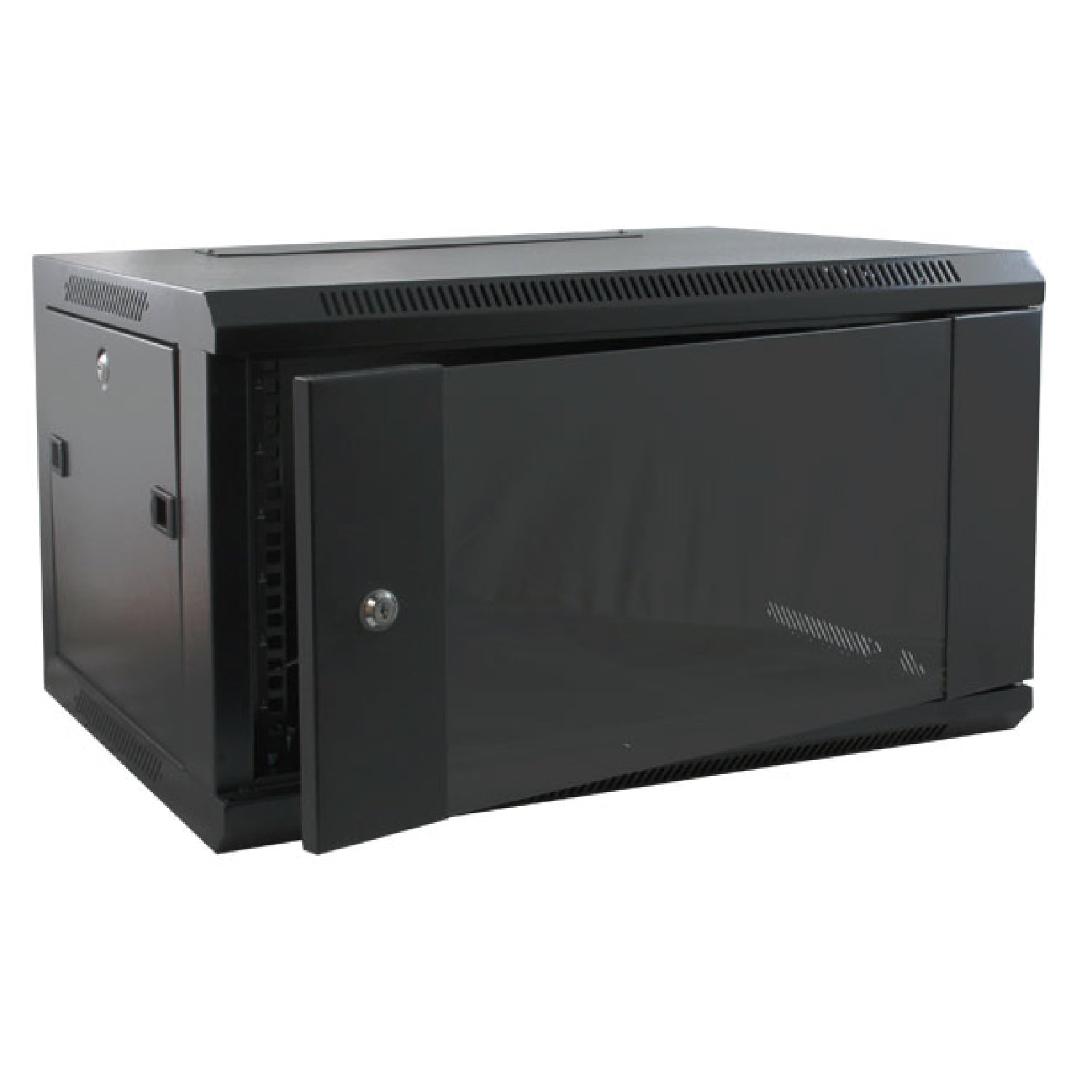

Hikvision 4U 19-Inch Wall-Mount Data Cabinet (DS-XS6404-S/B)

The Hikvision 4U Wall-Mount Data Cabinet (Model: DS-XS6404-S/B, often locally referred to under the DC4 series) is a professional, compact enclosure engineered to securely house, protect, and organize standard 19-inch rack-mounted networking, IT, and CCTV surveillance equipment. With its space-saving 4U internal capacity and streamlined 600 mm width by 450 mm depth structure, this data cabinet is an ideal structural layout for small office network closets, retail telecom points, and centralized residential smart home systems.

Built for heavy-duty protection and thermal efficiency, the frame is manufactured from high-quality SPCC cold-rolled steel with an industry-grade matte black powder-coated finish. It features a toughened 4 mm glass front door with an integrated key-lock security mechanism to safeguard sensitive components from unauthorized access. Removable side panels simplify ongoing cable adjustments and hardware maintenance, while multi-directional cable entry slots and passive ventilation patterns ensure your equipment runs cool and stays neatly routed.

Key Features

• Standard 19" Rack Compatibility: Seamlessly accommodates 4U of rackmount equipment including patch panels, network switches, compact NVRs, routers, and power distribution units (PDUs).

• Rugged SPCC Steel Build: Fabricated using precision CNC machinery from premium SPCC cold-rolled steel, offering robust structural stability with a safe static load capacity of up to 40 kg.

• Secured Toughened Glass Door: Equipped with a thick 4 mm front glass door providing high visual clarity for status checks, paired with a physical security key lock and a wide 78-degree opening angle for easy access.

• Optimized Thermal Airflow: Built with cooling vent cutouts across the top and bottom panels to encourage natural passive heat dissipation, completely ready for optional active cooling fan setups.

• Easy Access Side Panels: Designed with handy removable side panels allowing installers to quickly route wiring, clip ties, and manage deep-set equipment during hardware deployment.

• Flexible Cable Routing Paths: Features multiple pre-punched cable entry openings at both the top roof and bottom floor plates, ensuring clean, organized input and output wire pathways.

Technical Specifications

• Model: DS-XS6404-S/B (DC4 Series)

• Cabinet Type: Wall-Mount / Desktop Standalone Rack Cabinet

• Rack Unit Capacity: 4U

• Equipment Mounting Width: Standard 19-Inch (Compatible with ETSI standards)

• Static Load Rating Capacity: 40 kg (Maximum)

• Front Door Profile: 4 mm Toughened Glass with Security Key Lock

• Side Panels: Removable Structure with Easy-Handy Latches

• Frame & Component Material: High-Grade SPCC Cold-Rolled Steel

• Material Thickness: Frame/Panels: 1.2 mm | Mounting Angles: 2.0 mm

• Surface Coating Finish: Matte Black Epoxy Powder Paint (RAL 9005)

• Cabinet Dimensions (W × D × H): 600 mm × 450 mm × 281 mm

• Optional Accessory Compatibility: Fixed Trays/Shelves (DS-XSPB04-S/B), Standard Rack Fans, and 19" Horizontal PDUs

• Target Applications: CCTV Surveillance Hubs, Small Business IT Networks, Structured Cabling Points, and Telecom Closets
