Hikvision 6U 19-Inch Wall-Mount Data Cabinet (DS-XS6406-S/B)

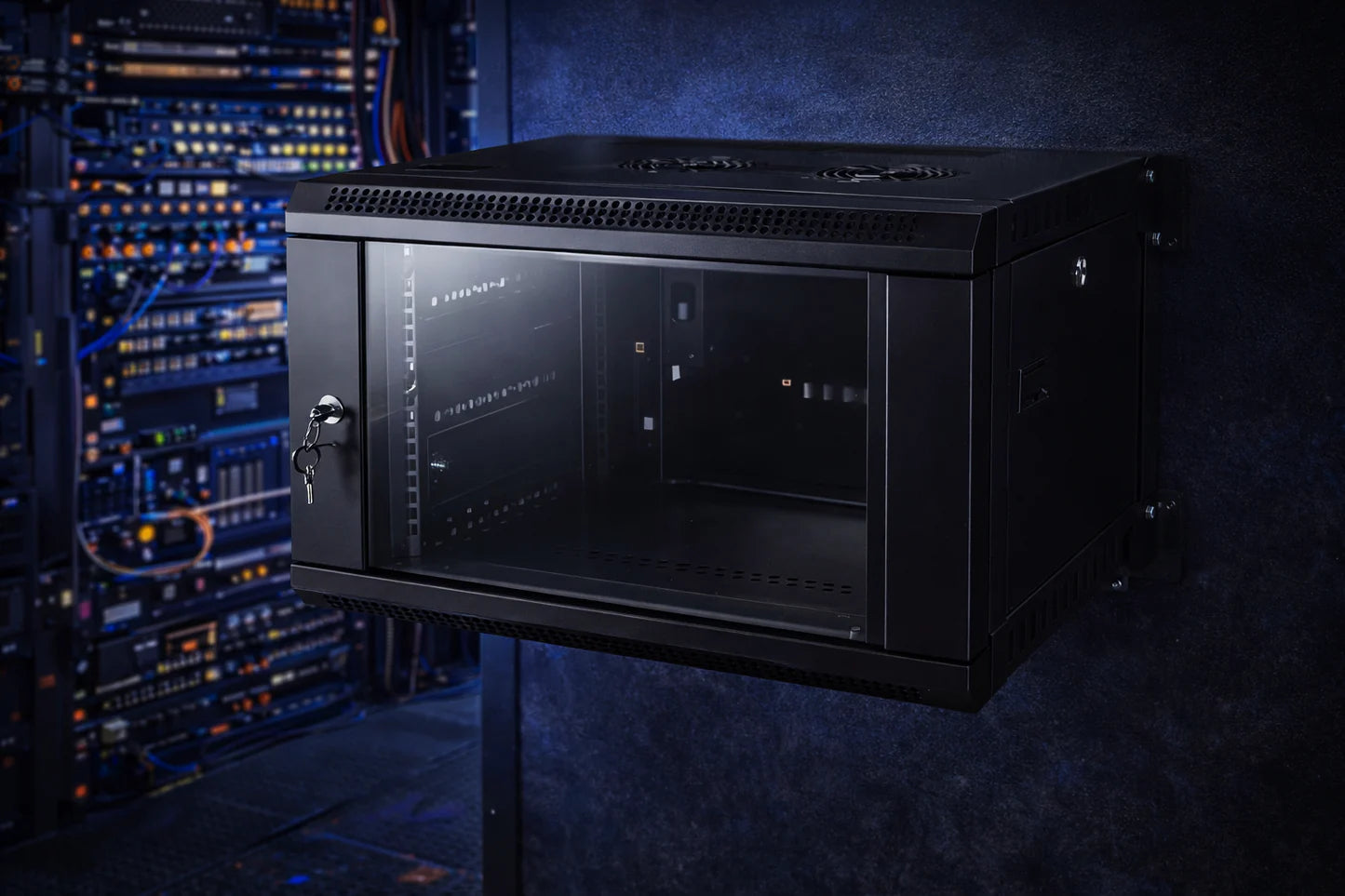

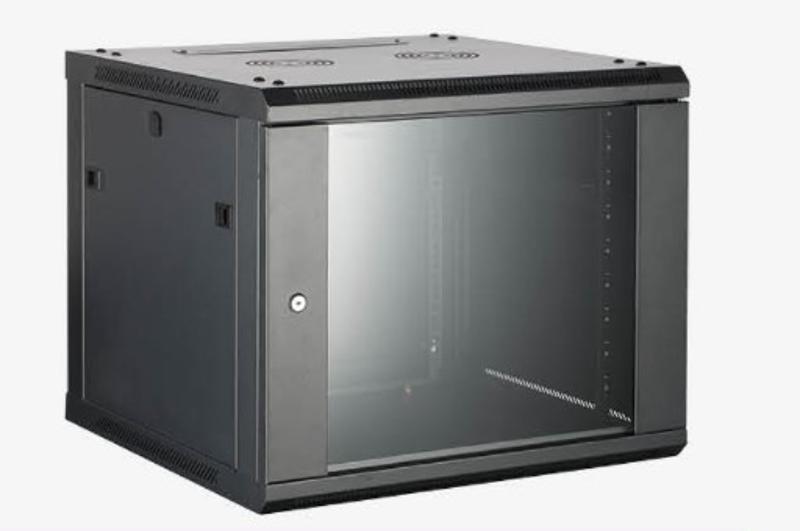

The Hikvision 6U Wall-Mount Data Cabinet (Model: DS-XS6406-S/B, locally designated under the DC6 series) is a highly reliable, professional-grade equipment enclosure designed to securely mount, organize, and protect standard 19-inch networking, telecommunications, and CCTV surveillance devices. Providing an expanded 6U of vertical internal capacity with a structural footprint of 600 mm width and 450 mm depth, this network cabinet is perfectly sized for intermediate network hubs, commercial server closets, and centralized multi-channel security systems.

Manufactured from high-grade SPCC cold-rolled steel with a sleek matte black powder-coated finish, the cabinet is built to handle everyday wear and tear while providing excellent structural stability. It is outfitted with a 4 mm toughened glass front door featuring a secure key-lock mechanism to prevent tampering with sensitive hardware. To streamline installation and ongoing management, the enclosure features quick-release removable side panels for easy hardware access, alongside multiple pre-punched cable entry paths and dedicated ventilation punch-outs to ensure your equipment runs under stable thermal conditions.

Key Features

• Standard 19" Rack Capacity: Provides 6U of internal vertical mounting space, effortlessly accommodating network switches, PoE injectors, patch panels, power distribution units (PDUs), and 8 or 16-channel network video recorders (NVRs).

• Rugged SPCC Steel Construction: Built with precision CNC-machined SPCC cold-rolled steel, giving the frame an impressive static load capacity of up to 40 kg when securely wall-mounted.

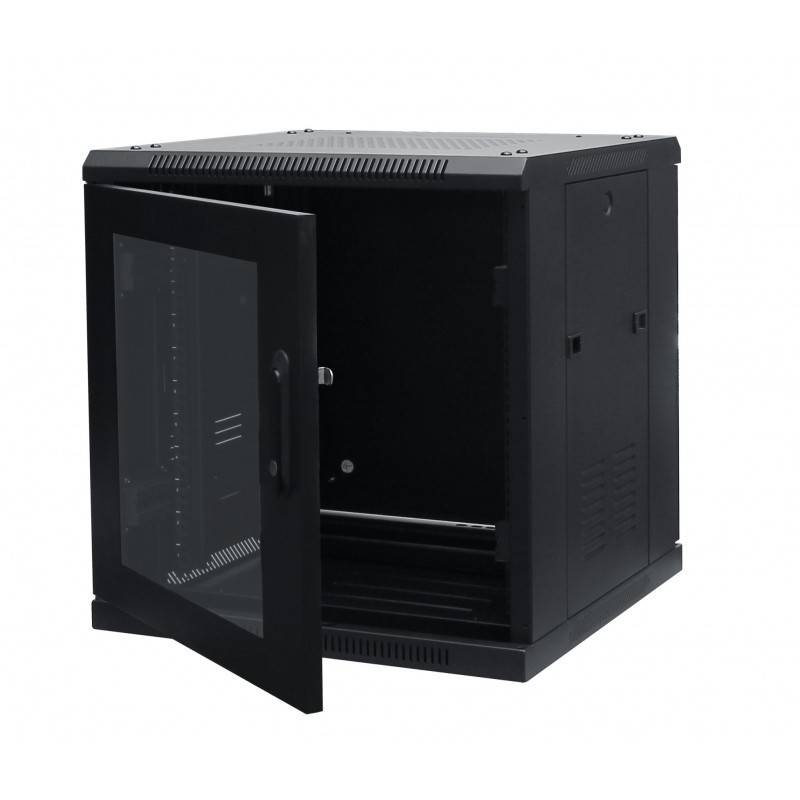

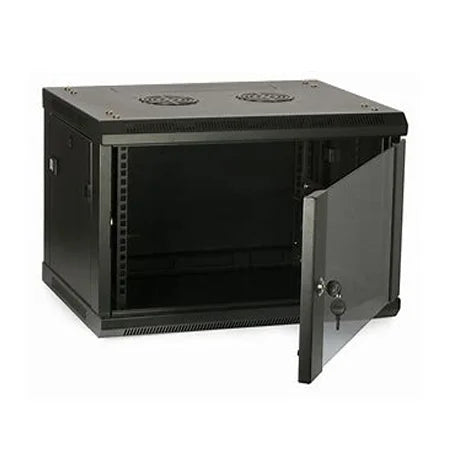

• Secured Toughened Glass Front: Features a 4 mm thick clear toughened glass door with a reliable physical cylinder lock, allowing for instant equipment status monitoring while keeping unauthorized hands out.

• Advanced Thermal Management: Includes integrated passive ventilation slots along the top cover and base panel to encourage natural airflow, with pre-drilled brackets ready to mount active cooling fans if required.

• Removable Quick-Access Side Panels: Designed with convenient removable side walls, making it simple for technicians to terminate cables, clip zip-ties, and service deep-set hardware from multiple angles.

• Flexible Dual-Path Cable Entry: Equipped with pre-punched, customizable cable entry knockouts on both the top roof and bottom floor plates for clean, un-kinked wiring pathways.

Technical Specifications

• Model: DS-XS6406-S/B (DC6 Series)

• Cabinet Type: Wall-Mount / Desktop Standalone Enclosure

• Rack Unit Capacity: 6U

• Equipment Mounting Width: Standard 19-Inch Industrial Profile

• Static Load Rating Capacity: 40 kg (Maximum supported weight)

• Front Door Profile: 4 mm Toughened Glass with Cylinder Security Lock

• Side Panels: Removable Quick-Release Latched Panels

• Frame & Component Material: Premium SPCC Cold-Rolled Steel

• Material Thickness: Frame & Panels: 1.2 mm | Internal Mounting Profiles: 2.0 mm

• Surface Coating Finish: Degreasing, Phosphating, and Matte Black Epoxy Powder Paint (RAL 9005)

• Cabinet Dimensions (W × D × H): 600 mm × 450 mm × 370 mm

• Accessory Compatibility: Standard 19" Fixed Shelves, Server Fans, and Rackmount PDUs

• Target Applications: Medium-Scale CCTV Surveillance Hubs, Corporate Network Closets, Structured Cabling Points, and Smart Automation Hubs
