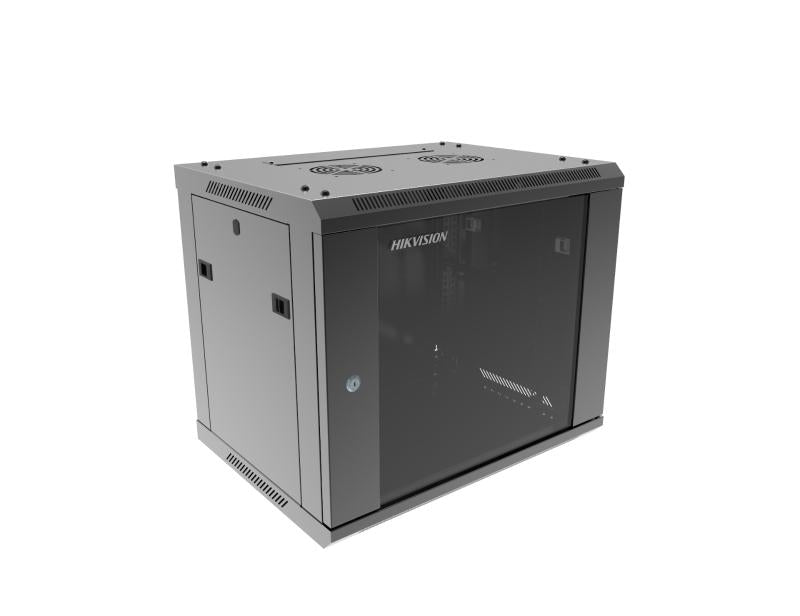

Hikvision 9U 19-Inch Wall-Mount Data Cabinet (DS-XS6409-S/B)

The Hikvision 9U Wall-Mount Data Cabinet (Model: DS-XS6409-S/B, locally designated under the DC9 series) is an expanded, high-capacity equipment enclosure designed to securely house, organize, and protect standard 19-inch networking, telecommunications, and CCTV surveillance equipment. Offering a spacious 9U of vertical internal capacity with a standard 600 mm width and 450 mm depth footprint, this network cabinet is perfectly suited for complex multi-device network hubs, commercial server rooms, and heavy-duty multi-channel NVR security systems.

Manufactured from high-grade SPCC cold-rolled steel with a sleek matte black powder-coated finish, this cabinet is built to support larger equipment loads while ensuring top-tier structural stability. It features a 4 mm toughened glass front door equipped with a secure key-lock mechanism to prevent unauthorized tampering with critical hardware. To streamline installation and system overhauls, the enclosure includes quick-release removable side panels for easy hardware access, multi-directional pre-punched cable entry paths, and dedicated passive ventilation patterns to keep high-heat components running under optimal thermal conditions.

Key Features

• Expanded 9U Rack Space: Provides 9U of vertical mounting capacity, effortlessly accommodating multiple network switches, high-port patch panels, larger 16 or 32-channel network video recorders (NVRs), UPS backup systems, and horizontal power distribution units (PDUs).

• Rugged SPCC Steel Construction: Built from precision CNC-machined SPCC cold-rolled steel, giving the frame an impressive static load capacity of up to 40 kg when securely wall-mounted.

• Secured Toughened Glass Front: Features a 4 mm thick clear toughened glass door with a reliable physical cylinder lock, allowing for instant equipment status monitoring while keeping sensitive data gear protected.

• Advanced Passive Ventilation: Includes integrated ventilation slots along the top cover and base panel to encourage natural airflow and heat dissipation, with pre-drilled brackets ready for active cooling fan kits.

• Removable Quick-Access Side Panels: Designed with convenient removable side walls, making it simple for technicians to run complex cable terminations, tie down bundles, and service deep-set hardware from multiple angles.

• Flexible Dual-Path Cable Entry: Equipped with pre-punched, customizable cable entry knockouts on both the top roof and bottom floor plates for clean, un-kinked wiring pathways.

Technical Specifications

• Model: DS-XS6409-S/B (DC9 Series)

• Cabinet Type: Wall-Mount / Desktop Standalone Enclosure

• Rack Unit Capacity: 9U

• Equipment Mounting Width: Standard 19-Inch Industrial Profile

• Static Load Rating Capacity: 40 kg (Maximum supported weight)

• Front Door Profile: 4 mm Toughened Glass with Cylinder Security Lock

• Side Panels: Removable Quick-Release Latched Panels

• Frame & Component Material: Premium SPCC Cold-Rolled Steel

• Material Thickness: Frame & Panels: 1.2 mm | Internal Mounting Profiles: 2.0 mm

• Surface Coating Finish: Degreasing, Phosphating, and Matte Black Epoxy Powder Paint (RAL 9005)

• Cabinet Dimensions (W × D × H): 600 mm × 450 mm × 501 mm

• Accessory Compatibility: Standard 19" Fixed Shelves, Server Fans, and Rackmount PDUs

• Target Applications: Large-Scale CCTV Surveillance Hubs, Corporate Network Closets, Structured Cabling Points, and Multi-Device IT Infrastructure
