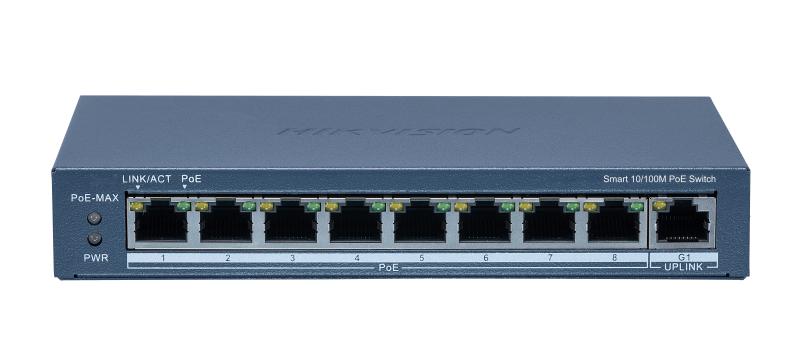

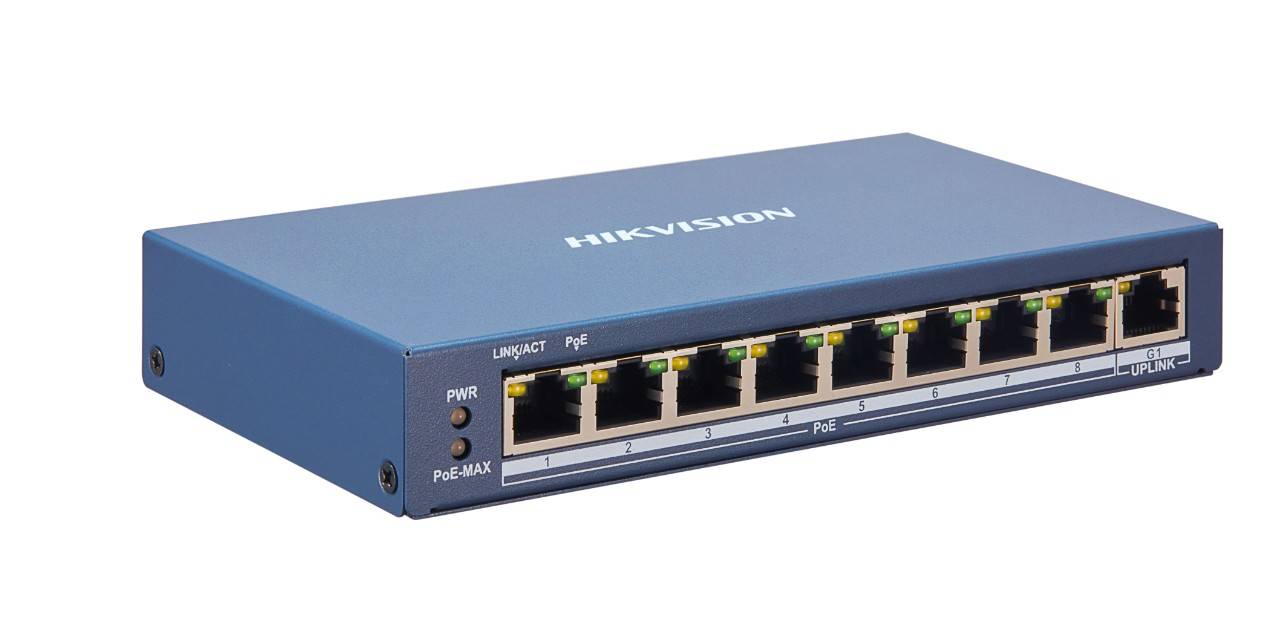

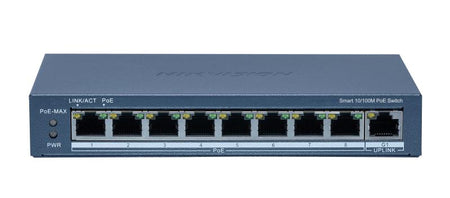

Hikvision DS-3E1309P-EI/M 8-Port Fast Ethernet Smart Managed PoE Switch

The Hikvision DS-3E1309P-EI/M is a high-performance Smart Managed PoE switch designed to provide centralized network management, power delivery, and robust data transmission for small-to-medium-sized IP surveillance architectures. Equipped with eight 10/100 Mbps PoE ports and one dedicated Gigabit RJ45 uplink port, this intelligent switch ensures bottleneck-free data flow back to your NVR or core network while powering critical edge hardware directly over ethernet cabling.

What sets this Smart Managed model apart is its rich remote maintenance integration via the Hik-Partner Pro platform. Network administrators can easily map the system topology, monitor bandwidth utilization, trace port power metrics, and receive instant real-time fault alerts. Built with a tough, fanless metal housing, it guarantees completely silent operation, advanced safety diagnostics, and industrial electrical protection, making it an excellent visual hub foundation for corporate, commercial, or residential security networks.

Key Features

• Smart Cloud & Web Management: Seamlessly supports one-click activation and remote troubleshooting via Hik-Partner Pro and Hik-Central Pro, giving you instant access to port status, alarm pushes, and remote reboots.

• Intelligent PoE Watchdog: Automatically monitors connected IP devices 24/7; if an edge camera stops responding, the switch executes a hardware-level port reset to restore communication without any manual intervention.

• Extended 300m Ultra-Long Range PoE: Outfitted with an advanced long-range toggle across all eight ports, enabling stable data and power delivery up to 300 meters over high-quality copper lines.

• Secure Layer 2 Infrastructure: Supports 802.1Q VLAN network isolation configurations and STP/RSTP Loop Prevention mechanisms to optimize traffic pathways and eliminate broadcast storms.

• Onboard Cable Diagnostics: Simplifies physical fault isolating by running localized automated cable testing to instantly detect open circuits, short circuits, and accurate network line lengths.

• 6KV Heavy-Duty Surge Protection: High-tier voltage and lightning surge suppression protocols actively protect the core switch internal components and downstream hardware against violent electrical spikes.

Technical Specifications

• Model: DS-3E1309P-EI/M

• Switch Type: Smart Managed Desktop / Wall-Mount PoE Switch

• Total Network Interfaces:

  • 8 × 10/100 Mbps PoE RJ45 Ports (Ports 1 to 8)

  • 1 × 10/100/1000 Mbps Uplink RJ45 Port (Port 9)

• PoE Protocol Standards: IEEE 802.3af, IEEE 802.3at

• PoE Power Pin Assignment: End-span: 1/2(-), 3/6(+)

• Maximum Port Power Output: 30W per individual PoE port

• Total PoE Power Budget: 60W

• Switching Performance Layer:

  • MAC Address Table: 16 K entries

  • Switching Capacity Fabric: 5.6 Gbps backplane bandwidth

  • Packet Forwarding Rate: 4.17 Mpps

  • Internal Cache: 4 Mbits

• Management & Maintenance: Supports Web GUI, DHCP Client (Enabled by default), Super IP (10.180.190.200), SNMP v1/v2c, LLDP, Port Mirroring, and Storm Control

• VLAN Capability: IEEE 802.1Q VLAN support (Configurable IDs 1 to 4094), Access / Trunk port modes

• Chassis Material: Heavy-Duty Sheet Metal (Fanless Passive Cooling)

• Power Adapter Input: 48 VDC, 2.5 A (External)

• Power Consumption Limits: 120W Maximum (With full PoE load) / 10W Idle Capacity

• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)

• Operating Humidity Limits: 5% to 95% Relative Humidity (Non-condensing)

• Device Physical Dimensions (W × H × D): 170.00 mm × 27.60 mm × 93.10 mm

• Unit Net Weight: 0.35 kg
