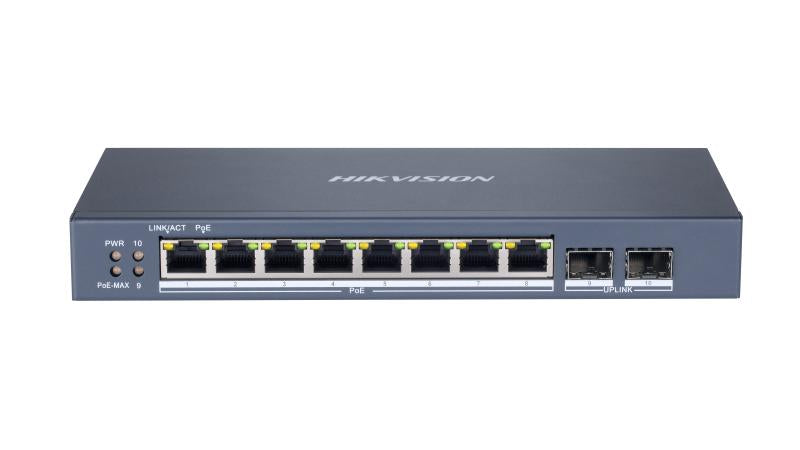

Hikvision DS-3E1510P-SI Smart Managed 8-Port Gigabit PoE Switch (8 x Gigabit PoE Ports, 2 x Gigabit SFP Slots, 110W PoE Budget, Layer 2, Metal Enclosure)

The Hikvision DS-3E1510P-SI is a high-performance, full-Gigabit Smart Managed PoE switch custom-engineered to deliver robust data infrastructure and reliable power management for modern IP surveillance networks. Equipped with eight 10/100/1000 Mbps Gigabit PoE ports and two dedicated 1000 Mbps SFP fiber optical ports, this switch provides high-speed, bottleneck-free transmission paths back to your network core or NVR, making it perfect for driving ultra-high-definition 4K camera arrays and access points.

As part of Hikvision's intelligent "SI" series, this Layer 2 switch integrates seamlessly with the Hik-Partner Pro and Hik-Central Pro platforms. This cloud ecosystem allows network technicians to remotely map out network topologies, monitor bandwidth consumption, track PoE power usage in real time, and receive instant failure alerts from anywhere. Housed in a heavy-duty, fanless metal casing, it offers absolute silence during operation alongside industrial-grade surge protection for stable, round-the-clock security performance.

Key Features

• Full Gigabit Connectivity: Outfitted with 8 × Gigabit PoE ports for rapid edge device communication, plus 2 × Gigabit SFP slots to handle long-distance fiber-optic uplink runs over extended property perimeters.

• Smart PoE Watchdog Monitoring: Features an intelligent self-healing system that actively tracks connected IP cameras 24/7; if a device stops responding or freezes, the switch automatically executes a hardware-level port reset to reboot the camera.

• 300-Meter Long-Range PoE: Simple software-level toggle extends data and power transmission on ports 1 through 8 up to an incredible 300 meters over high-quality copper lines, bypassing standard ethernet length limits.

• 110W Total PoE Power Budget: Supports standard IEEE 802.3af/at protocols, delivering up to 30W of power per individual port to effortlessly support power-hungry pan-tilt-zoom (PTZ) or intensive infrared cameras.

• Advanced Layer 2 Network Management: Supports critical networking configurations including 802.1Q VLAN port isolation to eliminate broadcast storms, Link Aggregation, Loop Prevention (STP/RSTP), and Quality of Service (QoS).

• 6KV Industrial Surge Protection: High-tier electrical surge and lightning protection safeguards internal circuitry and downstream client hardware against unpredictable voltage spikes and outdoor static interference.

Technical Specifications

• Model: DS-3E1510P-SI

• Switch Type: Smart Managed Desktop / Wall-Mount Gigabit PoE Switch

• Total Network Interfaces:

  • 8 × 10/100/1000 Mbps PoE RJ45 Ports (Ports 1 to 8)

  • 2 × 1000 Mbps Uplink SFP Fiber Slots (Ports 9 and 10)

• PoE Protocol Standards: IEEE 802.3af, IEEE 802.3at

• PoE Power Pin Assignment: End-span: 1/2(-), 3/6(+)

• Maximum Port Power Output: 30W per individual PoE port

• Total PoE Power Budget: 110W

• Switching Performance Layer:

  • MAC Address Table: 8 K entries

  • Switching Capacity Fabric: 20 Gbps backplane bandwidth

  • Packet Forwarding Rate: 14.88 Mpps

  • Internal Cache: 4.1 Mbits

• Management & Features: Web GUI, Hik-Partner Pro Cloud Management, DHCP Client, Loop Prevention (STP/RSTP), Port Isolation, VLAN (802.1Q up to 4094 IDs), Cable Diagnostics, and LLDP

• Chassis Material: Heavy-Duty Sheet Metal (Fanless Passive Cooling)

• Power Supply Input: 48 VDC, 2.5 A (External Power Adapter)

• Power Consumption Limits: 120W Maximum (With full PoE load) / 10W Idle Capacity

• Operating Temperature Range: -10°C to 55°C (14°F to 131°F)

• Operating Humidity Limits: 5% to 95% Relative Humidity (Non-condensing)

• Device Physical Dimensions (W × H × D): 266.00 mm × 44.50 mm × 110.80 mm

• Unit Net Weight: 0.625 kg
