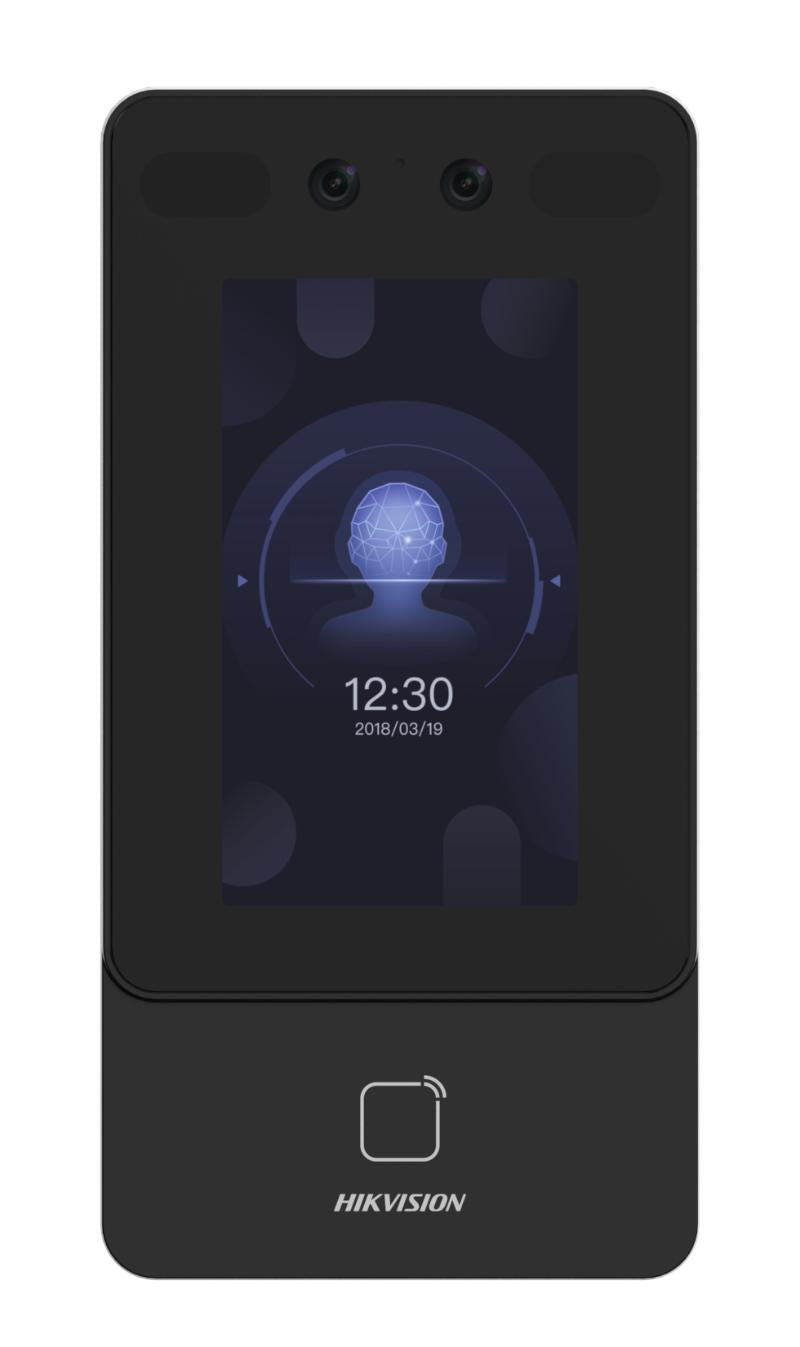

Hikvision MinMoe DS-K1T342MFWX-E1 IP65 Face Recognition Terminal (1,500 Faces, 3,000 Fingerprints, 3,000 Cards, PoE, Wi-Fi)

The Hikvision MinMoe DS-K1T342MFWX-E1 is a professional-grade, high-performance biometric access control and time attendance terminal engineered for both indoor and demanding outdoor environments. Outfitted with an industrial IP65 weatherproof rating, this sleek and compact standalone terminal reliably resists water and dust ingress, making it an excellent security choice for storefront entryways, warehouses, and corporate perimeters.

Equipped with a 2 MP wide-angle dual-lens camera, the terminal utilizes advanced deep-learning algorithms to recognize facial profiles in under 0.2 seconds with a 99% accuracy rate, even in pitch-black or low-light conditions. It natively prevents security spoofing by enforcing hardware-level anti-spoofing detection against physical photos or videos. To accommodate flexible infrastructure needs, the device fully supports multiple authentication modes—including Face Recognition, Fingerprint verification, Mifare 1 contactless smart cards, and custom PIN codes—giving you absolute control over your facility's physical access security.

With integrated Power over Ethernet (PoE) and Wi-Fi, deployment is streamlined by carrying power and network data through a single cable or utilizing wireless networking to cut down on extra electrical setup costs. The device also supports a built-in microphone and speaker, enabling two-way audio communication with central control rooms or indoor monitors to act as an access control intercom hub.

Key Features

• Deep-Learning Face Recognition: Leverages a 2 MP dual-lens camera with wide dynamic range (WDR) to identify faces in less than 0.2 seconds per user, featuring intelligent anti-spoofing technology that rejects paper photos and mobile screen copies.

• Multi-Biometric Credential Matrix: High-capacity memory banks store up to 1,500 face templates, 3,000 fingerprints, 3,000 physical Mifare 1 proximity cards, and 150,000 localized event logs.

• IP65 Weatherproof Durability: Rugged, tightly sealed enclosure operates seamlessly in outdoor spaces, shielding internal electronic components against driving rain, blowing dust, and temperature extremes.

• Streamlined PoE & Wi-Fi Network Setup: Offers dual installation paths—either native PoE (802.3af) for clean, one-cable data and power delivery, or built-in Wi-Fi for quick, wireless network configurations.

• Two-Way Audio Intercom Pipeline: Integrates a high-fidelity microphone and loud speaker, supporting real-time two-way audio streaming to client software, indoor intercom stations, or masters.

• Robust Access & Interconnect Ports: Comprehensive rear connection interfaces include standard RJ45 networking, Wiegand 26/34 protocol paths, RS-485 serial busses, a lock output relay, an exit button interface, and door contact sensors.

Technical Specifications

• Model: MinMoe DS-K1T342MFWX-E1

• Device Category: Standalone Face Recognition Access Control & Time Attendance Terminal

• Display Screen: 4.3-inch Capacitive Touch Screen (Resolution: 480 × 272)

• Camera Sensor System: 2 Megapixel Dual-Lens Wide-Angle Lens with Auto WDR and Supplementary White/IR LED Array

• Biometric Capacity Limits: * Face Profile Templates: 1,500 Max

  • Fingerprint Templates: 3,000 Max

  • Proximity Smart Cards: 3,000 Max

  • Local Security Event Logs: 150,000 Max

• Card Verification Type: Mifare 1 Contactless Smart Card (Operating frequency: 13.56 MHz)

• Recognition Speed Performance: Face Recognition Distance: 0.3 m to 1.5 m | Authentication Duration: < 0.2 s per user

• Network Communication Protocols: Wired 10/100 Mbps Self-Adaptive RJ45 Ethernet Port | Wireless Wi-Fi (2.4 GHz)

• Hardware Interconnect Ports: * 1 × RS-485 Bus

  • 1 × Wiegand Port (Supports 26 and 34 protocols)

  • 1 × USB 2.0 Interface

  • 1 × Lock Output Relay

  • 1 × Door Contact Sensor Input

  • 1 × Exit Button Input

  • 1 × Tamper Switch Alarm

• Audio Capabilities: Built-in omnidirectional microphone and high-output loudspeaker (Adjustable volume)

• Device Power Input Options: Standard Power over Ethernet (IEEE 802.3af) or 12 VDC, 1 A power supply input

• Power Draw Rate: Max. 10W (Idle draw: < 5W)

• Ingress Protection Certification: IP65 Weatherproof Rated Standard

• Operating Temperature Range: -30 °C to 60 °C (-22 °F to 140 °F)

• Operating Humidity Bounds: 0% to 90% Relative Humidity (Non-condensing state)

• Device Physical Dimensions (W × H × D): 91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96")
