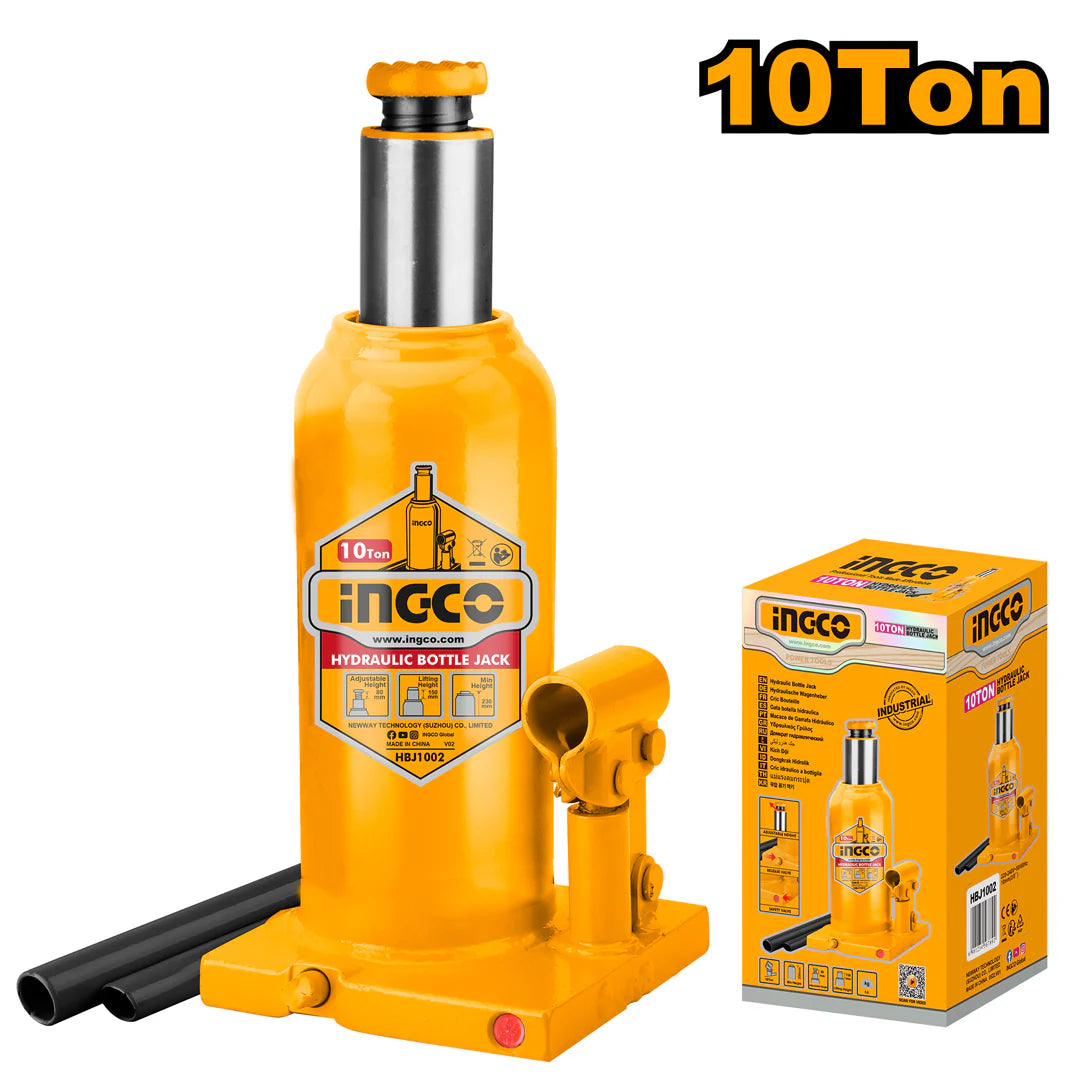

Ingco 10-Ton Heavy-Duty Hydraulic Bottle Jack | Professional Industrial Vehicle Lift with Safety Overload Valve & Adjustable Screw Top (HBJ1002)

Trying to lift a heavy 4x4 SUV, commercial delivery van, or loaded agricultural trailer using a flimsy factory scissor jack is incredibly stressful, slow, and outright dangerous. When you need massive vertical lifting force on the job site or roadside, the Ingco HBJ1002 10-Ton Hydraulic Bottle Jack delivers the absolute mechanical power needed to lift heavy vehicles with minimal effort. Engineered to hold an immense 10,000kg load capacity, this industrial-grade hydraulic ram is the perfect heavy-lifting solution for professional auto garages, fleet workshops, transport yards, and farm maintenance layouts.

The jack features a rugged, heavy-duty welded steel body construction with a thick, broad base plate that provides rock-solid stability on flat ground. At its heart is a precision-machined hydraulic cylinder driven by a dual-piece pumping handle that multiplies your hand force, letting you effortlessly raise the heat-treated lifting saddle from a low clearance starting height of 230mm up to a peak height of 460mm. For maximum versatility, the top saddle features an adjustable extension screw layout, allowing you to wind out extra height to bridge the gap under high-clearance truck chassis before you even start pumping. Safety is paramount when working with heavy loads, which is why the HBJ1002 is equipped with an integrated safety overload valve mechanism that prevents the jack from lifting beyond its rated capacity. Finished with a high-durability coating that resists garage oils and hydraulic fluids, this reliable bottle jack packs away compactly into your vehicle trunk, ready to handle heavy lifting whenever emergencies strike!

Technical Specifications

• Brand: INGCO

• Model: HBJ1002

• Product Type: Heavy-Duty Hydraulic Bottle Jack / Industrial Lifting Ram

• Maximum Weight Lifting Capacity: 10 Tons (10,000 Kilograms / 22,000 lbs)

• Minimum Starting Height: 230mm (9.05 Inches low-clearance threshold)

• Maximum Hydraulic Lift Extension: 150mm (5.9 Inches fluid ram travel)

• Adjustable Screw Top Extension: 80mm (3.15 Inches manual threaded saddle adjustment)

• Maximum Absolute Height Reach: 460mm (18.1 Inches fully extended matrix)

• Material Composition: Industrial-Grade Forged Solid Steel Body Frame with Heavy-Duty Welded Base Plate

• Safety Feature Design: Integrated safety oil-bypass overload valve layout to prevent over-pressurization

• Drive Mechanism Handle: Supplied with a 2-Piece Interlocking Steel Pumping Handle Bar

• Pumping Valve Control: Smooth-turning base release valve screw layout for controlled, gradual lowering

• Primary Target Substrates: 4x4 pickup trucks, commercial delivery vans, light-duty freight trucks, loaded utility trailers, and heavy agricultural machinery axles

• Primary Applications: Lifting vehicles for emergency roadside wheel replacements, raising truck chassis for suspension maintenance, leveling heavy machinery bases during installation, and supporting structural beams in light construction setups

• Packaging Type: Packed securely in a heavy-duty commercial color display box layout with an integrated instruction manual
