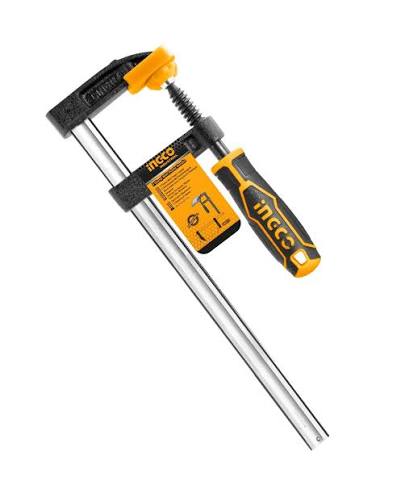

INGCO 120 x 800mm Heavy-Duty Industrial F-Clamp (Serre-Joint en F) – 450kg (4500N) Clamping Force, Malleable Cast Iron Jaws, Nickel-Plated Steel Rail, and Ergonomic Wooden Handle (HFC021203)

Securing long timber joints, large furniture frames, cabinet carcasses, or wide steel fabrications with short or weak clamps leads to joint slippage, jaw flexing, and uneven clamping pressure that ruins project alignment. Standard light-duty clamps often bow or strip their threads when spanning wide distances, causing glue lines to fail during curing. The INGCO HFC021203 120 x 800mm Heavy-Duty Industrial F-Clamp (Serre-Joint en F) is an extended-reach woodworking and metalworking clamping tool engineered for rock-solid holding power, high torsional resistance, and wide-span workpiece capacity. Built with an extra-long nickel-plated steel rail and high-grade malleable cast iron jaws, this 800mm F-clamp delivers up to 450kg (4500N) of continuous clamping force across large-scale assemblies.

The structural stability and clamping performance of this 800mm F-clamp rely on its 120mm deep throat depth, serrated anti-slip steel bar, smooth-running acme threaded screw, and swivel pressure pad. The precision-machined serrations along the heavy-duty nickel-plated steel bar prevent the sliding arm from slipping under high tension, while the pivoting pressure plate self-adjusts to uneven surfaces without marring delicate wood or metal faces. Complete with an ergonomic classic wooden handle for smooth high-torque tightening, the HFC021203 equips carpenters, cabinet makers, furniture builders, metal fabricators, and welders with a long-reach clamping tool.

Key Features

• Extended 800mm (32") Clamping Capacity – Extra-long rail capacity easily spans large cabinet frames, tabletop glue-ups, door frames, and wide steel structures.

• 450kg (4500N) High Clamping Force – Delivers massive holding power to keep wide timber joints and heavy metal frames locked firmly in place.

• 120mm Deep Throat Reach – Generous 120mm jaw depth reaches well past workpiece edges to apply pressure precisely where needed.

• Malleable Cast Iron Jaws – High-density cast iron head and sliding arm resist deformation, flexing, and fracturing under heavy clamping tension.

• Serrated Anti-Slip Steel Rail – Heavy-duty nickel-plated steel bar features deep grooves to lock the sliding jaw securely in place during tightening.

• Swivel Pressure Pad – Articulating contact foot automatically adapts to angled or uneven surfaces while distributing clamping pressure evenly.

Technical Specifications

• Brand: INGCO

• Model: HFC021203

• Product Type: Heavy-Duty Industrial F-Clamp / Serre-Joint en F

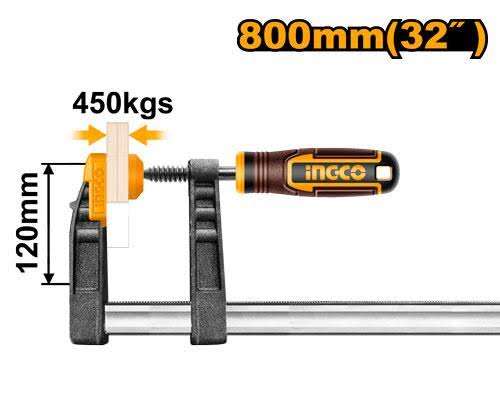

• Clamping Capacity (Length): 800 mm (approx. 32 Inches)

• Throat Depth: 120 mm

• Maximum Clamping Force: 450 kg (4500 N)

• Bar Profile & Material: Heavy-Duty Nickel-Plated Serrated Steel Rail

• Jaw Material: Malleable Cast Iron (Powder-Coated)

• Thread Type: Acme Heavy-Duty Screw Thread

• Handle Type: Ergonomic Smooth Wooden Grip

• Packaging Presentation: Packed by Paper Label / Color Sleeve

• Primary Target Applications: Large furniture assembly, tabletop glue-ups, door frame clamping, cabinet making, structural metal fabrication, and welding layout

Ideal For

Woodworkers, cabinet makers, carpenters, furniture builders, metal fabricators, welders, and construction crews seeking a heavy-duty 120x800mm long-reach F-clamp with 450kg clamping force.

Package Includes

1 x INGCO HFC021203 120 x 800mm Heavy-Duty Industrial F-Clamp Unit
