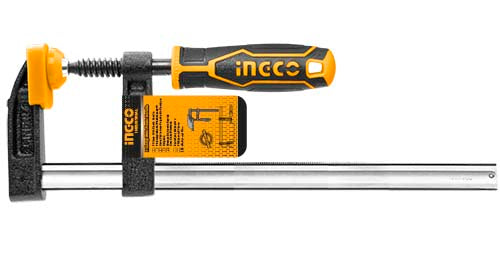

INGCO 140 x 1000mm Heavy-Duty F-Clamp (Serre-Joint en F) – 550kg Max Clamping Force, Malleable Cast Iron Jaws, 10x35mm Steel Bar, and Plastic Handle (HFC021404)

Securing large timber joints, metal fabrications, or cabinetry during glue curing and welding without proper clamping force leads to misaligned seams, slipping workpieces, and ruined assemblies. Standard short bar clamps lack the throat depth and massive clamping span needed for heavy-duty furniture making, timber joining, and structural fabrication. The INGCO HFC021404 140 x 1000mm Heavy-Duty F-Clamp (Serre-Joint en F) is an industrial-grade clamping tool engineered for high-pressure holding up to 550kg, extended 1-meter reach, and rigid structural alignment. Built with a thick 10x35mm iron ruler guide bar and heavy-duty malleable cast iron jaws, this F-clamp delivers continuous, non-yielding clamping force across extra-large assemblies.

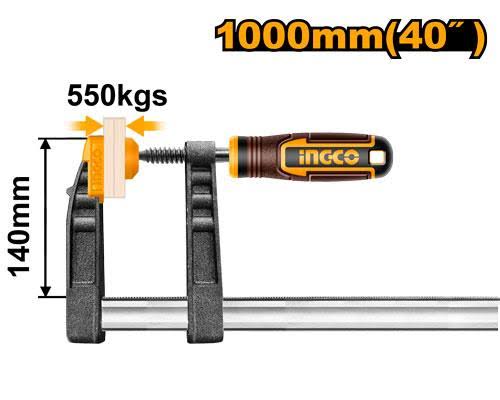

The stability and smooth operation of this clamp center on its generous 140mm throat depth, massive 1000mm clamping capacity, and 17.8mm precision-threaded drive screw. The deep 140mm throat allows operators to reach far beyond board edges to apply direct pressure over central joint lines, while the 1-meter opening easily spans wide doors, tabletops, and frames. Featuring an ergonomic plastic handle for smooth torque application and a heavy-duty iron bar to prevent jaw deflection under load, the HFC021404 provides carpenters, cabinetmakers, metal fabricators, and DIYers with an essential holding tool.

Key Features

• Massive 140 x 1000mm Capacity – Deep 140mm throat depth reaches far into workpieces, with a wide 1000mm (1 Meter) maximum jaw opening for large panels and furniture builds.

• 550kg Max Clamping Force – Heavy-duty structural design generates up to 550kg of holding pressure to keep materials locked firmly during gluing or welding.

• 10x35mm Solid Iron Ruler Bar – Extra-thick guide rail resists bending, twisting, and slipping under heavy tightening load.

• 17.8mm Diameter Screw Thread – Precision-machined Acme drive screw enables smooth, effortless tightening and continuous high-torque transfer.

• Malleable Cast Iron Jaws – High-strength cast iron arm construction resists cracking and flexing under extreme pressure.

• Ergonomic Plastic Handle – Comfortably shaped handle grip allows maximum manual tightening force without hand strain.

Technical Specifications

• Brand: INGCO

• Model: HFC021404

• Product Type: Industrial Heavy-Duty F-Clamp / Bar Clamp / Serre-Joint en F

• Clamp Size (Opening): 1000 mm (1 Meter)

• Throat Depth (Reach): 140 mm

• Maximum Clamping Force: 550 kg

• Iron Ruler Dimensions: 10 mm Thickness x 35 mm Width

• Screw Thread Diameter: 17.8 mm

• Handle Type: Ergonomic Plastic Handle

• Packaging Presentation: Packed by Paper Card

• Primary Target Applications: Heavy woodworking, door/tabletop assembly, metal fabrication, timber gluing, and structural construction

Ideal For

Carpenters, cabinetmakers, woodworkers, metal fabricators, welders, and DIY enthusiasts needing an industrial-grade 140x1000mm F-clamp for high-pressure holding work.

Package Includes

1 x INGCO HFC021404 140 x 1000mm Heavy-Duty F-Clamp Assembly
