INGCO 18" / 450mm Quick Bar Clamp (Serre-Joint Rapide) – 60kg Max Clamping Force, 63mm Throat Depth, One-Handed Quick-Release Trigger, and Non-Marring Jaw Pads (HQBC01603)

Holding timber panels, cabinet frames, or custom craft assemblies together using slow, traditional screw clamps can make alignment frustrating and time-consuming. Standard manual C-clamps require two hands to adjust and rotate, increasing the risk of material movement right before glue sets. The INGCO HQBC01603 18" (450mm) Quick Bar Clamp (Serre-Joint Rapide) is a versatile, fast-acting clamping tool engineered for single-handed operation, consistent holding pressure up to 60kg, and precise material alignment. Built with a durable composite trigger body and a 5x18mm steel guide rail, this clamp delivers rapid ratcheting movement for woodworking, cabinetry, and general DIY assembly.

The speed and convenience of this quick bar clamp center on its ergonomic pistol-grip squeeze trigger and single-lever quick-release mechanism. The ratcheting handle allows operators to advance the jaw and apply clamping pressure with one hand while holding the workpiece perfectly aligned with the other. Featuring a 63mm throat depth, soft protective jaw pads that prevent surface denting, and an extended 450mm clamping capacity, the HQBC01603 equips carpenters, cabinetmakers, picture framers, and DIY enthusiasts with an essential fast-clamping solution.

Key Features

• 60kg Maximum Clamping Force – Delivers firm, continuous clamping pressure suitable for wood gluing, panel alignment, and light assembly work.

• One-Handed Ratchet Trigger – Pistol-grip lever enables rapid jaw advancement and effortless single-handed clamping.

• Quick-Release Lever – Instant-release trigger disengages jaw pressure smoothly for fast repositioning between tasks.

• 18" (450mm) Clamping Capacity – Extended 450mm opening accommodates wide boards, cabinet boxes, and larger timber fabrications.

• 63mm Throat Depth – Deep reach jaw allows even pressure application across broad workpiece edges.

• Non-Marring Jaw Covers – Soft removable pads protect delicate wood finishes, laminates, and soft metals from scratches and indentation.

Technical Specifications

• Brand: INGCO

• Model: HQBC01603

• Product Type: Quick Bar Clamp / Serre-Joint Rapide

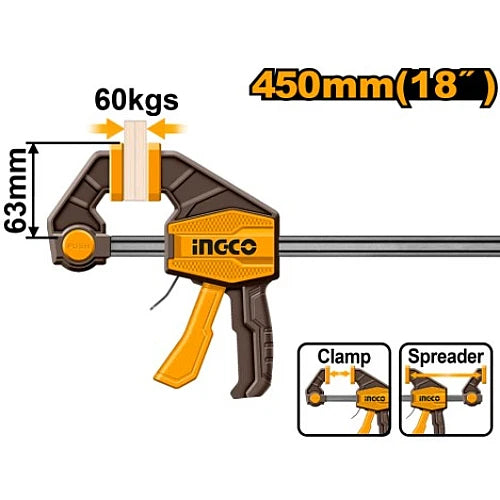

• Clamp Opening Size: 63 x 450 mm (18 Inches)

• Maximum Clamping Force: 60 kg

• Throat Depth: 63 mm

• Guide Bar (Iron Ruler) Dimensions: 5 mm Thickness x 18 mm Width

• Release Mechanism: Single-Lever Quick-Release Button

• Jaw Pad Type: Removable Non-Marring Soft Rubberized Pads

• Packaging Presentation: Packed by Label Sticker

• Primary Target Applications: Woodworking joint gluing, cabinetry assembly, picture frame assembly, craft making, and light metal welding fit-ups

Ideal For

Carpenters, woodworkers, cabinetmakers, picture framers, hobbyists, and DIYers needing an efficient 450mm quick-release bar clamp for fast, single-handed clamping.

Package Includes

1 x INGCO HQBC01603 18" (450mm) Quick Bar Clamp Unit
