Ingco 230mm Segmented Diamond Disc | Dry Cutting Blade for Concrete, Brick, and Masonry (DMD012302M)

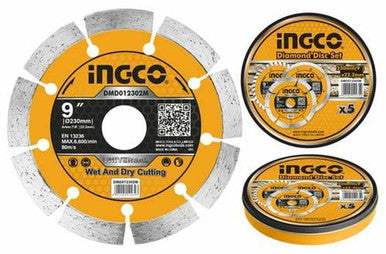

The Ingco DMD012302M Diamond Disc is a robust masonry cutting accessory engineered for dry cutting operations through tough construction materials such as cured concrete, solid brick, cinder blocks, roofing tiles, and stone. Featuring a large 230mm (9-inch) diameter, this blade is designed for use with large angle grinders and dedicated masonry cutters to achieve deep, efficient linear cuts.

The blade features a high-strength steel core disc equipped with segmented cutting edges containing a concentrated matrix of industrial diamond dust. The segmented rim configuration plays a vital role in dry cutting by creating distinct gaps that allow air to circulate freely around the cutting perimeter, cooling the core and preventing warping. These segments also act as exhaust paths, rapidly expelling stone dust and abrasive debris out of the cutting track to maintain high cutting speeds and structural stability under heavy workloads.

Technical Specifications

• Brand: INGCO

• Model Number: DMD012302M

• Product Type: Segmented Diamond Cutting Blade

• Cutting Application: Dry Cutting

• Target Materials: Concrete, Brick, Blockwork, Stone, and Masonry Tiles

• Disc Diameter: 230mm (9")

• Blade Width (Segment Height): 7.5mm

• Arbor Bore Size: 22.2mm (7/8")

• Rim Style: Segmented Edge for Air Cooling and Dust Exhaust

• Primary Applications: Deep concrete floor slotting, brick wall modifications, structural masonry demolition, and outdoor paving block adjustments

• Packaging Type: Packed by color box
