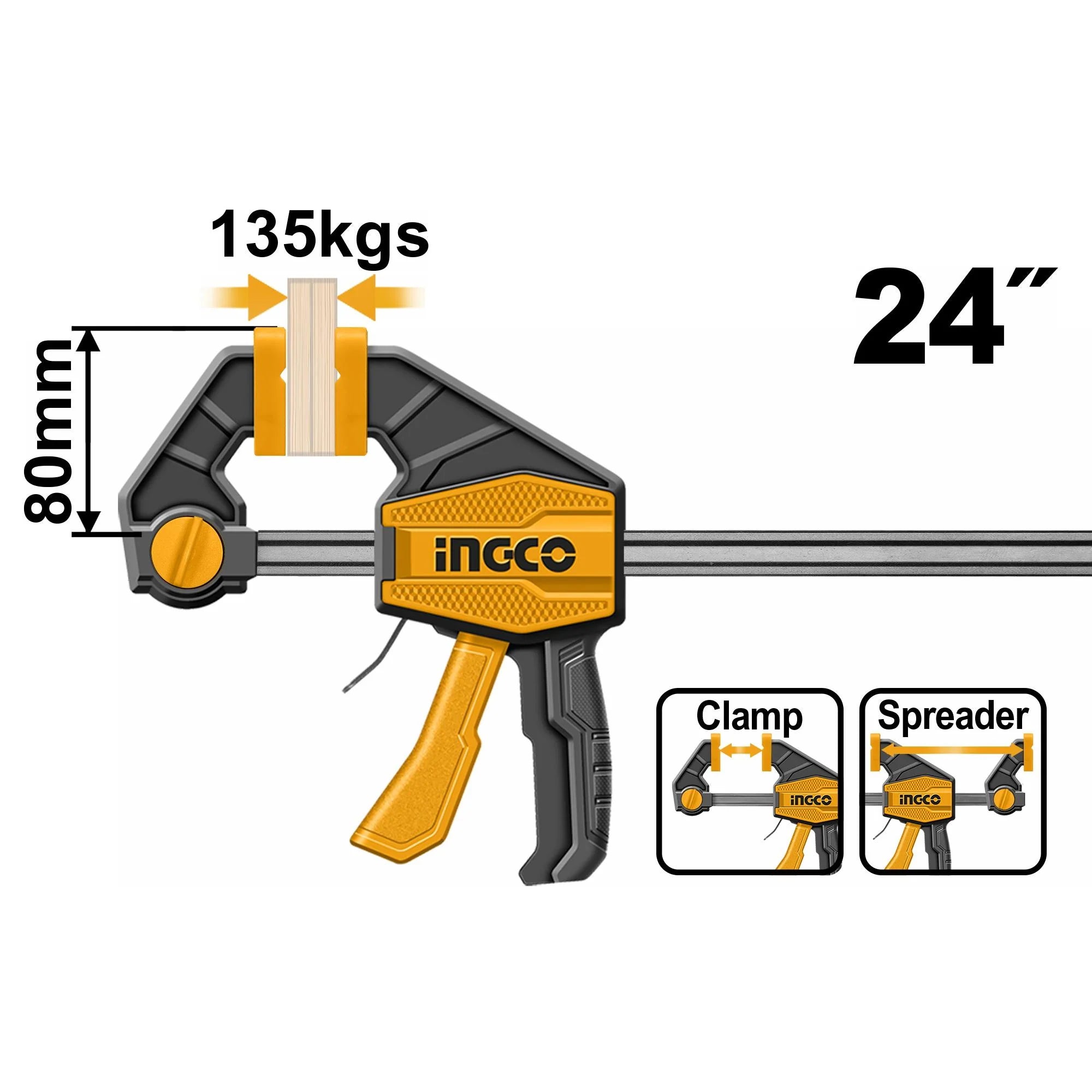

INGCO 24" (80x600mm) Heavy-Duty Quick Bar Clamp – 135kg Max Clamping Force, 6x18mm Reinforced Steel Guide Rail, Quick-Release Trigger, and Non-Marring Jaw Pads (HQBC24802)

Securing timber joints, cabinet frames, or gluing assemblies with traditional screw-type C-clamps or basic bar clamps can be time-consuming and often requires both hands just to position and adjust tension. Standard light-duty clamps can flex under pressure, resulting in uneven clamping force or damaged workpiece surfaces. The INGCO HQBC24802 24" Quick Bar Clamp is a high-performance single-handed woodworking and assembly clamp engineered for rapid positioning, firm alignment, and high-tension clamping. Featuring an 80mm throat depth and a 600mm (24") maximum clamping capacity, this versatile quick bar clamp delivers up to 135 kg (1350 N) of holding force to keep materials securely locked in place during gluing, drilling, sawing, or welding prep.

Built for long-term durability on job sites and in workshops, the HQBC24802 combines a high-strength nylon-reinforced resin body with a sturdy 6mm x 18mm steel guide bar. The ergonomic squeeze-trigger ratchet system allows single-handed tightening and micro-adjustments, while the quick-release pressure lever ensures instant disengagement when the job is done. Fitted with removable non-marring jaw pads, this quick-grip bar clamp distributes pressure evenly without scratching or denting delicate hardwood, laminate, or finished composite panels.

Key Features

• 135 kg Maximum Clamping Force – Delivers up to 135 kg (1350 N) of continuous holding force to secure heavy wood joints, frames, and panels firmly.

• 24" (80 x 600mm) Clamping Capacity – Deep 80mm jaw throat depth combined with a 600mm clamping span provides ample reach for cabinet making, table assembly, and DIY projects.

• Single-Handed Pistol Grip Drive – High-leverage squeeze trigger mechanism enables fast, one-handed tightening and precise pressure adjustment.

• Quick-Release Pressure Lever – Instant-release trigger opens the jaws quickly for rapid repositioning between workpieces.

• Heavy-Duty 6 x 18mm Steel Guide Rail – Solid steel bar resists twisting, bending, and deflection under high-tension loads.

• Non-Marring Protective Jaw Pads – Removable soft jaw covers protect softwoods, veneers, and finished surfaces from crushing or indentation.

Technical Specifications

• Brand: INGCO

• Model: HQBC24802

• Product Type: One-Handed Quick Bar Clamp / Quick-Grip Woodworking Clamp

• Clamping Capacity (Length): 24 Inches (600 mm)

• Jaw Throat Depth: 80 mm

• Maximum Clamping Force: 135 KGS

• Steel Guide Rail Dimensions: 6 mm (Thickness) x 18 mm (Width)

• Body Material: High-Impact Reinforced Nylon Composite

• Rail Material: Heat-Treated Carbon Steel

• Packaging Presentation: Packed by Brand Label

• Primary Target Materials: Hardwood, softwood, plywood, MDF, metal tubing, acrylic, and composite panels

• Primary Applications: Woodworking, furniture making, cabinet assembly, gluing joints, panel clamping, framing, and light fabrication prep

Ideal For

Woodworkers, carpenters, cabinet makers, furniture restorers, metal fabricators, and DIY enthusiasts who need a strong, reliable 24" quick bar clamp for single-handed operation and high-force clamping.

Package Includes

1 x INGCO HQBC24802 24" (80x600mm) Quick Bar Clamp Assembly
