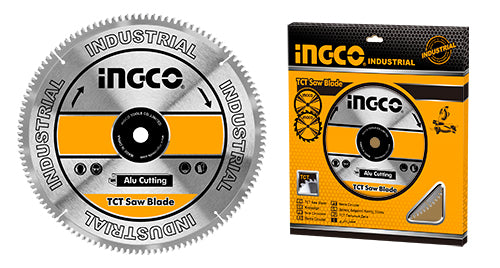

Ingco 254mm (10 Inch) 100T Professional TCT Circular Saw Blade - High-Density Tungsten Carbide Tipped Miter Saw Blade for Non-Ferrous Metals and Aluminum Profiles (TSB3254210)

Slicing through aluminum structural extrusions, window frames, or copper channels using a standard wood-cutting saw blade is highly dangerous and ruins the workpiece. Wood blades feature aggressive forward-hook angles that grab soft metals, causing dangerous material kickback, severe tooth chipping, and rough, burred edges that require hours of filing. The Ingco TSB3254210 254mm Professional TCT Saw Blade is an industrial-grade non-ferrous metal cutting solution engineered for ultra-smooth, burr-free cuts. Featuring an expansive 10 inch outer diameter matrix packed with a high-density 100-tooth configuration, this specialty blade delivers absolute cross-cutting precision without catching or binding in structural alloys.

The outstanding structural endurance and cutting refinement of this blade stem from its premium Triple Chip Grind (TCG) Tungsten Carbide Tipped teeth. The TCG tooth geometry alternates between a trapeze-shaped tooth and a flat raker tooth, safely neutralizing high mechanical stress while cleanly shearing through soft metals instead of tearing them. Outfitted with precision laser-cut expansion slots, the blade body limits heat buildup and vibration, guaranteeing perfectly square tracking at high operational speeds. Built with a standard 30mm center arbor and supplied with dual conversion reduction rings, this high-performance blade mounts seamlessly onto stationary miter saws and table saws to streamline aluminum frame fabrications and metal workshop assemblies.

Technical Specifications

• Brand: INGCO

• Model: TSB3254210

• Product Type: Non-Ferrous Metal & Aluminum TCT Circular Saw Blade

• Blade Outer Diameter Sizing: 254mm / 10 Inches Precision Full-Size Matrix

• Total Tooth Density Count: 100 Teeth (100T ultra-fine finish configuration)

• Tooth Profile Design: Triple Chip Grind (TCG) layout with a neutral/negative hook angle for safe non-ferrous metal cutting

• Base Arbor Bore Diameter: 30mm Center Bore

• Included Precision Reduction Ring Layout:

  • 1 x Ring: 30mm down to 16mm conversion profiling

  • 1 x Ring: 30mm down to 25.4mm (1-inch) conversion profiling

• Tool Compatibility Match: Optimized for stationary miter saws, slide compound saws, and workshop table saws (Perfect matching accessory for the Ingco BM2S18004 and BM2S180017 miter saw series)

• Primary Target Substrates: Aluminum window extrusion profiles, structural door frames, brass tubes, copper pipes, thick sheets of non-ferrous soft metal, composite plastic panel backings, and PVC conduits

• Primary Applications: Glazing track preparation, window framing assemblies, architectural trim cutting, cleaning up sheet metal edges, and high-precision copper line processing

• Packaging Type: Supplied safely enclosed inside an eye-catching commercial color retail storage box layout for absolute tooth tip safety and clean warehouse shelf tracking
