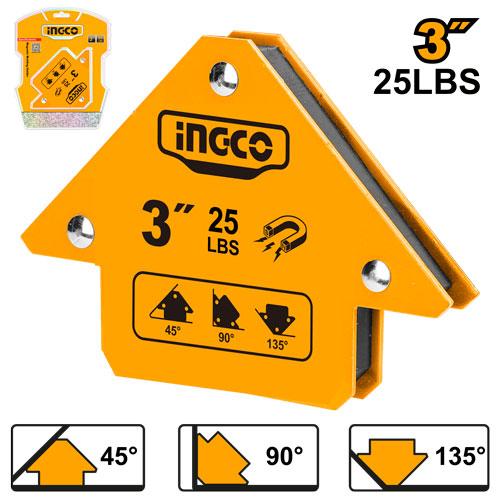

Ingco 3" Magnetic Welding Holder | 25 lbs Capacity Compact Multi-Angle Magnetic Arrow Clamp (AMWH25031)

The Ingco AMWH25031 Magnetic Welding Holder is a compact fabrication clamp engineered to provide reliable, hands-free holding for iron and steel components during welding, soldering, assembly, and marking operations. Designed to act as an extra pair of hands, this high-pull arrow magnetic holder locks flat, round, or square ferrous materials firmly in place, allowing metalworkers to execute precise tack welds without the struggle of manual clamping.

The holder features a classic geometric arrow configuration that offers fixed setups for 45-degree, 90-degree, and 135-degree alignment layout geometries. Housing a powerful permanent ferrite magnet encased between rugged, rivet-reinforced steel plates, this utility clamp delivers a certified maximum weight pull capacity of up to 25 lbs (11kg). This dual-sided shielding ensures consistent magnetic force across structural sheets, pipes, and angled iron joints while remaining highly resistant to high-heat welding splatters and workplace drop impacts.

Technical Specifications

• Brand: INGCO

• Model Number: AMWH25031

• Product Type: Magnetic Welding Holder / Multi-Angle Arrow Clamp

• Size Designation: 3 Inches

• Maximum Weight Pull Capacity: 25 lbs / 11kg

• Fixed Clamping Angles Supported: 45°, 90°, and 135° Angles

• Chassis Material: Heavy-Duty Riveted Steel Shield Plates

• Magnetic Core Type: High-Flux Permanent Ferrite Magnet

• Primary Target Substrates: Square steel tubing, mild steel sheets, round iron pipes, angle iron profiles, and flat metal bars

• Primary Applications: Tack welding frame assemblies, soldering metal plates, pipe installation alignments, scribing guide lines, and lifting or separating ferrous stock sheets

• Packaging Type: Packed by double blister layout
