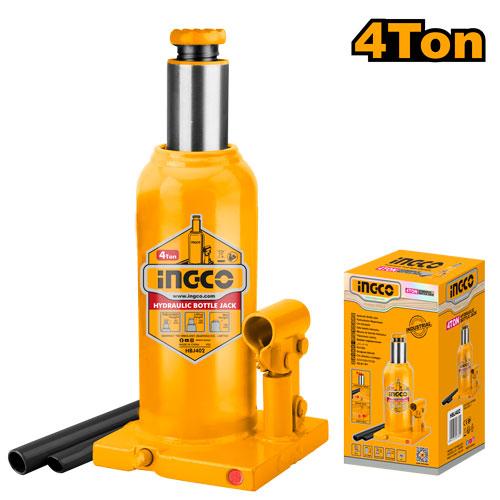

INGCO 4-Ton Heavy-Duty Hydraulic Bottle Jack – High-Stability Cast Iron Base, 180mm to 350mm Lifting Range, and Adjustable Heat-Treated Extension Screw (HBJ402)

Lifting heavy machinery, commercial utility vehicles, or loaded agricultural equipment with standard emergency jacks is extremely dangerous and physically demanding. Most basic vehicle lifts lack the load-bearing capacity and hydraulic stability required to hold massive weights without slipping, putting both your equipment and your personal safety at severe risk. The INGCO HBJ402 4-Ton Heavy-Duty Hydraulic Bottle Jack is an industrial-strength lifting solution engineered to deliver massive vertical power with absolute structural stability. Designed with a compact profile and a powerful hydraulic piston, this heavy-duty bottle jack allows mechanics, agricultural operators, and commercial drivers to lift loads up to 4,000 kg safely and with minimal physical effort.

The exceptional lifting performance and safety of this bottle jack stem from its rigid, wide cast-iron base and premium-grade hydraulic system. The heavy-duty steel cylinder is paired with a leak-proof hydraulic circuit, providing a smooth lifting stroke with a minimum height of 180mm up to a maximum lift height of 350mm. To handle various clearance requirements, the top load saddle features a heat-treated extension screw that can be easily turned to adjust the starting height before you begin pumping. Equipped with a built-in safety bypass system to prevent overloading, this highly portable 4-ton jack is an indispensable tool for heavy tire changes, farm maintenance, and shop-floor lifting tasks.

Key Features

• Industrial 4-Ton Lift Capacity – Solidly rated to lift up to 4 tons (4,000 kg), making it perfect for pickup trucks, vans, agricultural trailers, and workshop equipment.

• 180mm to 350mm Lifting Range – Offers a 180mm minimum starting height and rises to a maximum of 350mm (including hydraulic stroke and manual screw extension).

• Adjustable Top Extension Screw – Outfitted with a heavy-duty serrated top screw that easily threads outward to bridge clearance gaps and secure a solid grip on frame rails.

• Ultra-Stable Cast Iron Base – Designed with a wide, heavy-gauge cast iron foundation to evenly distribute heavy loads and prevent tilting on solid surfaces.

• Built-In Overload Safety Valve – Integrated hydraulic bypass system prevents the piston from over-extending and protects the jack from lifting weights beyond its certified capacity.

• Portable and Compact Design – Features a space-saving cylindrical profile that fits easily into truck utility boxes, tractor cabins, or tight garage shelves.

Technical Specifications

• Brand: INGCO

• Model: HBJ402

• Product Type: Heavy-Duty Hydraulic Bottle Jack

• Maximum Weight Capacity: 4 Ton (4,000 kg)

• Minimum Closed Height: 180 mm

• Maximum Extended Height: 350 mm

• Hydraulic Lifting Stroke: 110 mm

• Extension Screw Adjustable Height: 60 mm

• Base Material Composition: Heavy-Duty Cast Iron

• Cylinder and Frame Material: Industrial-Grade Carbon Steel

• Operating Mechanism: Manual Hydraulic Piston Pump

• Primary Target Vehicles: Pickup trucks, 4x4 vehicles, light commercial vans, small agricultural tractors, and heavy trailers

• Primary Applications: Roadside tire changes, chassis suspension servicing, construction structural leveling, and agricultural equipment repairs

Ideal For

Truck owners, agricultural workers, trade mechanics, and construction crews who require a highly compact, incredibly powerful, and stable 4-ton hydraulic bottle jack to handle heavy-duty vertical lifting.

Package Includes

1 x INGCO HBJ402 4-Ton Hydraulic Bottle Jack Assembly 1 x Two-Piece High-Leverage Steel Pump Handle 1 x Detailed User Manual and Safety Guide
