INGCO 6" (150mm) Two-Jaw Mechanical Gear & Bearing Puller – Drop-Forged Heat-Treated Cr-V Steel, 5000kg (5-Ton) Capacity, and Chrome-Plated Corrosion Protection (HGP08026)

Extracting tightly pressed gears, bearings, pulleys, and flywheels using makeshift tools, hammers, or pry bars risks permanent mechanical damage, bent shafts, and severe personal injury. Seized components require immense, controlled pulling force distributed evenly across their hub profile. The INGCO HGP08026 6" (150mm) Two-Jaw Mechanical Gear Puller is an industrial-grade extraction tool engineered for safe, high-capacity removal of press-fitted automotive and machinery components. Designed with a rigid two-jaw geometry and a center pressure screw, this puller allows mechanics, technicians, and millwrights to dislodge stubborn press-fit assemblies with up to 5,000 kg (5 tons) of pulling force.

The exceptional mechanical strength and precise alignment of this gear puller stem from its drop-forged Chrome Vanadium (Cr-V) steel construction and heat-treated components. The dual adjustable pulling legs grab onto narrow rims and internal hub shoulders, while the high-torque center pressure screw applies smooth, linear extraction force directly along the central axis. Finished with a protective chrome-plated coating to guard against shop fluids and rust, the HGP08026 is an essential tool for engine rebuilding, drive line servicing, and industrial machinery maintenance.

Key Features

• High 5,000kg (5-Ton) Pulling Capacity – Rigid structural design safely generates up to 5,000 kg of maximum extraction force for heavy press-fit components.

• Industrial Chrome Vanadium (Cr-V) Steel – Fully drop-forged and heat-treated for high tensile strength and resistance to mechanical deformation under load.

• Balanced 2-Jaw Geometry – Dual-arm layout offers a slim profile for accessing tight mechanical enclosures and narrow gear housings.

• Corrosion-Resistant Chrome Finish – Full chrome-plated surface treatment shields the puller body against rust, grease, and shop chemicals.

• Adjustable Reach & Spread Configuration – Reversible and positionable jaw arms accommodate various component diameters and depth clearance limits.

• Precision-Threaded Center Screw – Delivers controlled, even force to prevent binding or cocking of pressed bearings during extraction.

Technical Specifications

• Brand: INGCO

• Model: HGP08026

• Product Type: Mechanical Two-Jaw Gear & Bearing Puller

• Nominal Size: 6 Inches (~150 mm)

• Maximum Pulling Capacity (Max Force): 5,000 kg (5 Tonnes)

• Core Material Composition: Drop-Forged Chrome Vanadium (Cr-V) Steel (Heat-Treated)

• Surface Protection: Chrome-Plated Finish

• Jaw Configuration: 2-Jaw Dual Puller Design

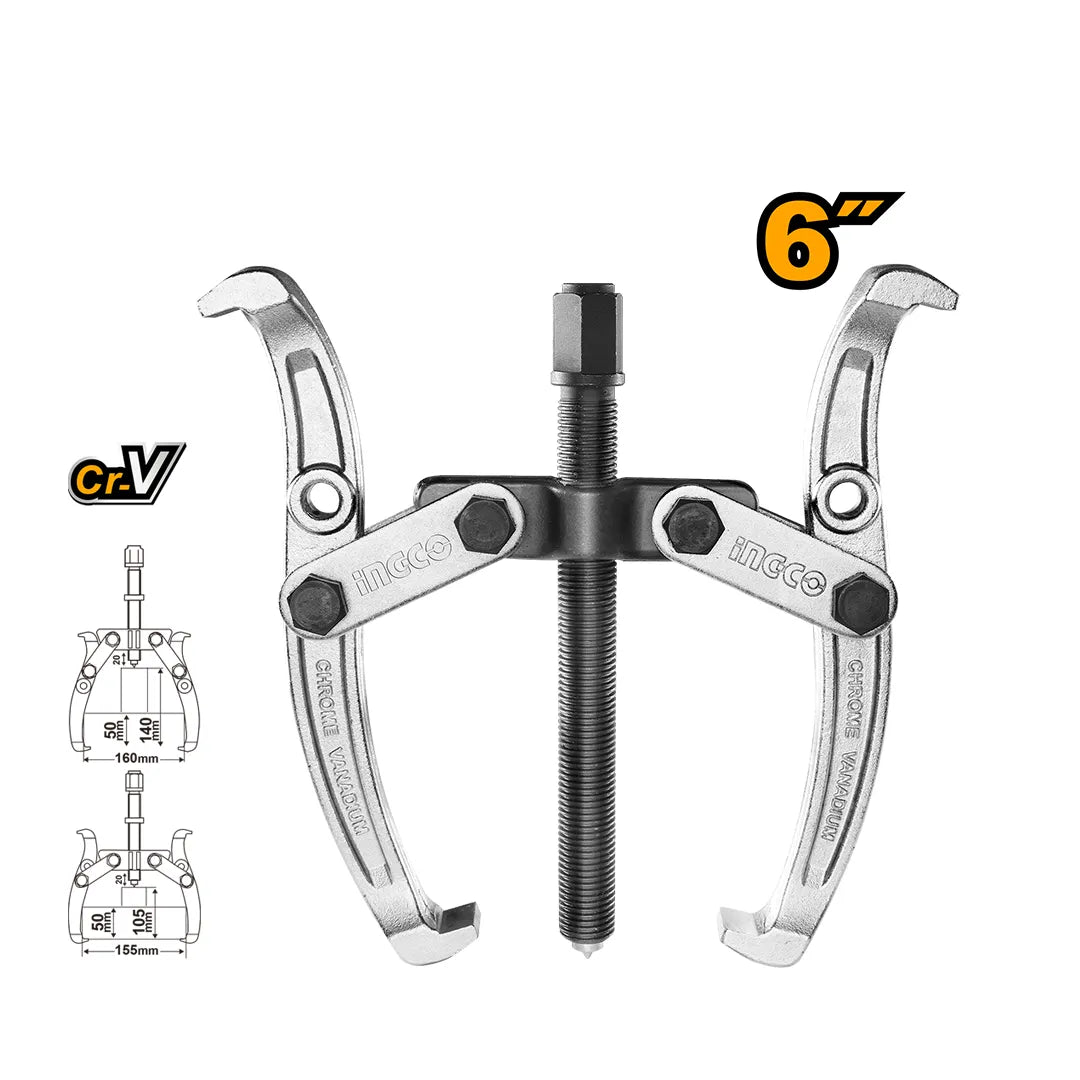

• Dimensional Application Ranges:

  • A = 160 mm

  • A1 = 155 mm

  • L1 = 50 mm

  • L2 = 140 mm

  • L3 = 50 mm

  • L4 = 105 mm

• Packaging Presentation: Packed by Color Box

• Primary Target Components: Transmission gears, alternator bearings, engine pulleys, flywheels, sprockets, and bushings

• Primary Applications: Automotive drivetrain repair, engine maintenance, electric motor rebuilding, farm equipment repair, and industrial mechanical servicing

Ideal For

Automotive mechanics, engine rebuilders, agricultural equipment technicians, millwrights, and serious DIY mechanics who require a strong, heat-treated 6" 2-jaw puller for heavy-duty bearing and gear extraction.

Package Includes

1 x INGCO HGP08026 6" Two-Jaw Gear Puller Assembly
