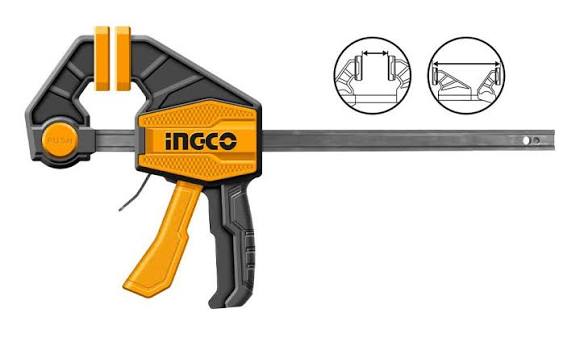

INGCO 6" (63x150mm) Quick-Release Bar Clamp – 60kg Max Clamping Force, Heavy-Duty 5x18mm Steel Bar, One-Handed Trigger Release, and Non-Marring Protective Jaws (HQBC01601)

Securing workpieces with traditional screw-type C-clamps or manual F-clamps during woodworking and assembly often requires both hands, making initial alignment difficult and tedious. Slow-adjusting clamps can slip or leave deep dents on soft wood surfaces if used without protective pads. The INGCO HQBC01601 6" (63x150mm) Quick-Release Bar Clamp is a fast, high-efficiency clamping hand tool engineered for easy one-handed holding, gluing, and fitting tasks. Built with a heavy-duty steel main bar and a quick-grip trigger mechanism, this compact 6-inch clamp allows woodworkers, carpenters, and DIYers to exert up to 60 kg of clamping force effortlessly.

The reliable clamping power and easy operation of this quick bar clamp stem from its solid 5x18mm iron ruler bar and ergonomic pistol-grip handle. Squeezing the main ratchet trigger advances the jaw smoothly along the rail to lock materials in place. To reposition or remove the tool, pressing the quick-release lever instantly disengages the locking jaw, allowing fast, one-handed operation. Outfitted with removable, non-marring soft jaw pads, the HQBC01601 holds delicate finished timber, plastic sheets, and light metal fabrications firmly without scratching or damaging surface finishes.

Key Features

• 60kg Maximum Clamping Force – Delivers up to 60 kg of holding pressure, ideal for wood gluing, frame assembly, and light fitting.

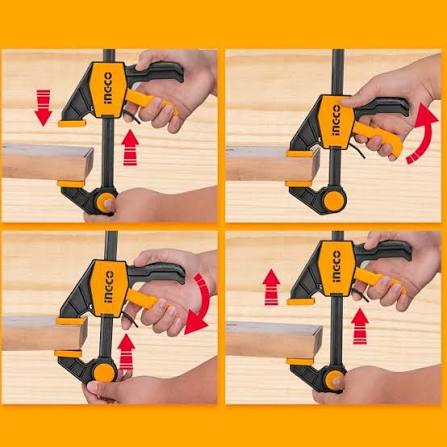

• One-Handed Quick Trigger Action – Squeeze-to-clamp trigger design allows simple, rapid single-handed operation while holding your workpiece aligned with the other hand.

• Instant Quick-Release Button – Integrated release lever disengages clamp tension immediately for fast adjustments and setup swaps.

• Reinforced 5x18mm Steel Bar – Rigid 5x18mm iron rail resists twisting and flexing under heavy pressure.

• Non-Marring Protective Jaw Pads – Removable soft jaw pads distribute clamping pressure evenly to prevent surface denting or scratching.

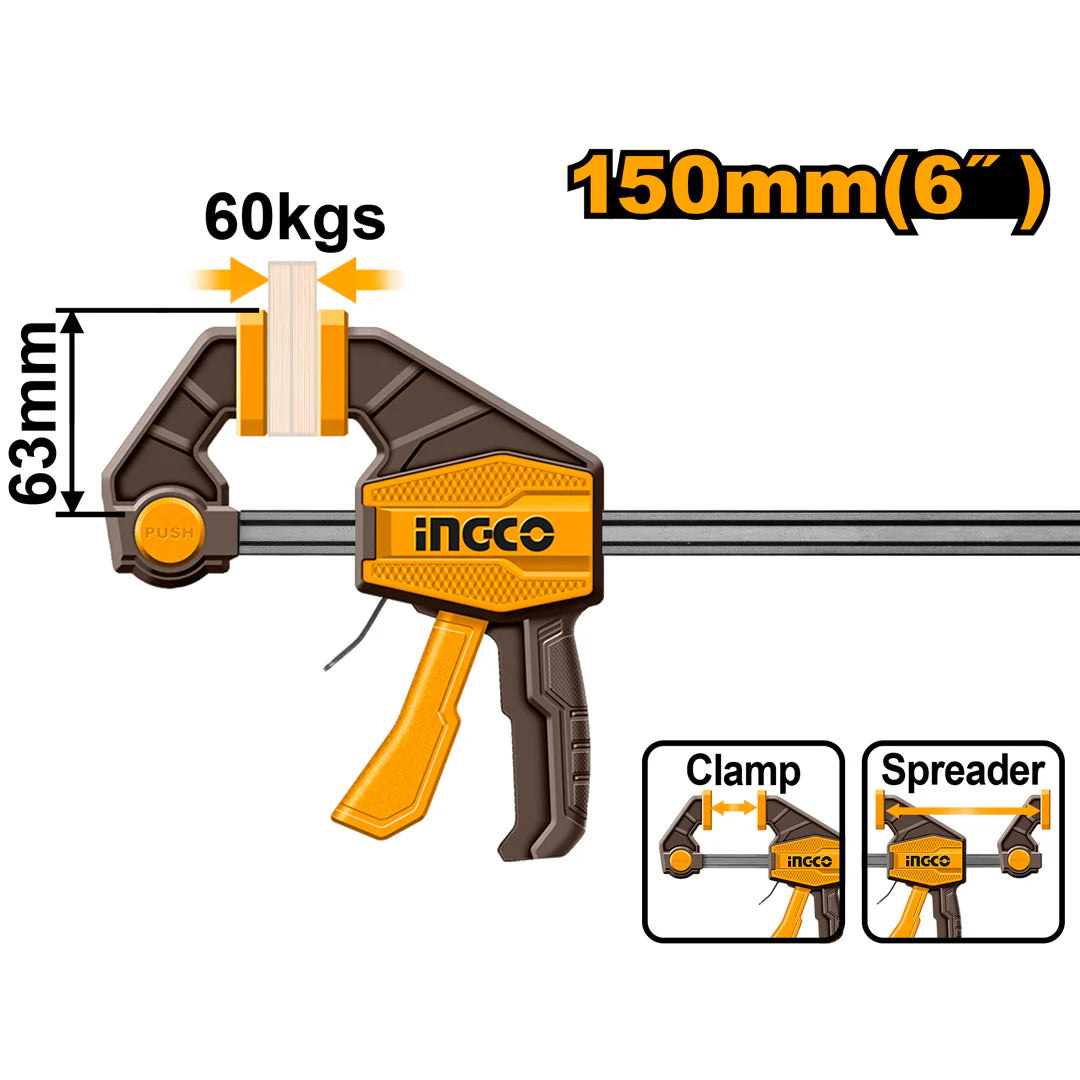

• Compact 6" (150mm) Capacity – Features a 63mm throat depth and 150mm clamping capacity, perfect for benchtop crafts, model building, and cabinet assembly.

Technical Specifications

• Brand: INGCO

• Model: HQBC01601

• Product Type: One-Handed Quick Bar Clamp / Quick-Grip F-Clamp

• Clamping Size / Capacity: 6 Inches / 150 mm

• Throat Depth: 63 mm

• Maximum Clamping Force: 60 kg

• Rail (Iron Ruler) Dimensions: 5 mm x 18 mm

• Jaw Material: High-Impact Engineering Plastic with Removable Soft Pads

• Main Bar Material: Heavy-Duty Iron / Steel Alloy

• Packaging Presentation: Packed by Brand Label

• Primary Target Materials: Softwood, hardwood, plywood, acrylic sheets, plastic trim, and light sheet metal

• Primary Applications: Woodworking, furniture repair, picture frame assembly, glue-ups, light soldering alignment, and general workshop holding

Ideal For

Woodworkers, carpenters, cabinet makers, hobbyists, crafters, and DIY enthusiasts who need a reliable, one-handed 6" quick-release bar clamp for fast holding and gluing operations.

Package Includes

1 x INGCO HQBC01601 6" (63x150mm) Quick-Release Bar Clamp Assembly
