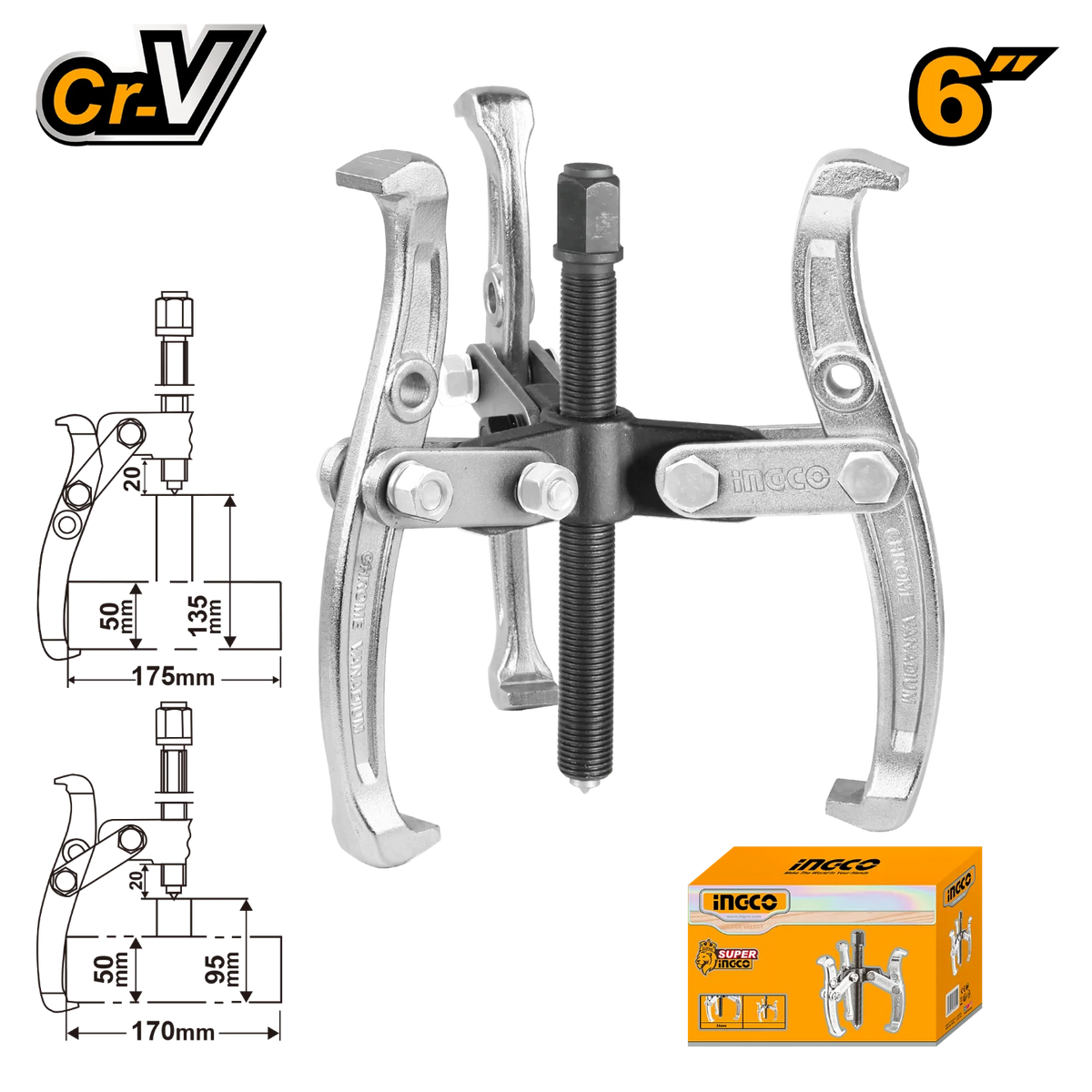

Ingco 6-Inch Professional Industrial 3-Jaw Gear Puller – Heavy-Duty Chrome-Vanadium Steel Bearing Extractor Tool with Reinforced 6,000KG Maximum Force Rating (HGP08036)

Extracting seized press-fit bearings, frozen drive pulleys, or stubborn transmission gears using makeshift pry bars, hammers, and direct heat causes severe structural damage to the drive shaft, distorts fine machine tolerances, and poses high safety risks. Low-grade, unhardened steel pullers easily flex or snap under extreme mechanical stress, strip their center force threads, or lose their grip mid-pull. The Ingco HGP08036 6-Inch Professional Industrial 3-Jaw Gear Puller is an engineered high-torque mechanical extraction solution built to safely deliver up to 6,000 kilograms of steady, balanced pulling force. Outfitted with a substantial 6-inch frame profile, this professional holding tool enables industrial millwrights, automotive technicians, and heavy equipment mechanics to pop loose stubborn press-fit assemblies cleanly without component distortion.

The exceptional service life and zero-slip alignment tracking of this gear extractor stem from its premium drop-forged chrome-vanadium (Cr-V) steel construction and precision heat treatment. The high-tensile alloy jaws are molecularly built to withstand massive percussive force without spreading or breaking under load. Designed with a high-stability 3-jaw configuration, the puller distributes tension completely evenly at 120-degree intervals around the component perimeter, pulling it perfectly straight along the shaft line to prevent damage to the inner bearing races. Outfitted with a premium chrome-plated surface treatment to resist industrial corrosion, the tool features a heavy-gauge central drive bolt with smooth, fine-pitch threads that amplify manual torque into massive linear extraction power.

Key Features

• Massive 6,000KG Extraction Rating – Engineered to deliver up to 6 tons of concentrated pulling force to handle tough industrial and automotive bearing separation.

• Premium Chrome-Vanadium Core – Forged from high-grade Cr-V alloy tool steel and heat-treated for ultimate structural rigidity to ensure the jaws never flex or deform.

• Balanced 3-Jaw Tension Distribution – Triple-jaw setup layout locks securely onto target wheels, providing a uniform, slip-free pull that eliminates uneven shaft tracking.

• Generous 6-Inch Working Range – Large 175mm reach combined with a wide 170mm spread layout allows the tool to easily accommodate medium to large mechanical components.

• Industrial Chrome-Plated Finish – High-gloss chrome surface coating shields the structural alloy tool steel against rust, grease buildup, and workshop abrasion.

• Fine-Threaded Center Drive Bolt – Machined with heavy-gauge, wear-resistant high-tensile threads to ensure smooth rotation under full load conditions.

Technical Specifications

• Brand: INGCO

• Model: HGP08036

• Product Type: Professional Heavy-Duty 3-Jaw Mechanical Extractor Puller

• Tool Size: 6 Inches (150 mm Class Frame)

• Maximum Mechanical Force Limit: 6,000 KG (6 Metric Tons safe load capability)

• Jaw Configuration Count: 3 Jaws

• Maximum Vertical Reach (A): 175 mm

• Maximum Horizontal Spread (A1): 170 mm

• Additional Range Profiles: L1 = 50 mm, L2 = 135 mm, L3 = 50 mm, L4 = 95 mm

• Core Metal Material Composition: Drop-Forged, Heat-Treated Chrome-Vanadium (Cr-V) Steel Matrix

• Surface Coating Enhancement: Multi-Layer Anti-Corrosion Chrome Plating

• Primary Target Substrates: Pressed ball bearings, pulley wheels, alternator armatures, transmission gears, steering pulleys, and mechanical sprockets

• Primary Applications: Automotive drivetrain assembly service, industrial electric motor maintenance, agriculture machine overhaul, and heavy equipment maintenance workshop repair

Ideal For

Automotive mechanics, agricultural repair technicians, industrial millwrights, workshop managers, and heavy-duty DIY mechanics who require a powerful, durable, and balanced 6-inch three-jaw puller to handle stubborn gear extraction daily.

Package Includes

1 x INGCO HGP08036 6-Inch 3-Jaw Gear Puller Assembly
