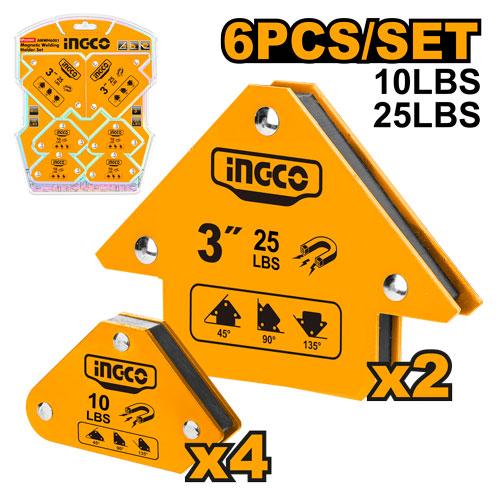

Ingco 6-Piece Multi-Angle Magnetic Welding Holder Set - Heavy-Duty Steel Arrow Magnets Kit with 10 lbs & 25 lbs Pull Force (AMWH6001)

Trying to hold raw metal plates, square tubes, or iron angle frames perfectly steady while managing a welding torch or stick electrode is nearly impossible without an extra set of hands. Standard mechanical clamps are bulky, time-consuming to adjust, and often obstruct your workspace, leading to warped alignments, uneven tack welds, and joint gaps. The Ingco AMWH6001 6-Piece Multi-Angle Magnetic Welding Holder Set is an essential workshop solution engineered to provide an instant, unyielding mechanical hold on ferrous workpieces. By combining two distinct sizes of high-potency arrow magnets into one universal kit, this master set acts as a rigid jig that keeps your materials perfectly aligned while keeping your hands completely free to weld safely.

The exceptional utility and setup accuracy of this magnetic holder set stem from its precision-cut arrowhead multi-angle geometry. Each steel-jacketed magnet allows you to position your metal substrates at exact 45-degree, 90-degree, and 135-degree configurations, streamlining everything from standard square box corner framing to intricate architectural geometries. The 6-piece setup is strategically balanced for various material thicknesses, supplying four mini-sized magnets with a 10 lbs (4.5 kg) pull force for thin pipes or delicate sheet assemblies, alongside two larger 3-inch magnets delivering a powerful 25 lbs (11.3 kg) holding capacity for heavy structural framing. Encased in high-visibility industrial steel plates to resist spatter and impact, this durable kit speeds up production across welding setups, soldering tasks, layout marking, and metal hardware assembly lines.

Technical Specifications

• Brand: INGCO

• Model: AMWH6001

• Product Type: Multi-Angle Arrow Magnetic Welding Holder Jig Set

• Total Set Quantity: 6 Pieces Per Retail Pack Configuration

• Core Material Matrix: Premium high-potency permanent magnets enclosed within durable structural carbon steel protective plates

• Available Alignment Profiles: Precision 45°, 90°, and 135° angle configurations

• Master Set Component Assortment Breakdown:

  • 4 x Mini Magnetic Holders:

    • Rated Magnetic Pull Force: 10 Lbs (approx. 4.54 kg) per piece

    • Individual Dimension Footprint: 70mm x 42.5mm x 12mm

    • Individual Unit Weight: 108g

  • 2 x 3-Inch Heavy Magnetic Holders:

    • Rated Magnetic Pull Force: 25 Lbs (approx. 11.35 kg) per piece

    • Individual Dimension Footprint: 120mm x 83mm x 14.4mm

    • Individual Unit Weight: 304g

• Surface Integrity Finish: High-visibility industrial yellow powder coating to prevent moisture corrosion and limit welding spatter adhesion

• Primary Target Materials: Carbon steel plates, structural iron pipes, steel angle irons, metal channels, sheets, and any highly ferrous metal alloys

• Primary Applications: Fast tack welding immobilization, dual-sided corner squaring, blueprint layout tracking, assembly positioning, parts pick-up manipulation, and precise piping intersections

• Packaging Type: Supplied safely enclosed inside a heavy-duty commercial double blister retail pack layout for absolute face protection and clean warehouse shelf inventory tracking
