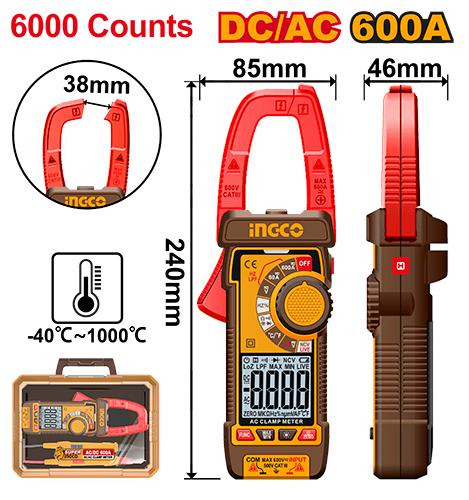

INGCO 600A AC/DC Digital Clamp Meter – Premium 6000 Counts True RMS Display, Dual-Impedance LowZ Mode, and VFD LPF Signal Filtering (DCM66002)

Diagnosing complex electrical systems, tracking down transient voltage spikes, or measuring erratic current loads on industrial motor drives using standard multimeters is both slow and hazardous. Standard meters require you to break the circuit to measure current, which increases the risk of arc flash incidents and interrupts critical system operations. The INGCO DCM66002 600A AC/DC Digital Clamp Meter is a high-performance, professional testing instrument engineered to deliver safe, non-contact measurements in heavy-duty environments. Outfitted with robust clamp jaws, this advanced diagnostic tool allows industrial electricians, HVAC technicians, and plant maintenance engineers to clamp directly around live conductors and instantly read both AC and DC currents up to 600A without interrupting the power flow.

The exceptional diagnostic precision and safety of this clamp meter stem from its high-accuracy 6000-count True RMS display and integrated Dual-Impedance LowZ mode. Unlike cheap meters that struggle with distorted waveforms, the True RMS engine processes clean, accurate readings on both linear and non-linear electrical loads. Built to prevent false readings caused by "ghost voltages" in parallel lines, the LowZ function introduces a low input impedance path to drain stray charges. To ensure reliable performance when servicing variable frequency drives (VFDs) and high-power motor installations, the meter features an integrated Low-Pass Filter (LPF) and an Inrush Current capture mode. This allows you to filter out high-frequency noise during voltage tests and accurately record sudden motor startup currents.

Key Features

• 6000 Counts True RMS Accuracy – Delivers highly accurate readings on complex AC/DC circuits, even when dealing with harmonic distortions or non-linear wave patterns.

• Non-Contact 600A AC/DC Clamp Jaws – Measures high-amperage lines safely and instantly without cutting wires or breaking the active circuit.

• Dual-Impedance LowZ Mode – Eliminates ghost voltage interference to prevent false readings and ensure ultimate measurement reliability in crowded electrical panels.

• VFD Low-Pass Filter (LPF) – Advanced signal filtering strips away high-frequency noise and harmonics, allowing for clean AC voltage readings on variable frequency motor drives.

• Inrush Current Measurement – Accurately captures and locks the maximum startup current spike when heavy-duty machinery and industrial motors are first switched on.

• Built-In Non-Contact Voltage (NCV) – Includes an integrated sensor that safely detects the presence of live AC voltage through walls, outlets, and insulation without contact.

Technical Specifications

• Brand: INGCO

• Model: DCM66002

• Product Type: Professional Industrial AC/DC Digital Clamp Meter

• Digital Display: 6000-Count High-Contrast True RMS Screen

• AC/DC Current Measurement Range: 60A / 600A

• AC/DC Voltage Measurement Range: 600mV / 6V / 60V / 600V

• Resistance Measurement Range: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ

• Capacitance Measurement Range: 10nF / 100nF / 1000nF / 10uF / 1000uF / 10mF / 100mF

• Frequency Measurement Range: 10Hz / 100Hz / 1000Hz / 10kHz / 100kHz / 1000kHz / 10MHz

• Temperature Probe Range: -40.0°C to 1000.0°C (-40.0°F to 1832.0°F)

• Input Impedance: 10MΩ (Standard mode) / 300 kΩ (LowZ mode)

• Integrated Functions: NCV, Data Hold, LowZ, LPF (VFD), Inrush Current, Phase Function, Diode Test

• Power Source: 3 x LR03 AAA Batteries (Included in package)

• Storage Protection: Heavy-Duty Hard Plastic Carry Box

Ideal For

Industrial electrical contractors, commercial HVAC/R technicians, solar power installers, and industrial maintenance personnel who require a highly accurate, rugged, and feature-rich 600A AC/DC clamp meter to safely troubleshoot complex machinery and electrical panels.

Package Includes

1 x INGCO DCM66002 AC/DC Digital Clamp Meter

1 x Set of Premium Color-Coded Test Leads

1 x Specialized Temperature Probe K-Type Thermocouple

3 x LR03 AAA Alkaline Batteries

1 x Durable Protective Plastic Storage Case
