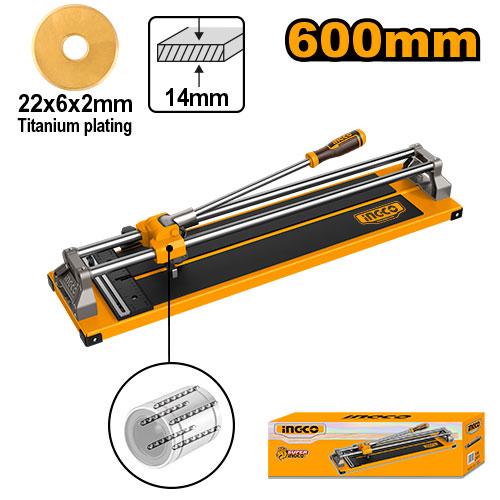

INGCO 600mm Manual Tile Cutter – Heavy-Duty 820x200mm Steel Base, High-Precision 20mm Dual Sliding Bars, and Multi-Function Direct & Diagonal Cuts (HTC04601)

Cutting dense ceramic, porcelain, or clay tiles using motorized wet saws is often messy, loud, and requires constant access to water and electricity. On the other hand, using cheap, flimsy manual cutters leads to jagged, uneven breaks, wasted tiles, and high frustration on the job site. The INGCO HTC04601 600mm Manual Tile Cutter is a site-ready, heavy-duty cutting solution designed to deliver clean, razor-sharp scores and perfect snaps every time. Built around a highly stable steel foundation and precise guiding rails, this professional-grade tile cutter allows tilers, general contractors, and home renovators to execute flawless straight and diagonal cuts with absolute speed and zero noise.

The exceptional scoring precision and structural durability of this manual cutter stem from its solid 20mm dual steel sliding bars and a reinforced 820mm x 200mm steel base. The dual sliding bars provide an ultra-smooth, low-friction glide for the aluminum slide assembly, completely eliminating side-to-side play while you score. Equipped with a premium 22mm x 6mm x 2mm tungsten carbide scoring wheel, it easily scores and snaps tiles up to 14mm thick with minimal downward pressure. Complete with an integrated measurement guide and a stable base thickness of 2mm, this manual cutter is the definitive choice for fast, clean, and dust-free tile installations on residential or commercial projects.

Key Features

• 600mm Maximum Cut Length – Large-capacity layout easily accommodates standard tiles and allows for rapid 600mm straight and diagonal cuts.

• Ultra-Rigid 20mm Sliding Bars – Dual solid steel rods guarantee high-precision slide motion, preventing blade deflection and ensuring perfectly straight score lines.

• Reinforced Steel Base (820mm x 200mm) – A wide, heavy-duty 2mm-thick steel foundation provides maximum structural stability and resists bending under snapping pressure.

• Premium Tungsten Carbide Blade – Features a durable 22mm x 6mm x 2mm carbide scoring wheel that maintains sharp, smooth cutting performance over long-term use.

• High-Leverage Snapping Handle – Designed with an ergonomic lever handle and smooth aluminum sliders to apply maximum snapping force with minimal physical effort.

• Integrated Measurement Scale – Outfitted with an adjustable steel guide rule to execute repetitive cuts and precise angles with absolute accuracy.

Technical Specifications

• Brand: INGCO

• Model: HTC04601

• Product Type: Heavy-Duty Manual Tile Cutter

• Maximum Cutting Length: 600 mm

• Maximum Cutting Thickness: 14 mm

• Scoring Blade Size: 22 mm x 6 mm x 2 mm

• Steel Base Dimensions: 820 mm Length x 200 mm Width

• Base Frame Thickness: 2.0 mm

• Sliding Bar Diameter: 20 mm

• Slider Carriage Material: Smooth-Glide Aluminum

• Supported Cut Types: Direct line cutting, diagonal line cutting

• Net Weight: 6.7 kg

• Packaging Presentation: Heavy-Duty Color Storage Box

• Primary Target Materials: Ceramic tiles, glazed porcelain tiles, polished floor tiles, and clay tiles

• Primary Applications: Kitchen backsplashes, bathroom wall tiling, residential floor tiling, and commercial paving projects

Ideal For

Tilers, floor installers, masonry contractors, and DIYers who require a durable, high-leverage, and exceptionally smooth 600mm manual tile cutter to achieve precise, dust-free straight and diagonal tile snaps.

Package Includes

1 x INGCO HTC04601 600mm Manual Tile Cutter Assembly 1 x Integrated 22x6x2mm Tungsten Carbide Scoring Wheel 1 x Adjustable Metal Measuring Guide Rule
