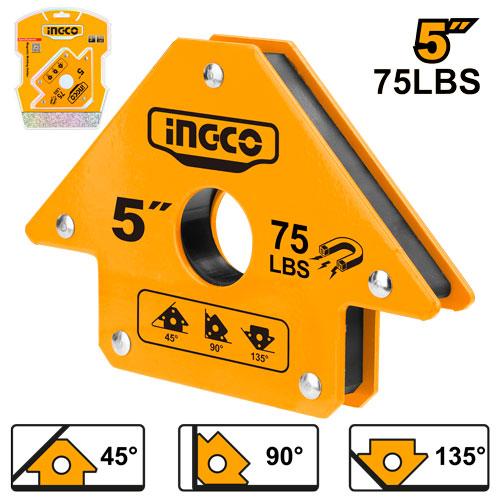

Ingco 75mm Magnetic Welding Holder | Multi-Angle Arrow Positioner for Sheet Metal and Steel Fabrication (AMWH75051)

The Ingco AMWH75051 Magnetic Welding Holder is a hands-free positioning tool designed to hold ferrous metal pieces securely at precise angles during welding, soldering, assembly, and installation tasks. Shaped in a standard arrow profile, this multi-angle magnet serves as a reliable setup assistant, allowing operators to align metal plates, square tubing, or round bars without needing a second pair of hands.

The tool features high-strength magnetic elements encased within a riveted carbon steel frame, providing fixed angles of 45°, 90°, and 135°. The compact 75mm design provides a balanced magnetic pull force that stabilizes components while remaining easy to detach once tack welding is completed. The durable steel casing protects the internal magnet from shattering and resists damage from weld spatter, ensuring clear alignment in standard workshop environments.

Technical Specifications

• Brand: INGCO

• Model Number: AMWH75051

• Product Type: Magnetic Welding Holder / Arrow Positioner

• Size Dimension: 75mm (5")

• Fixed Angles: 45°, 90°, 135°

• Material Composition: Permanent Ferrite Magnet with Carbon Steel Casing

• Frame Construction: Double-Riveted Steel Profile

• Primary Applications: Sheet metal tacking, frame assembly, steel tube alignment, soldering setup, and pipe installation

• Packaging Type: Packed by double blister or sliding card layout
