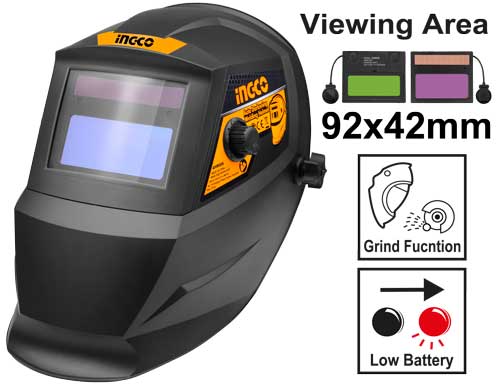

INGCO Auto-Darkening Welding Helmet (Masque de Soudage Auto-Variable) – Solar & Battery Powered, Shade 9–13 Adjustment, 0.1ms Switching Time (AHM008)

Performing arc, MIG, or TIG welding without dynamic light filtering exposes welders to harmful ultraviolet (UV) and infrared (IR) radiation, as well as painful arc eye (photokeratitis). Traditional flip-front helmets require constant manual adjustments, disrupting workflow and increasing eye fatigue. The INGCO AHM008 Auto-Darkening Welding Helmet is an advanced protective solution designed for maximum ocular defense, fast optical switching, and continuous welding productivity. Engineered with an ultra-fast liquid crystal display (LCD) filter, the viewing lens automatically transitions from a clear light state (Shade 4) to a dark protective state (Shade 9–13) within a fraction of a millisecond upon detecting an arc flash.

The safety and precision of the AHM008 rely on its dual optical sensors, variable shade control, and dual solar/lithium power system. The helmet features external dial adjustments for shade selection, sensitivity, and delay times, allowing welders to fine-tune optical clarity for different processes ranging from low-amperage TIG welding to heavy industrial MIG cutting. Powered by high-efficiency solar cells paired with a long-life lithium backup battery, it ensures constant readiness on the jobsite. The high-impact polyamide (nylon) shell with an adjustable ergonomic harness delivers lightweight head protection, reducing neck strain during extended fabrication projects.

Key Features

• Ultra-Fast Auto-Darkening Lens – Switches from light to dark state in just 0.1ms (1/10,000s) to eliminate arc flash exposure instantly.

• Variable Shade Control (DIN 9–13) – Adjustable dark shades allow custom optical protection across MMA, MIG, TIG, and plasma cutting applications.

• Continuous UV/IR Protection – Integrated optical filter provides permanent protection up to DIN 16 against ultraviolet and infrared radiation, even in the unpowered state.

• Solar Cell & Battery Powered – Dual power system uses solar energy for operation, backed up by a long-life lithium battery for immediate response.

• Ergonomic Headgear & Lightweight Shell – Multi-point adjustable ratchet harness and balanced weight distribution prevent neck fatigue during long shifts.

• Dual Arc Sensors – High-sensitivity sensors maintain reliable arc detection even when working in tight corners or obstructed angles.

Technical Specifications

• Brand: INGCO

• Model: AHM008

• Product Type: Auto-Darkening Welding Helmet / Masque de Soudage

• Viewing Area: 92 mm x 42 mm

• Light State: DIN 4

• Dark State: Variable DIN 9 to DIN 13

• Switching Time (Light to Dark): 1/10,000s (0.1 ms)

• Delay Time (Dark to Light): 0.2s – 0.8s (Auto / Adjustable)

• Power Supply: Solar Cells + Lithium Battery Backup

• Operating Temperature: -5°C to +55°C

• Shell Material: High-Impact Polyamide (Nylon)

• Standards: CE EN 175 / EN 379 compliant

• Primary Target Applications: Shielded Metal Arc Welding (SMAW/MMA), Gas Metal Arc Welding (GMAW/MIG), Gas Tungsten Arc Welding (GTAW/TIG), and Plasma Arc Cutting

Ideal For

Professional welders, fabricators, automotive mechanics, maintenance personnel, and serious DIYers requiring high-speed eye protection and hands-free welding efficiency.

Package Includes

1 x INGCO AHM008 Auto-Darkening Welding Helmet

1 x Adjustable Ergonomic Headband Assembly

1 x User Manual
