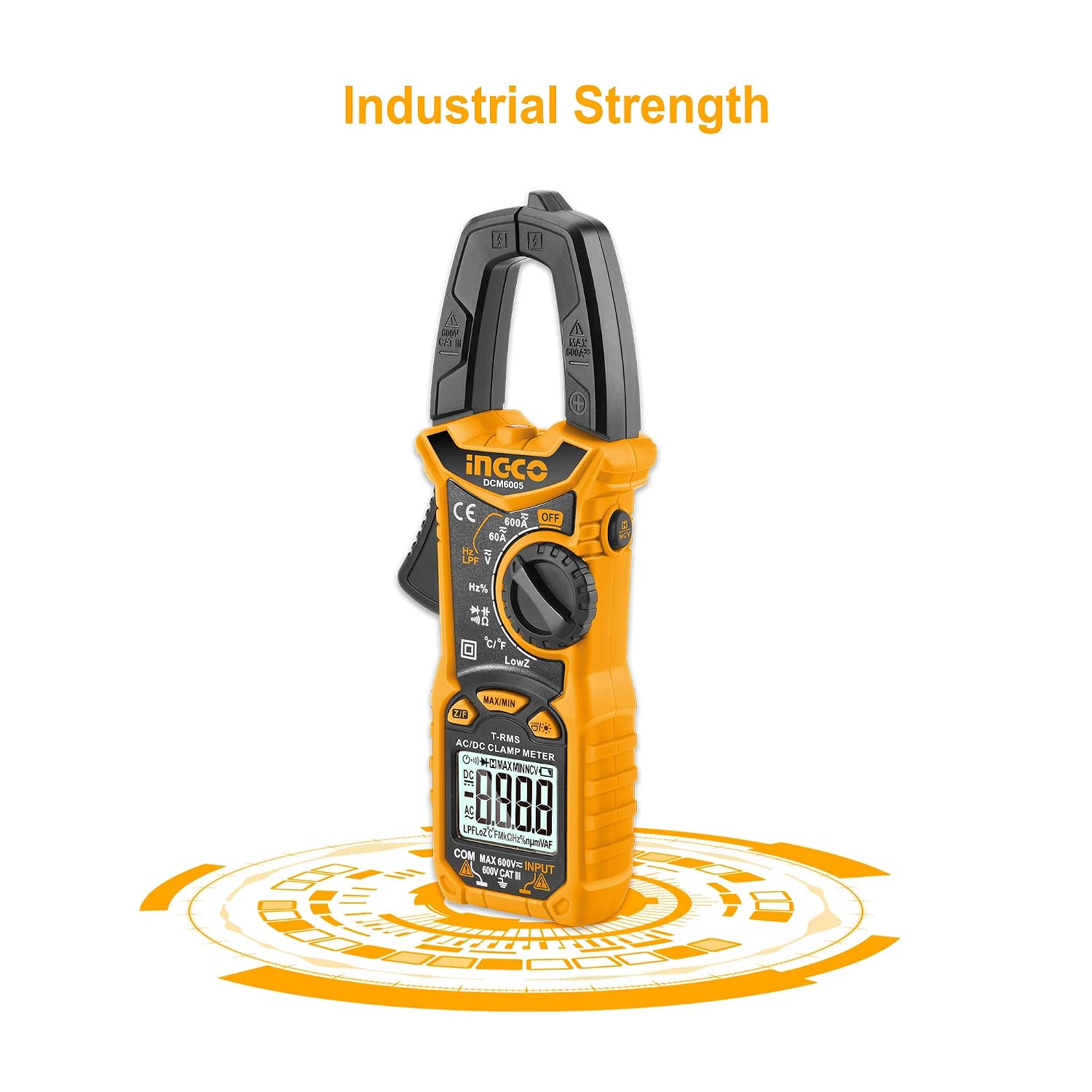

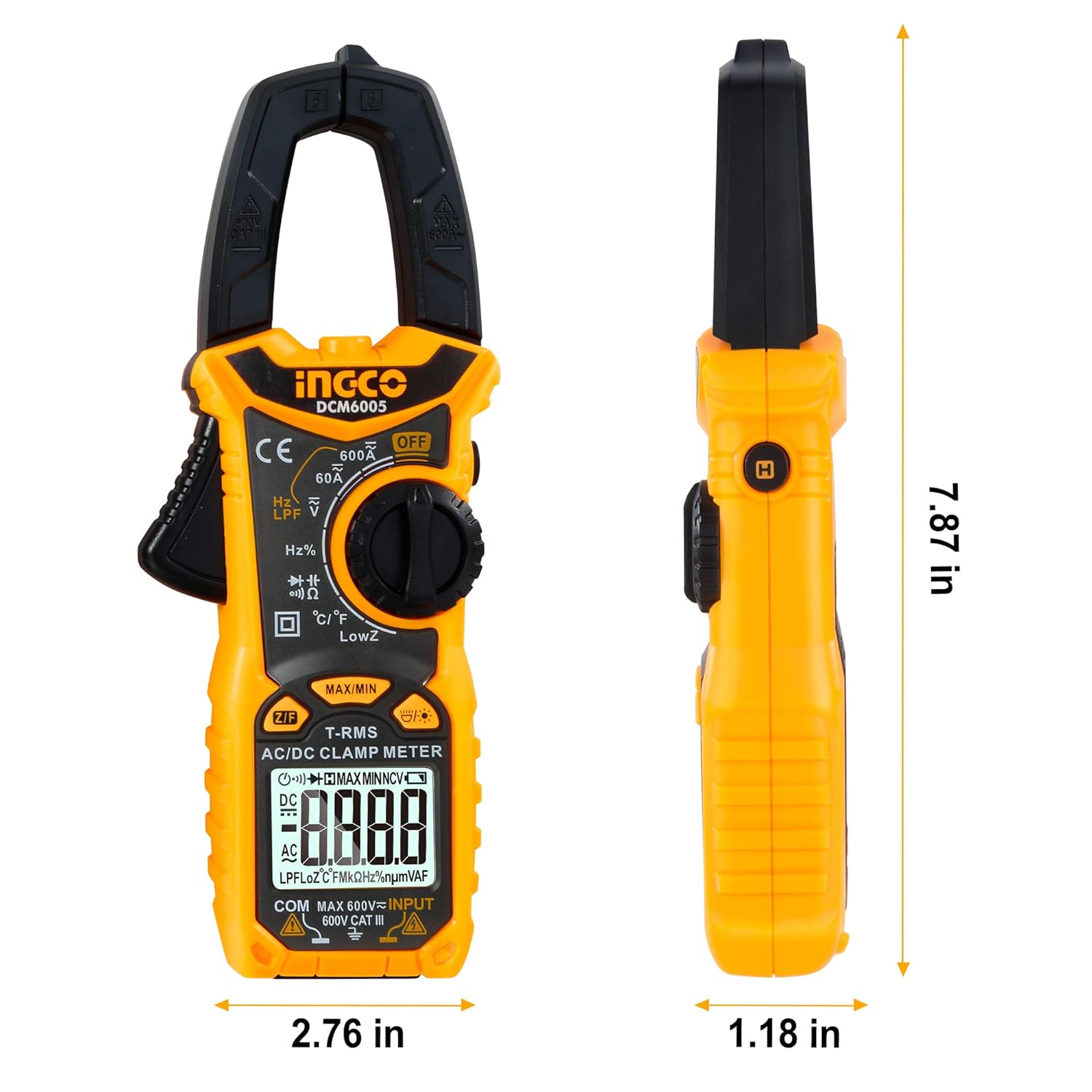

INGCO Digital AC/DC Clamp Meter 6000 Counts True RMS – Non-Contact Voltage (NCV) Detection, Integrated Flashlight, Backlit LCD, and Temperature Sensor (DCM6005)

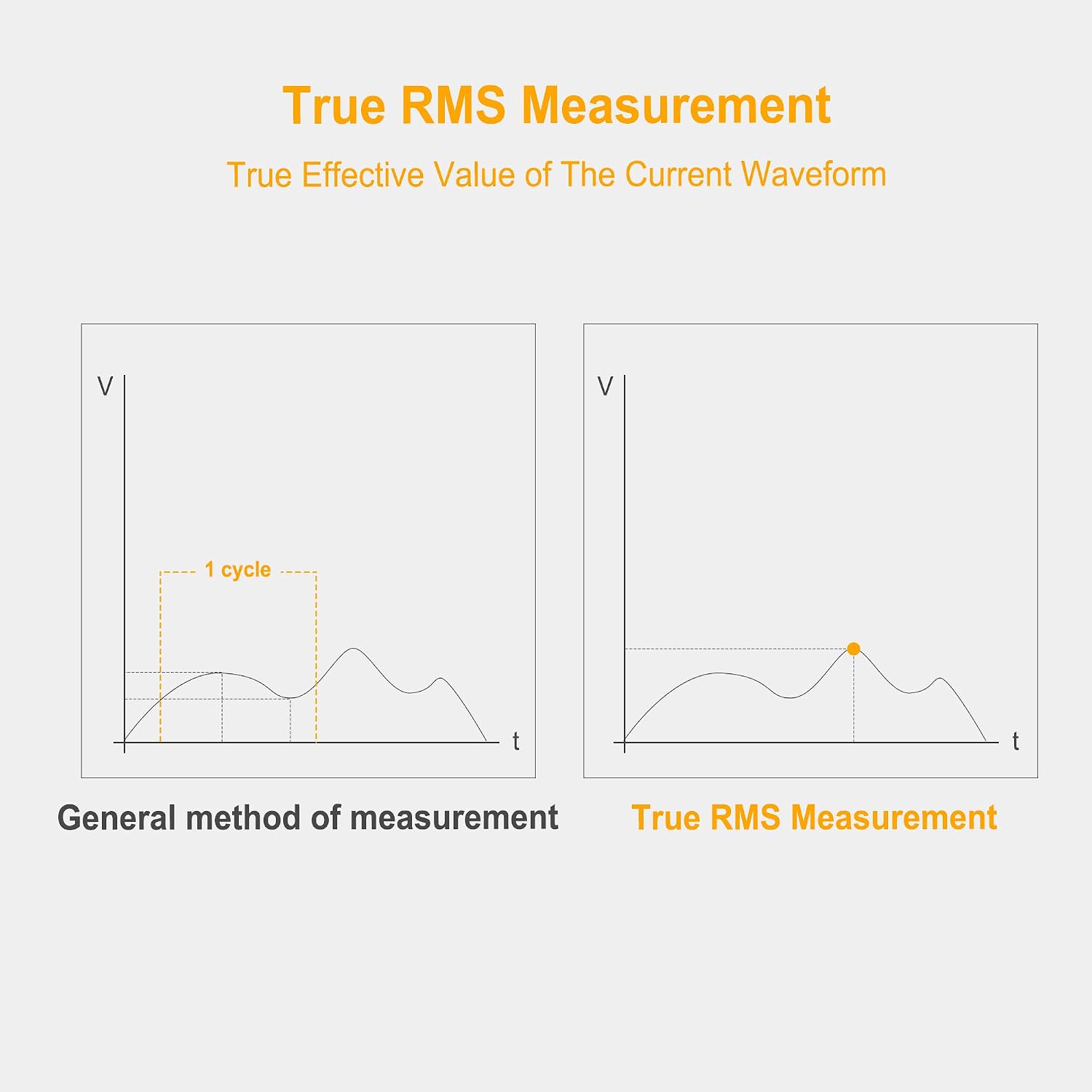

Measuring live electrical currents without breaking circuits or exposing bare conductors is essential for safe, efficient troubleshooting in industrial, commercial, and residential environments. Standard multimeters require inline wiring connections that interrupt active circuits and add setup time. The INGCO DCM6005 Digital AC/DC Clamp Meter is a high-precision True RMS electrical testing instrument engineered for safe non-invasive current measurement, advanced diagnostics, and versatile circuit troubleshooting. Featuring a 6000-count backlit LCD screen and True RMS measurement technology, this clamp meter delivers accurate readings even when measuring distorted non-sinusoidal AC waveforms produced by modern variable-frequency drives (VFDs) and electronic power supplies.

Designed for maximum diagnostic versatility, the DCM6005 measures both AC and DC current up to 600A, eliminating the need for separate meters when working on automotive DC charging systems, solar arrays, or standard AC building mains. Beyond current clamping, it performs full digital multimeter functions including AC/DC voltage, resistance, capacitance, frequency, duty cycle, and temperature measurement. Built with non-contact voltage (NCV) detection, an integrated LED flashlight for dark junction boxes, data hold, and auto power-off, this meter offers professional performance for electricians, HVAC technicians, and automotive specialists.

Key Features

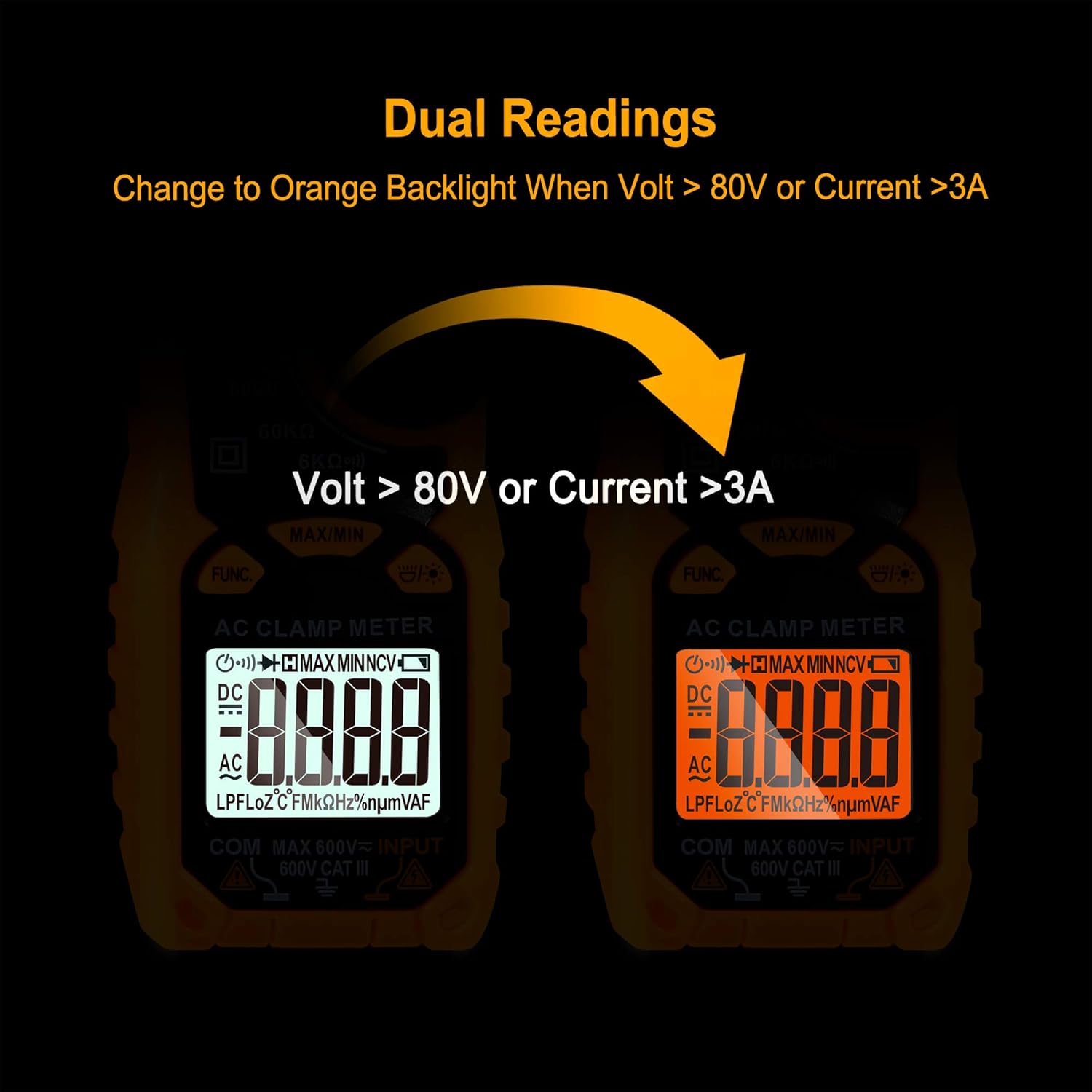

• 6000-Count True RMS Display – Delivers high-precision digital readings across complex AC waveforms with a crisp, backlit LCD screen for low-light environments.

• Dual AC/DC Current Measurement (60A/600A) – Measures both alternating and direct current up to 600A via jaw clamp without opening the circuit.

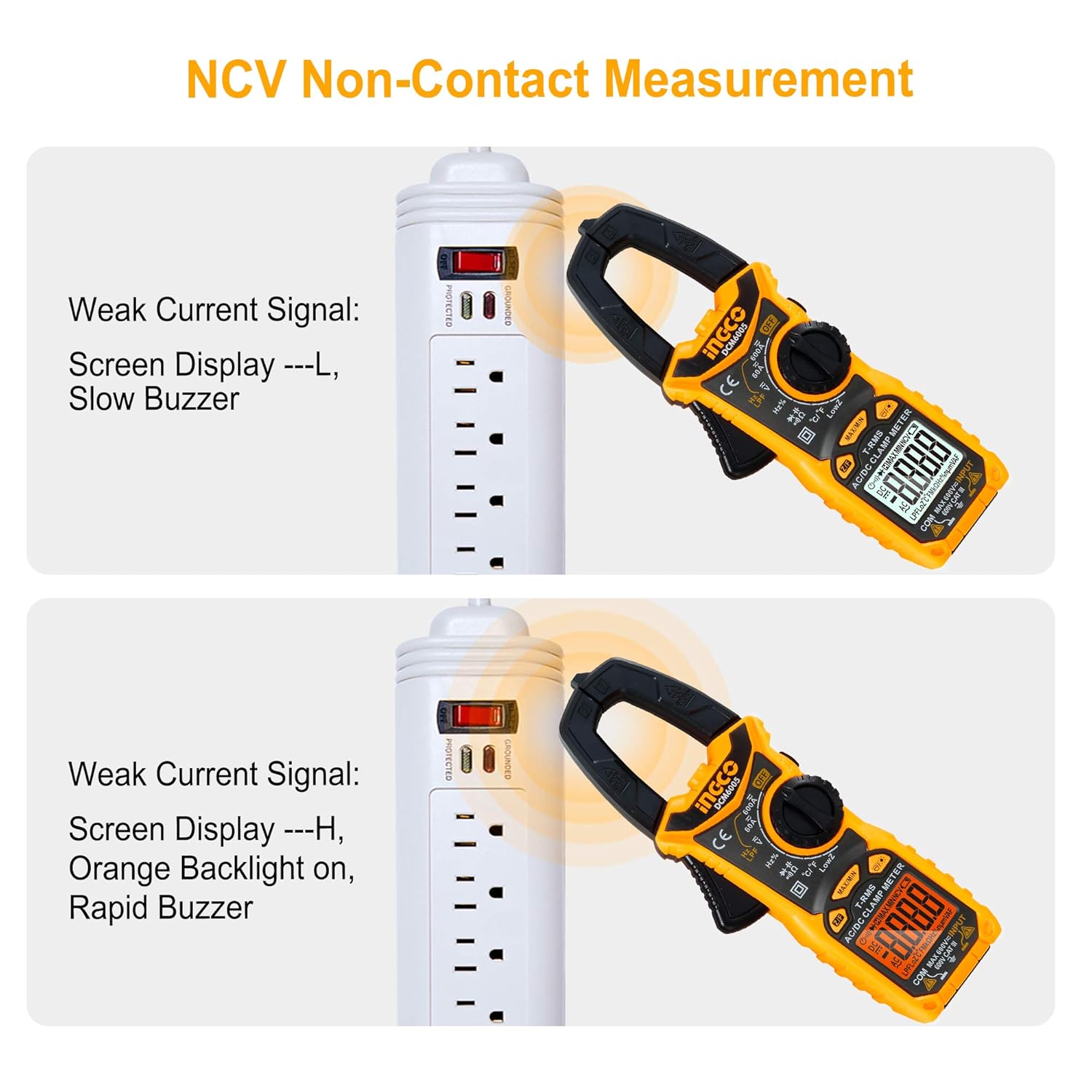

• Non-Contact Voltage (NCV) Detection – Quickly checks for live voltage presence in cables, outlets, and breakers without direct metal contact.

• Multi-Function Diagnostic Capability – Tests AC/DC voltage, resistance, capacitance, frequency, duty cycle, diode continuity, and temperature (-20°C to 1000°C).

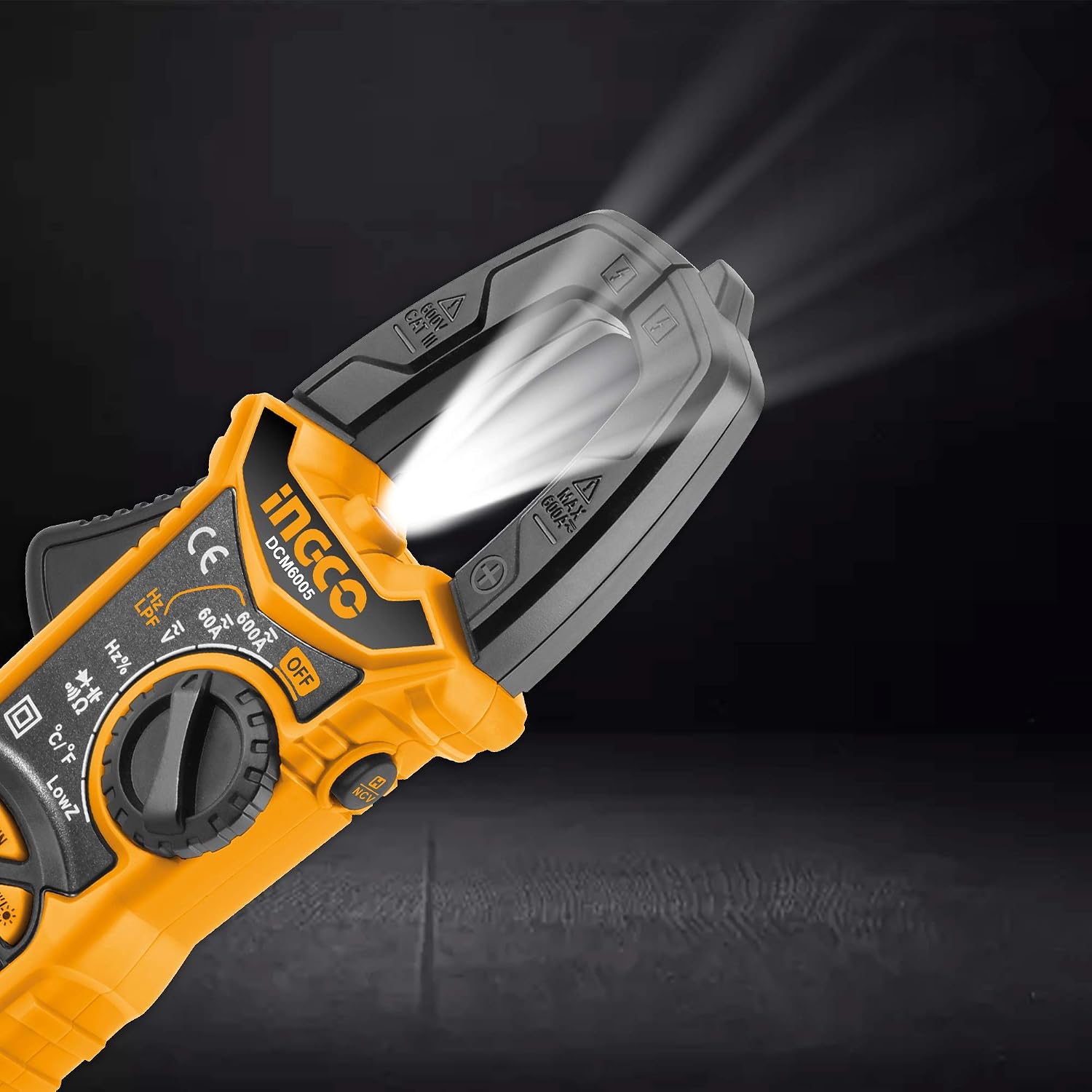

• Built-In LED Flashlight – Illuminates dim electrical panels, conduit paths, and breaker boxes during testing.

• Convenient Utility Functions – Features Data Hold to freeze readings on screen, Low Battery Indication, and Auto Power-Off to preserve battery life.

Technical Specifications

• Brand: INGCO

• Model: DCM6005

• Product Type: Digital AC/DC Clamp Meter / True RMS Multimeter

• Display: 6000 Counts LCD with Backlight

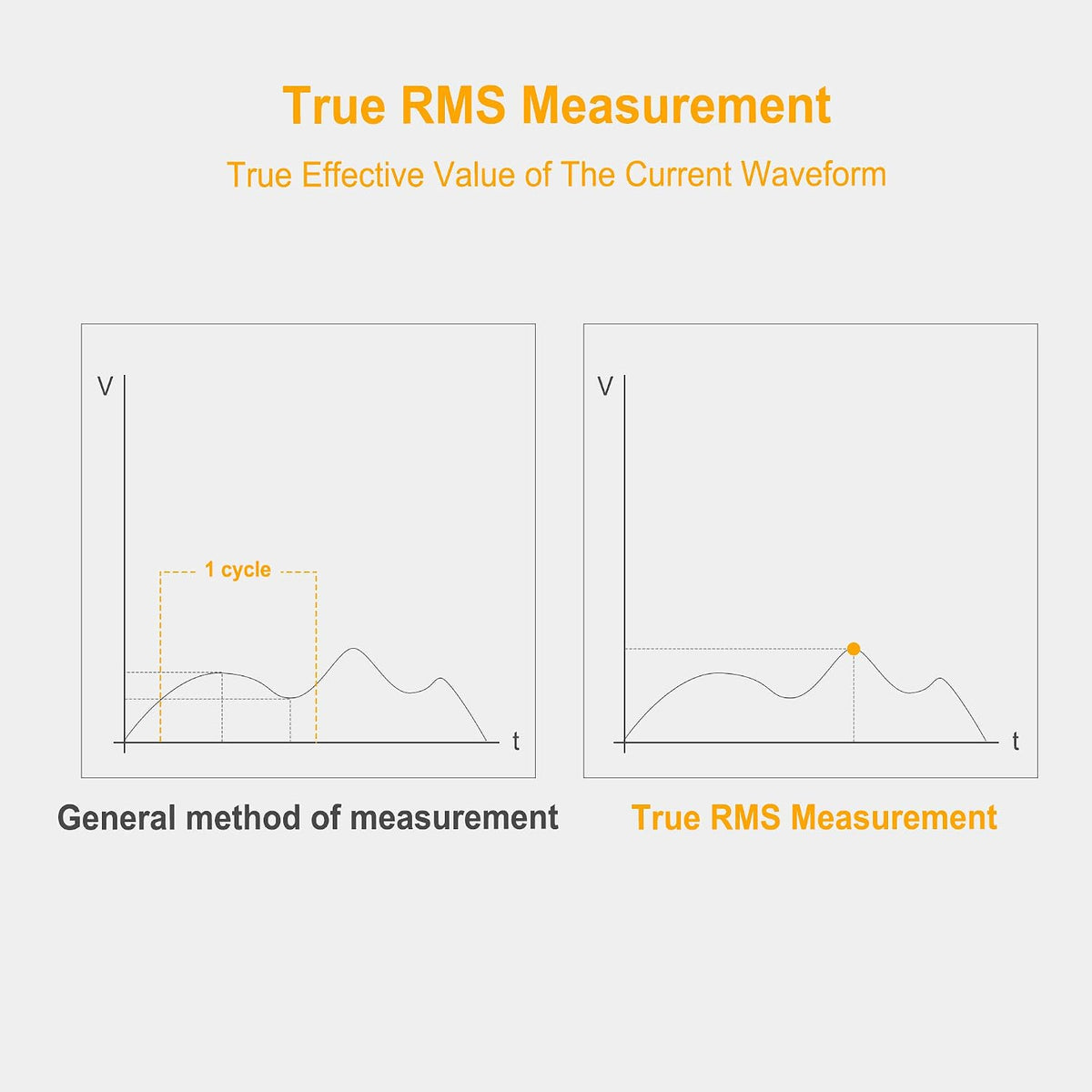

• Measurement Technology: True RMS

• AC Current: 60A / 600A

• DC Current: 60A / 600A

• AC Voltage: 6V / 60V / 600V

• DC Voltage: 600mV / 6V / 60V / 600V

• Resistance Range: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ

• Capacitance Range: 10nF / 100nF / 1000nF / 10μF / 100μF / 1000μF / 10mF / 100mF

• Frequency Range: 10Hz to 10MHz

• Duty Cycle: 1% to 99%

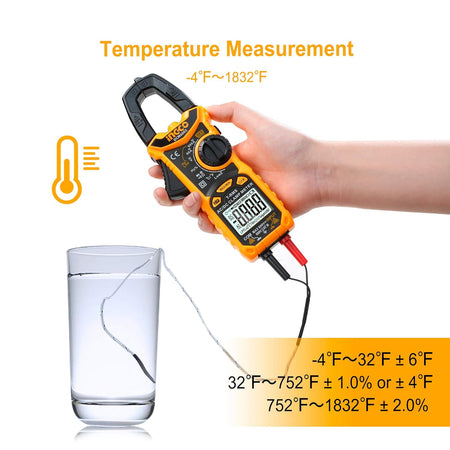

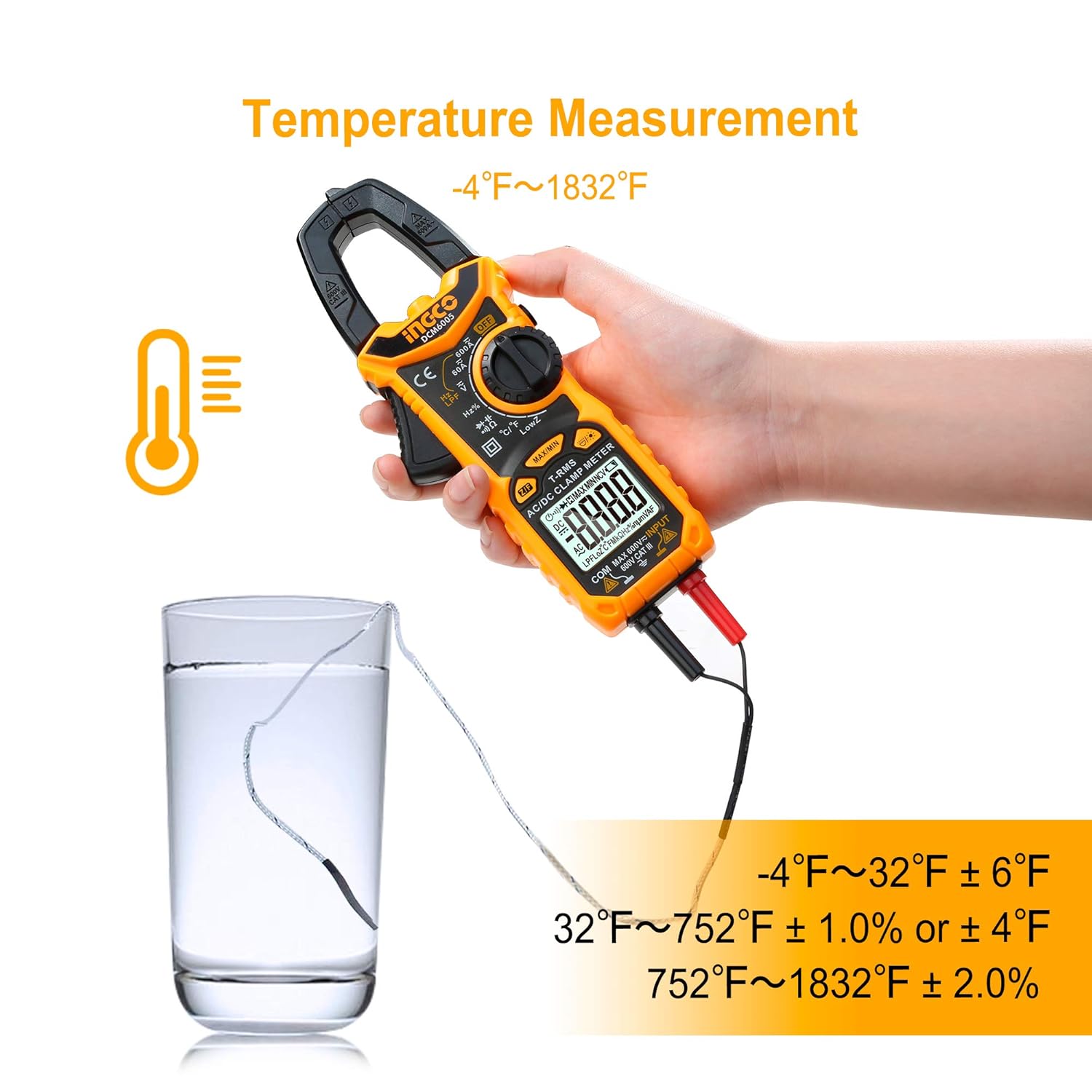

• Temperature Range: -20°C to 1000°C (-4°F to 1832°F)

• Power Source: 2 x AAA Batteries (LR03)

• Packaging Presentation: Packed by Color Box

• Primary Target Applications: Commercial electrical installation, automotive electrical diagnosis, solar PV panel testing, HVAC motor testing, and industrial maintenance

Ideal For

Electricians, HVAC technicians, automotive mechanics, solar installers, facility maintenance engineers, and advanced electronics hobbyists requiring a reliable 600A AC/DC True RMS clamp meter.

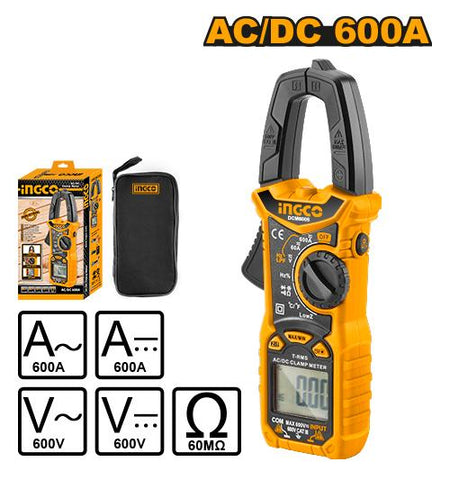

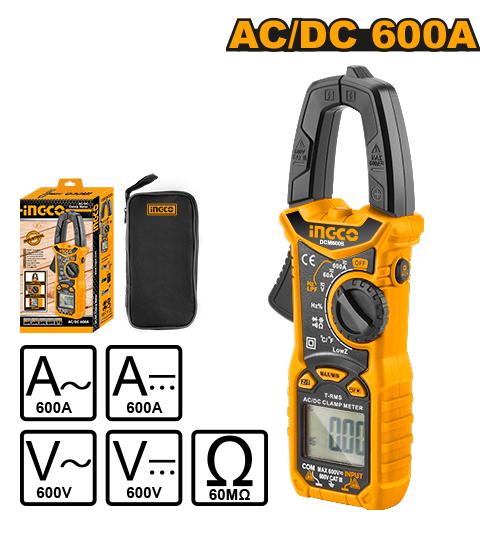

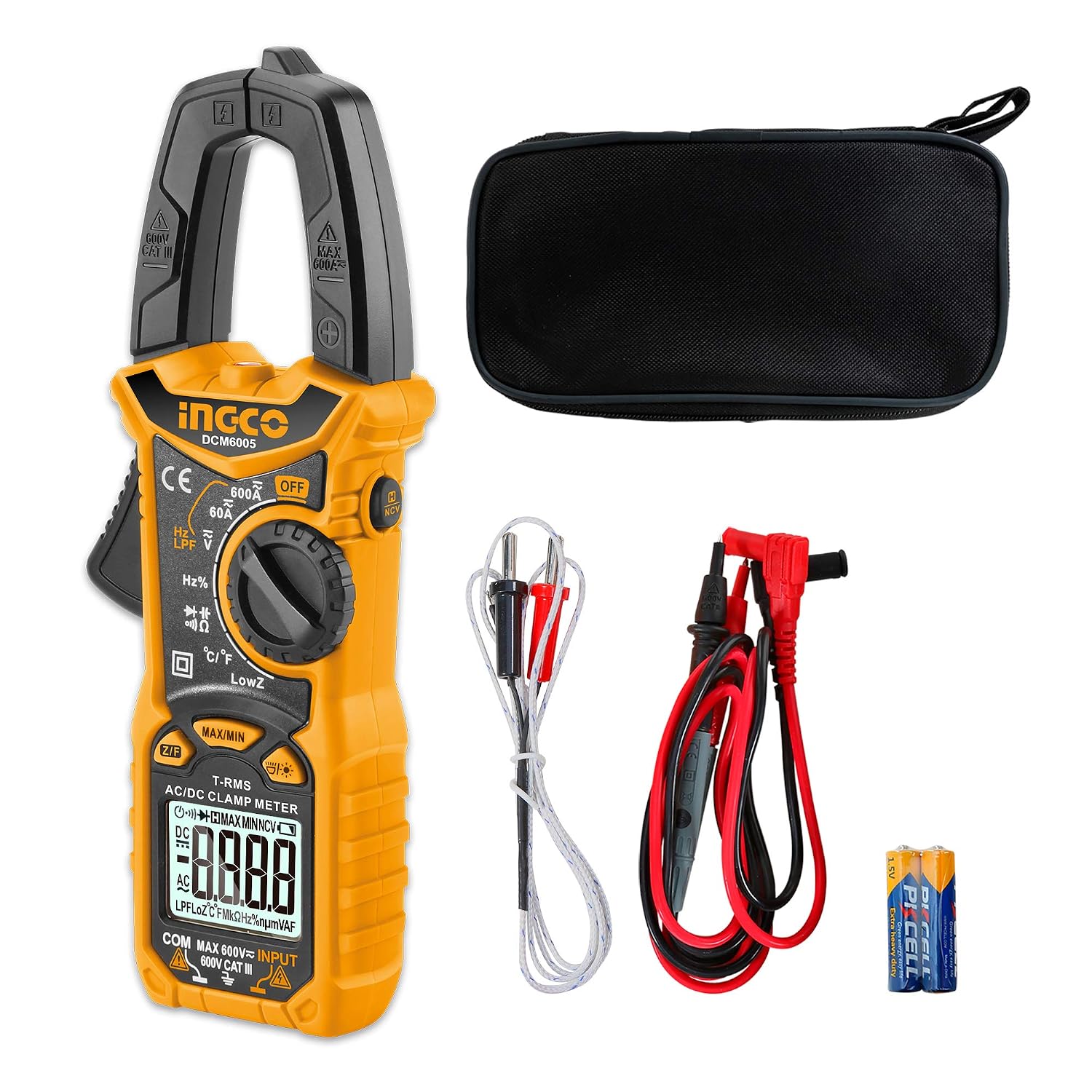

Package Includes

• 1 x INGCO DCM6005 Digital AC/DC Clamp Meter Unit

• 1 x Set of Test Leads

• 1 x K-Type Thermocouple Temperature Probe

• 2 x AAA Batteries
