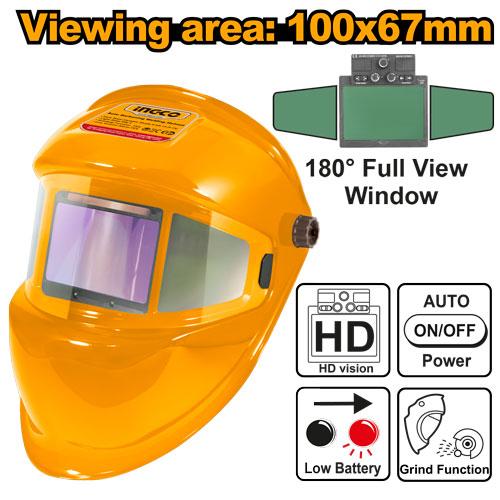

INGCO Professional Auto-Darkening Welding Helmet (Masque de Soudage Auto-Variable) – Large 100x67mm View, 4 Arc Sensors, Optical Rating 1/1/1/1, Solar & Replaceable Battery Powered (AHM006)

Performing precision arc, MIG, or low-amperage TIG welding requires exceptional optical clarity, immediate shade transitions, and a wide field of view to track pass quality and weld placement accurately. Standard welding hoods offer limited viewing areas and slower sensor response times, causing neck fatigue and optical strain during intensive fabrication work. The INGCO AHM006 High-Performance Auto-Darkening Welding Helmet is a top-tier protective hood engineered for maximum optical clarity, ultra-fast arc detection, and versatile multi-process adaptability. Built with a top-rated 1/1/1/1 optical filter and an expansive 100 x 67 mm viewing area, this helmet delivers an distortion-free view of the weld puddle across all angles.

The advanced capability of the AHM006 centers on its 4 independent arc sensors, stepless shade controls (DIN 5–9 / 9–13), and built-in grinding mode. The quad-sensor configuration prevents filter flickering or light blind spots, even when working in obstructed positions or performing delicate TIG welding down to $\ge 2\text{ Amps}$. Dual power through high-efficiency solar panels and replaceable dual CR2032 lithium batteries ensures consistent readiness and long-term service life. Encased in a lightweight, high-impact nylon shell with internal stepless sensitivity and delay controls, the AHM006 provides professional-grade eye defense and all-day ergonomic comfort.

Key Features

• Top Optical Rating (1/1/1/1) – Superior optical class rating delivers clear, distortion-free visual fidelity across the entire filter.

• Extra-Large Viewing Field (100 x 67 mm) – Expansive viewing area provides wide peripheral vision and optimal workspace awareness.

• 4 High-Sensitivity Arc Sensors – Quad sensors eliminate blind spots and ensure instant auto-darkening, even when sensors are partially obstructed.

• Dual Dark Shade Ranges (DIN 5–9 / 9–13) – Versatile stepless adjustment suitable for cutting, plasma work, low-amp TIG, MIG, and heavy stick welding.

• Ultra-Fast Switching Time (<0.04 ms) – Transitions instantly from light state (DIN 3) to selected dark state to prevent arc flash.

• Integrated Grind Mode – Internal switch locks the filter into light state (DIN 3) for safe surface grinding without filter flickering.

• Solar & Replaceable Battery Power – Combines solar cell charging with 2x CR2032 replaceable lithium batteries for high reliability.

Technical Specifications

• Brand: INGCO

• Model: AHM006

• Product Type: Auto-Darkening Welding Helmet / Masque de Soudage

• Optical Class: 1 / 1 / 1 / 1

• Viewing Area: 100 mm x 67 mm

• Arc Sensors: 4 Independent Sensors

• Light State: DIN 3

• Dark State: Variable DIN 5–9 / DIN 9–13 (Stepless)

• UV/IR Protection: Permanent Up to DIN 16

• Switching Time (Light to Dark): $<0.04\text{ ms}$ ($1/25,000\text{s}$)

• Delay Time (Dark to Light): Adjustable 0.15 s – 0.80 s

• TIG Rating: $\ge 2\text{ Amps}$

• Grind Function: Yes (Internal control)

• Power Supply: Solar Panel + 2 x CR2032 Replaceable Lithium Batteries

• Shell Material: High-Impact Resistant Nylon

• Net Weight: ~560 g

• Primary Target Applications: TIG, MIG/MAG, MMA/Stick Welding, Plasma Cutting, and Grinding Operations

Ideal For

Professional metal fabricators, industrial welders, structural steel erectors, mechanical technicians, and demanding craftsmen seeking premium optical clarity and wide-view coverage.

Package Includes

1 x INGCO AHM006 Auto-Darkening Welding Helmet

1 x Ergonomic Adjustable Headband

2 x CR2032 Lithium Batteries (Pre-installed / Included)

1 x User Manual
