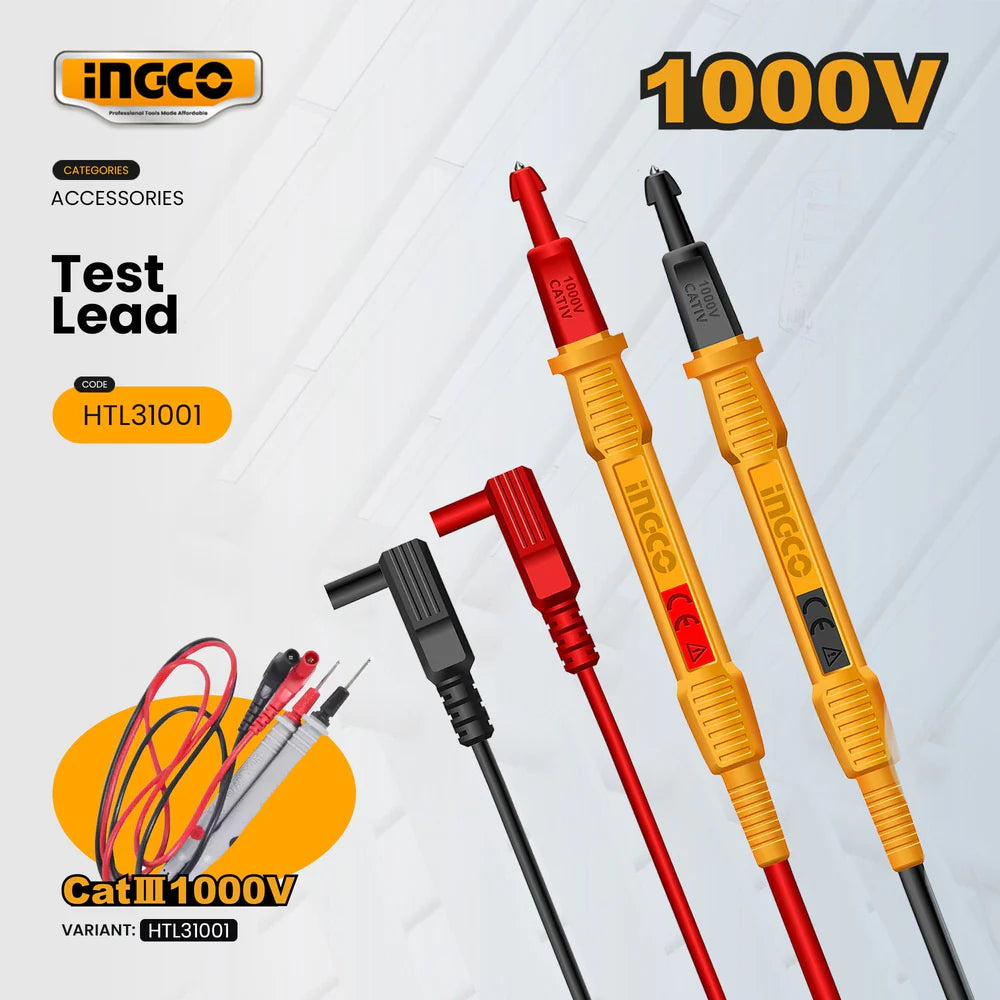

Ingco Professional Multimeter Test Lead Set – 100cm Universal Flexible Wire Probe Kit with CAT III 1000V High-Voltage Safety Rating for Digital Multimeters and Clamp Meters (HTL31001)

Executing sensitive diagnostic troubleshooting, checking live commercial distribution lines, or probing high-density circuit arrays with degraded, poorly insulated, or low-tier multimeter test leads presents severe safety hazards. Substandard testing wires frequently split, break down at the strain relief points, or lack the robust insulating core needed to safely block high-voltage transient spikes, exposing the user to direct electrical shock or arc flash injuries. The Ingco HTL31001 Professional Multimeter Test Lead Set is an engineered, highly certified electrical diagnostics solution designed for uncompromised accuracy and safety. Featuring a standard measurement threshold rated up to CAT III 1000V, this premium replacement probe kit delivers an exceptional level of dielectric protection, empowering electrical contractors, industrial plant engineers, and automotive diagnostics specialists to safely evaluate high-energy circuitry with consistent, repeatable precision.

The supreme operational life, responsive signal continuity, and physical flexibility of these leads stem from their highly durable, multi-layered insulated cable design and rigid 150mm probe handles. The generous 100cm cable body provides an optimized workspace reach, while the specialized outer jacket matrix resists daily wear, bending stresses, and accidental physical nicks without sacrificing tracking insulation. Designed to deliver flawless universal connectivity across your existing diagnostic arsenal, the inputs feature standard 4.5mm shrouded banana plugs that snap flush into multimeter ports. Upgraded with precision-machined 2mm sharp probe tips, the long-reach handles permit stable contact inside tight terminal strips, electrical junction blocks, and recessed breaker ports. Packaged cleanly in a secure double blister layout, this set is specially optimized to integrate seamlessly with standard Ingco digital equipment, providing stable, resistance-free monitoring across voltage, current, and continuity metrics.

Key Features

• CAT III 1000V High-Voltage Safety Shield – Thoroughly certified to rigorous industrial safety criteria, providing heavy-duty user protection during demanding AC mains testing and panel diagnostics.

• Extended 100cm Highly Flexible Cables – Generous 1-meter lead length gives you excellent workplace reach and positioning versatility around wide equipment panels.

• Rigid 150mm Precision Probe Pens – Long-profile insulated handle design allows for stable, comfortable physical handling while safely steering fingers clear of exposed metallic paths.

• Ultra-Sharp 2mm Probe Tips – Meticulously ground, high-conductivity tips slice cleanly through oxidation layers to make positive contact inside tight connector blocks.

• Universal 4.5mm Shrouded Input Plugs – Fully insulated banana plug terminations drop cleanly into standard multimeter and digital clamp meter input sockets.

• Comprehensive Digital Meter Compatibility – Specially matched for peak performance with Ingco digital meters, including the DM310002, DM310004, DM410003, DM110004, DCM610001, and DCM610002.

Technical Specifications

• Brand: INGCO

• Model: HTL31001

• Product Type: Professional Universal Multimeter & Clamp Meter Test Lead Set

• Safety Measurement Category: CAT III 1000V Safety Rating

• Total Cable Lead Length: 100 cm (1 Meter Profile)

• Probe Handle Length: 150 mm Rigid Body

• Probe Input Tip Diameter: 2 mm Sharp Configuration

• Termination Input Port Size: 4.5 mm Insulated Shrouded Banana Plugs

• Insulation Core Matrix: Flexible, Wear-Resistant High-Dielectric Composite

• Primary Target Testing Parameters: AC/DC Voltage tracking, Resistance ohm checks, Ampere current loops, and Continuity audible tracking

• Primary Applications: Industrial switchgear maintenance, commercial HVAC diagnostics, residential panel wiring validation, automotive electronics repair, and laboratory bench prototype testing

Ideal For

Professional commercial electricians, factory automation technicians, electrical engineers, field service mechanics, and electronics hobbyists who demand a rugged, high-safety, and precision-tipped 1000V test lead kit to manage electrical diagnostics safely.

Package Includes

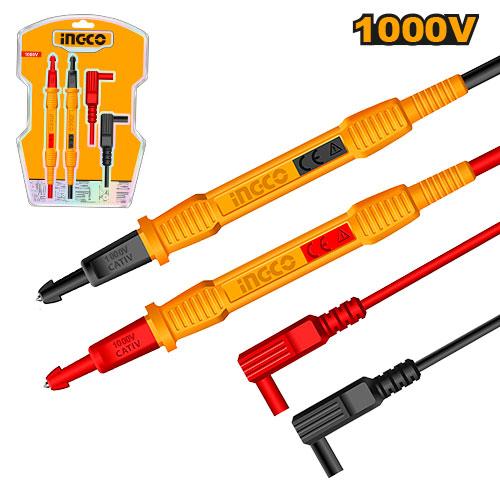

1 x Pair of INGCO HTL31001 100cm Test Leads (1 x Red Probe, 1 x Black Probe Assembly)
