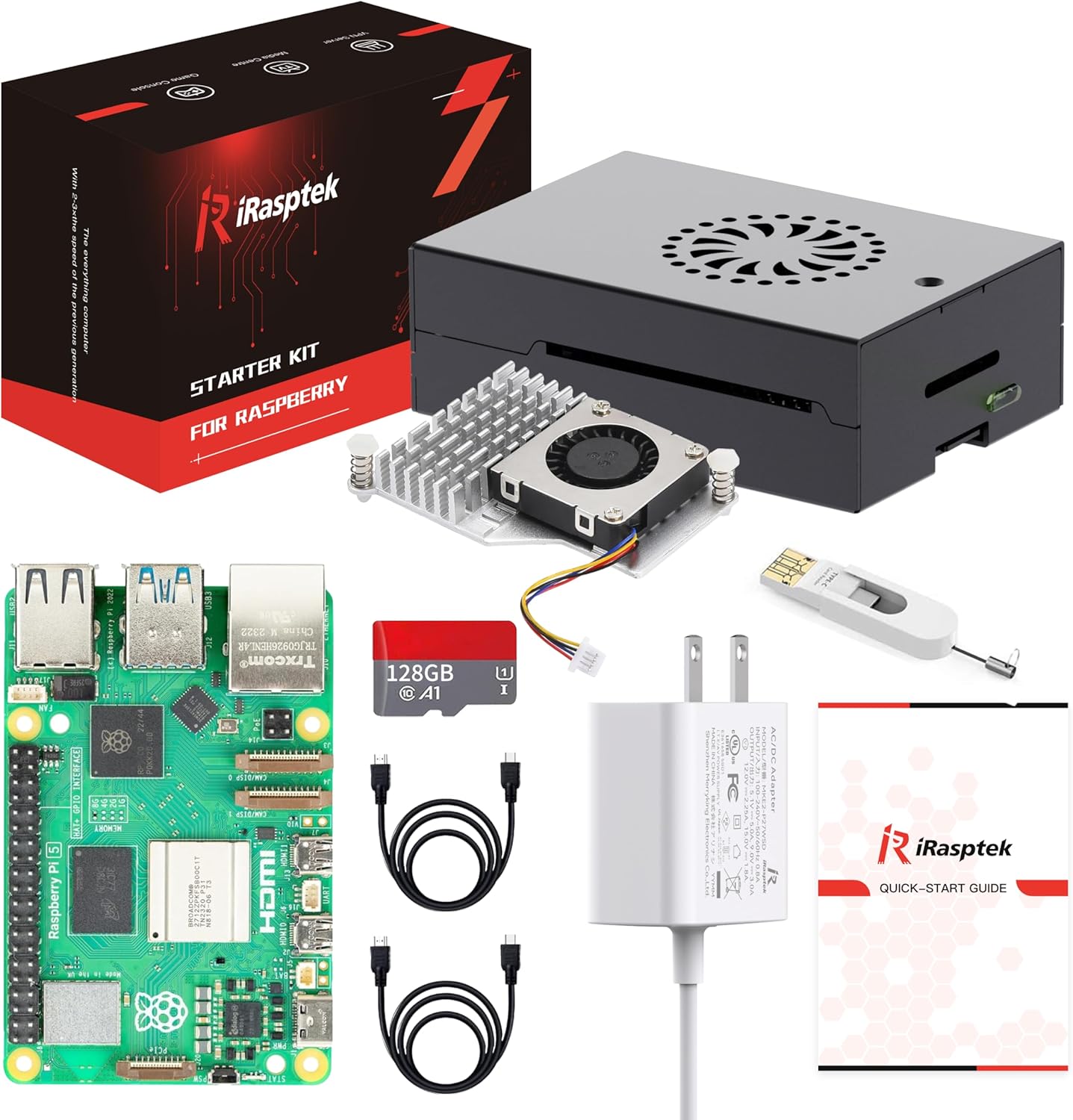

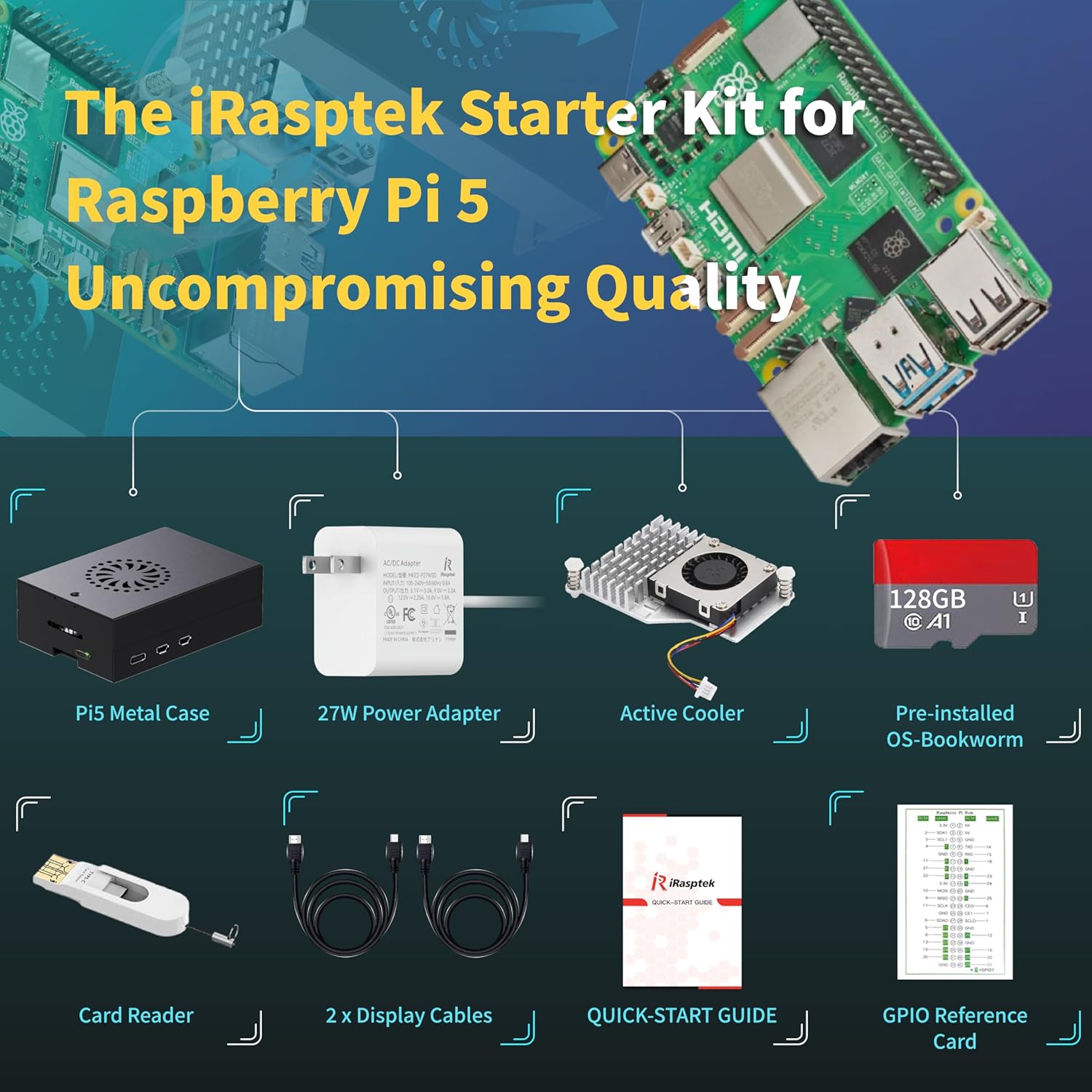

iRasptek Starter Kit for Raspberry Pi 5 RAM 8GB -128GB Edition of OS-Bookworm Pre-Loaded (Aluminum Case)
Couldn't load pickup availability
iRasptek Kit For Raspberry Pi 5

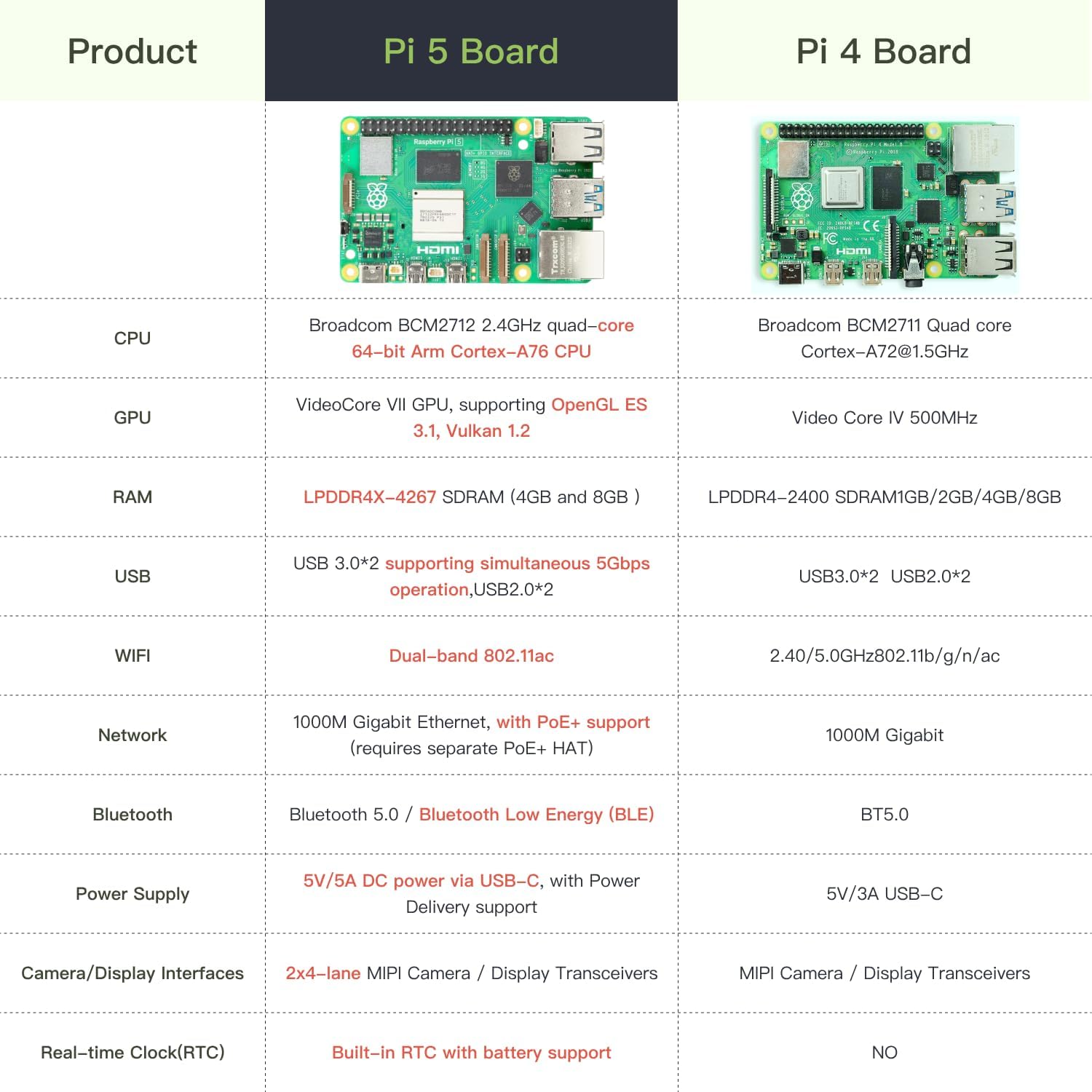

Specification：

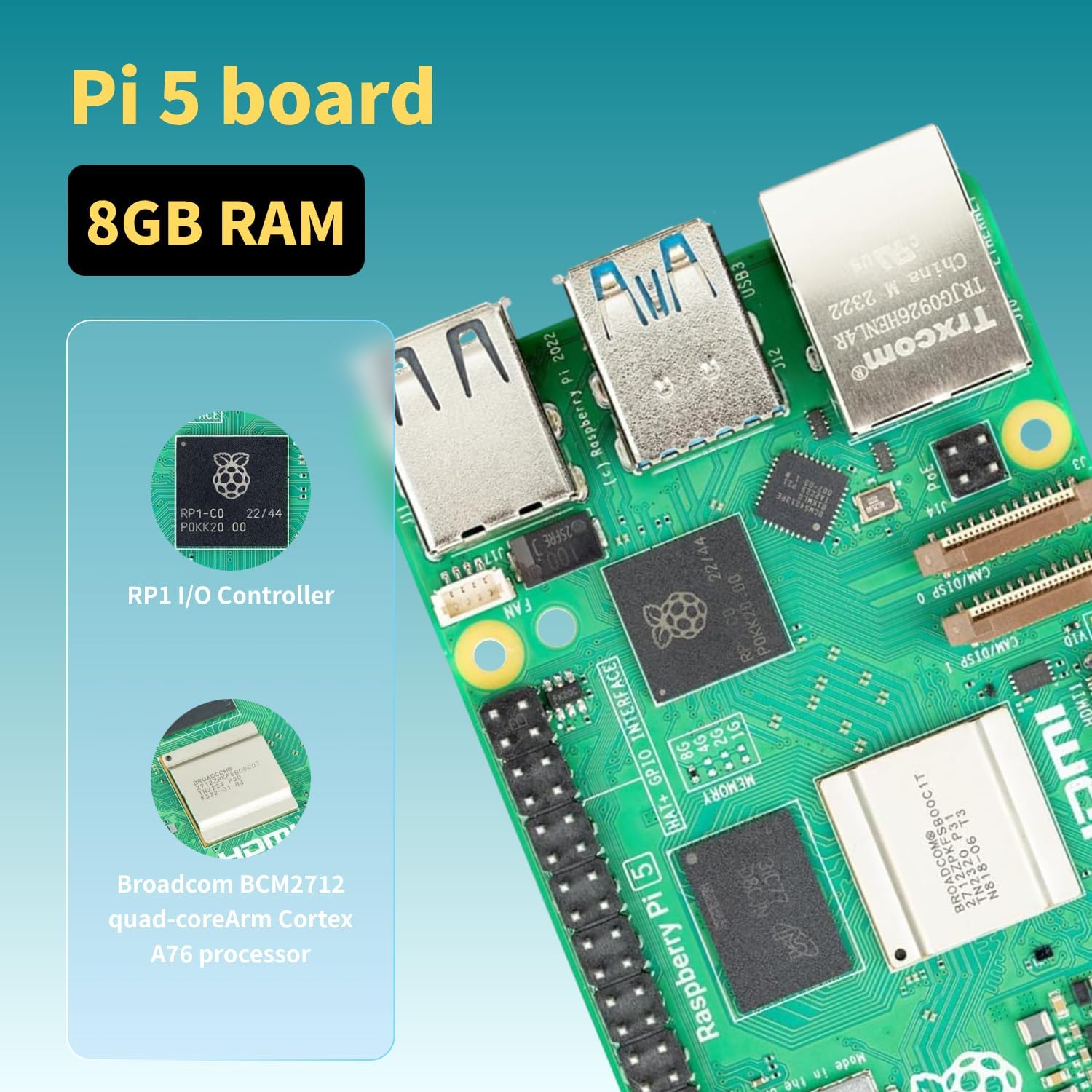

- Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
- VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
- Dual 4Kp60 display output with HDR support
- 4Kp60 HEVC decoder
- LPDDR4X-4267 SDRAM (4GB and 8GB SKUs available at launch)
- Dual-band 802.11ac Wi-Fi Bluetooth 5.0 / Bluetooth Low Energy (BLE)
- microSD card slot, with support for high-speed SDR104 mode
- 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation; 2 × USB 2.0 ports
- Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT) ; 2 × 4-lane MIPI camera/display transceivers
- PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
- 5V/5A DC power via USB-C, with Power Delivery support
- standard 40-pin header
- Real-time clock (RTC), powered from external battery;
- Power button
Active Cooler Description
Specifications:
- Input Voltage: Supplied via the 4-pin fan header of the Pi 5 at 5V DC
- Fan Speed Control: Pulse Width Modulation (PWM) control based on tachometer
- Airflow: 1.09 CFM
- Fan Speed: 8000 RPM +/- 15%
- Product Material: Anodized Aluminum
- Active Cooling Solution: The iRasptek Active Cooler combines an aluminum heat sink with a PWM fan to keep your Pi 5 at an optimal operating temperature, ensuring reliability for various applications
Note: Do not disassemble unless necessary. If disassembly is required, use appropriate tools (e.g., needle-nose pliers).

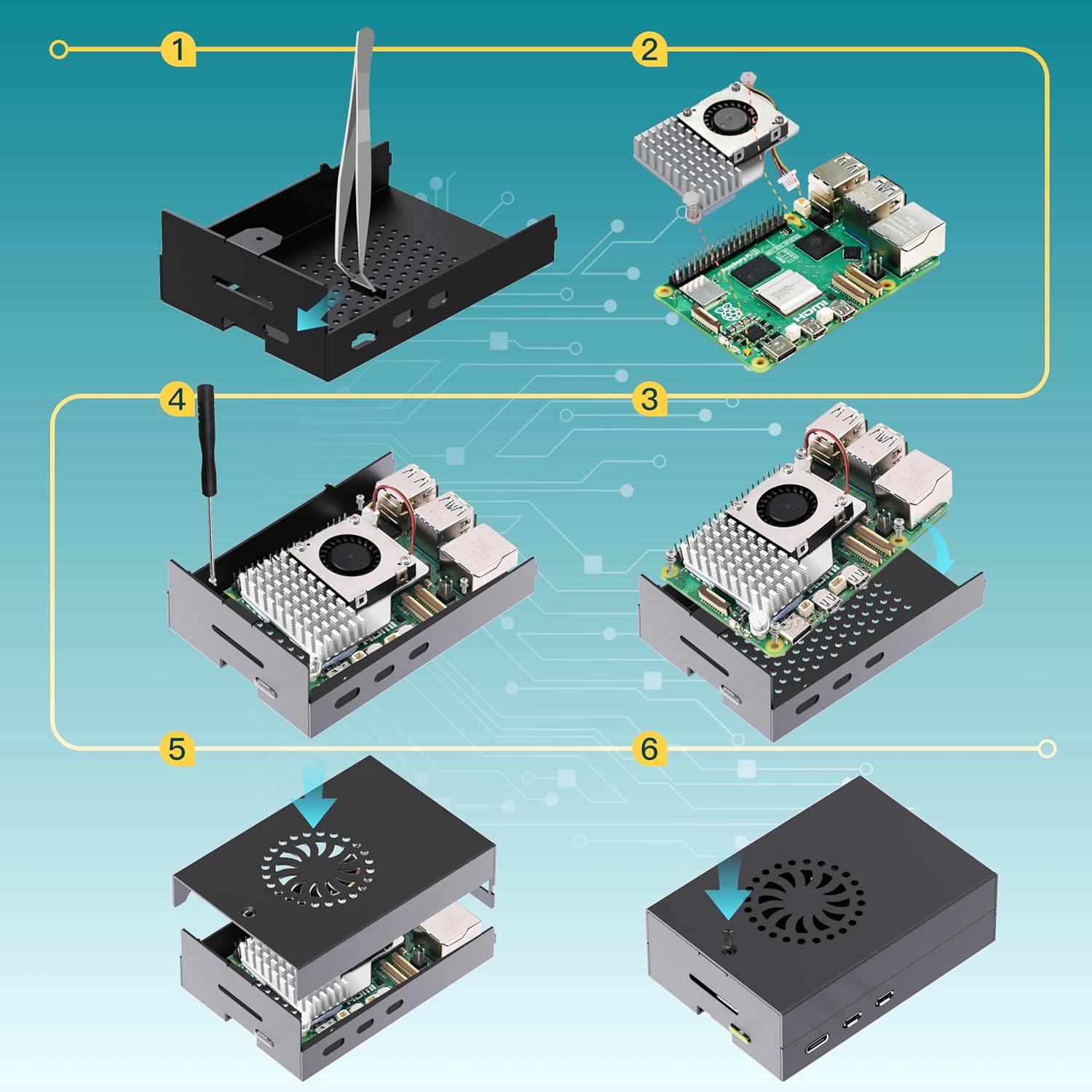

Installation Procedure and Method
Bookworm — the new version of OS
Pre-installed with 64-bit Pi OS: Just Plug & Play! The release of OS is optimized for Raspberry Pi 5, offering exceptional desktop performance for work, leisure, enterprise, and beyond.

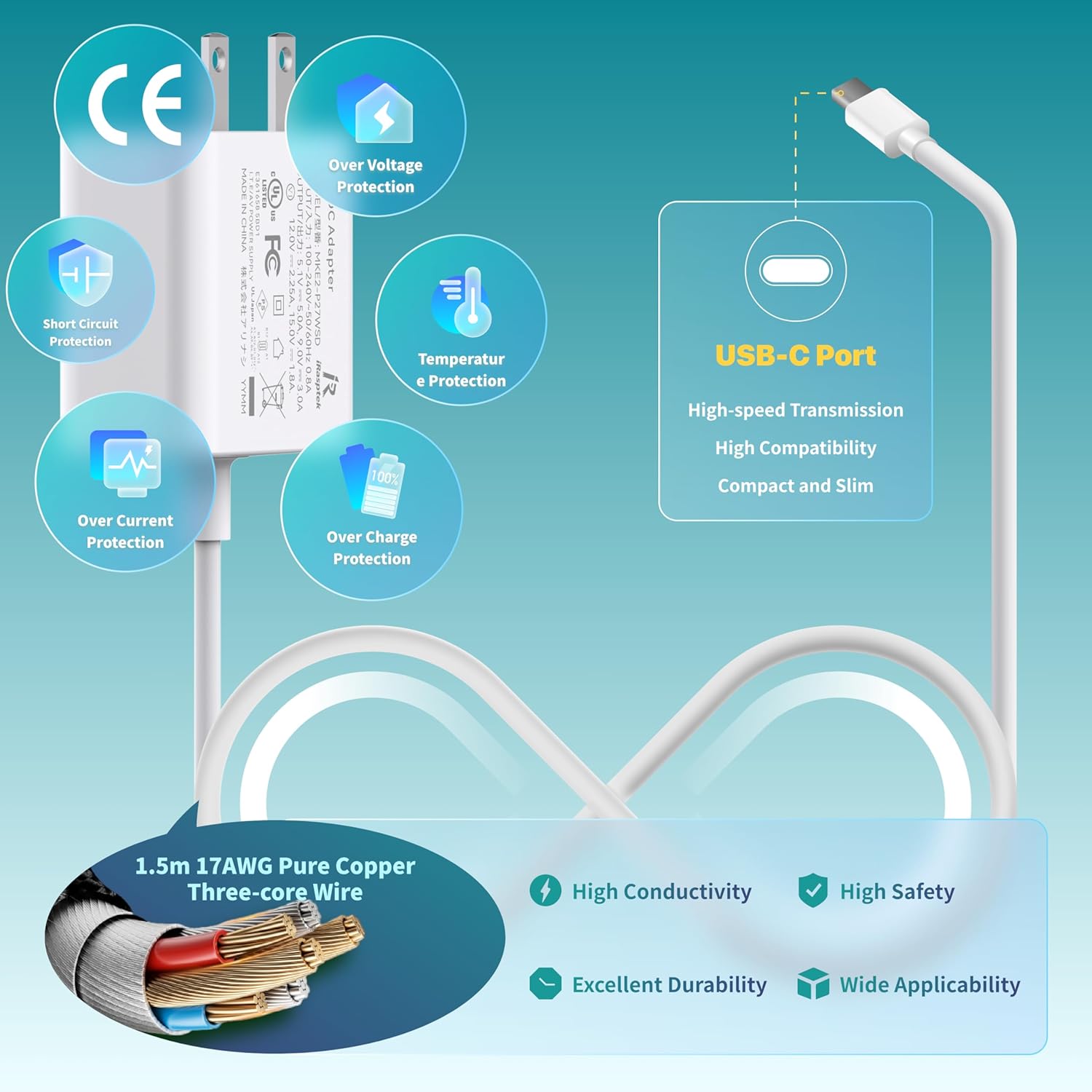

iRasptek Pi 5 Power Adapter —— Specialized in high quality power supply
Stable performance
Product parameters:
- Input: 100-240Vac, 50/60HZ 0.8A
- Output: 5.1V/5A, 9V/3A, 12V/2.25A, 15V/1.8A (power supply)
- Power: 27W MAX
- Connector type: USB-C
- Cable: 1.5m 17AWG, white
- Product weight: 143g
Protection function:
over power protection, over current protection, short circuit protection, over voltage protection, low voltage protection, static electricity protection
iRasptek 27W USB-C PD Power Supply
Ideal Power Supply for Raspberry Pi5
iRasptek 27W USB-C Power Supply is an ideal power supply for Raspberry Pi 5, especially for users who wish to drive high-power peripherals, such as hard drives and SSDs, from Pi5’s four Type A USB ports.
Wide range of applicability
Delivering a maximum of 5.1V, 5A, it supports USB PD, so RaspberryPi5 can communicate with it and select the most appropriate power profile.Additional built-in power profiles mean the iRasptek 27W USB-C Power Supply is also an excellent option for powering third-party PD-compatible products. The available profiles are 9V, 3A; 12V, 2.25A; and 15V, 1.8A, all limited to a maximum of 27W.
Why does the MicroSD card show less capacity than its actual size when inserted into a computer?
Because the MicroSD card is preloaded with the Pi OS. During the system installation, the SD card is partitioned into multiple sections. One partition stores system files (e.g., the boot partition), while another may use a file system (e.g., ext4) that your computer cannot recognize. As a result, the computer only displays the partitions it can read (e.g., the FAT32-formatted boot partition), making the available capacity appear smaller than the actual size.
If you need to restore the full capacity of the SD card, you can format it.
