LIAN LI LANCOOL 207 Compact ATX RGB Gaming Case, Airflow Optimized Mesh Panels, 2x140mm ARGB, 2x120mm Fans, USB Type-C Port, Tempered Glass Side Panel Black or White
Couldn't load pickup availability
LANCOOL 207
- M-ATX sized case with ATX compatibility
- Includes 2 x 140mm ARGB fans at the front and 2 x 120mm PWM fans above the PSU shroud for maximum out-of-box cooling
- Fully ventilated mesh panels on the front, top, and bottom, ensuring excellent airflow
- Front-mounted PSU with side-facing connector ports for easy cable management
- Motherboard tray position redesigned to improve top radiator clearance and locate bottom fans directly under the GPU for better cooling
- GPU anti-sag bracket with vertical and horizontal adjustment to support different GPUs
The LANCOOL 207 reimagines the traditional ATX layout,
packing powerful compatibility and superior cooling into a sleek, compact M-ATX chassis.
ATX Motherboard
Front Side PSU
4 x Performance Fans
Compact Size
Direct GPU Airflow
Cable Management Friendly
360mm Radiator Support
Anti-Sag GPU

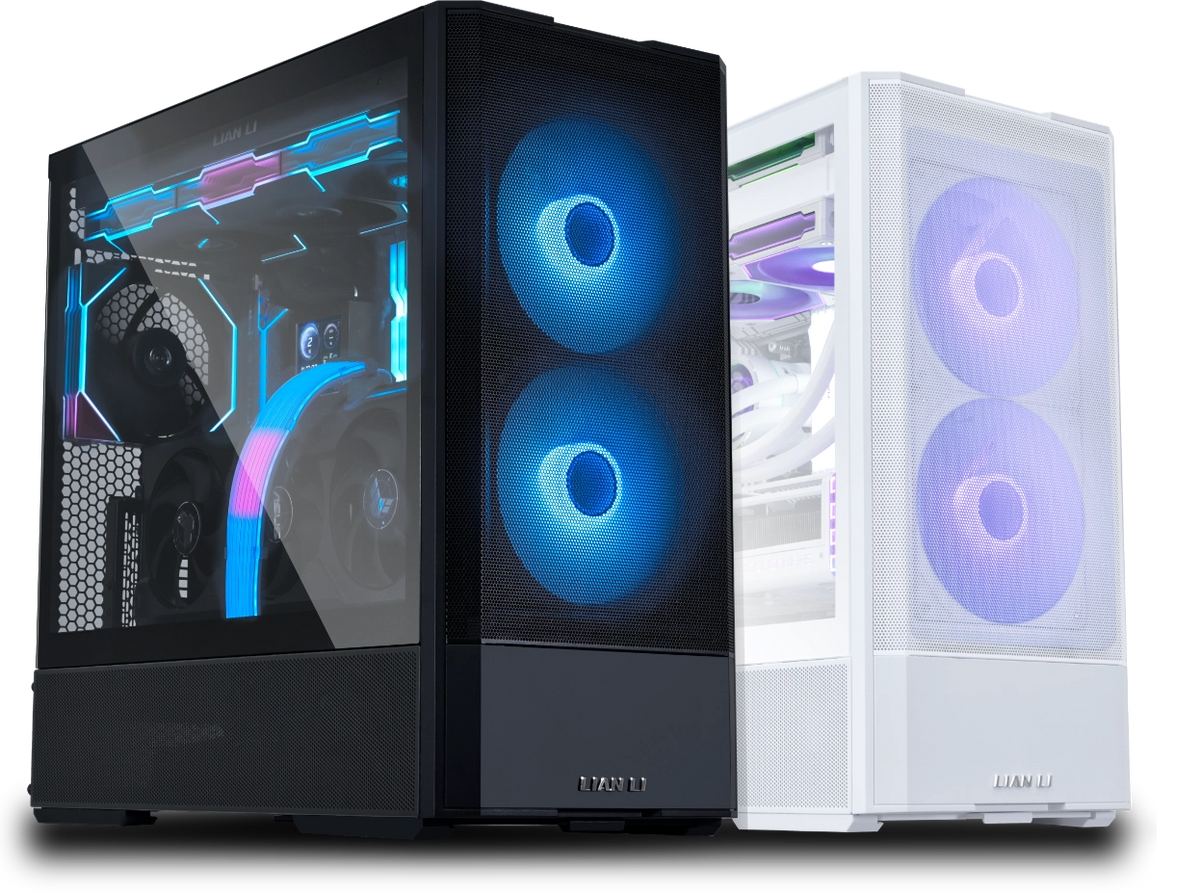

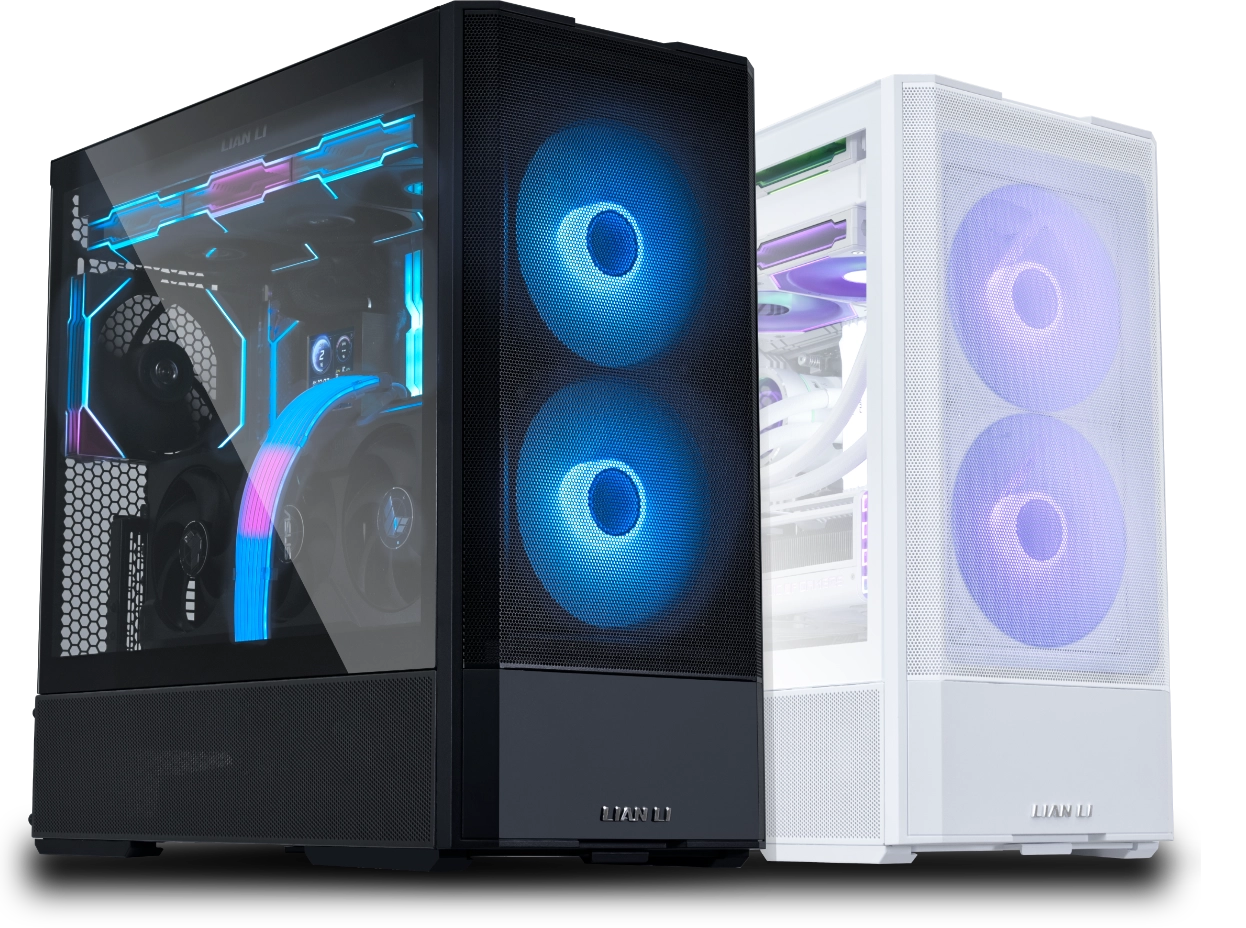

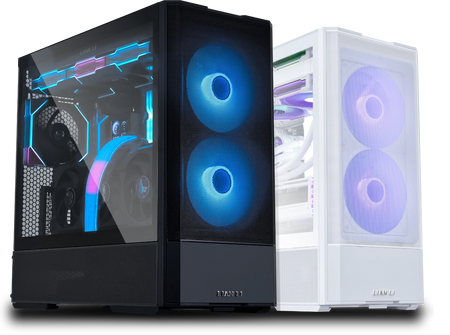

AVAILABLE IN 2 COLORS
The LANCOOL 207 is available in classic black and refreshing white, ensuring a perfect match for your style.

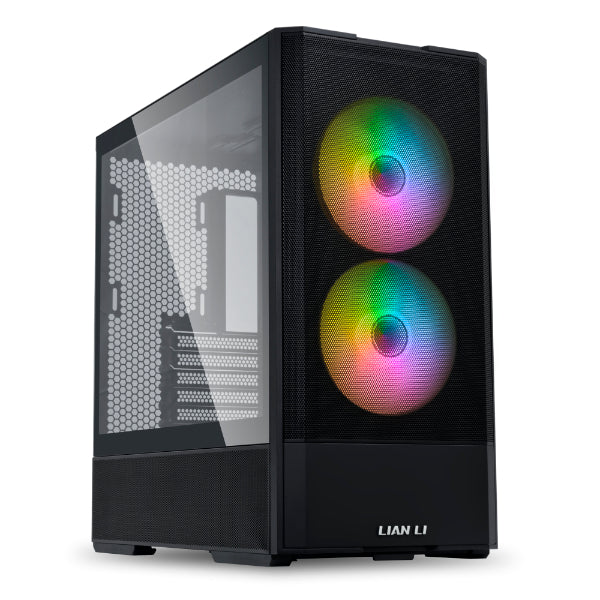

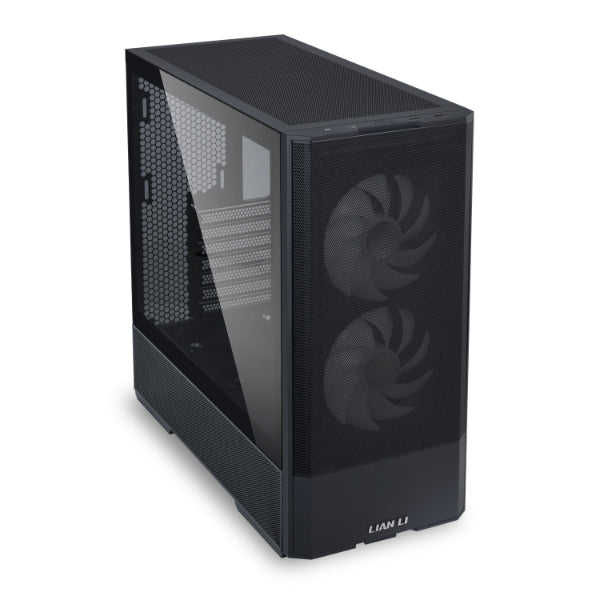

BLACK

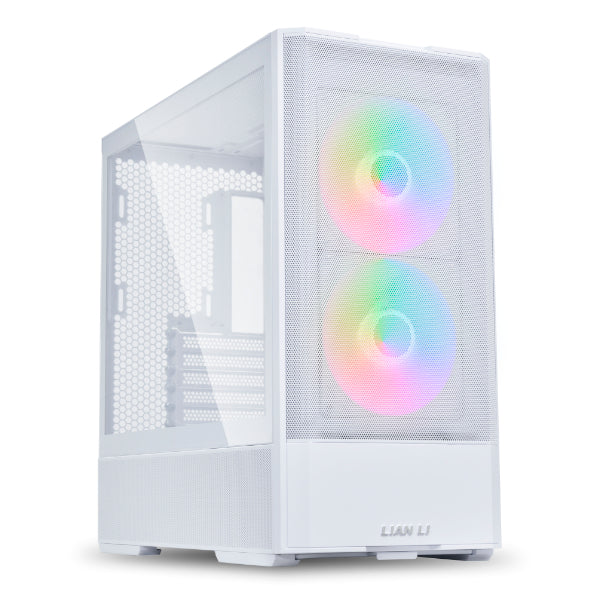

WHITE
COMPACT POWERHOUSE
Though compact in size, the LANCOOL 207 offers remarkable compatibility, supporting ATX motherboard, a 360mm radiator, ATX PSU, and GPU up to 375mm, all within the sleek 45.5L chassis.

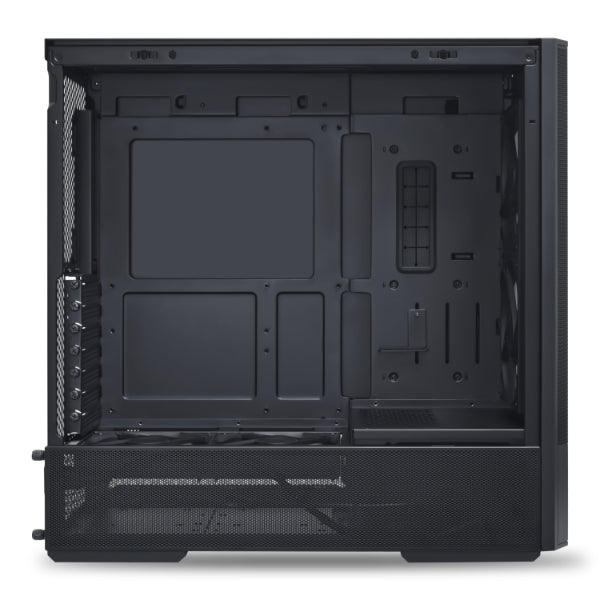

SPACE-SAVING INNOVATIVE LAYOUT
The LANCOOL 207’s unique offset motherboard tray provides a space-efficient solution while improving compatibility and airflow.
The LANCOOL 207 supports standard ATX (max width 244mm) / M-ATX/ ITX motherboards.
Note: For users experiencing interference issues with ATX motherboards that have a 90-degree USB 3.0 header, please visit here for a solution.
EASY ACCESS FRONT-MOUNTED PSU
The PSU is strategically placed at the front, with connector ports facing outward for convenient cable connection. Additionally, a PSU power adaptor extension cable is provided for rear power access.
The LANCOOL 207 offers PSU mounting with the fan oriented either upward or downward.
Note: The LANCOOL 207 with recessed bottom fans blocks the 24-pin connector area, and is therefore not compatible with RS PSU.
Note: The PSU must have specific mounting holes to install with the fan facing upward. Reference the LIAN LI Edge PSU when mounting with the fan upward. (Note: The EPS cable may be too short for angled routing in this configuration.)
Note: For traditional PSUs installed with the fan facing downward, the CPU connector ports are usually at the top right corner. For seamless angled cable routing, a 600mm long CPU cable is needed. If your CPU cable is shorter than 600mm, please refer here for cable routing tips and tricks.
SUPERIOR COOLING PERFORMANCE
Besides being designed with comprehensive mesh panels on the top, front, and side bottom, the LANCOOL 207 comes pre-installed with four high-performance fans for superior out-of-box cooling.
The PPLP Lab testing shows the Lancool 207 is in the top-tier of their ranking, which deliver outstanding thermal performance.This earned it the Level-S Chassis Performance award for exceptional thermal management.
PPLP real-world PC test:
Test Platform:
CPU: Intel i9-13900K (Lock 230W)
MB: MSI MPG B760M EDGE TI WIFI
Cooler: PC Cooler RZ620 BK
GPU: ASUS ROG Strix RTX 3080 12G (Max Load 390W TGP)
Test Software:
AIDA64 FPU+3DMARK stress test with 15 minutes
PPLP real-world PC test:
Test Platform:
CPU: Intel i9-13900K (Lock 230W)
MB: MSI MPG B760M EDGE TI WIFI
Cooler: PC Cooler RZ620 BK
GPU: ASUS ROG Strix RTX 3080 12G (Max Load 390W TGP)
Test Software:
AIDA64 FPU+3DMARK stress test with 15 minutes

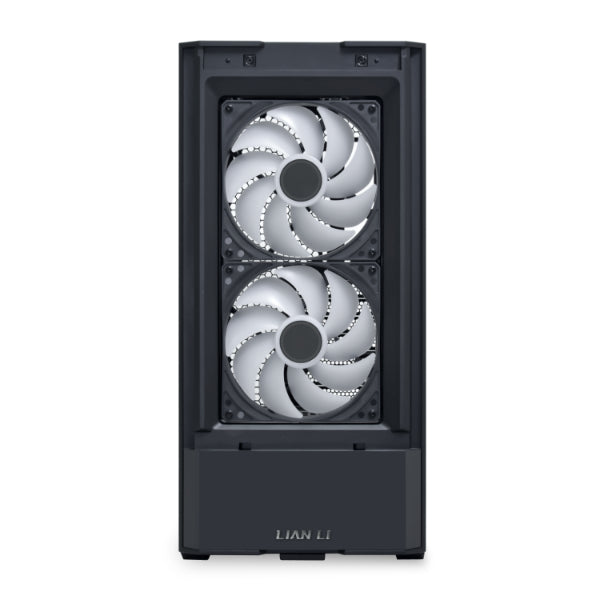

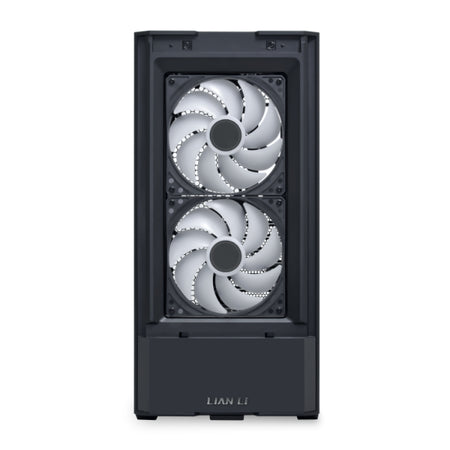

Included Four High Performance Fans
Two thick ARGB performance fans provide excellent cooling and stunning light effects with the infinity mirror at the center.
Size: 140x140x30mm
Speed: 450 ~ 1900 RPM
Airflow: 109.3 CFM
Static Pressure: 3.3 mmH20
Noise: 34.86 dBA
Two 11-blade high airflow fans at the bottom deliver direct airflow to the GPU.
Size: 120x120x25mm
Speed: 500 ~ 1950 RPM
Airflow: 71.1 CFM
Static Pressure: 1.99 mmH20
Noise: 30.81 dBA
Note: Includes 16 ✕ long screws (6#32 thread/ 28mm length) for swapping the included fans with standard 25mm thick fans (supports all series of UNI FAN at the bottom only, fans wider than 140mm at the front not supported).
How to switch front fans?
360mm Radiator Compatibility
The top of the case supports a 360mm push-pull radiator configuration thanks to the offset motherboard tray design.
Full Fan/ Radiator Support
LARGE ANTI-SAG GPU SUPPORT
The LANCOOL 207 accommodates a GPU up to 375mm long and includes an adjustable anti-sag bracket, ensuring the GPU remains perfectly aligned.
length: 285~315mm
length: 316~345mm
length: 346~375mm
SEAMLESS CONNECTIVITY
The LANCOOL 207’s top-mounted I/O panel offers easy access to essential ports.

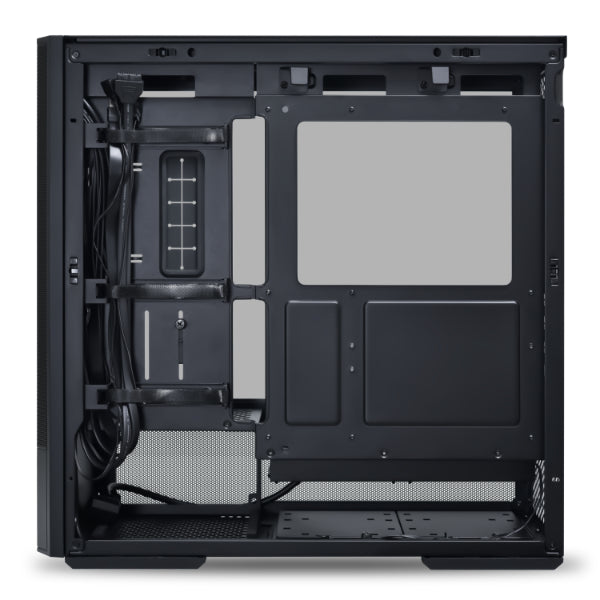

EFFICIENT CABLE MANAGEMENT
With the innovative layout, the well-organized cable management system is mostly at the front of the 2nd chamber.
1. Routing for EPS cable
2. 3 × Triple Velcro Straps for cable management
3. Grommet for 24-PIN motherboard cable
4. Space for 2 × Hard Drives
OPTIONAL ACCESSORIES
Vertical GPU Kit – VG4-4-V2X / VG4-4-V2W
The LIAN LI universal vertical GPU bracket can be installed with no need to remove the bottom fans, ensuring enhanced airflow. The included rubber pad can be used to prevent the GPU from sagging.
Front Dust Filter – LAN207-1X / LAN207-1W
For next level dust prevention, a front panel dust filter is available as an optional accessory. It fits seamlessly behind the front fan, providing an extra layer of protection.
SPECIFICATIONS
| MODEL NAME | LANCOOL 207 | |
|---|---|---|
| MODEL No. | LAN207RX Black | LAN207RW White |
| COLOR | Black | White |
| DIMENSION | (D) 455.6mm x (W) 219mm x (H) 456mm | |
| MATERIAL | Steel 4.0mm Tempered Glass |
|
| MOTHERBOARD SUPPORT | Standard ATX ( Width Max 244mm ) /Micro-ATX/Mini-ITX | |
| PSU SUPPORT | ATX (Under 160mm) | |
| INCLUDED FAN | Front: 2 x 140mm ARGB fan (450~1900 RPM / DC 12V, 0.4A / LED 5V, 0.7A / 109.3 CMF / 3.3 mm-H2O / 34.86 dB-A) Above PSU Shroud : 2 x 120mm PWM fan (500~1950 RPM / DC 12V, 0.28A / 71.1 CMF / 1.99 mm-H2O / 30.81 dB-A) |
|
| FAN SUPPORT | Front: 140mm x 2 Top: 120mm x 3 or 140mm x 2 Above PSU Shroud: 120mm x 2 Rear: 120mm x 1 |
|
| RADIATOR SUPPORT | Top: 360/280/240mm | |
| DRIVE SUPPORT | 2 × 3.5″ HDD or 2.5″ SSD | |
| GPU LENGTH CLEARANCE | 375mm (Max.) | |
| CPU HEIGHT CLEARANCE | 180mm (Max.) | |
| EXPANSION SLOTS | 7 | |
| I/O PORTS | USB 3.0 × 2 USB 3.2 TYPE-C × 1 Audio × 1 Power Button × 1 |
|
| DUST FILTER | 1 x Bottom | |
