Lian-Li RS Gold 1000W Black Full Modular Power Supply (80 Plus Gold, ATX 3.1, PCIe 5.1, Rotatable AC Input, Dual-Sided 24-Pin, 10-Year Warranty)

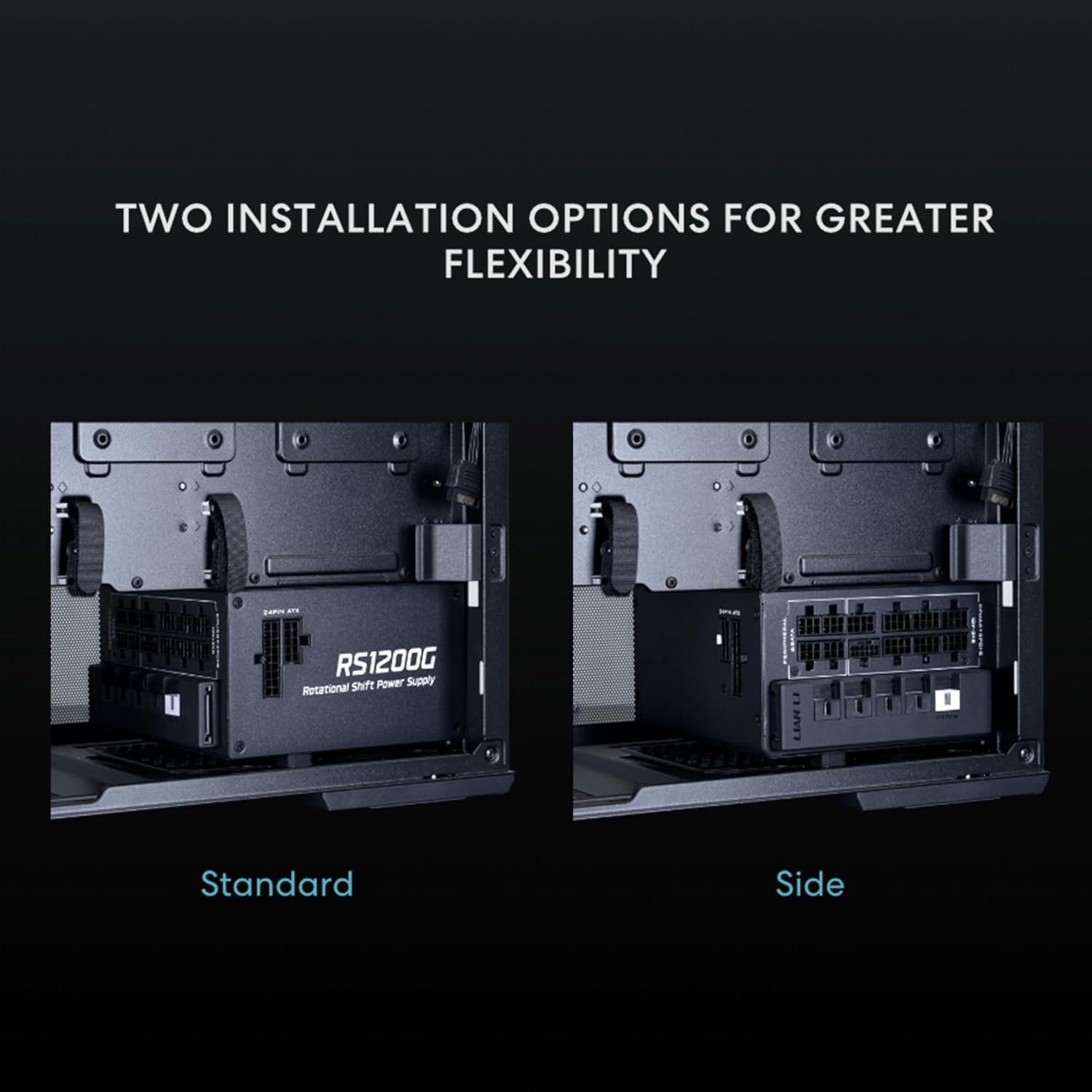

The Lian-Li RS Gold 1000W Black introduces a revolutionary "Rotational Shift" design that completely redefines power supply unit (PSU) installation and cable management. Engineered with an innovative 90-degree rotatable AC inlet, this PSU allows you to alter its physical orientation between standard and side setups to perfectly match your chassis architecture. To support this flexible placement, it features groundbreaking dual-sided 20+4 pin motherboard outputs, letting you route your main power cables seamlessly from whichever side offers the cleanest layout.

Fully compliant with the latest ATX 3.1 and PCIe 5.1 standards, this high-capacity 1000W power supply handles severe system power excursions with ease and includes a native, dual-color 12V-2×6 high-current cable for next-generation graphics cards. Backed by premium German industrial-grade EPCOS capacitors for outstanding voltage regulation and ripple suppression, the RS Gold delivers Cybenetics Platinum-level real-world efficiency within a compact 150mm frame. With an industry-leading 10-year warranty, it guarantees a decade of rock-solid, worry-free performance for elite gaming rigs and heavy workstation builds.

Key Features

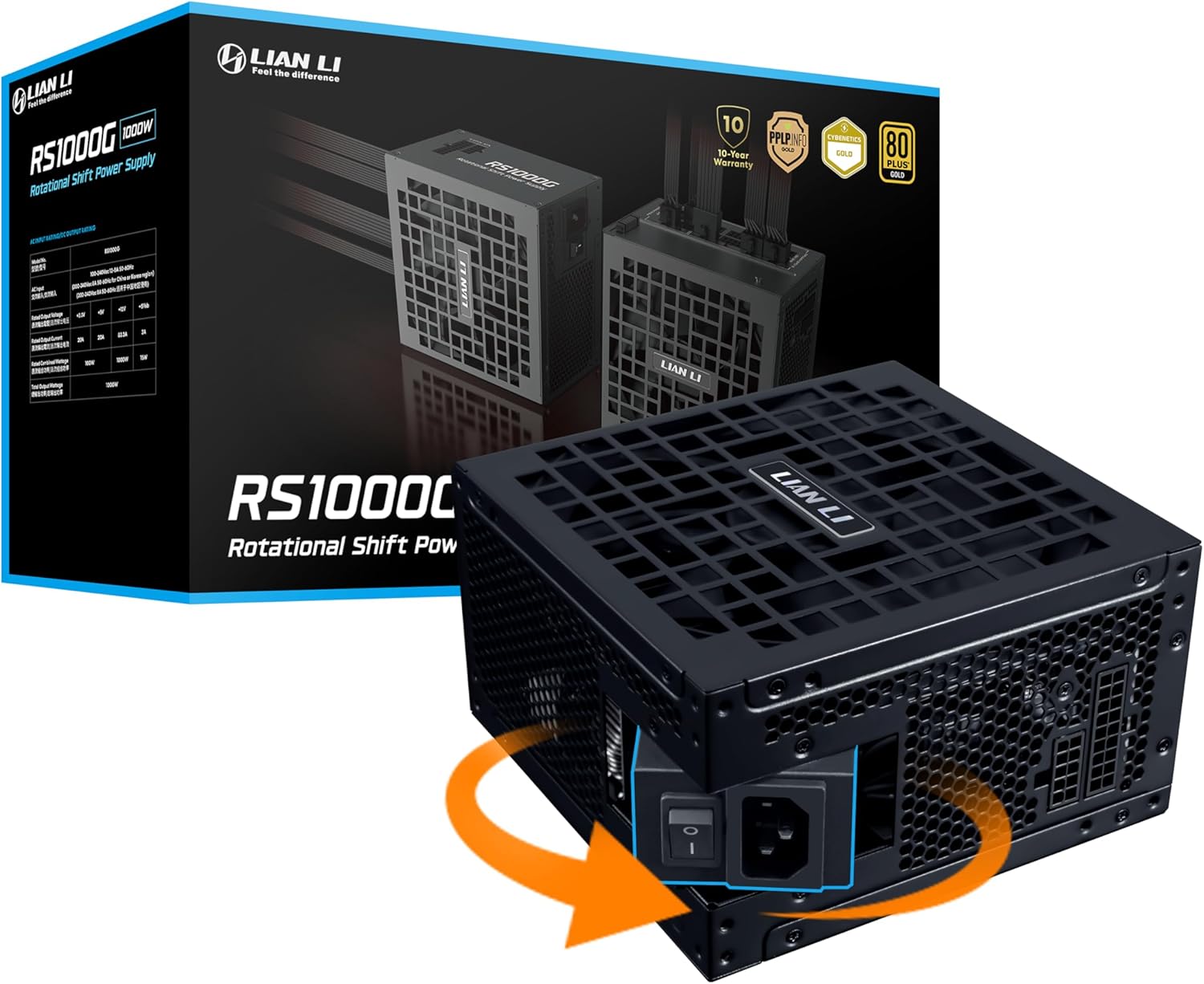

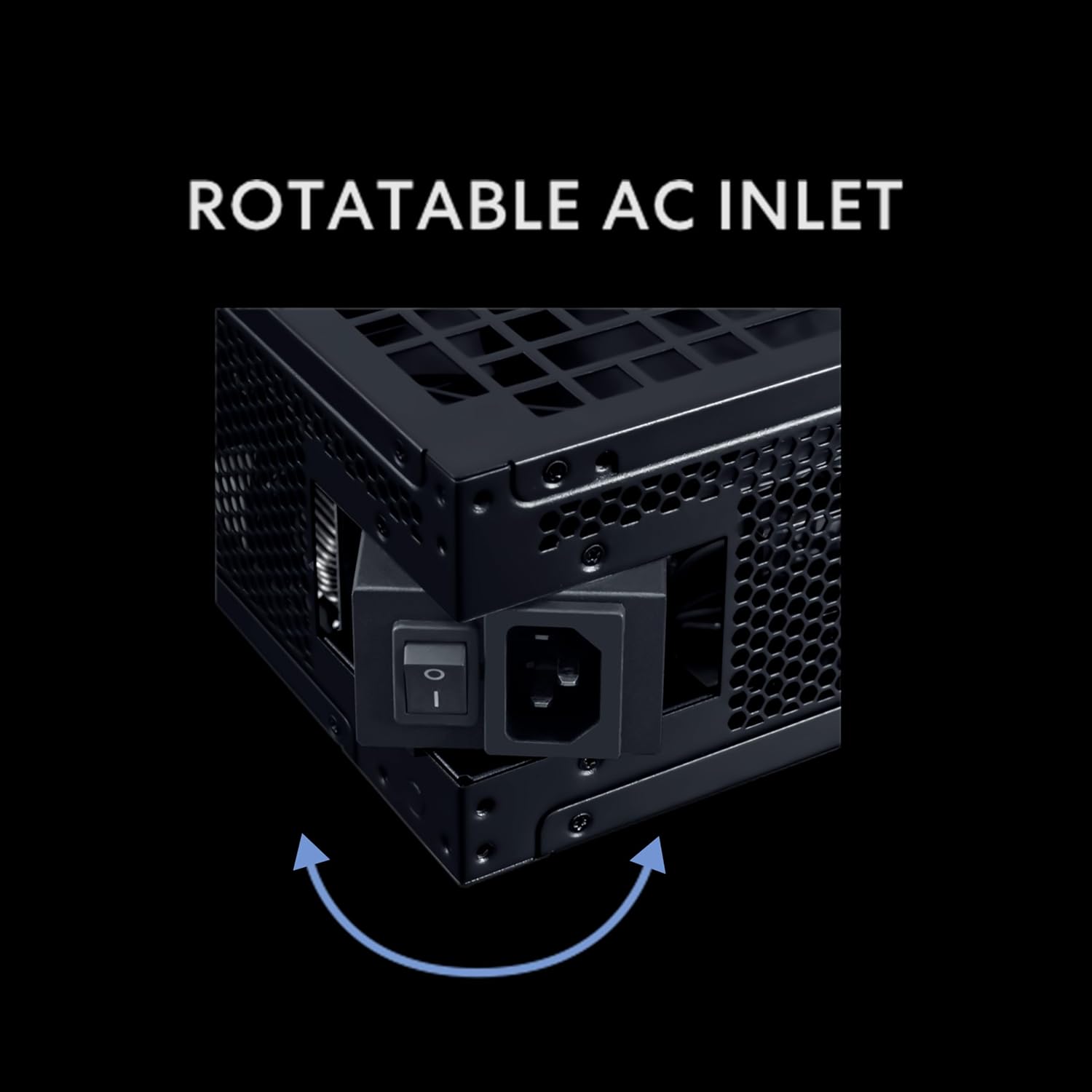

• Innovative Rotatable AC Inlet: An industry-first 90-degree adjustable mains connector allows for easy rotation, seamlessly accommodating both standard horizontal layouts and vertical dual-chamber case setups.

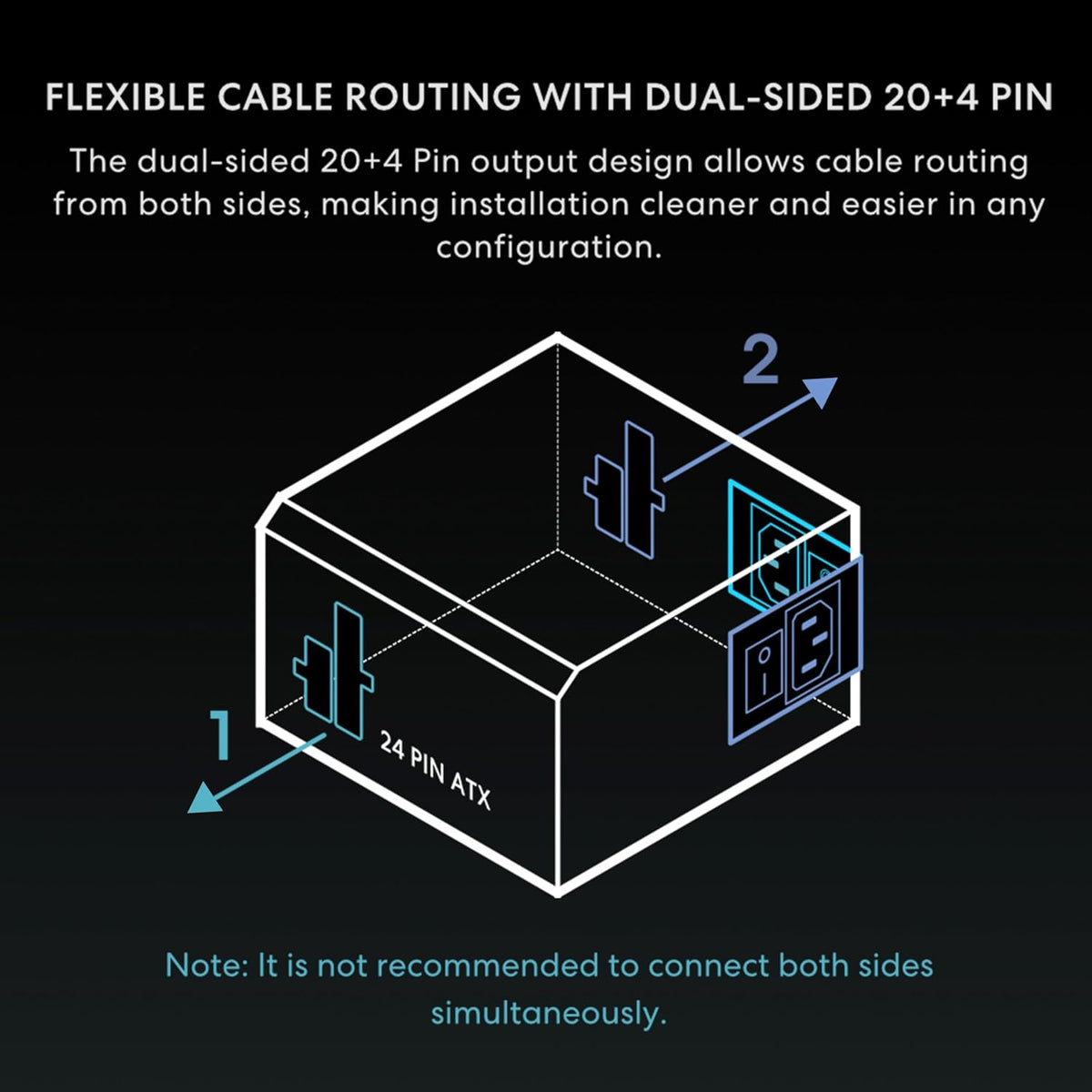

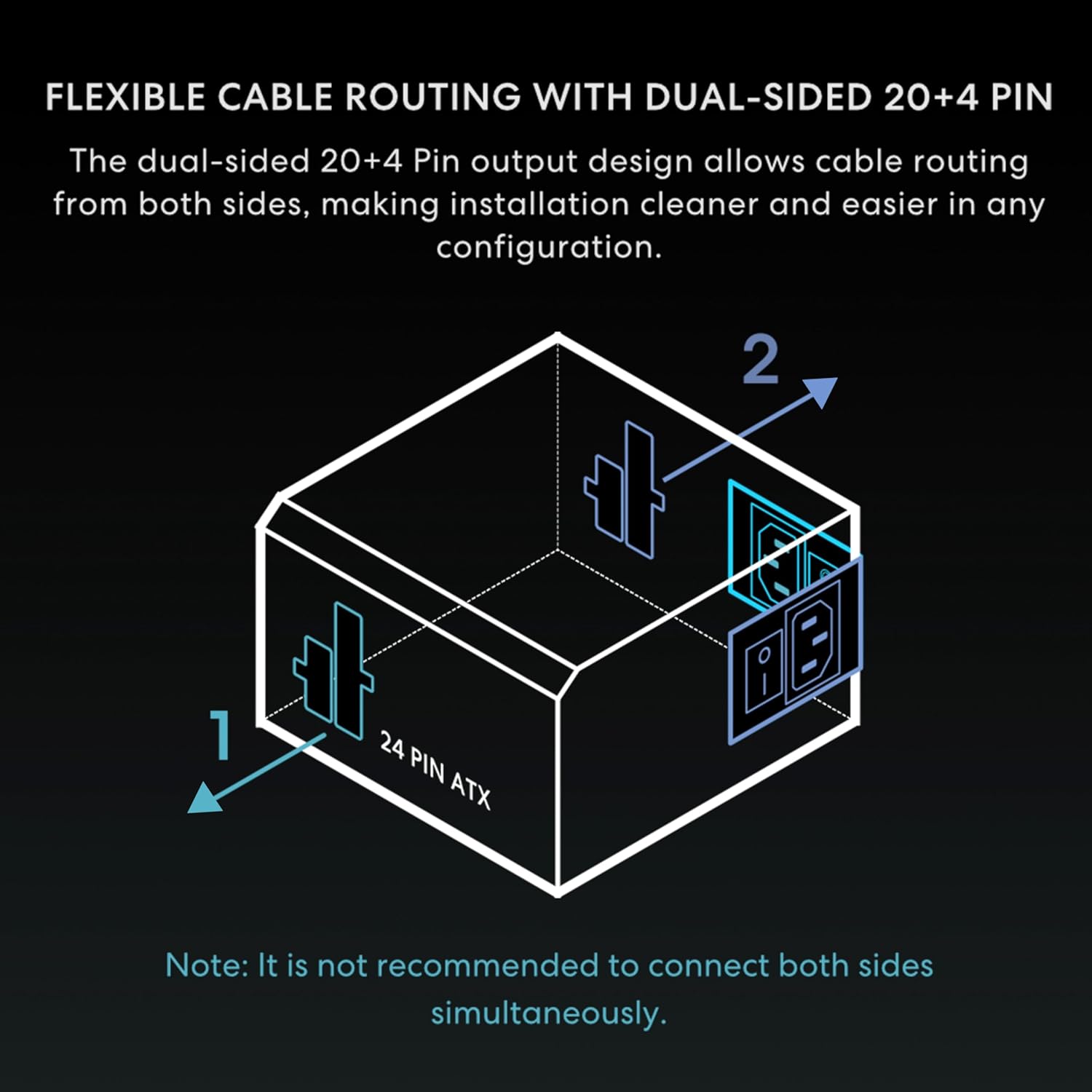

• Dual-Sided Motherboard Connector: Features 20+4 pin outputs on both sides of the chassis, offering unprecedented routing flexibility and eliminating awkward cable bends (Note: only one side should be connected at a time).

• ATX 3.1 & PCIe 5.1 Future-Proofing: Built to safely sustain severe hardware power spikes, featuring a native 12V-2×6 GPU power connector for clean power delivery to modern graphics cards.

• 10-Year Long-Term Warranty: Provides ultimate peace of mind with a comprehensive 10-year manufacturer warranty, reflecting the premium tier of internal components and engineering.

• Exclusive Dual-Color 12V-2×6 Cable: Outfitted with a distinct dual-color housing header that makes it simple to visually confirm if the high-draw cable is completely and safely seated into your graphics card.

• Smart 135mm FDB Cooling Fan: Equipped with a fluid dynamic bearing fan rated "SSS" by PPLP for ultra-low noise operation, featuring a Zero RPM mode that shuts down completely under light workloads.

• Premium German EPCOS Capacitors: Built with industrial-grade bulk capacitors ensuring exceptionally stable voltage regulation, outstanding ripple suppression, and over 90% efficiency.

Technical Specifications

• Model: RS1000G.B

• Type / Class: ATX (ATX 3.1 & PCIe 5.1 Fully Compatible)

• Maximum Power Output: 1000 Watts

• Color Profile: Matte Black

• Wiring Configuration: Full Modular

• Warranty Coverage: 10 Years

• Efficiency Certifications: 80 PLUS Gold / Cybenetics Platinum (Real-world testing) / PPLP Gold

• Noise Rating: Cybenetics A / PPLP SSS

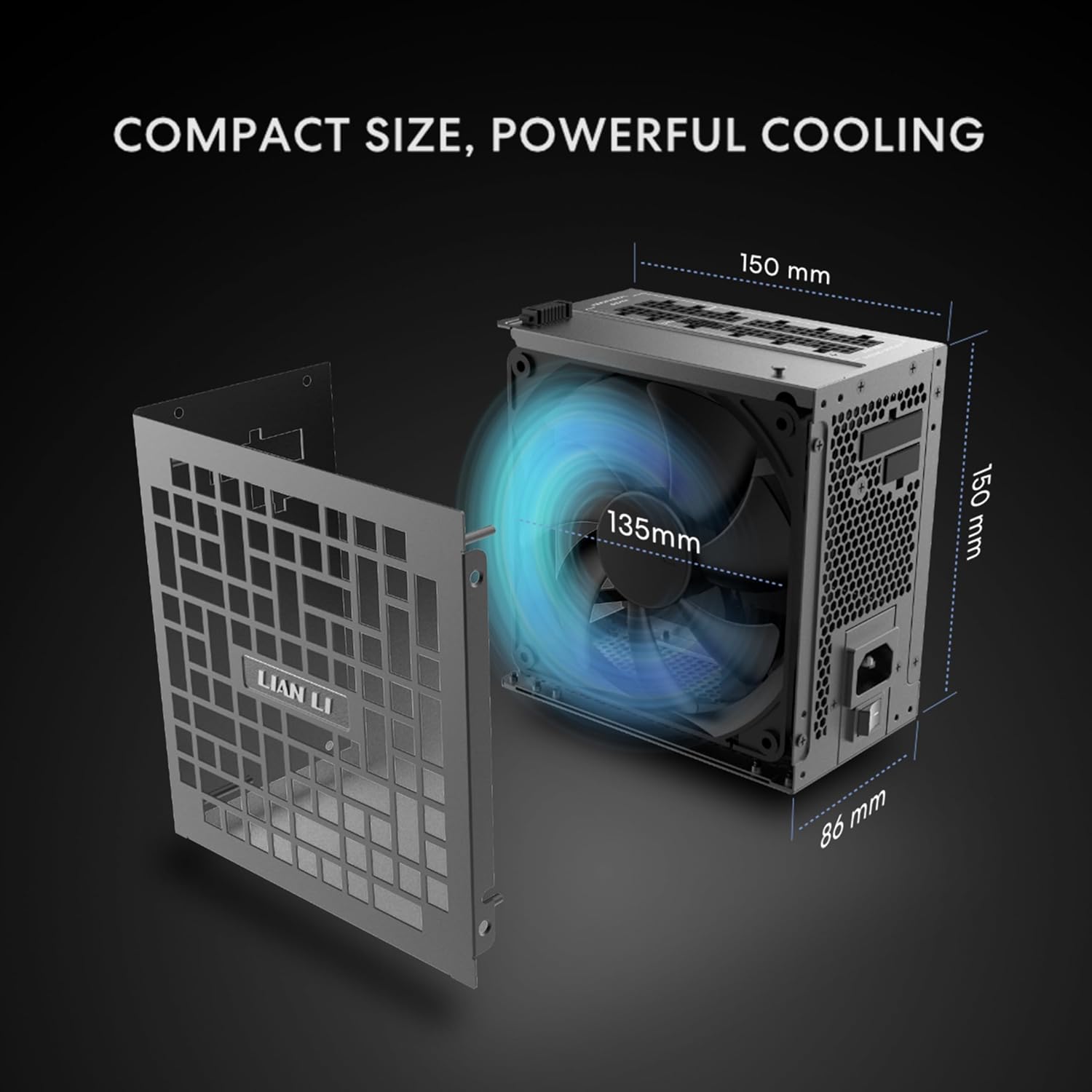

• Chassis Dimensions (W × H × D): 150 mm × 86 mm × 150 mm

• Cooling Fan: 1 × 135mm Fluid Dynamic Bearing (FDB) Fan with Zero RPM Mode

• Power Factor Correction: Active PFC (PF > 0.90 under full load)

• Input Voltage Range: 100–240 Vac

• Input Frequency Array: 50–60 Hz

• Internal Capacitor Tier: Premium German EPCOS Industrial-Grade

• Protection Safeguards: OCP, OVP, OTP, OPP, SCP, UVP, NLP, and SIP

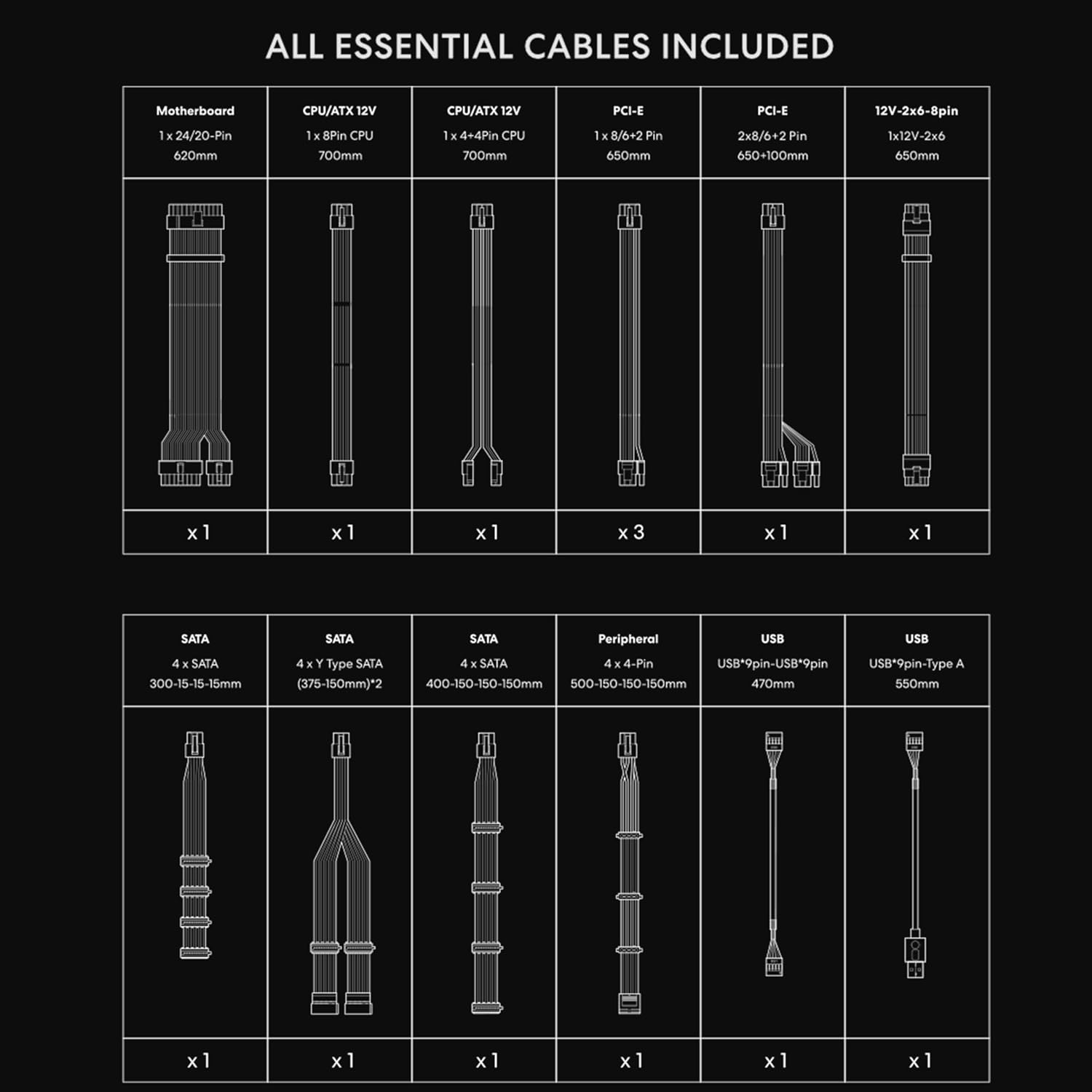

Cable & Connector Array

• 1 × 24/20-Pin Motherboard Connector (620mm)

• 1 × 8-Pin CPU Connector (700mm)

• 1 × 4+4 Pin CPU Connector (700mm)

• 1 × 12V-2x6 PCIe 5.1 Connector (600W, 650mm)

• 3 × 6+2 Pin GPU Connectors (650mm)

• 1 × 6+2 Pin GPU Connector (650mm + 100mm)

• 1 × SATA Connector (300mm + 15mm + 15mm + 15mm)

• 1 × SATA-Y Connector (375mm + 150mm)

• 1 × SATA Connector (400mm + 150mm + 150mm + 150mm)

• 1 × PATA Connector (500mm + 150mm + 150mm + 150mm)

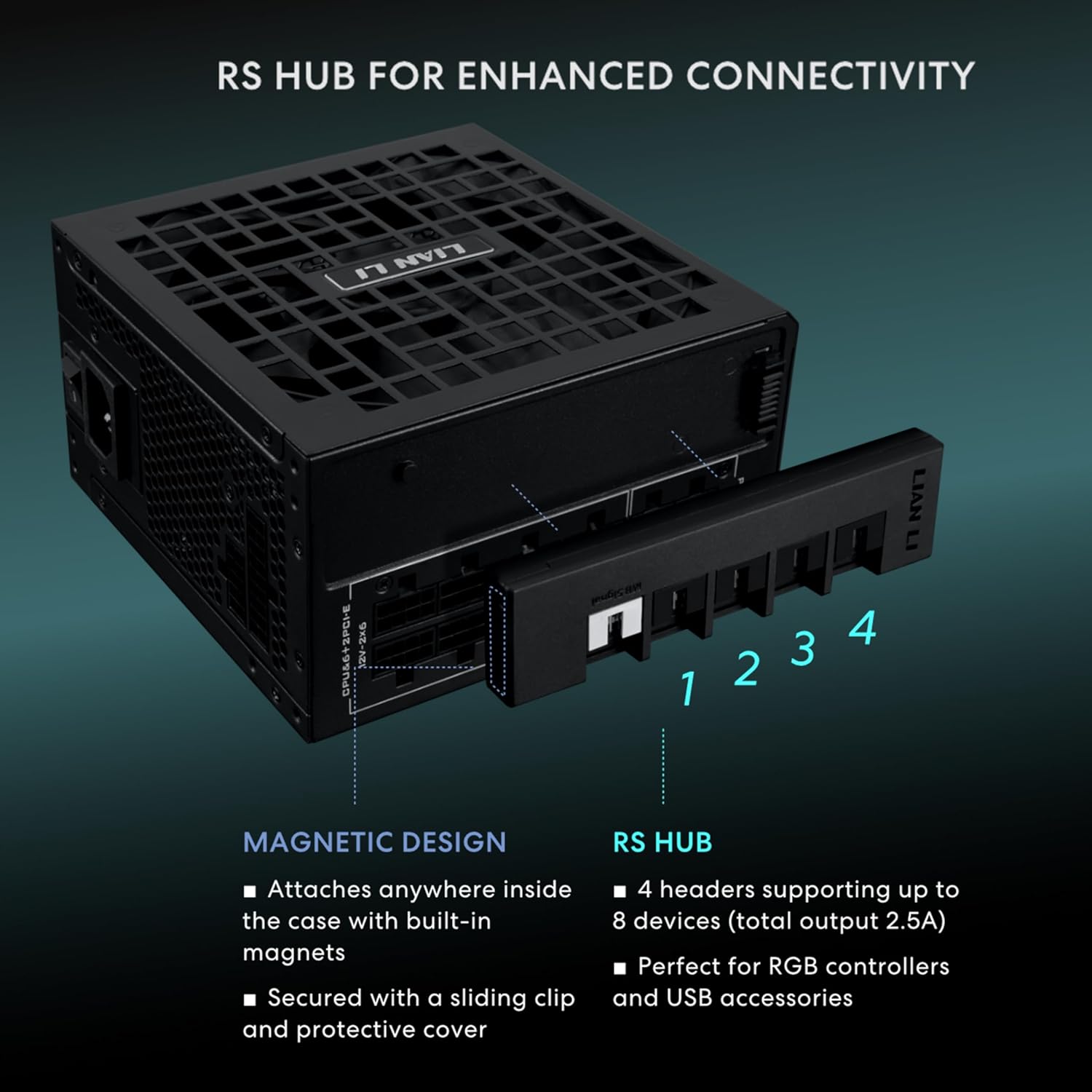

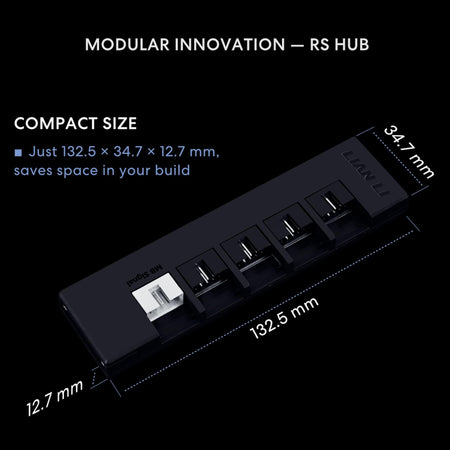

• 1 × USB 9-Pin to 9-Pin Module Cable (470mm)

• 1 × USB 9-Pin to Type-A Cable (550mm)
