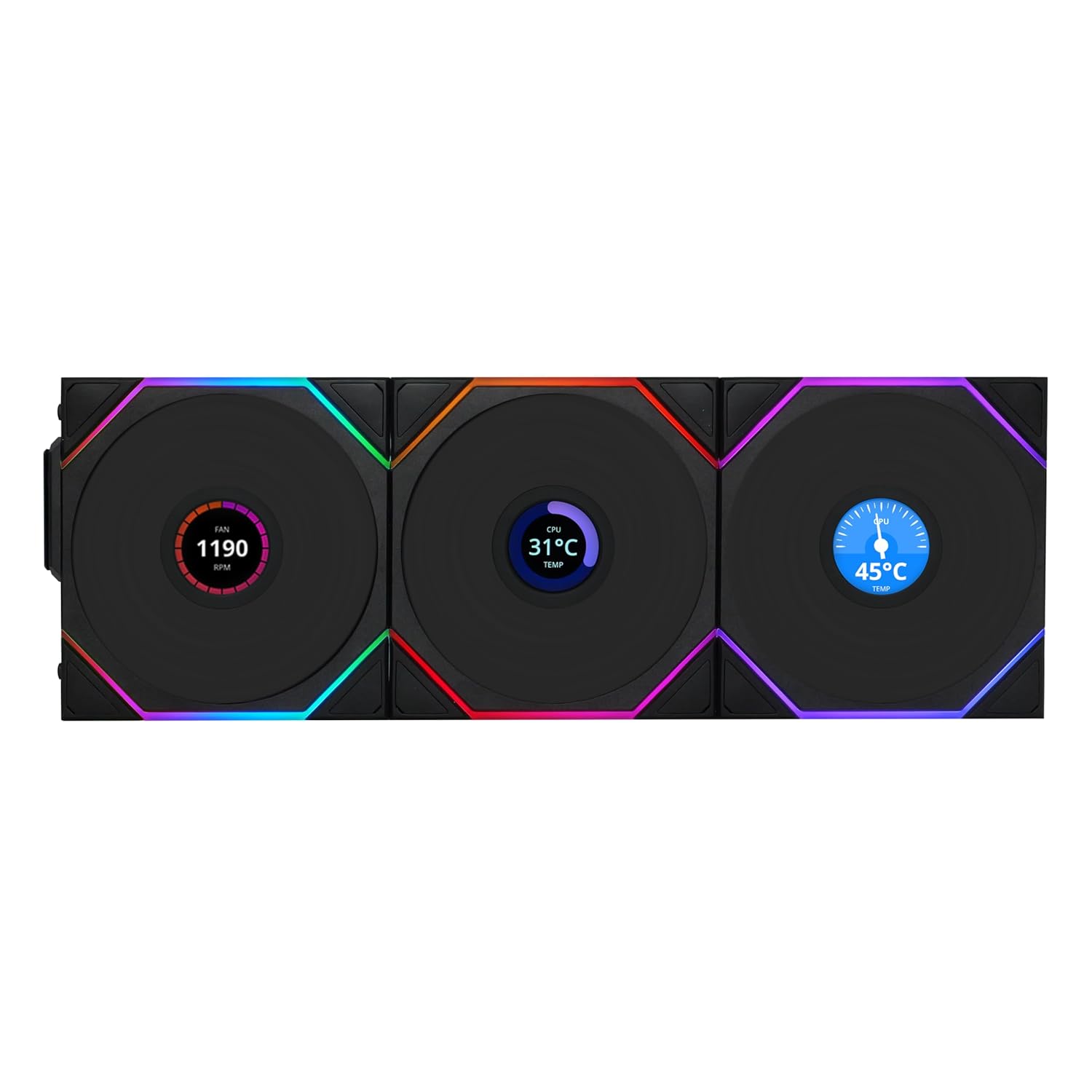

Lian Li UNI Fan TL LCD Wireless 120-Triple Pack-2.4 GHz Wireless Signal ARGB Fan-Infinity Mirror-Daisy-Chain Design-Customizable Lighting Effects-Controller Included & Required - Black
Couldn't load pickup availability
The UNI FAN TL Wireless and TL LCD Wireless feature LIAN LI’s innovative wireless sync technology, utilizing a 2.4GHz wireless signal to control lighting effects and fan speed to further improve the PC building experience while delivering efficient cooling, dazzling lighting, and quiet operation.
Black
White
Elevate the PC setup with the UNI FAN TL wireless LCD and non-LCD version. Two sizes: 120mm and 140mm fans are available in black and white, with options for standard and reverse blade configurations meeting all kinds of needs.
Note: The fan is slightly wider and thicker that standard 120mm fans at 120x124x28mm, and 140mm fans at 140x142x28mm. Please ensure your PC chassis is compatible.
Note: TL 140mm fans are only available in single packs.
Note: A compatible controller is required for the 120 mm and 140 mm single packs and must be purchased separately.

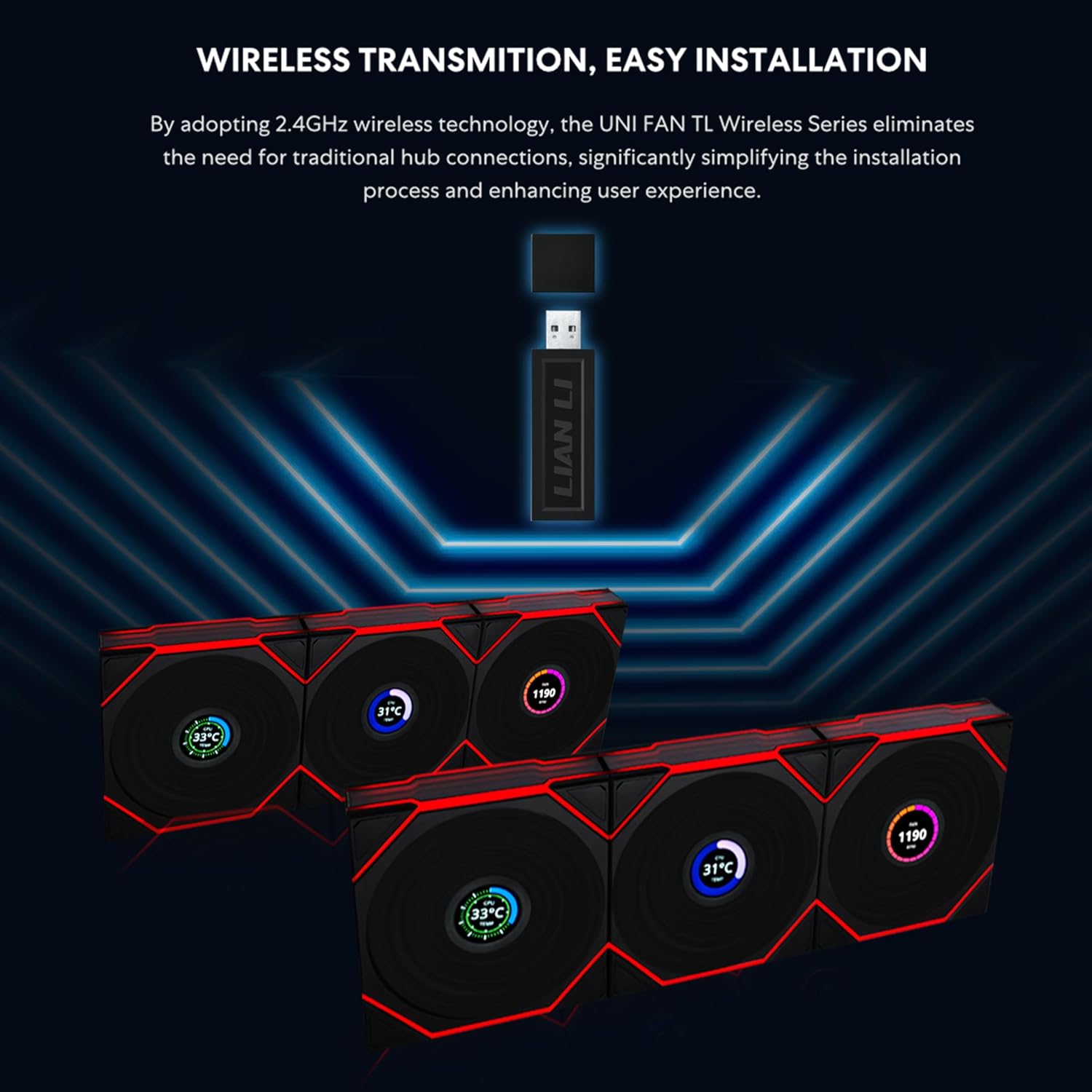

WIRELESS TRANSMISSION, EASY INSTALLATION
By adopting 2.4GHz wireless technology, the UNI FAN TL Wireless Series eliminates the need for traditional hub connections, significantly simplifying the installation process and enhancing user experience.
L-Wireless Controller
INNOVATIVE L-WIRELESS CONTROLLER
Instead of using the traditional connection method, the L-Wireless Sync Controller controls both lighting and fan speeds without connecting the cable to the controller.
The fans can be powered via a 4-PIN fan header on the motherboard or a SATA power cable.
For the LCD versions, a USB 2.0 9-PIN cable connection to the motherboard is required to set the LCD screen.
Connect to motherboard USB Type A Port.
The LCD and non-LCD versions use different receivers. For mixed clusters, use the LCD version receiver.
Reciever for LCD version
Reciever for non-LCD version
Each fan group requires connection to either a 12V PWM header or a 1-to-3 SATA splitter cable.
- UNI FAN TL Wireless: PWM cable powers the LED and motor.
- UNI FAN TL LCD Wireless: PWM cable powers the LED and motor; USB cable transmits LCD signals and provides LCD power.
Note: The controller includes the SATA power cable shown below.When using two or more fans, it is recommended to connect the SATA cable for stable power delivery.
The cable length can be shortened with the organizer on the receiver.
The transmission logic between the USB port and the LCD has been optimized, enabling the use of an additional USB splitter cable to the USB 2.0 or 3.0 port on the motherboard:
- USB splitter cable without SATA for additional power (e.g., LIAN LI USB 2.0 1-to-3 HUB): Supports up to 6 TL LCD wireless fans.

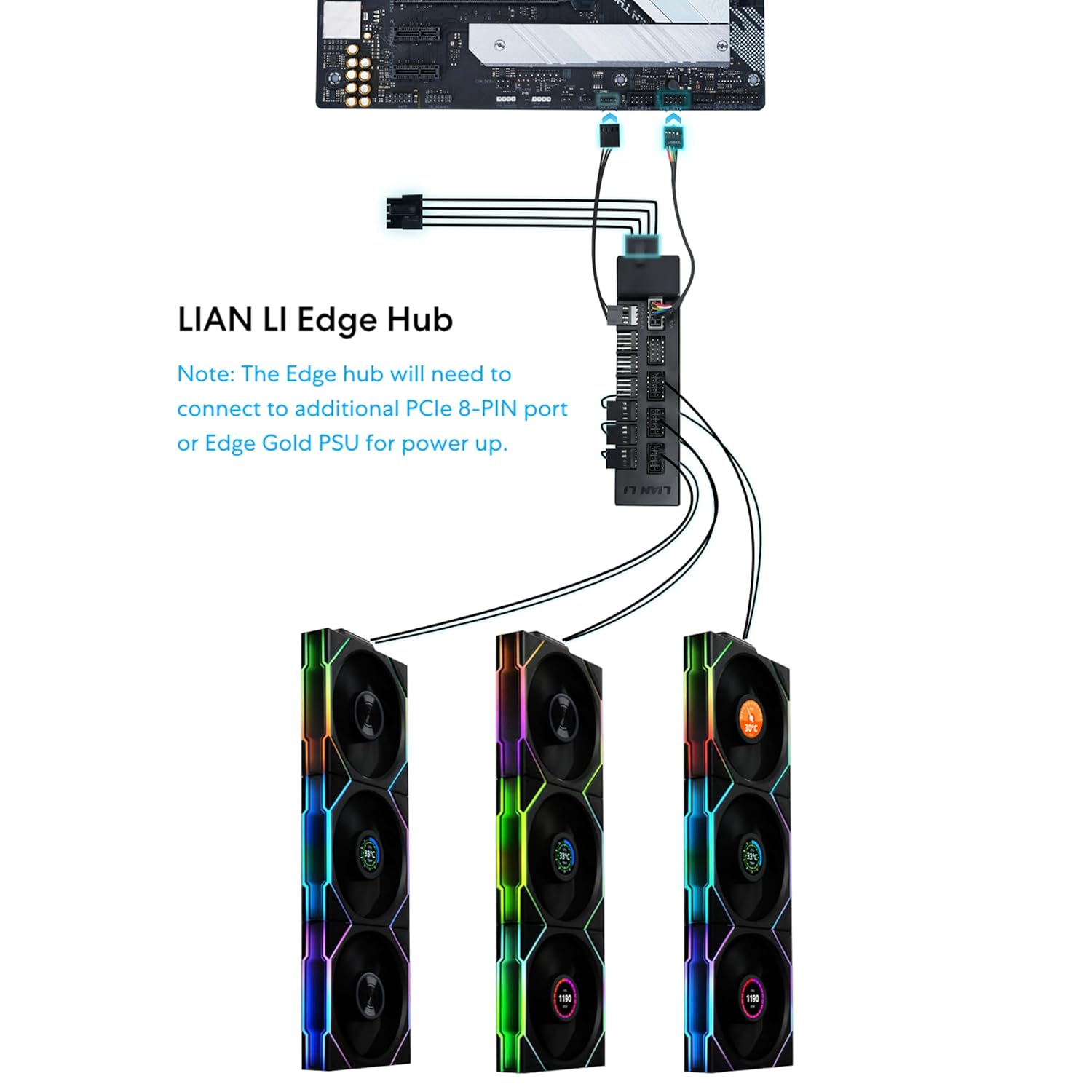

- USB splitter cable with SATA for additional power (e.g., LIAN LI Edge hub): Supports up to 9 TL LCD wireless fans.
- Furthermore, a single motherboard can support up to 20 UNI FAN TL LCD wireless fans.
