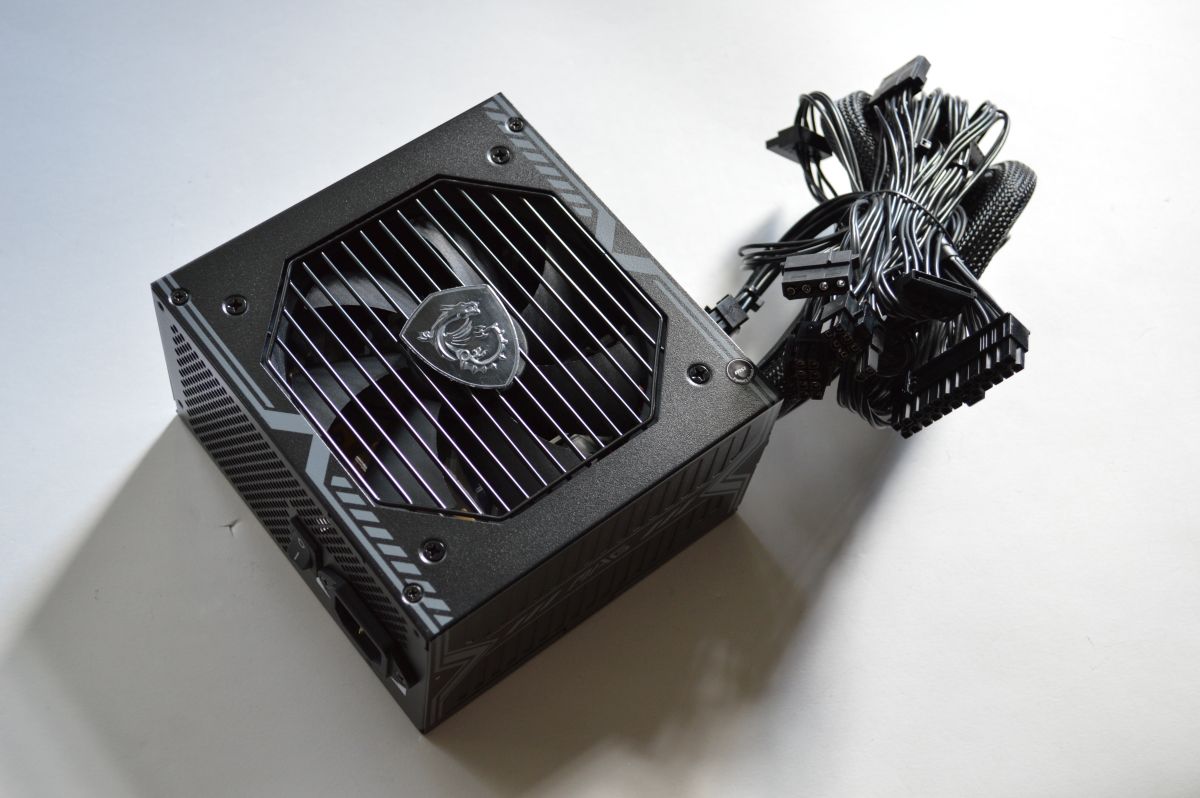

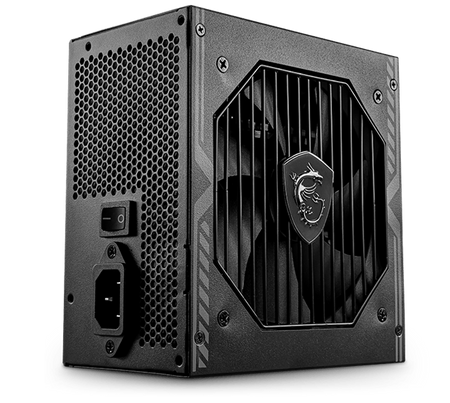

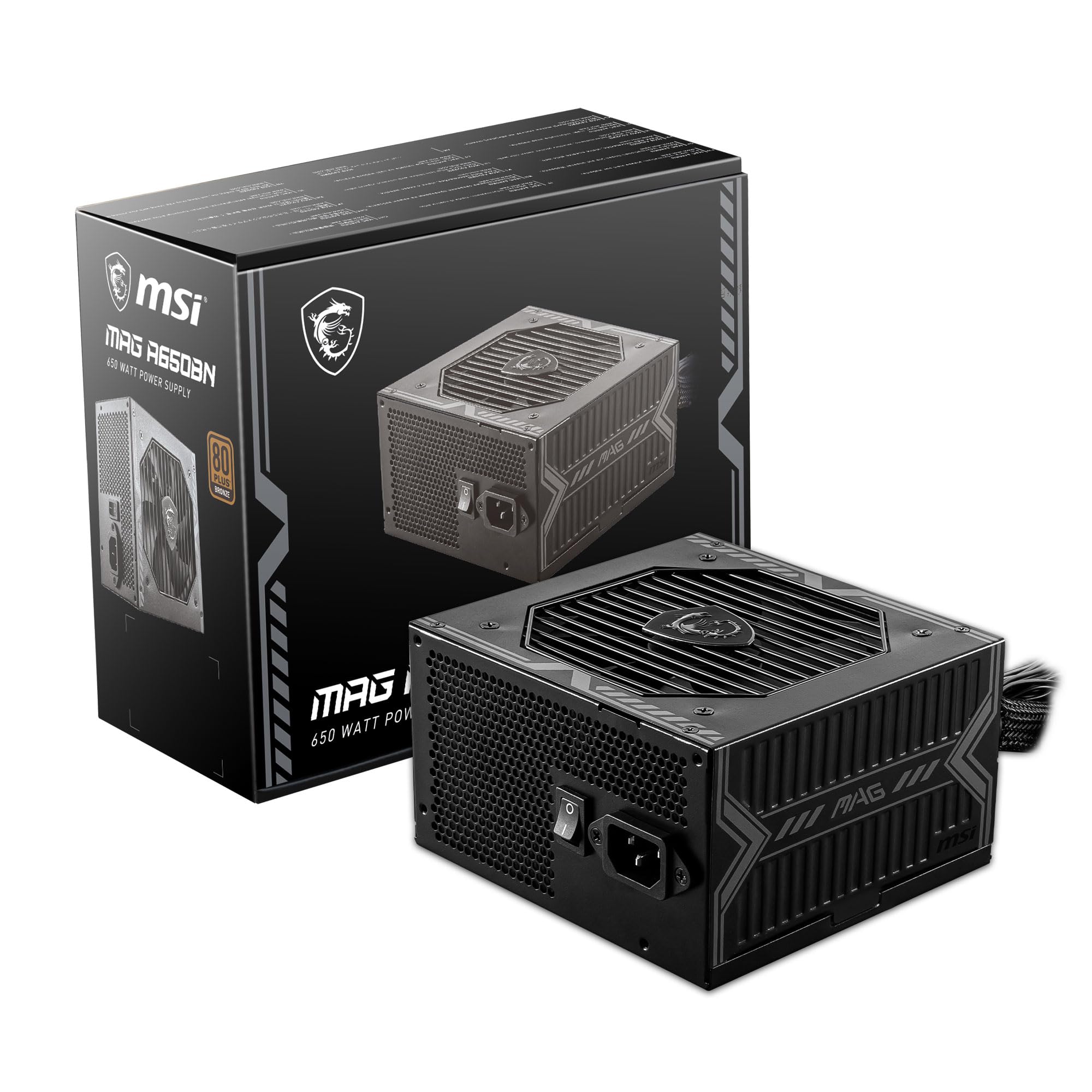

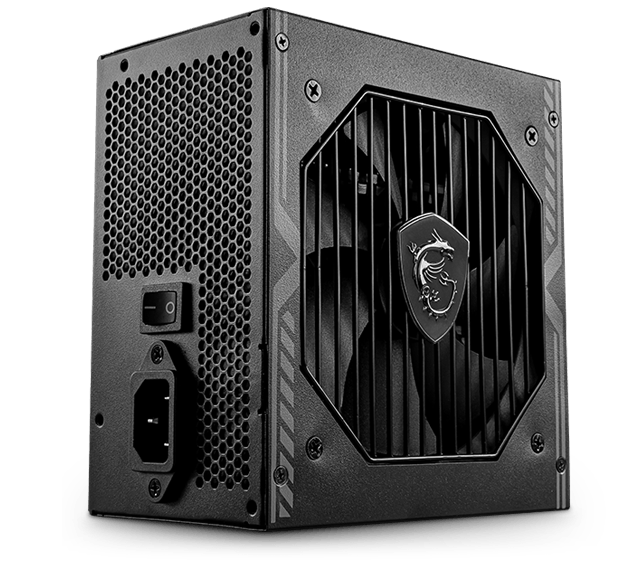

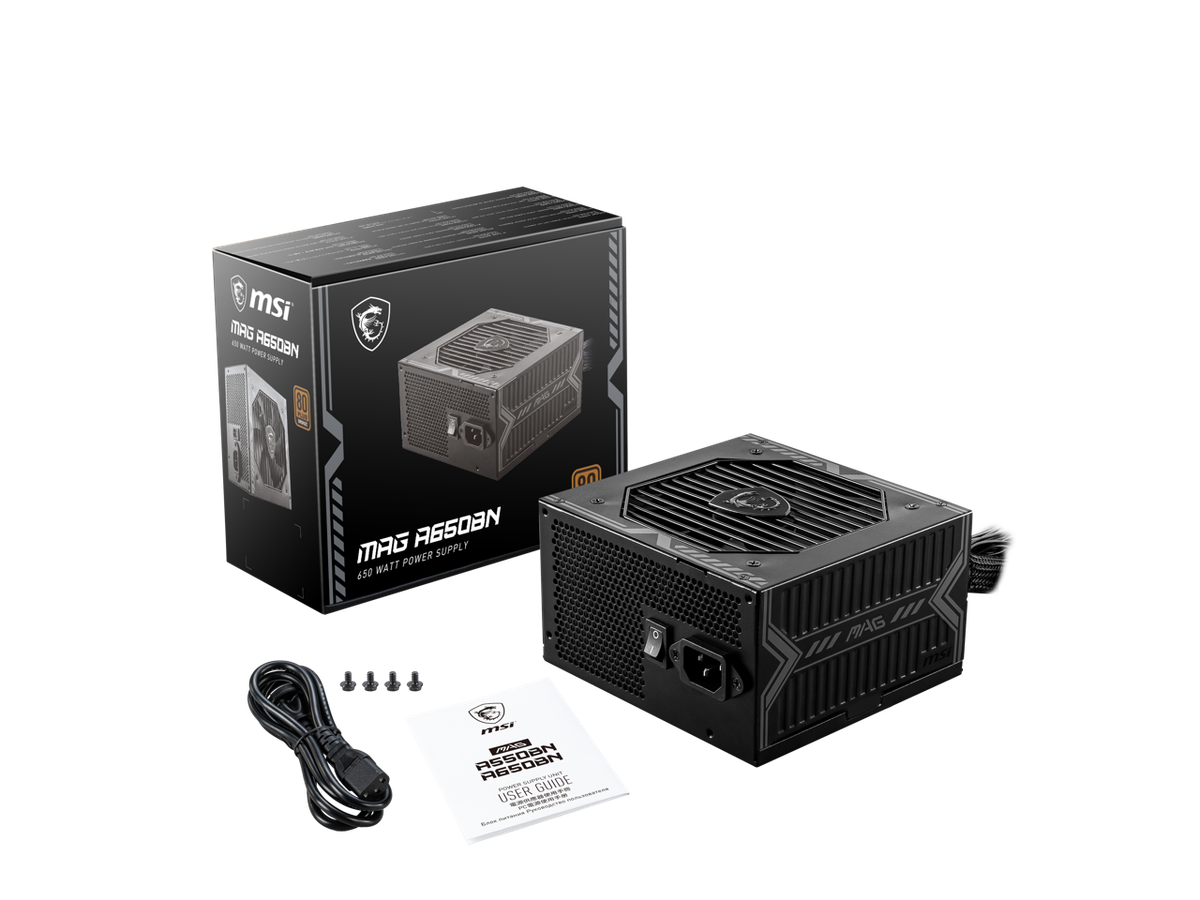

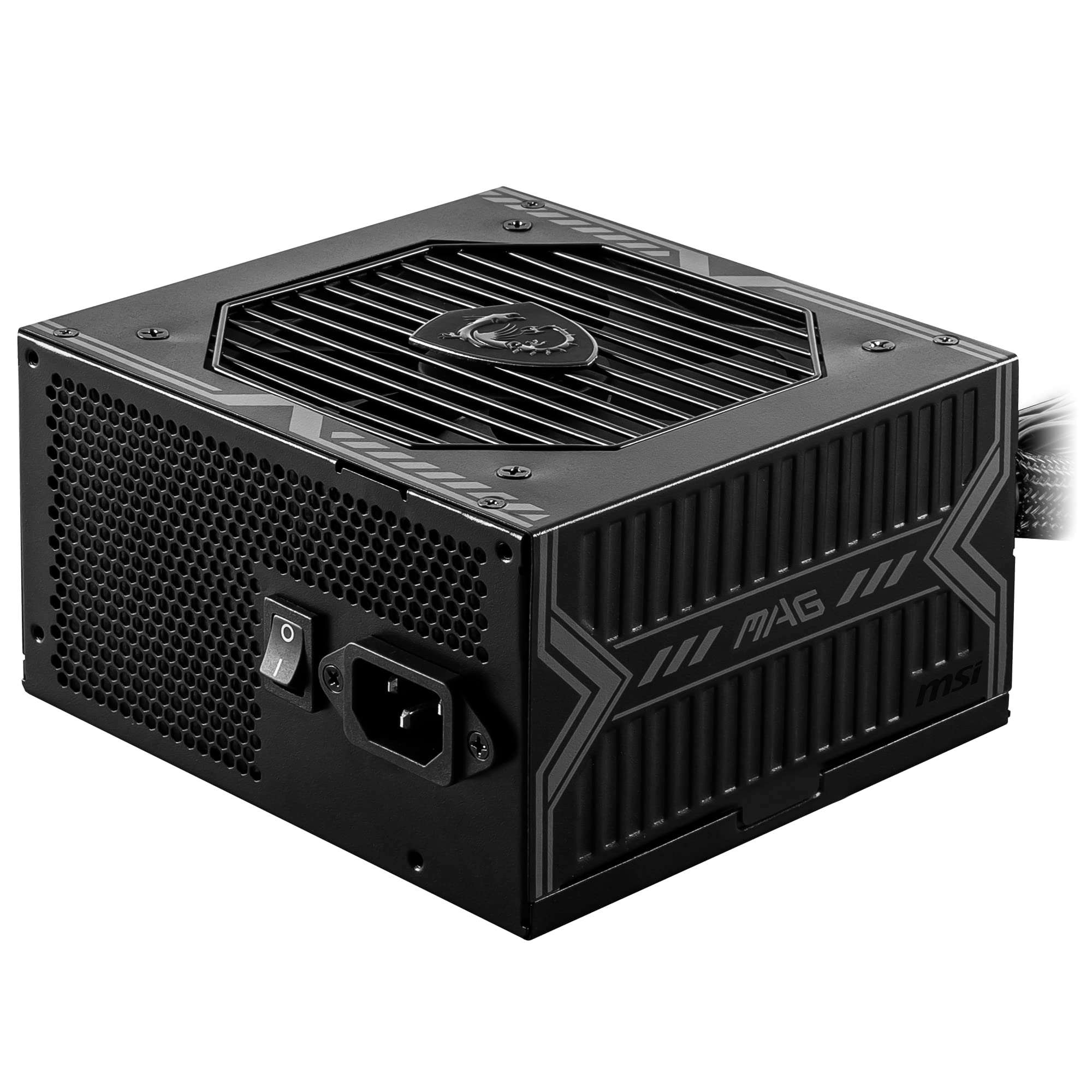

MAG A650BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A650BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.
80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
120mm LOW NOISE FAN
The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.
DC TO DC CIRCUIT DESIGN
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.
COMPREHENSIVE CIRCUIT PROTECTION
Supports OCP, OVP, SCP, OPP, OTP protection
mechanisms and provides comprehensive protection.
| CONNECTOR | ||||||||
|---|---|---|---|---|---|---|---|---|
| ATX(20+4 PIN) | EPS(4+4 PIN) | PCI-E(6+2 PIN) | SATA | MOLEX(PERIPHERAL) | FDD | |||
| 1 | 1 | 2 | 5 | 2 | 1 | |||
| MAG A650BN | ||||||||
|---|---|---|---|---|---|---|---|---|
| AC Input | 100-240V~, 10-5A, 50-60Hz | |||||||
| DC Output | +5V | +3.3V | +12V | -12V | +5Vsb | |||
| 20.0A | 20.0A | 54.0A | 0.3A | 2.5A | ||||
| Total Power | 110W | 648W | 3.6W | 12.5W | ||||
| 650W | ||||||||
- 80 Plus Bronze certified for high efficiency
- 120mm Low Noise Fan
- Industrial level protection with OVP,OCP,OPP,OTP, SCP
- DC-DC Circuit Design
- Active PFC design
