MSI MAG FORGE M100R Mid Tower Gaming Computer Case Black, 3x 120mm ARGB PWM Fans, 1x 120mm Fan, 1-6 ARGB Hub, Tempered Glass, mATX, mini-ITX

COMPONENT SUPPORT

Motherboard support: Micro-ATX and Mini-ITX

Component clearances:

1. CPU Cooler Height: 160 mm
2. GPU Length: 300 mm (4 expansion slots)
3. PSU Length: up to 180 mm (with 3.5" tray) up to 300 mm (without 3.5” tray)

AIRFLOW OPTIMIZED

MAG FORGE M100R is well equipped to provide the high-volume airflow with 3 x 120mm ARGB fans pre-installed in the front panel, and 1 x 120mm ARGB fan in the rear panel.

Despite its compact mini-tower form, the chassis can house up to 6 x 120mm case fans for maximized cooling.

LIQUID COOLING READY

Liquid cooling options include space for 240mm radiators in the front & top panels.

The case also support a 120mm rear radiator if needed.

MESH & TEMPERED GLASS

The full-mesh front panel is designed to ensure maximum air intake to keep components cool.

The 3mm tempered-glass side panel is ideal for displaying lighting effects with its premium finish.

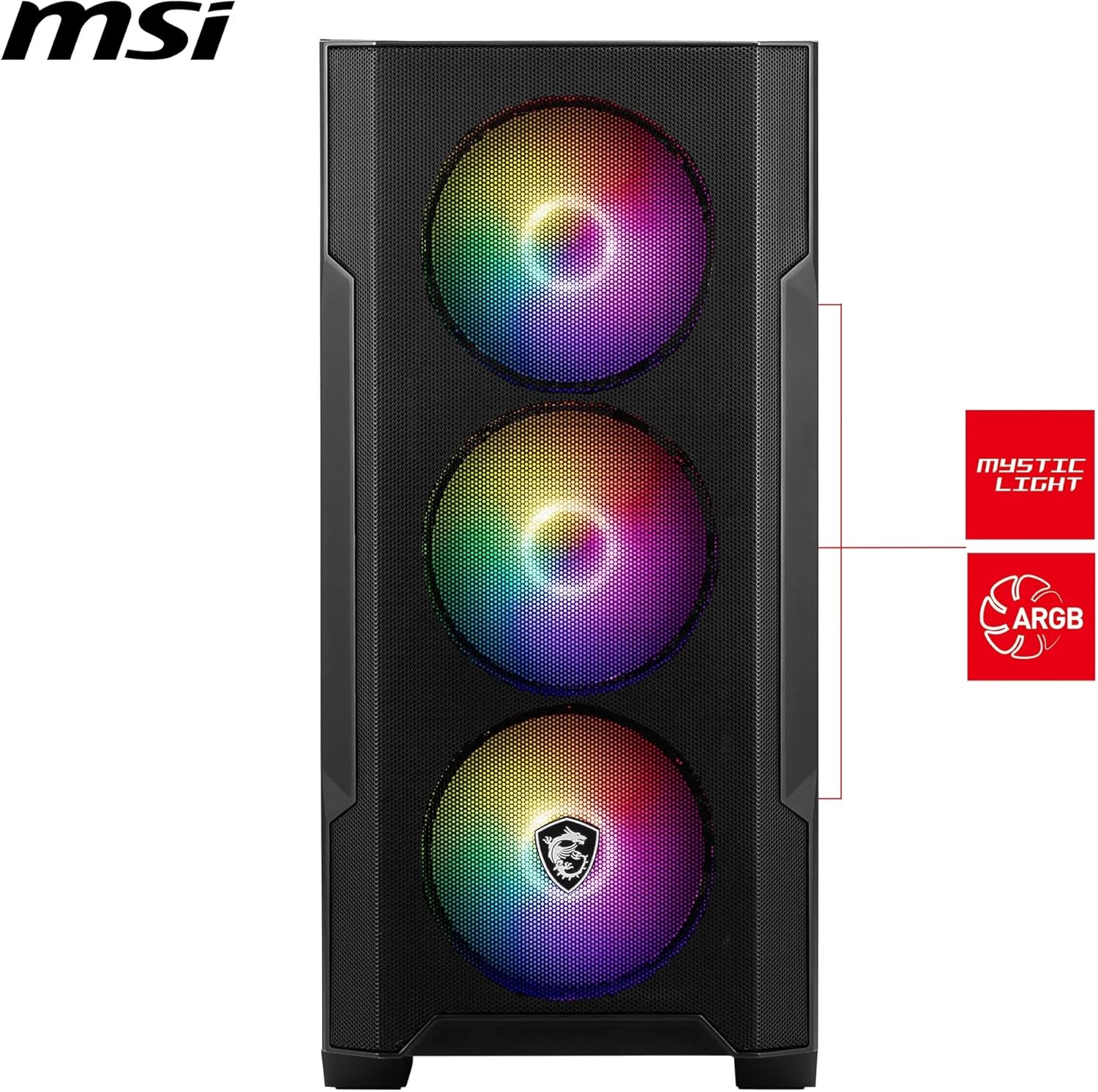

MYSTIC LIGHT SYNC

The MAG FORGE M100R's ARGB lighting effects can be conveniently controlled via Mystic Light.

Simply connect the hub control board to a 3-Pin/5V ARGB motherboard connector.

ARGB CONTROL BOARD

An included 1-to-6 ARGB control board (3-pin, DC5V Addressable RGB LED) connects directly to the the LED switch button on the I/O panel, and includes 26 cyclable lighting effects.

The case includes a 1-to-4 fan splitter cable.

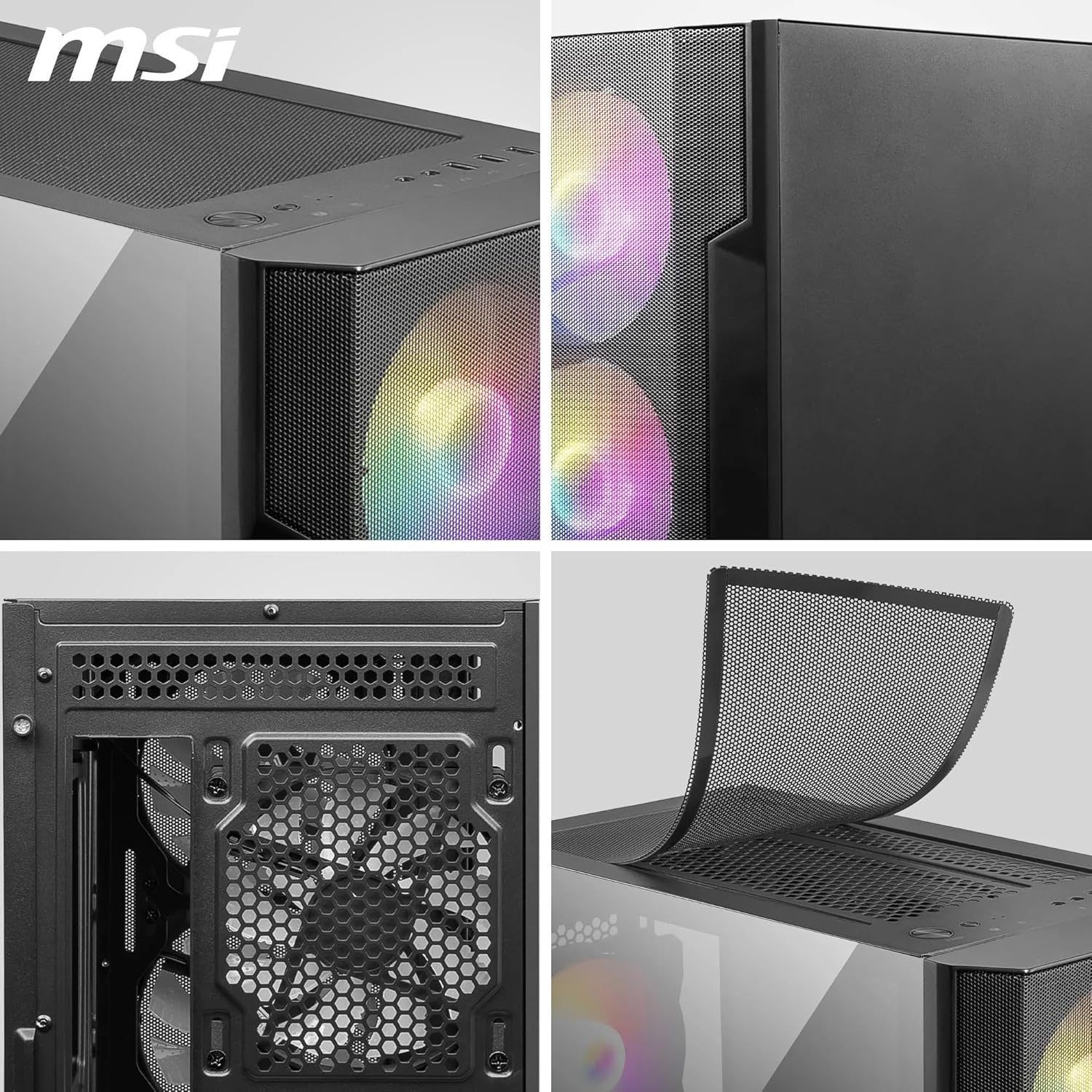

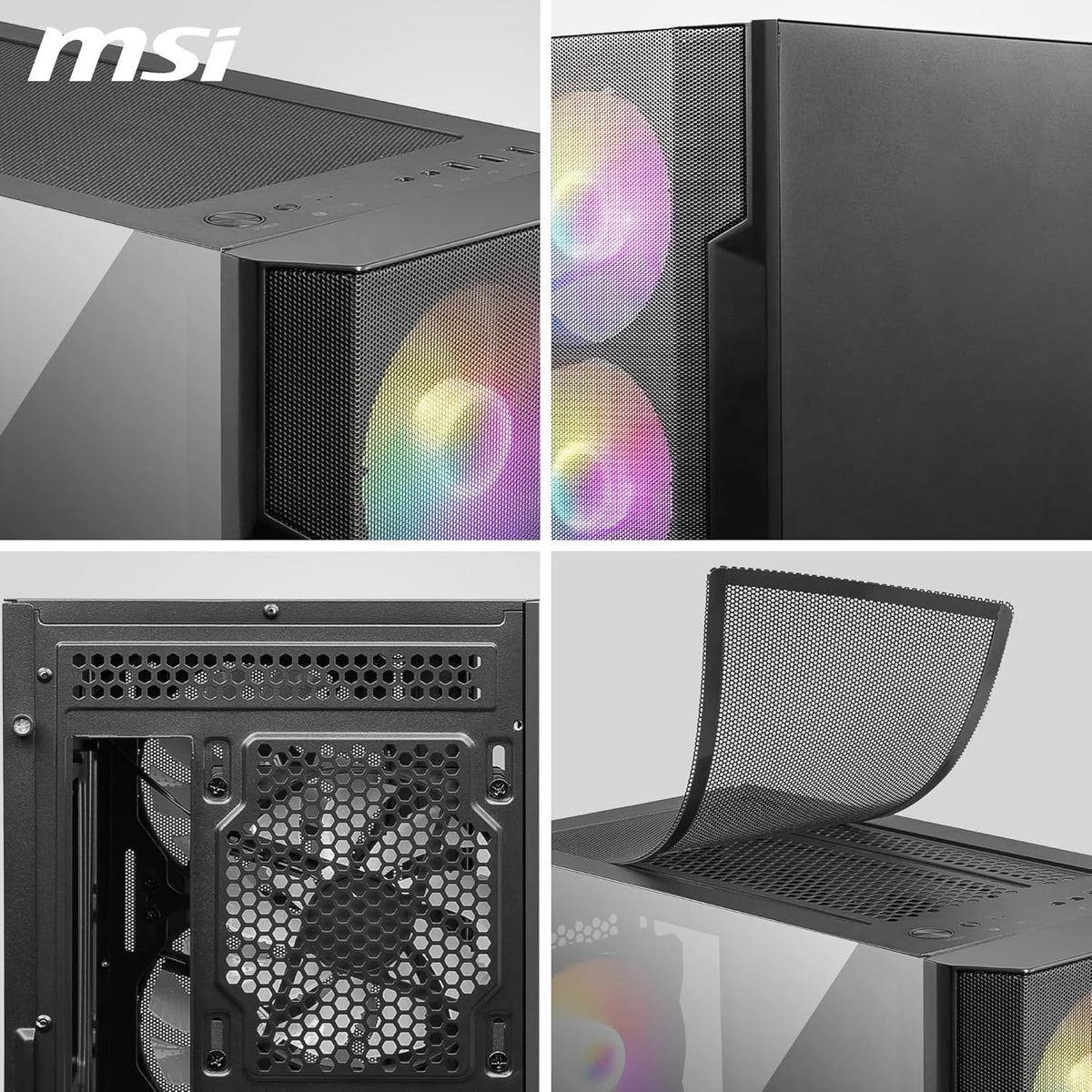

MAGNETIC DUST FILTER

A magnetic dust filter prevents dust from falling inside, and can be easily removed for cleaning.

The bottom panel also includes a non-magnetic dust filter for the PSU.

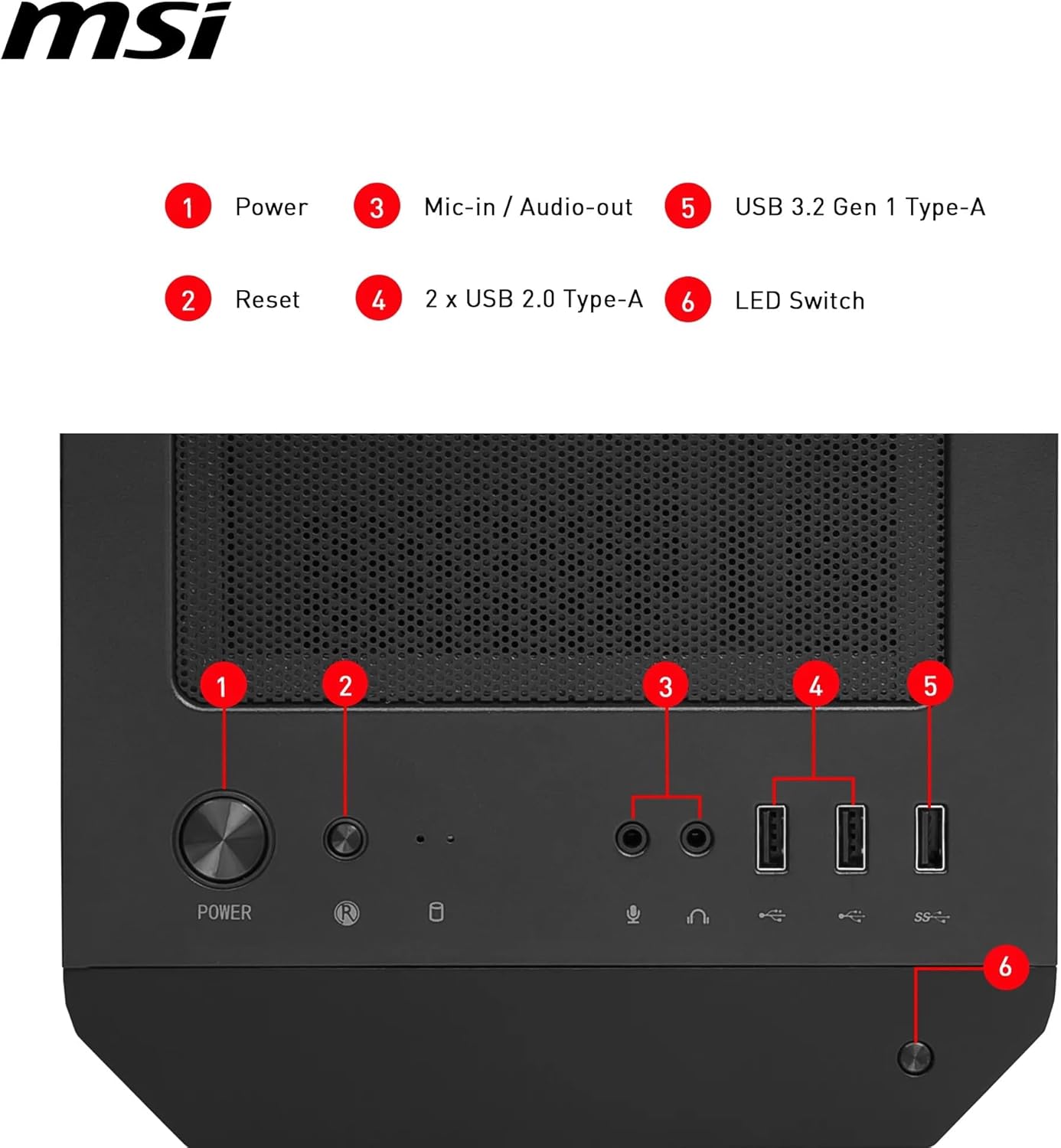

TOP I/O INTERFACE

1. Power Button
2. Reset Button
3. Mic-in / Audio-out
4. 2 x USB 2.0 Type-A
5. 1 x USB 3.2 Gen 1 Type-A (5Gbps)
6. LED Switch Button
