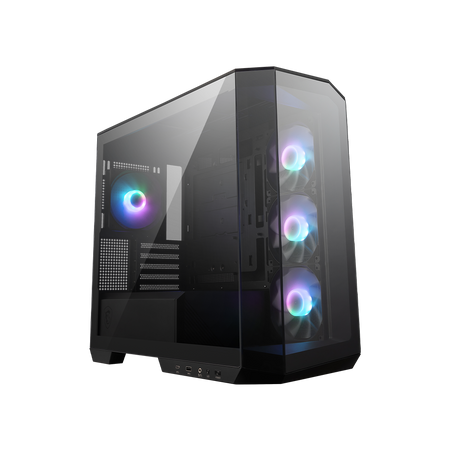

The MAG MAG PANO M100R PZ fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. To meet the desire to show the ARGB PC build, the MAG PANO M100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness, supports a back-connect motherboard, and comes with the reverse-blade fan on the side, an ARGB-PWM control board to let user organize cables easily.

• Micro-ATX Back-connect motherboard supported.
• Supports up to 360 mm AIO liquid cooler on the top.
• 270-degree panoramic tempered glass.
• Supports up to 10 x 120 mm system fans.
• Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects.
• The Magnetic Dust Filter at the bottom being easily removed for cleaning.
• DIY Friendly cables make your DIY process easier and create more possibilities to your system.
  TECHNICAL FEATURES

  ---



  A New Turning Point

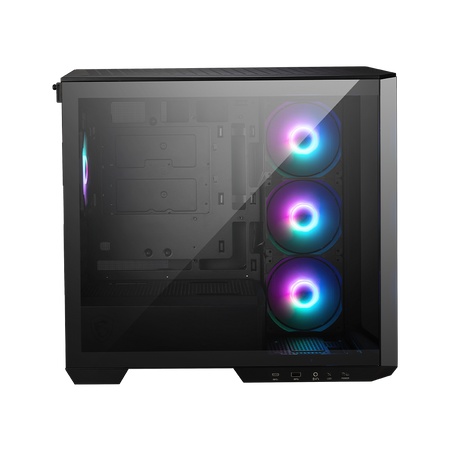

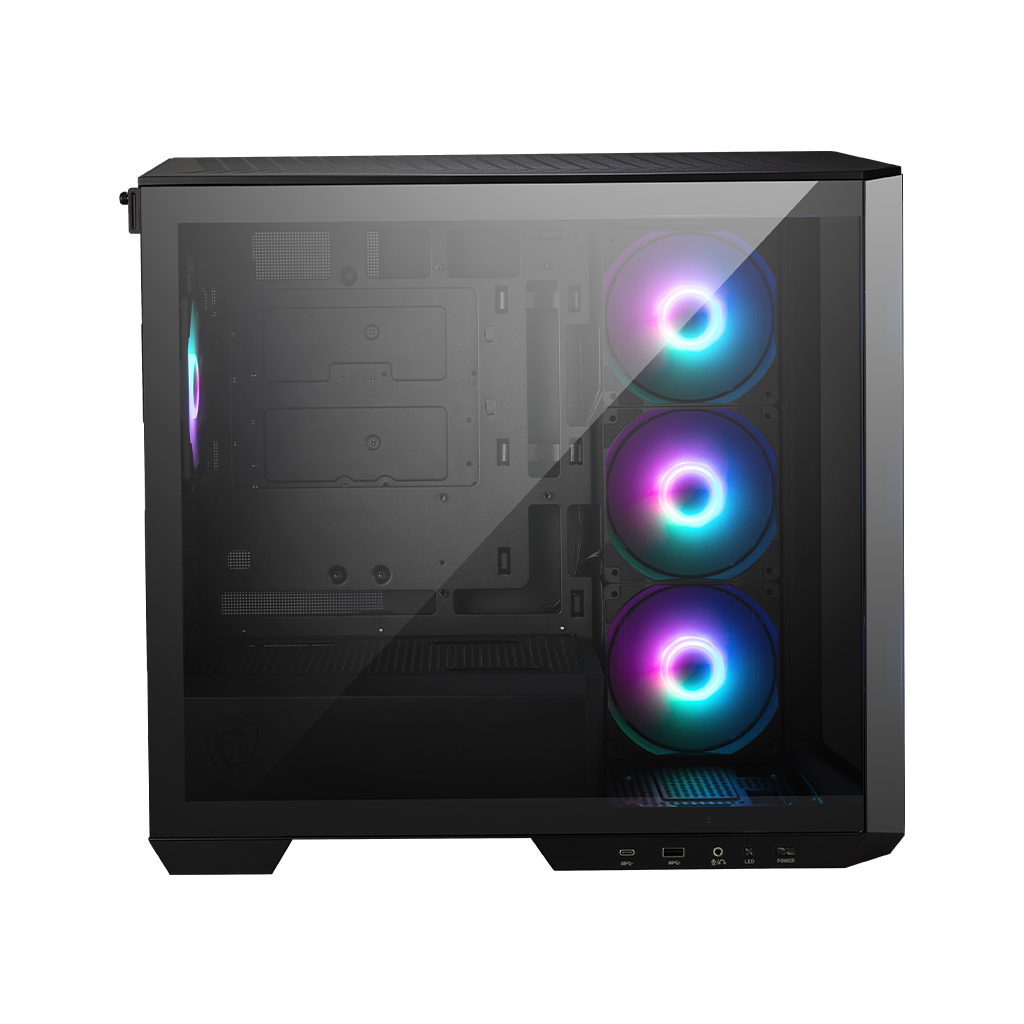

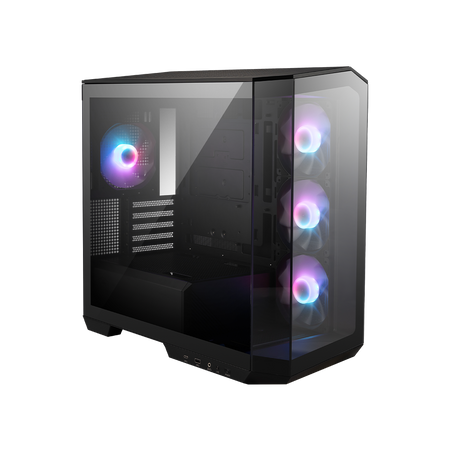

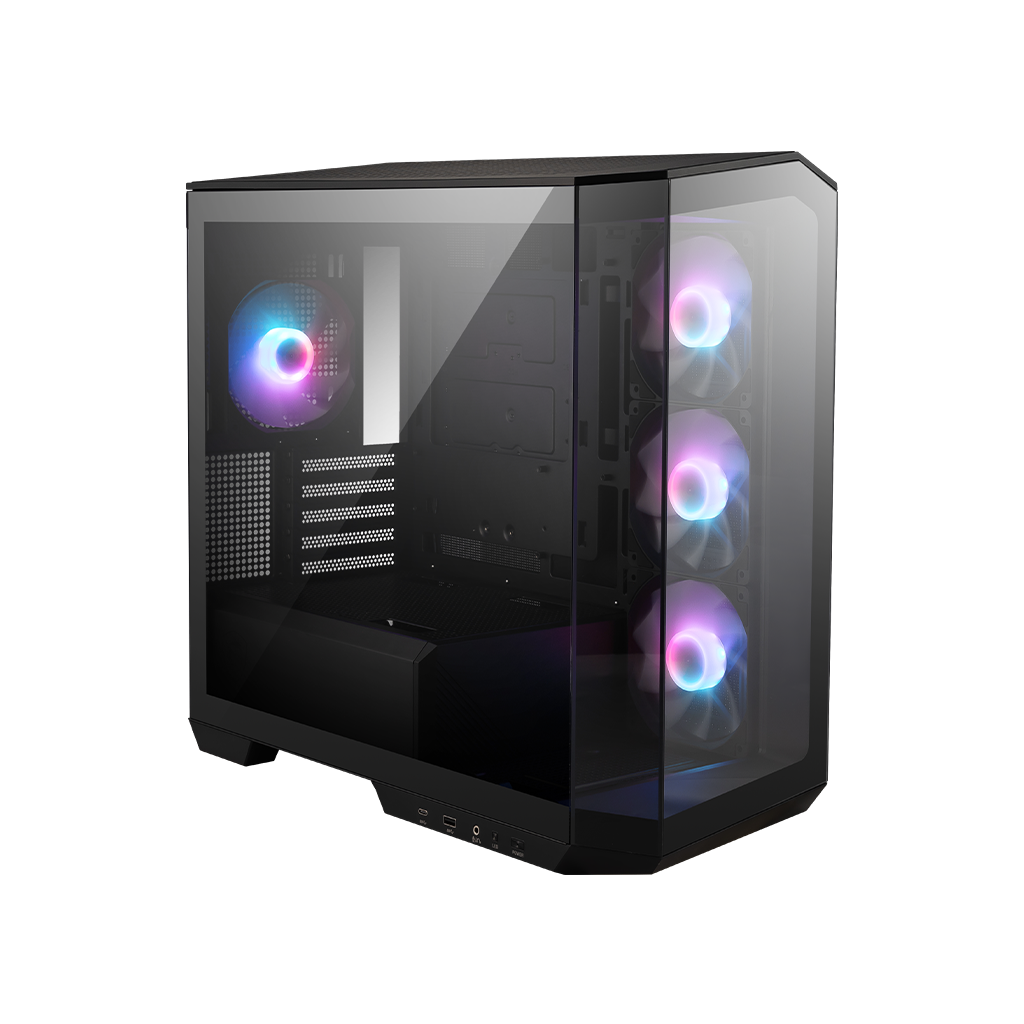

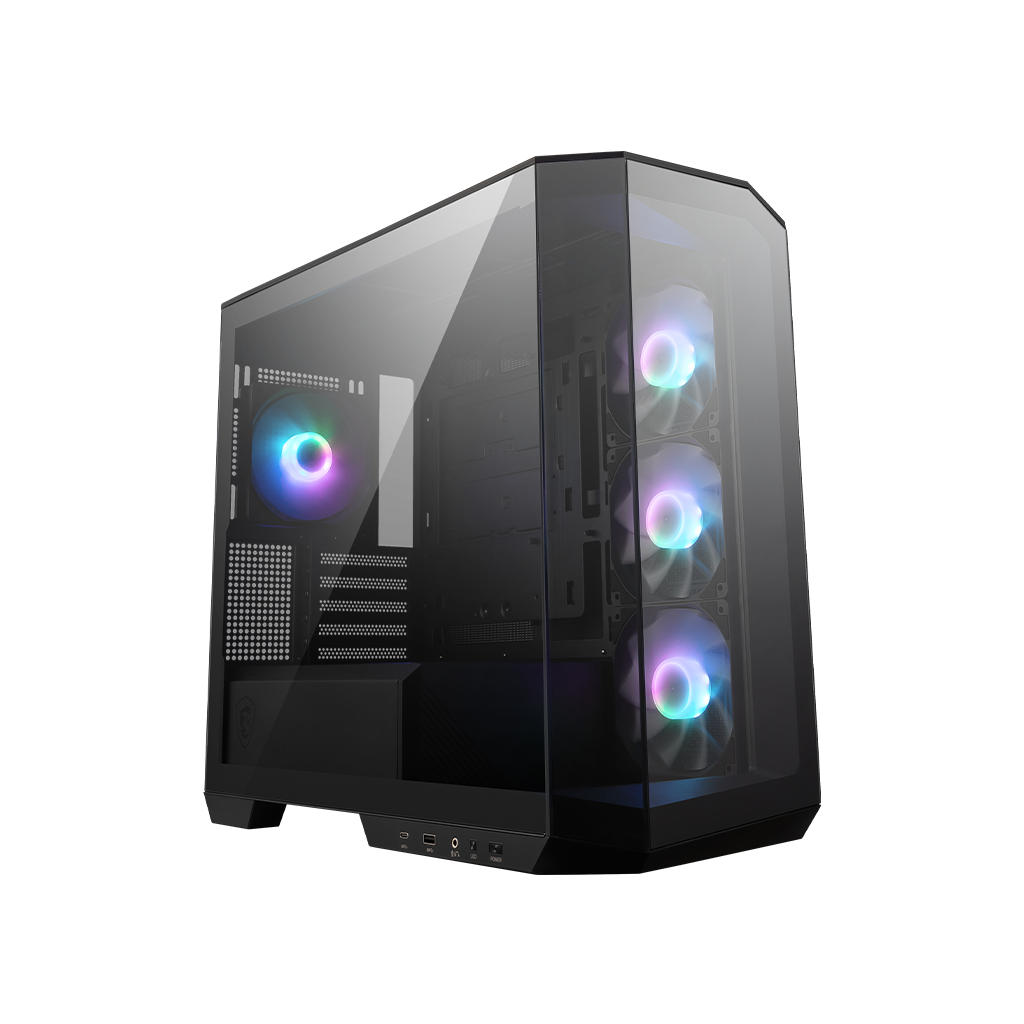

  The MAG PANO M100R PZ comes with a 270-degree tempered glass panel paired with a Back-connect motherboard compatible, adding to the aesthetically pleasing and cleanliness of your PC build while enhancing its overall aesthetics and organization. MAG PANO M100R PZ offers spectacular ambient illumination with 3 x 120 mm Reverse-blade ARGB PWM intake fans and 1 x 120 mm ARGB PWM exhaust fan pre-installed.



  Organize Easily

  Supporting Back-connect motherboards not only simplifies the installation process but also makes it easy for cable management. Additionally, it prevents interfering with cables in front of the motherboard, keeping the interior of the case a lot cleaner.

  The Velcro straps help to tie the cable easily.



  Extensive Compatibility

  Motherboard support: Micro-ATX (Back-connect and general motherboard compatible) and Mini-ITX (general motherboard compatible).

  Component clearances:

  • CPU Cooler height: 175 mm
  • GPU Length: 390 mm
  • PSU Length: Up to 200 mm

  Storage options:

  • 1 x 2.5"
  • 1 x 2.5"/3.5" SSD combo bay



  Extensive Cooling Support

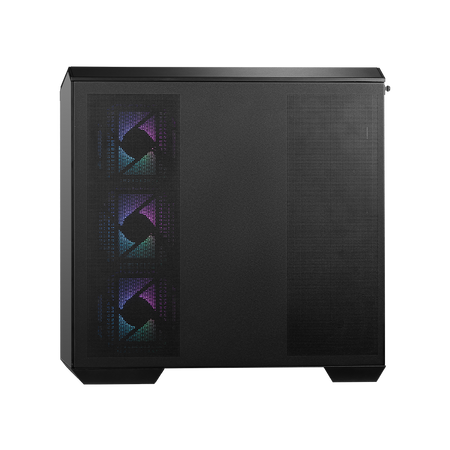

  The MAG PANO M100R PZ pre-installed with 3 x 120 mm Reverse-blade ARGB PWM fans and 1 x 120 mm ARGB PWM fan, other fan cooling options include:

  Top: 3 x 120/2 x 140 mm fans

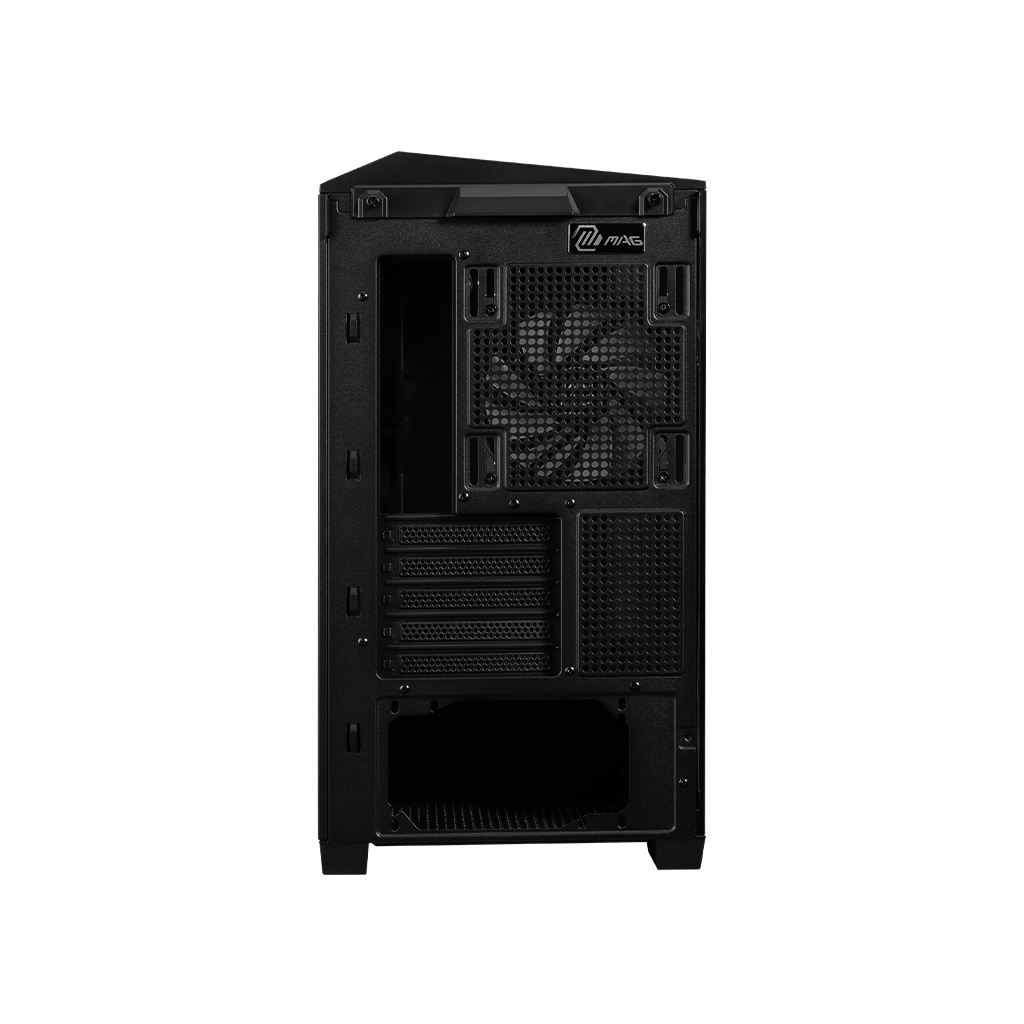

  Rear: 1 x 120/140 mm fan

  PSU shroud: 2 x 120 mm fans

  Bottom: 1 x 120 mm fan *

  *Not available if 1 x 3.5" HDD is installed at the bottom.



  1-to-4 ARGB-PWM Control Board

  The pre-installed 1-to-4 ARGB-PWM control board supports extra ARGB fan connections to the case. It supports intuitive control & lighting profiles through the LED switch button, and is also compatible with the Mystic Light utility via MSI motherboards.

  1. 3-pin ARGB connector

  2. 4-pin PWM connector



  270-Degree Panoramic Display

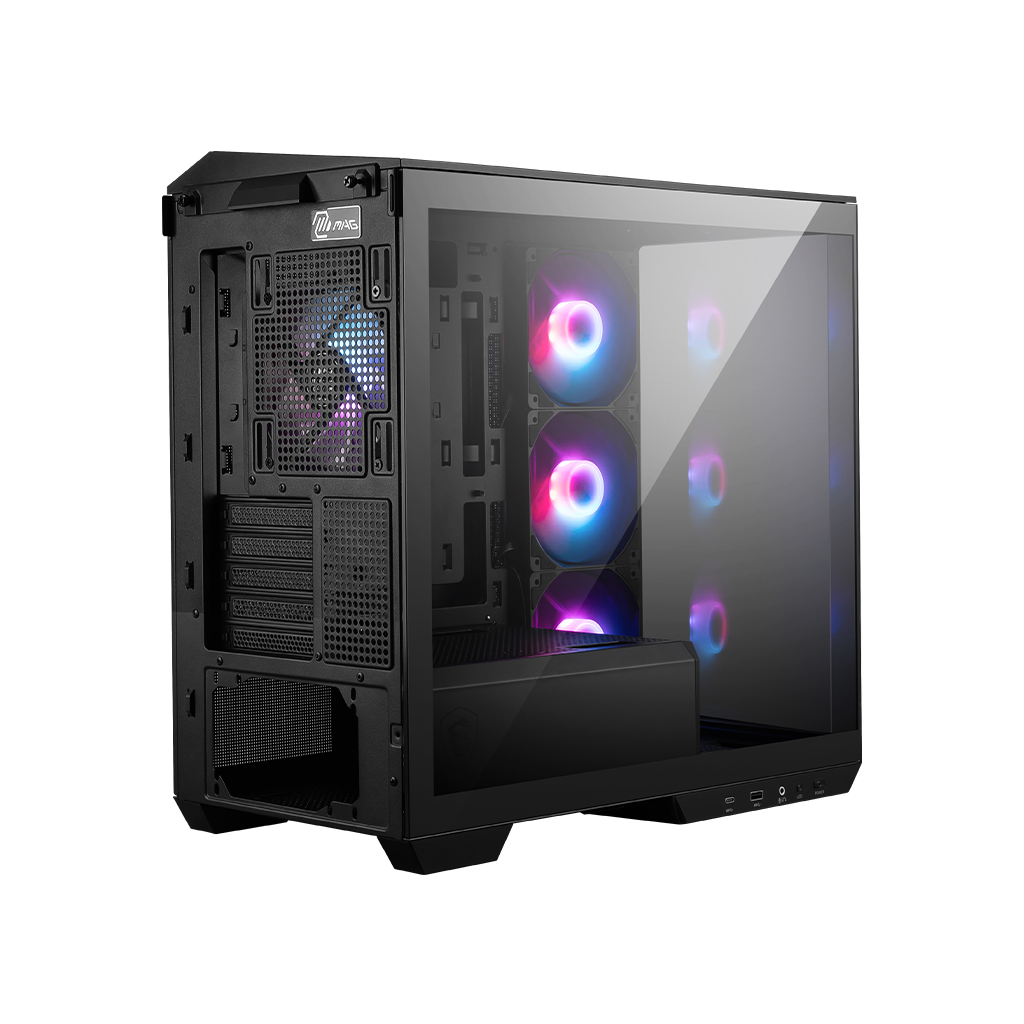

  This case features a 270-degree reinforced glass design, providing a panoramic view of the interior without obstructive metal at the corners, ensuring a seamless showcase of internal components.



  Assemble for Cable Mangement

  33mm cable routing space & pre-installed cable Velcro strips for easy to do cable management.



  Multiple Inlets & Filters

  The tool-free top removable design ensures effortless installation, while the bottom of this case features a magnetic dust filter for easy removal and cleaning.

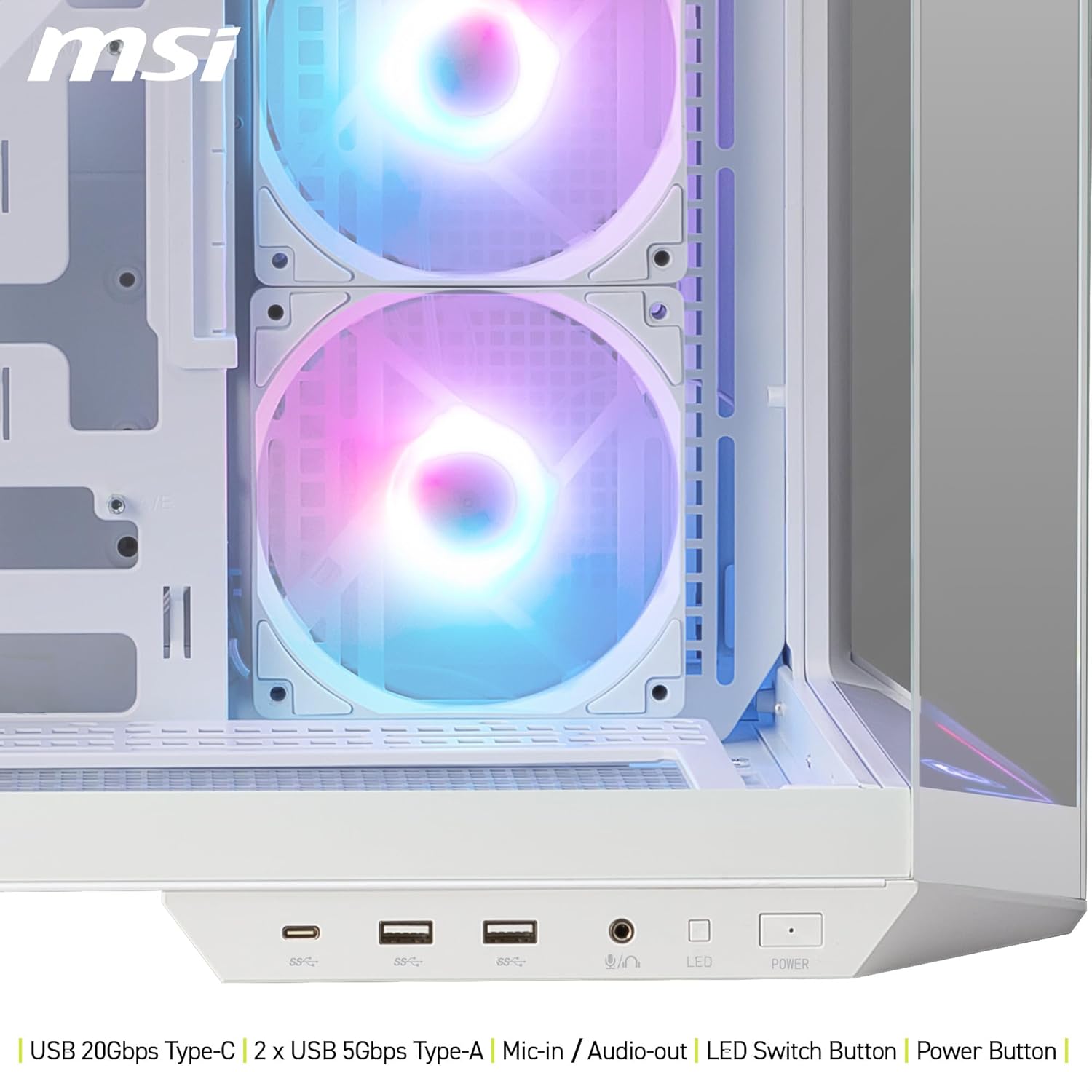

  Top I/O Connectivity

  The top I/O panel features a USB 3.2 Gen 2x2 Type-C port for high-speed 20Gbps data bridging to compatible motherboards.

  1. 1 x USB 3.2 Gen 2x2 Type-C (20Gbps)
  2. 1 x USB 3.2 Gen 1 Type-A (5Gbps)
  3. Mic in / Audio out
  4. LED Switch Button
  5. Power Button

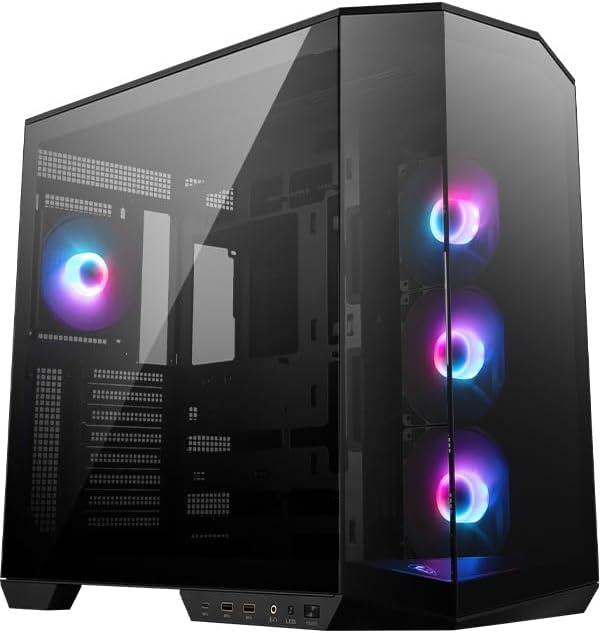

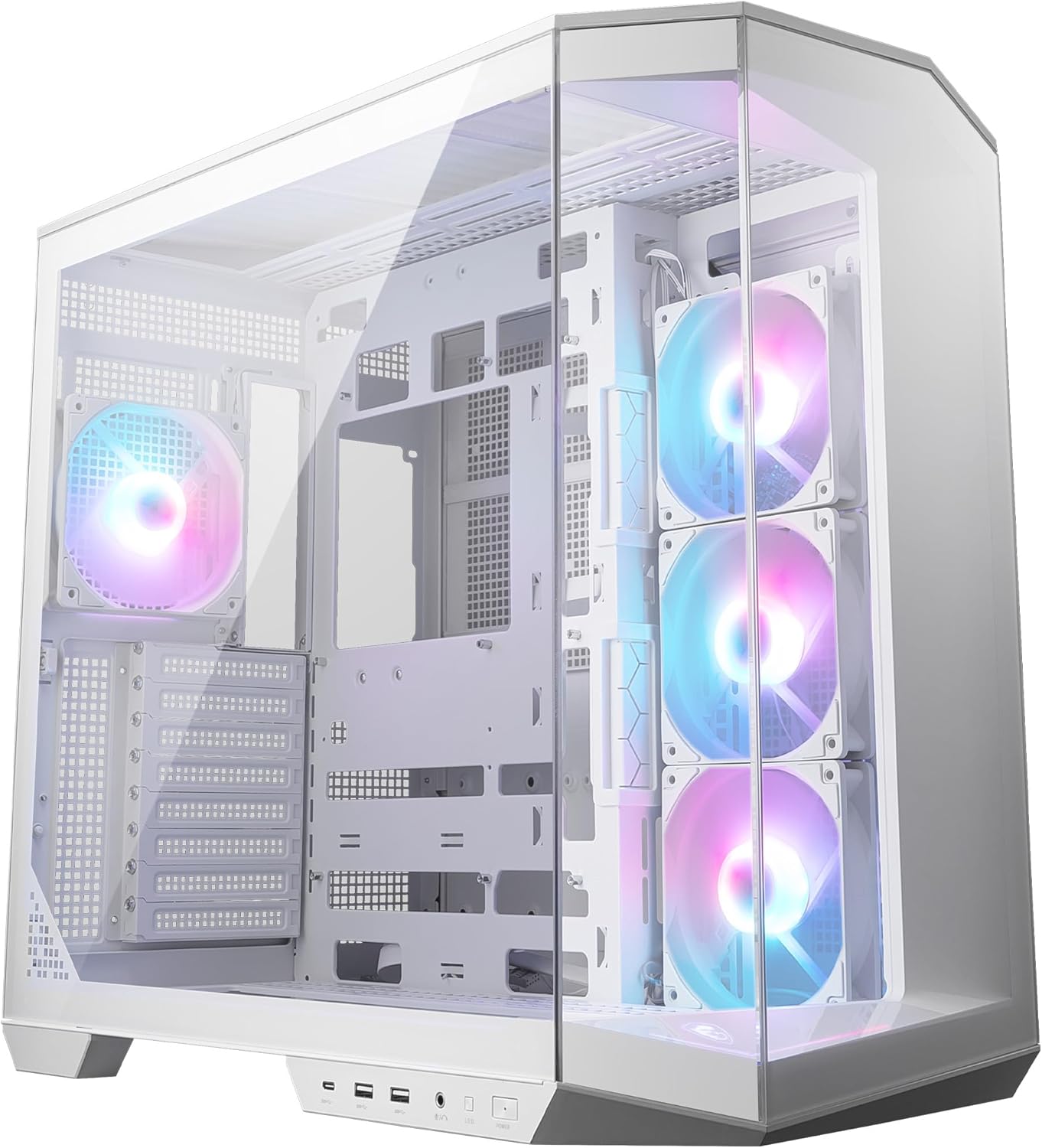

  MAG PANO 100R PZ




  • Supported ATX and Micro-ATX Back-connect motherboard.
  • Supports 360 mm radiator on the top, side and bottom
  • 270-degree panoramic tempered glass.
  • Pre-installed with 3 x 120 mm ARGB Reverse-blade fan at the side and 1 x 120 mm ARGB fan at the rear.
  • 1-to-4 ARGB-Fan control board.
  • Synergize with a compatible MSI motherboard through bridging with a USB 20Gbps Type-C (20Gbps) port for high speed data transmission.
  • Removable dust filter at the top, side and bottom being easily removed for cleaning.
  • UNI front panel cable make your DIY process easier and create more possibilities to your system.
