MSI PRO B760M-P DDR4 ProSeries Motherboard (Supports 12th/13th/14th Gen Intel Processors, LGA 1700, DDR4, PCIe 4.0, M.2, USB 3.2 Gen2, HDMI/DP, mATX)
Couldn't load pickup availability
MSI Business & Productivity
MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.
For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

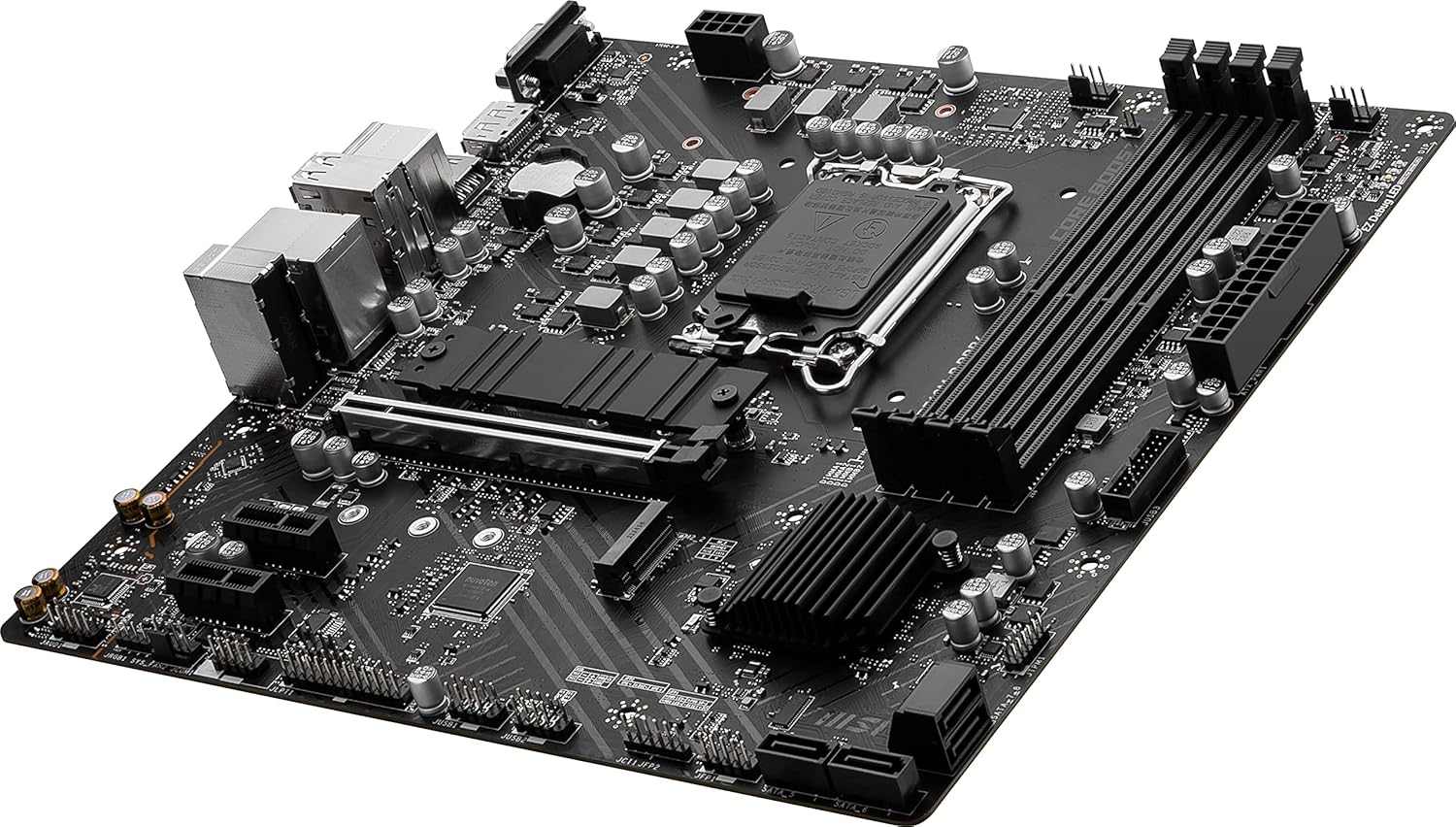

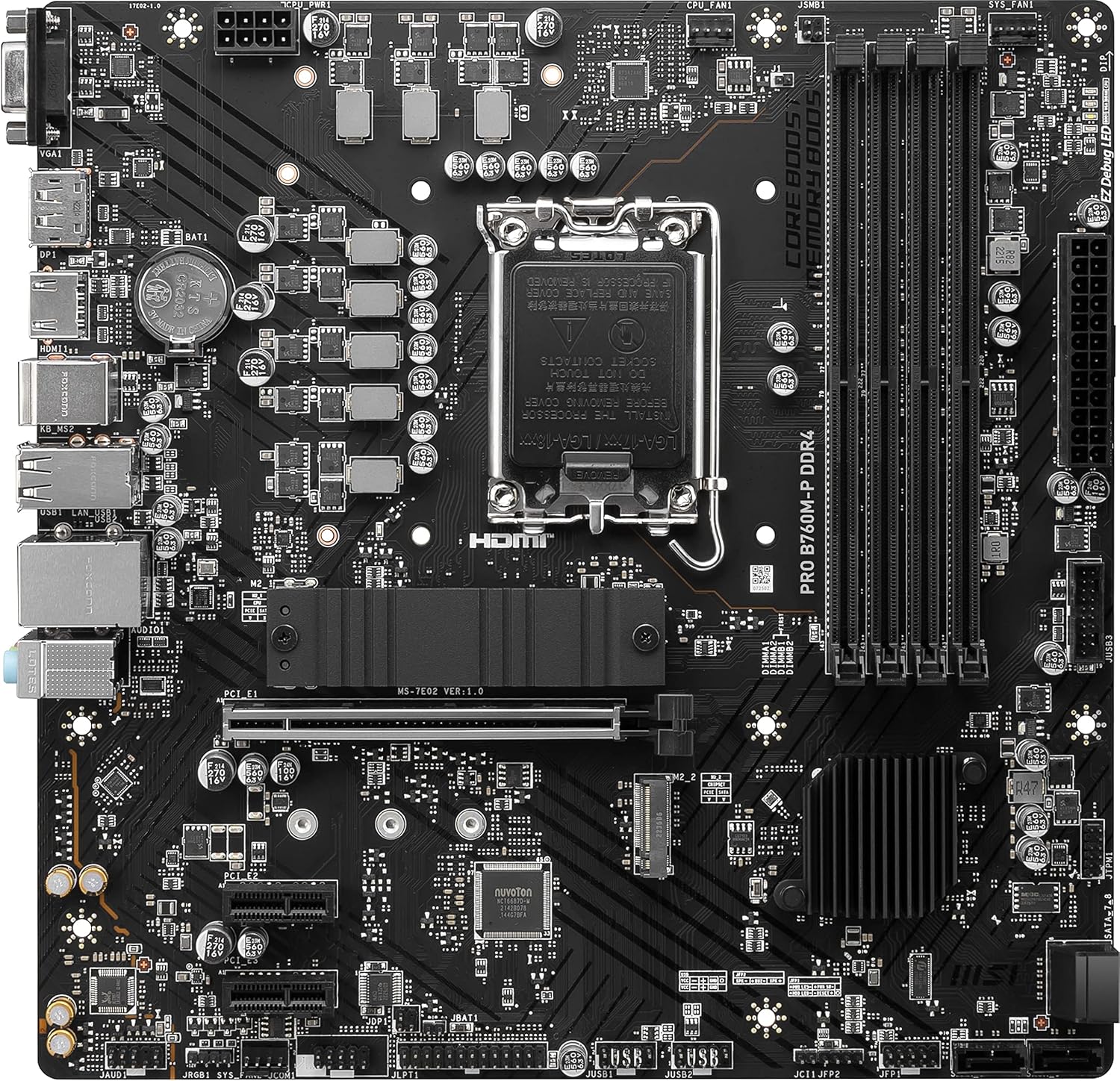

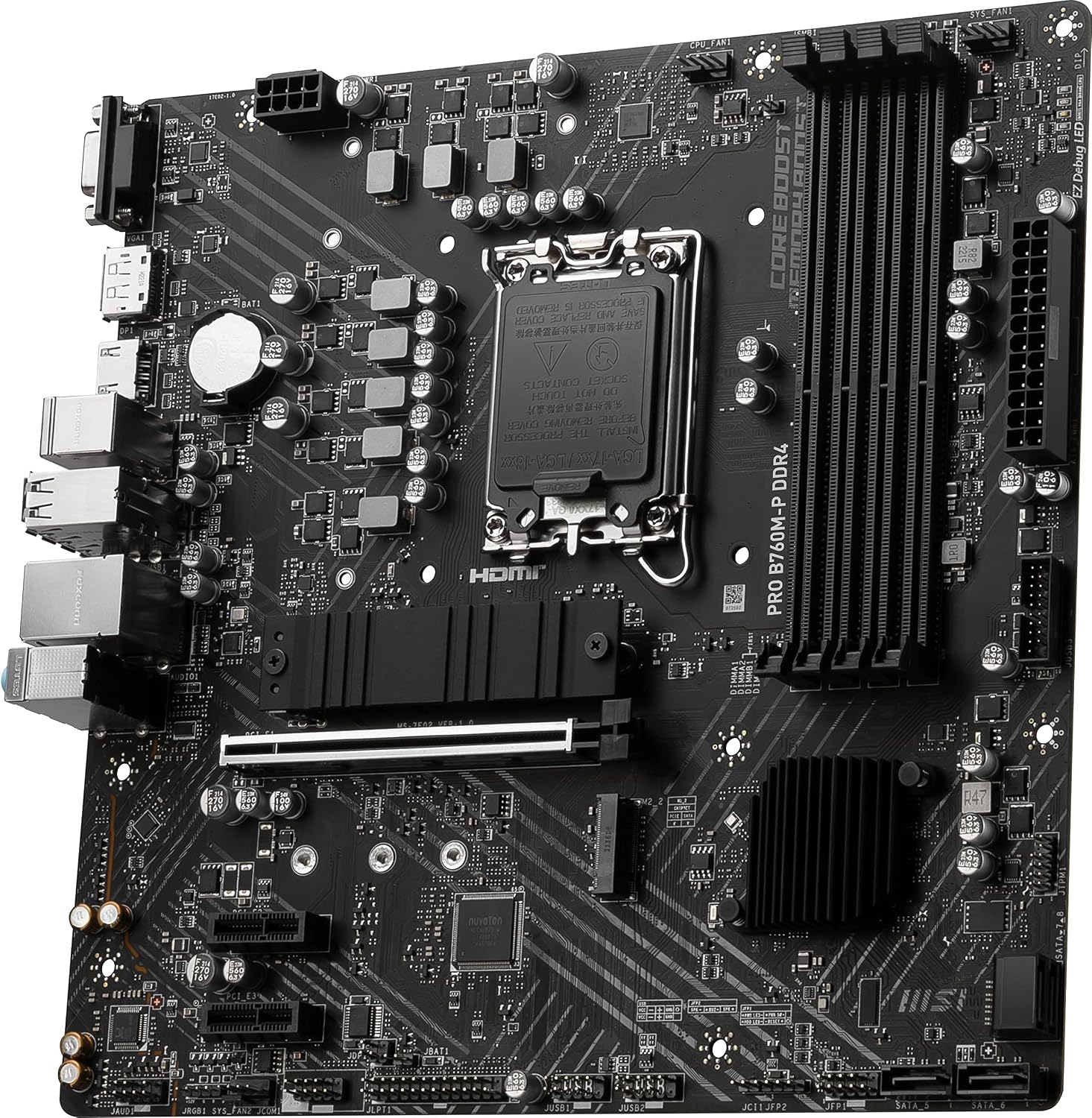

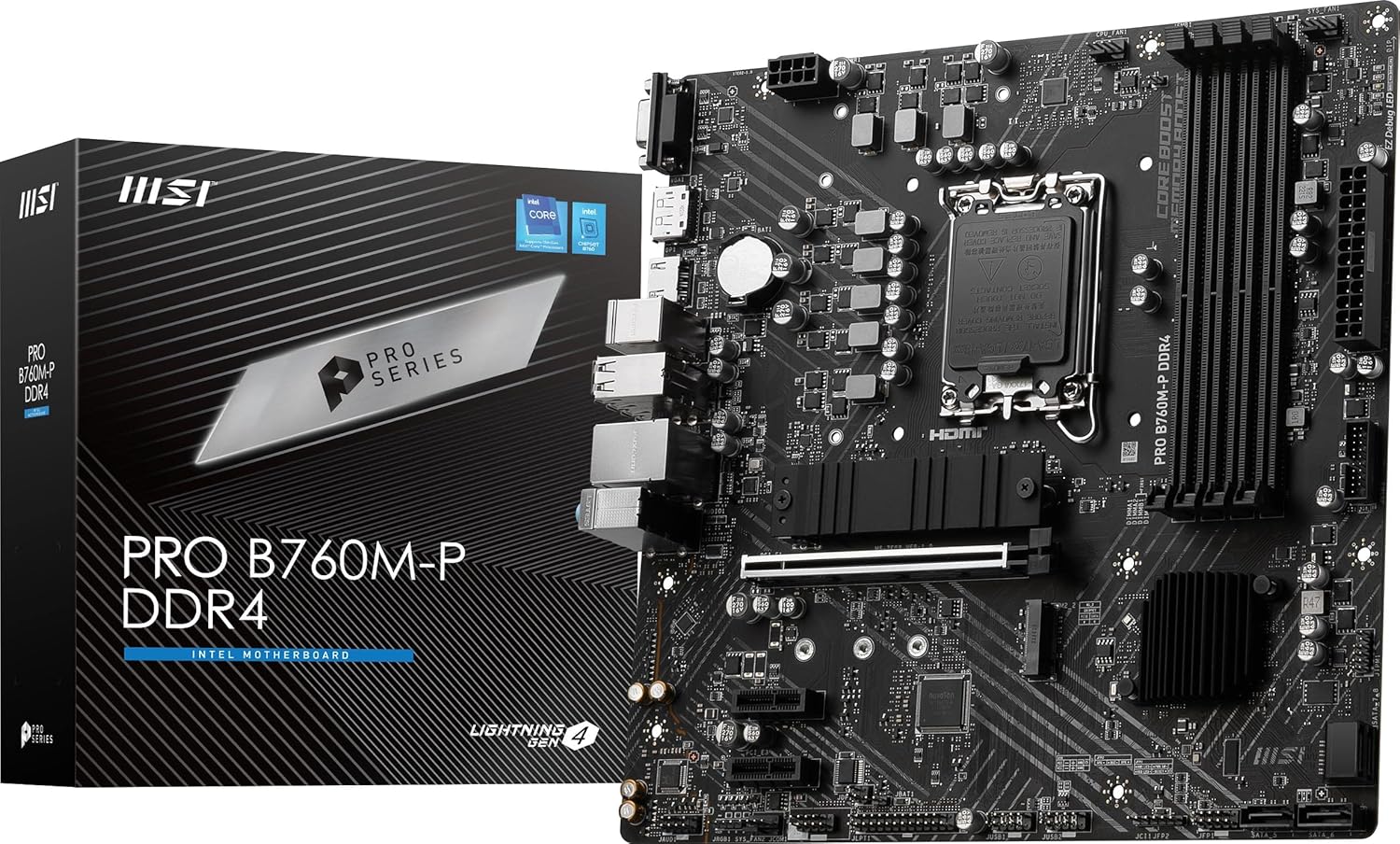

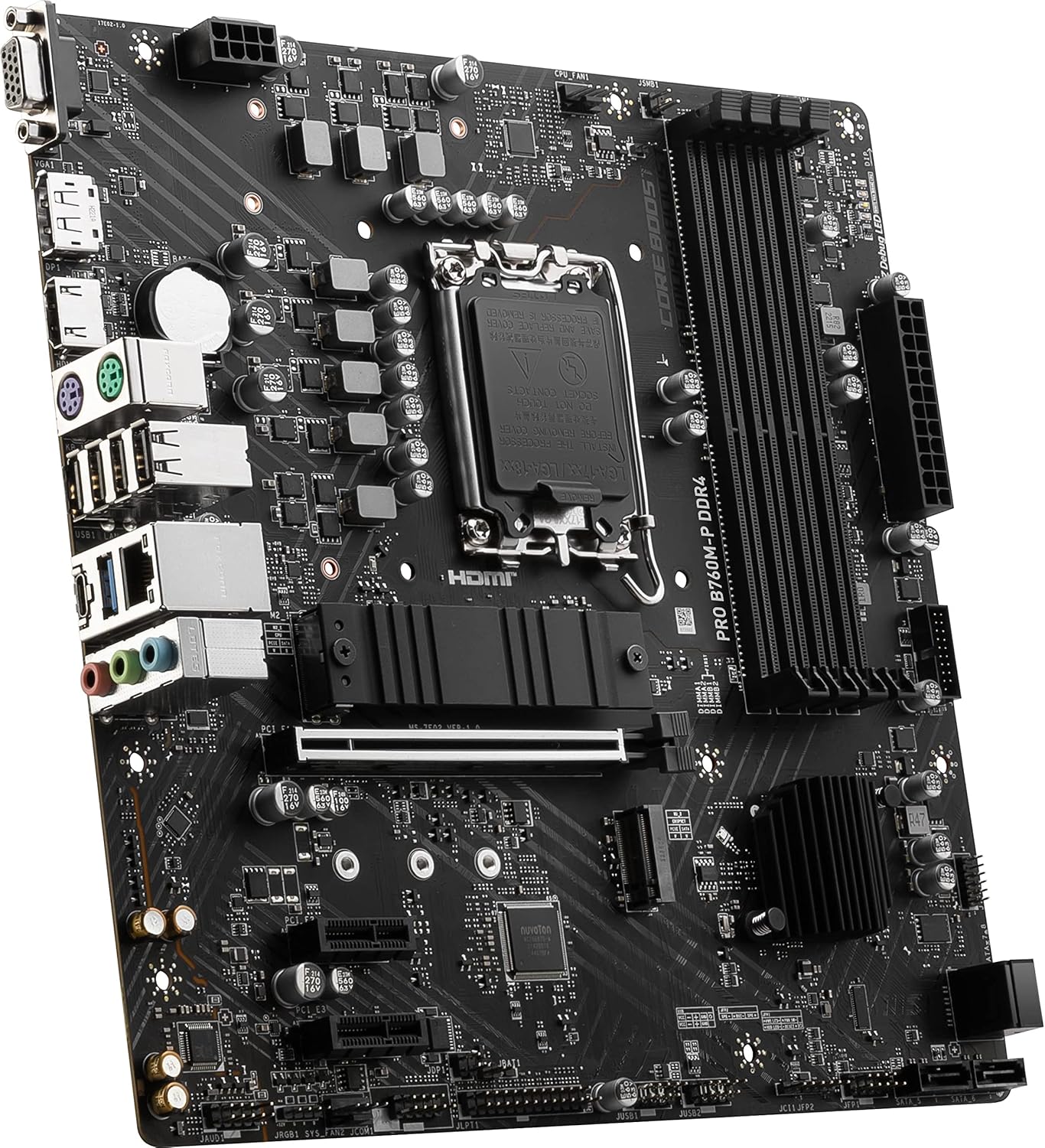

PRO B760M-P DDR4
Business Elegance
The PRO B760M-P DDR4 is a business-oriented Micro-ATX motherboard featuring the latest Intel B760 chipset that supports ample RAM capacity.
- Supports Intel Core 12th & 13th Gen Processors (LGA 1700)
- 4 x DDR4 DIMMs with Memory Boost: Dual Channel (128GB Max. / 4800MHz OC)
- 1 x PCIe 4.0 x16 slot
- Lightning Gen4 M.2 & M.2 Shield Frozr
- USB 3.2 Gen 2 Type-C (10Gbps)
- 7.1 HD Audio with Audio Boost
B760 Chipset, Smart Cooling, DDR4 Memory Boost, PCIe 4.0 x16 slot
Supports Intel Core 12th & 13th Gen Processors
The PRO B760M-P DDR4 motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
- Form Factor: Micro-ATX
- Socket Type: LGA 1700
- Chipset: Intel B760
Integrated Cooling Features
- Chipset Heatsink: Provides passive cooling
- SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
- Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures
4 x DDR4 Dual Channel (4800 MHz OC)*
- Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
- XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 4800+ MHz, supports Intel XMP.
Fortified PCIe 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
- 1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)
- 2 x PCIe 4.0/3.0 x1 slots
*Supports x16/x4
M.2 Shield Frozr, Premium Storage Performance, Connectivity
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Gen4 M.2 Connectors
The PRO B760M-P DDR4 motherboard features MSI's Gen4 M.2 slots:
- 2 x Gen4 x4 64Gbps slots
Connectivity
- 1G LAN: A 1Gbps LAN controller delivers a premium network experience.
- USB 3.2 Gen 2 Type-C: Connect to devices and transfer files at high bandwidth rates: 10Gbps.
- HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

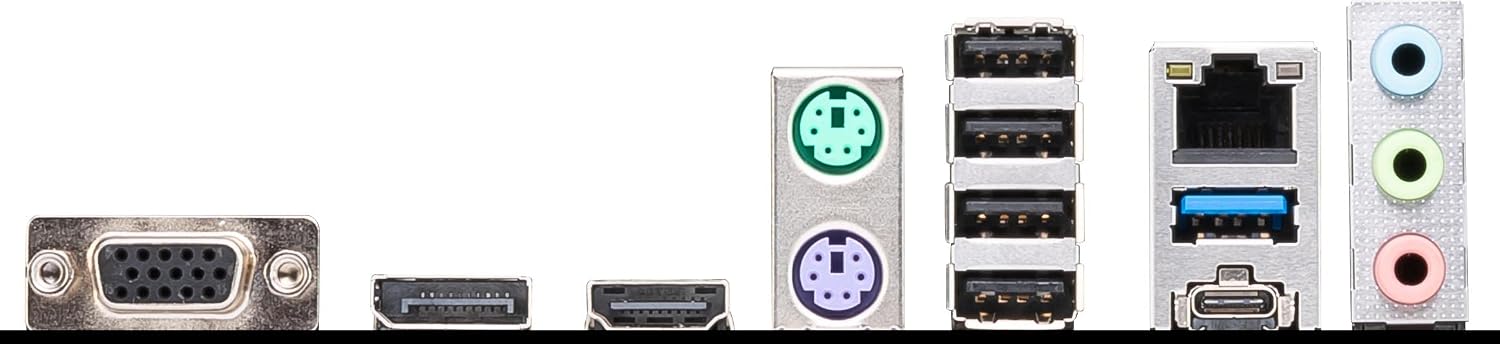

- Display Outputs: Include HDMI 1.4 (4K/30Hz), DisplayPort 1.4 (4K/60Hz) and legacy VGA
