MSI PRO H610M-E DDR4 Motherboard, Micro-ATX - Supports 14th/13th/12th Gen Intel Core Processors, LGA 1700-2 x DIMMs (3200MHz), 1x PCIe 4.0 x16 slot, 1 x M.2 Gen3, USB 3.2 Gen1, 1G LAN, HDMI 1.4 & VGA
Couldn't load pickup availability
PRO H610M-E DDR4
MSI Business & Productivity
MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.
For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.
PRO H610M-E DDR4
Business Elegance
The PRO H610M-E DDR4 is a business-oriented micro-ATX motherboard featuring the latest Intel H610 chipset that includes legacy-friendly display connectivity.
- Supports Intel Core 12th Gen Processors (LGA 1700)
- Turbo Gen3 M.2 slot
- 1 x PCI-e 4.0 x16 slot
- 2 DIMMS DDR4 with Memory Boost: Dual Channel (64GB Max. / 3200MHz)
- 7.1 HD Audio with Audio Boost
- HDMI & VGA Ports

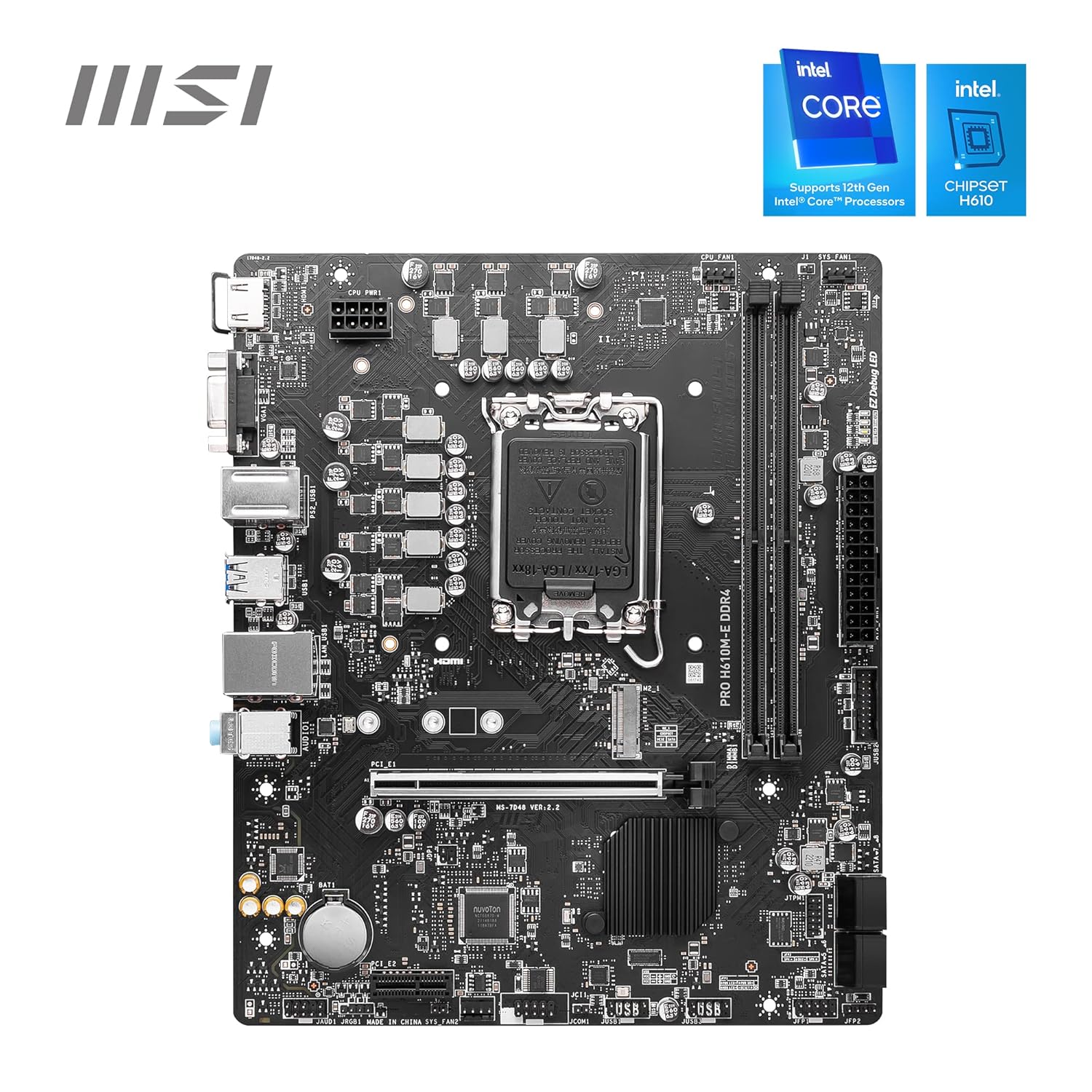

Supports Intel Core 12th Gen Processors
The PRO H610M-E DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: Micro-ATX Socket Type: LGA 1700 Chipset: Intel H61010

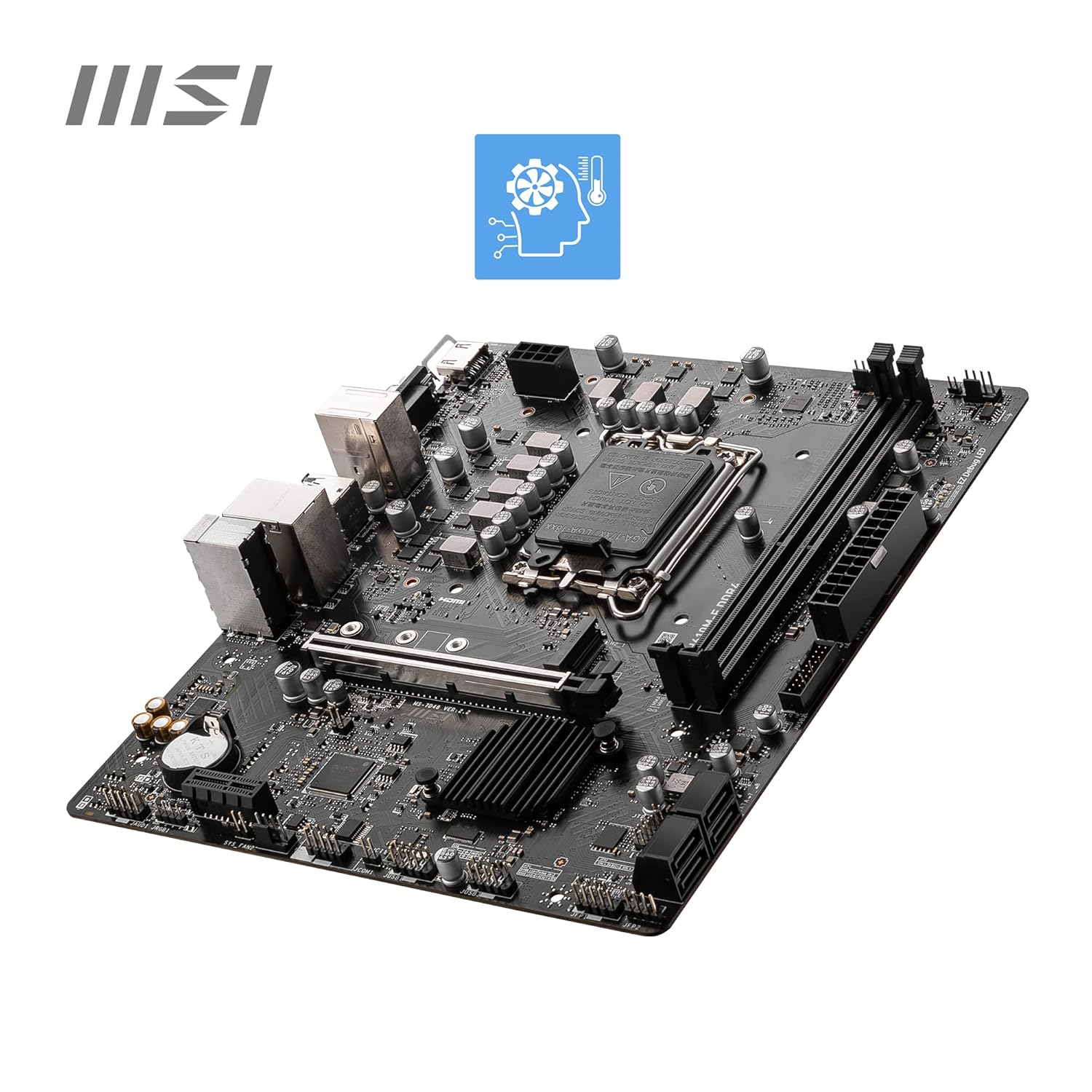

Integrated Cooling Features
Chipset Heatsink: Provides passive cooling Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures

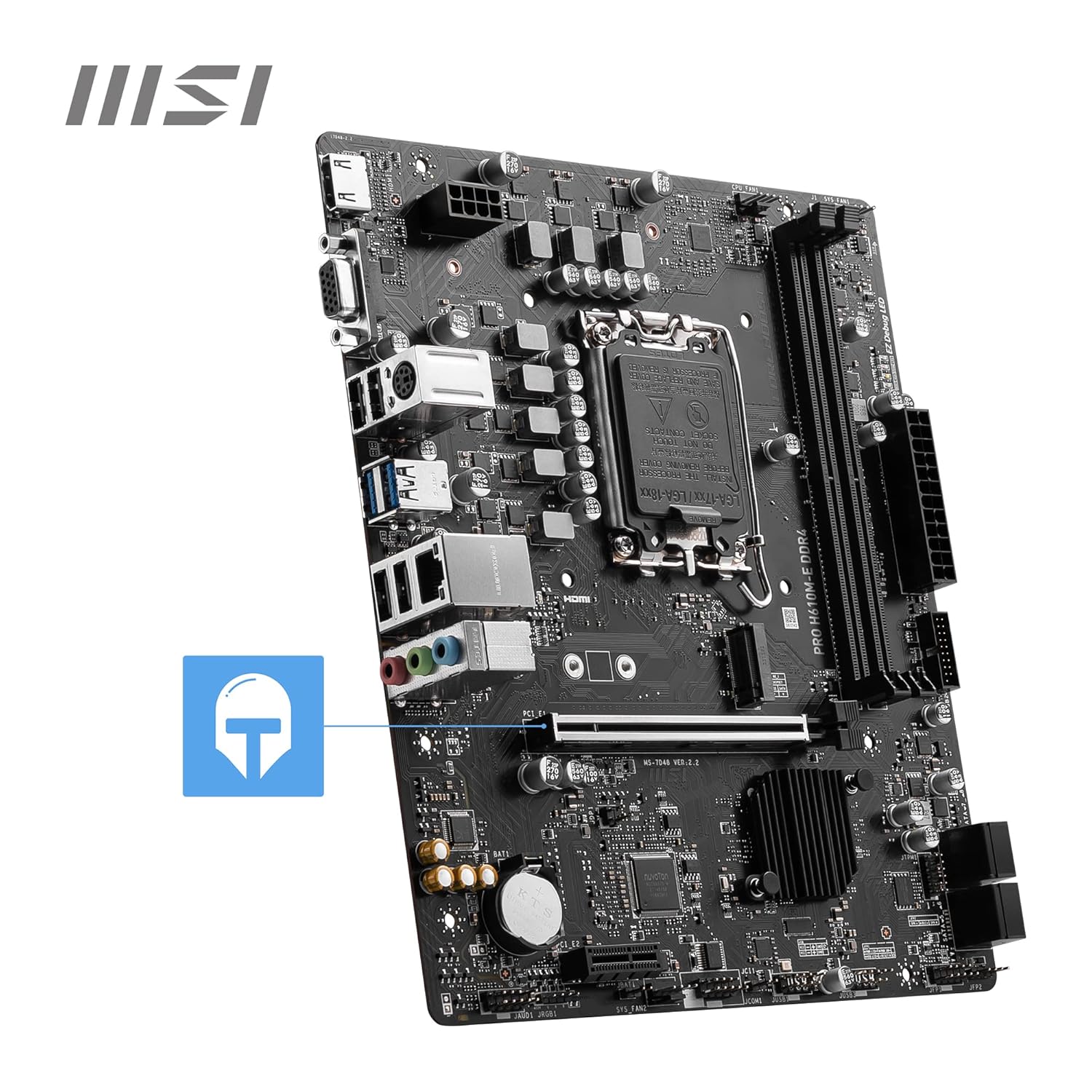

Fortified PCI-e 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 4.0 x16 slot (with Steel Armor) 1 x PCI-e 3.0 x1 slot
Gen3 M.2 Connector
The PRO H610M-E DDR4 motherboard features MSI's Turbo Gen3 M.2 slot: 1 x Gen3 x4 32Gb/s slot *Supports SATA 6Gb & 2260/ 2280/ 22110 storage devices
Optimized Layout Design

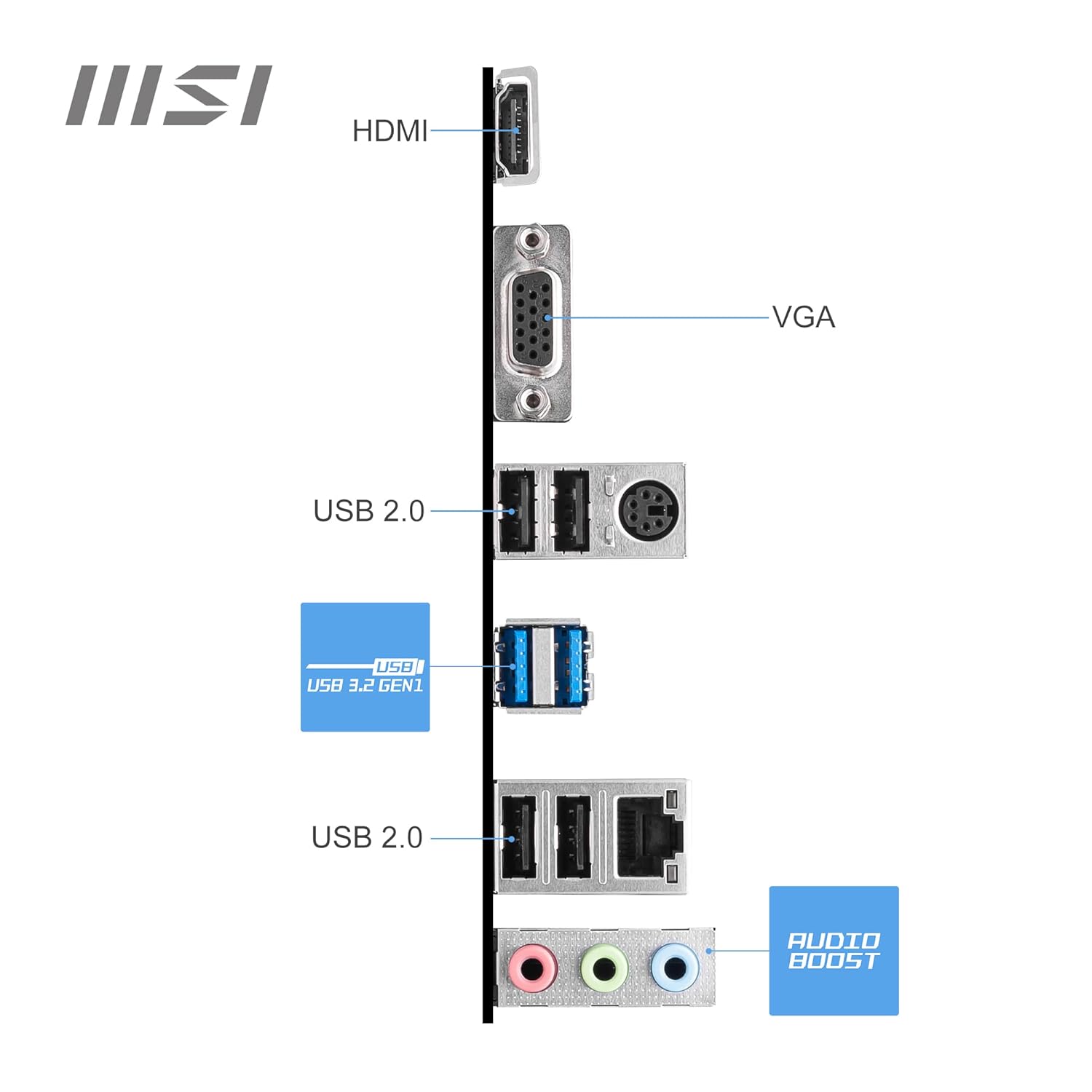

1G LAN: A Realtek 1Gbps LAN controller delivers a premium network experience. USB 3.2 Gen 1 Type-A: Connect to devices and transfer files at high bandwidth rates: 5Gbps. HD Audio: 7.1-Channel High Definition Audio with Audio Boost. Display Outputs: Include HDMI 2.1 (4K/60Hz) and legacy VGA
Stay Connected
1G LAN: A 1Gbps LAN controller delivers a premium network experience. USB 3.2 Gen 1 Type-A: Connect to devices and transfer files at high bandwidth rates: 5Gb/s. HD Audio: 7.1-Channel High Definition Audio with Audio Boost. Display Ports: Include HDMI 1.4 (4K/30Hz) as well as legacy VGA
- 12TH GEN CORE READY - The PRO H610M-E DDR4 is a compact micro-ATX motherboard outfitted with the latest Intel H610 chipset (LGA 1700, 12th Gen Core ready); The VRM features MSI Core Boost technology for improved stability & peformance
- GEN4 GPU SLOT, DUAL DIMMS - A PCIe 4.0 x16 slot (with steel frame) supports state-of-the-art graphics cards; Dual DIMM’s with dual-channel DDR4 architecture support up to 64 GB of SDRAM (3200MHz)
- GEN3 M.2 SSD STORAGE - The M.2 Gen3 x4 32Gb/s slot is designed to maximize NVMe based SSD performance; SSD storage reduces loading time
- PASSIVE & AI COOLING - A chipset heatsink provides passive cooling; a PCB base with thickened copper helps dissipate heat; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
- STAY CONNECTED - Features Realtek RTL8111H 1G LAN; Fixed ports include legacy VGA as well as the latest HDMI 1.4 ports (4K/30Hz) - requires CPU with integrated graphics; 4 x USB 3.2 Gen 1 Type-A (5Gb/s) and 7.1 HD Audio with Audio Boost
