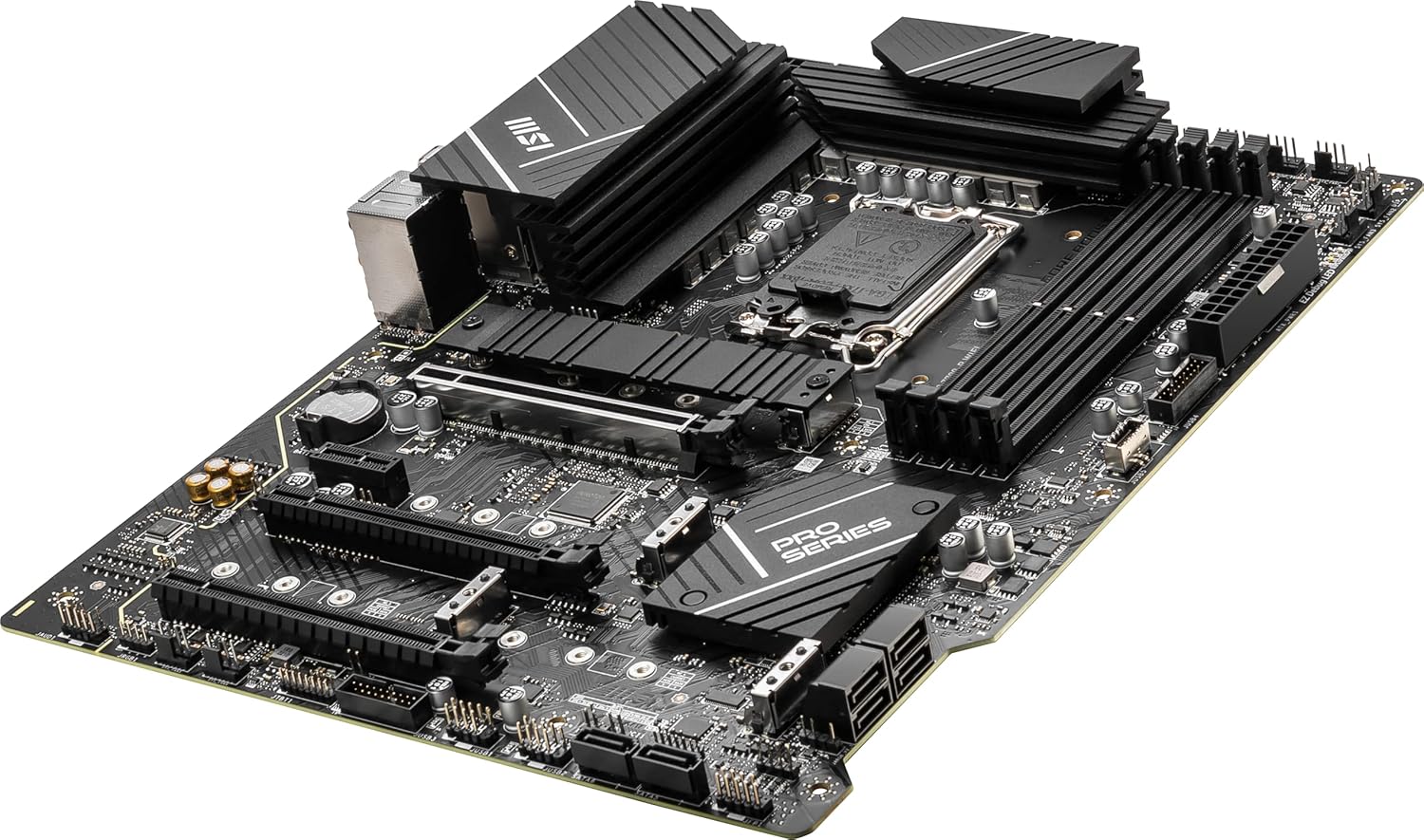

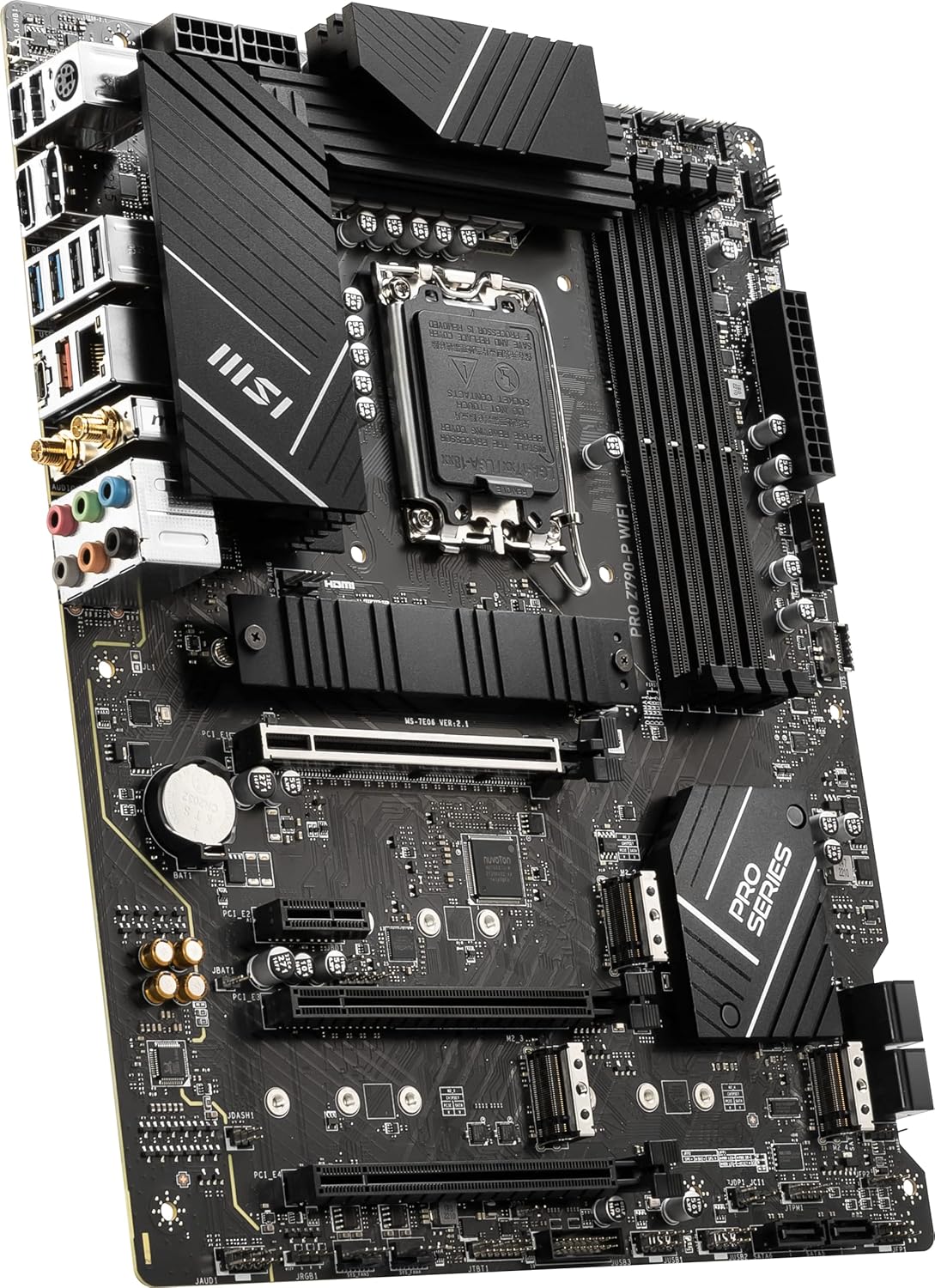

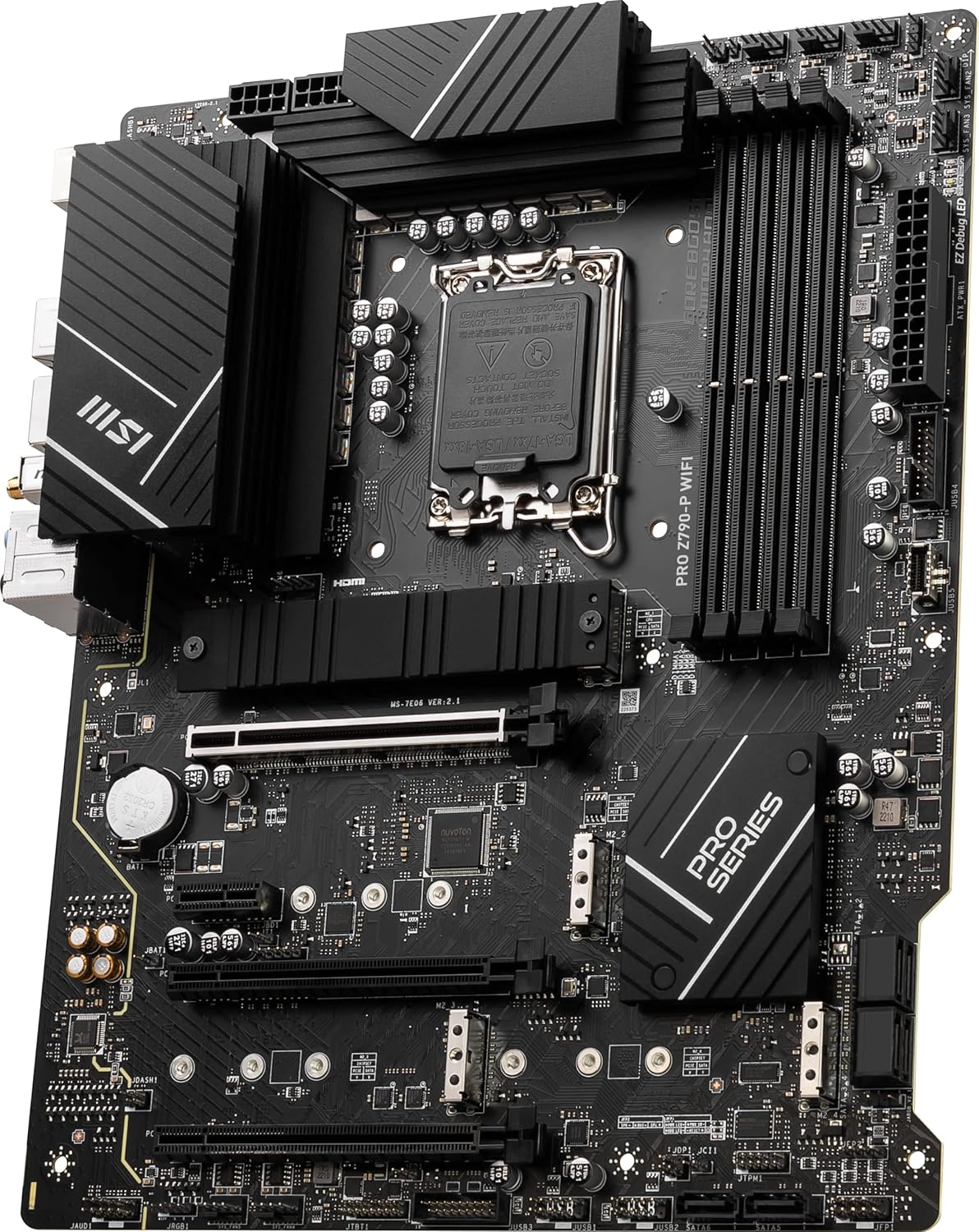

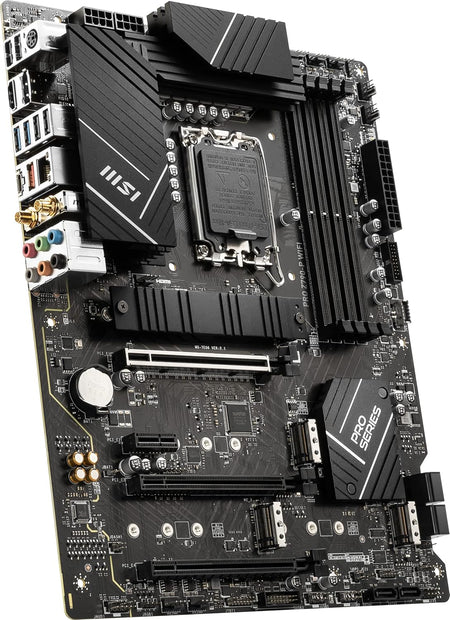

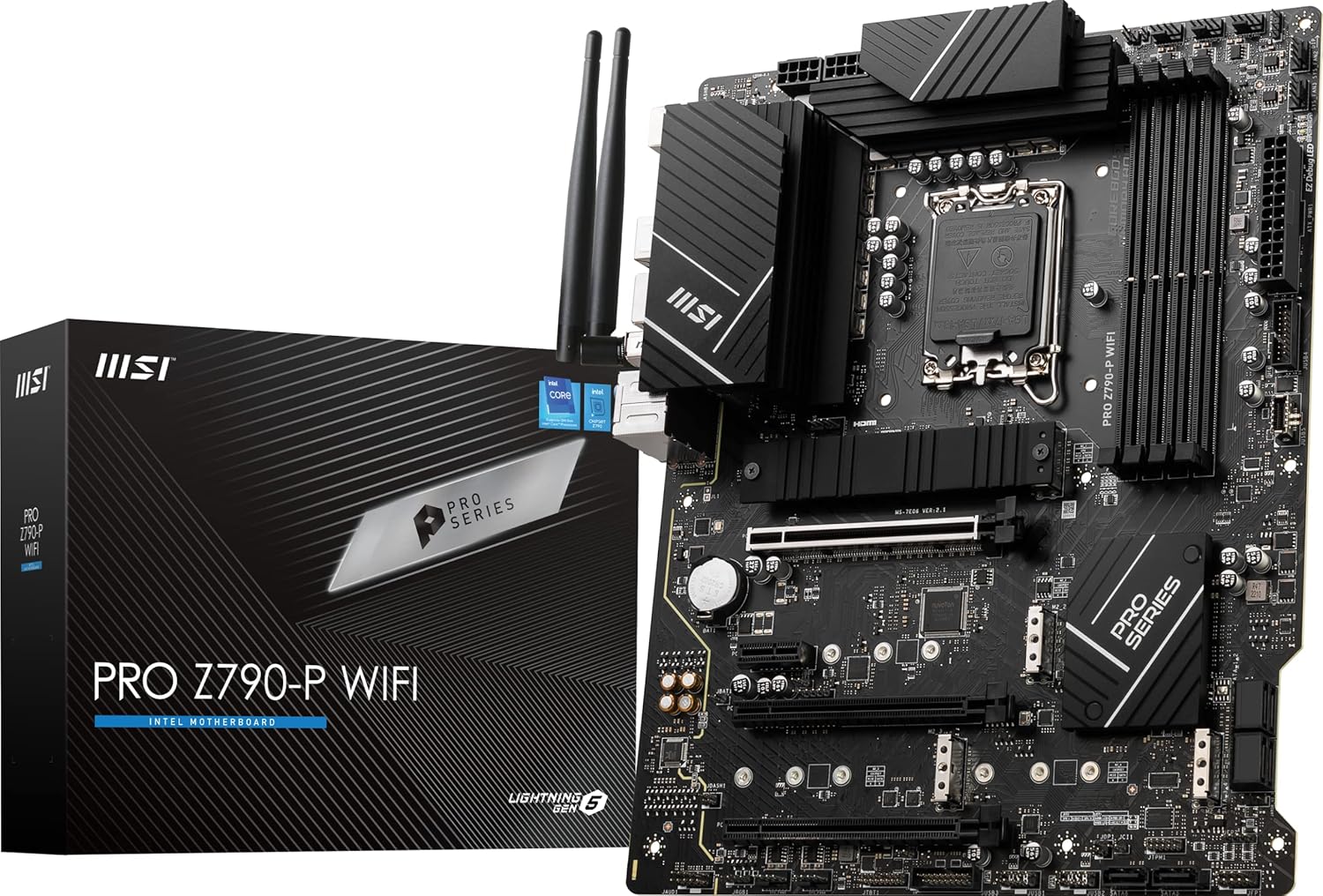

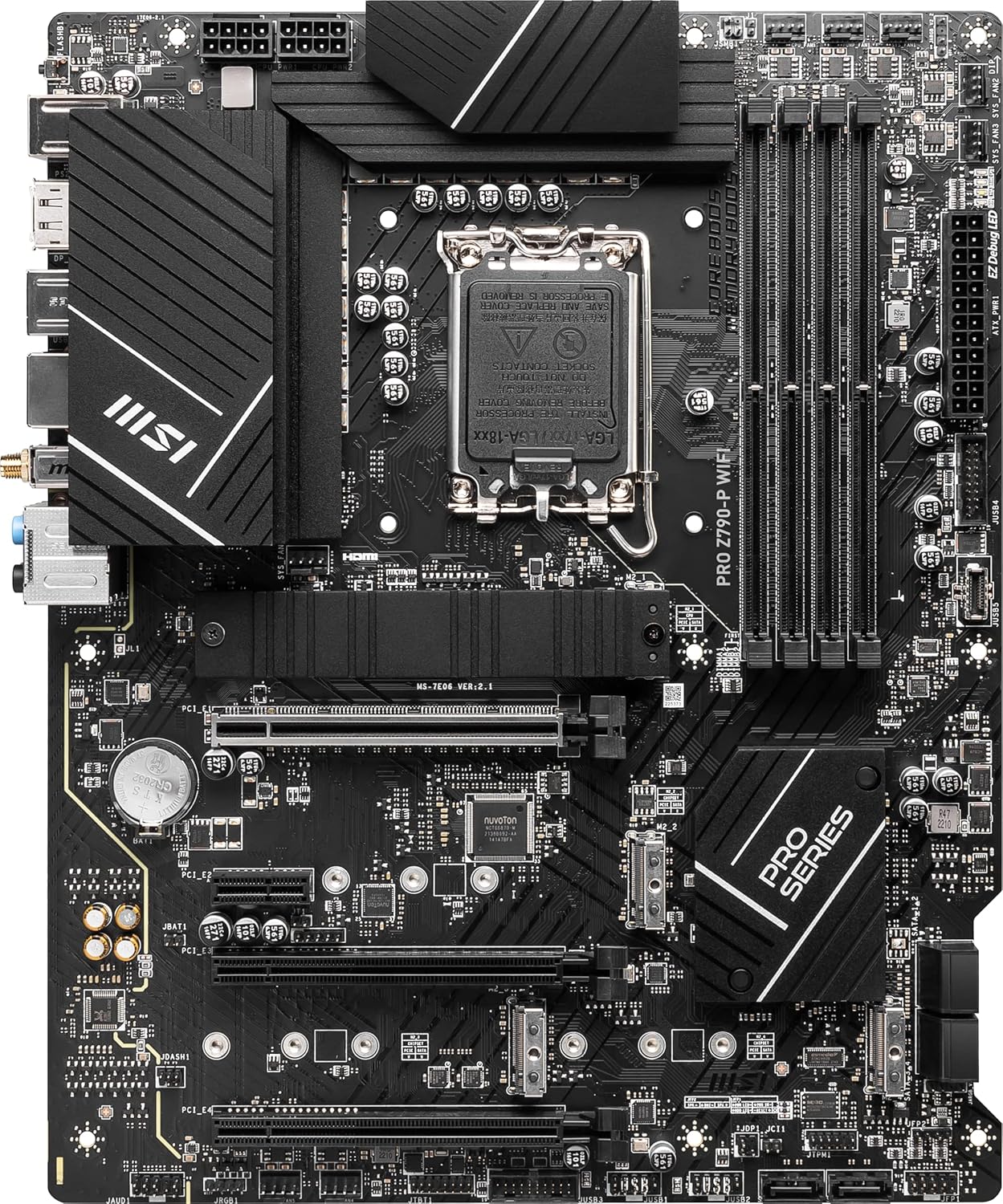

MSI PRO Z790-P WiFi ProSeries Motherboard (Supports 12th/13th/14th Gen Intel Processors, LGA 1700, DDR5, PCIe 5.0, M.2, 2.5Gbps LAN, USB 3.2 Gen2, HDMI/DP, Wi-Fi 6E, Bluetooth 5.3, ATX)

Product Title

MSI PRO Z790-P WiFi ProSeries Motherboard (Supports 12th/13th/14th Gen Intel Processors, LGA 1700, DDR5, PCIe 5.0, M.2, 2.5Gbps LAN, USB 3.2 Gen2, HDMI/DP, Wi-Fi 6E, Bluetooth 5.3, ATX)

Product Description

The MSI PRO Z790-P WiFi is a professional-grade ATX motherboard engineered to unlock the full potential of 12th, 13th, and 14th Generation Intel Core processors. Built on the Intel Z790 chipset with the LGA 1700 socket, this ProSeries motherboard combines a robust power delivery system, cutting-edge hardware support, and smart productivity features to deliver a stable, high-performance foundation for demanding office workflows, content creation, and everyday computing.

Designed to maximize next-generation architecture, the PRO Z790-P WiFi features hardware-level support for ultra-fast DDR5 memory and a future-proof PCIe 5.0 x16 expansion slot for modern high-end graphics cards. To ensure sustained peak performance under heavy sustained workloads, it is equipped with premium thermal solutions, including extended VRM heatsinks and M.2 Shield Frozr to prevent thermal throttling on high-speed solid-state drives.

Key Features

• Multi-Generation Processor Support: Fully compatible with 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors utilizing the LGA 1700 socket.

• Next-Gen DDR5 & PCIe 5.0: Supports high-bandwidth DDR5 desktop memory with optimized memory routing for enhanced stability, alongside a Lightning Gen 5 PCIe slot delivering up to 128GB/s of unidirectional bandwidth.

• Enhanced Power & Thermal Design: Features a powerful 14+1+1 Duet Rail Power System (DRPS) with dual 8-pin CPU power connectors, fully paired with heavy-duty extended heatsinks and 7W/mK thermal pads for optimized heat dissipation.

• Lightning-Fast Storage Expansion: Includes four onboard M.2 slots (PCIe Gen4 x4) to accommodate ultra-fast NVMe storage arrays, protected by specialized M.2 Shield Frozr cooling plates.

• Advanced Networking & Connectivity: Outfitted with an onboard 2.5Gbps LAN port for high-speed wired data transfers, alongside an integrated Wi-Fi 6E module and Bluetooth 5.3 for clean, high-bandwidth wireless networking over the 6GHz spectrum.

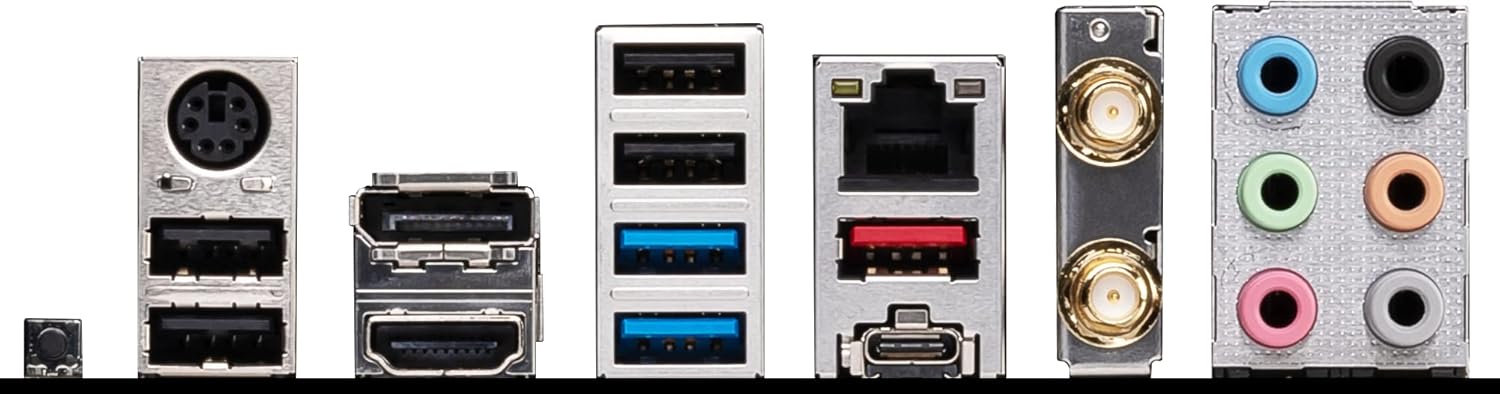

• Flexible Rear I/O Options: Offers a rich array of high-speed ports, including USB 3.2 Gen 2x2 Type-C (20Gbps), dedicated DisplayPort and HDMI ports for integrated processor graphics, and a Flash BIOS button for effortless offline updates.

Technical Specifications

• Model: PRO Z790-P WIFI

• Chipset: Intel® Z790

• CPU Socket: LGA 1700 (Supports 12th / 13th / 14th Gen Intel Processors)

• Form Factor: ATX (243.84 x 304.8 mm)

• Memory Support: 4 × DDR5 DIMM Slots (Dual Channel, up to 192GB Maximum Capacity)

• Expansion Slots: * 1 × PCIe 5.0 x16 slot (From CPU)

  • 1 × PCIe 4.0 x16 slot (From Chipset)

  • 1 × PCIe 3.0 x16 slot (From Chipset)

  • 1 × PCIe 3.0 x1 slot (From Chipset)

• Storage Ports: 4 × M.2 slots (Key M, PCIe Gen4 x4 support) + 6 × SATA 6Gb/s ports

• Wired Network: 1 × Intel® 2.5Gbps LAN Controller

• Wireless & Bluetooth: Intel® Wi-Fi 6E (802.11ax) + Bluetooth® 5.3

• Audio: Realtek® ALC897 7.1-Channel High Definition Audio
