Phanteks XT M3 Micro ATX Small Form Factor Gaming Case No Fans - White

In stock
SKU: PH-XT325M_WT01
Usually ships within 24 hours
Rs 3,490.00 inc. VAT
Product details
  • SKU PH-XT325M_WT01

Do you have questions about this product?

Ask an expert!

Payment details

    Help your customers identify what payments are accepted by your store.

    Description Shipping information Reviews (0)

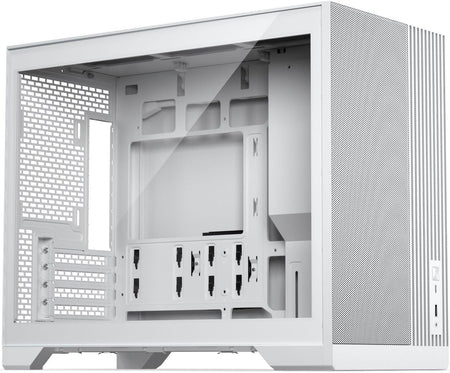

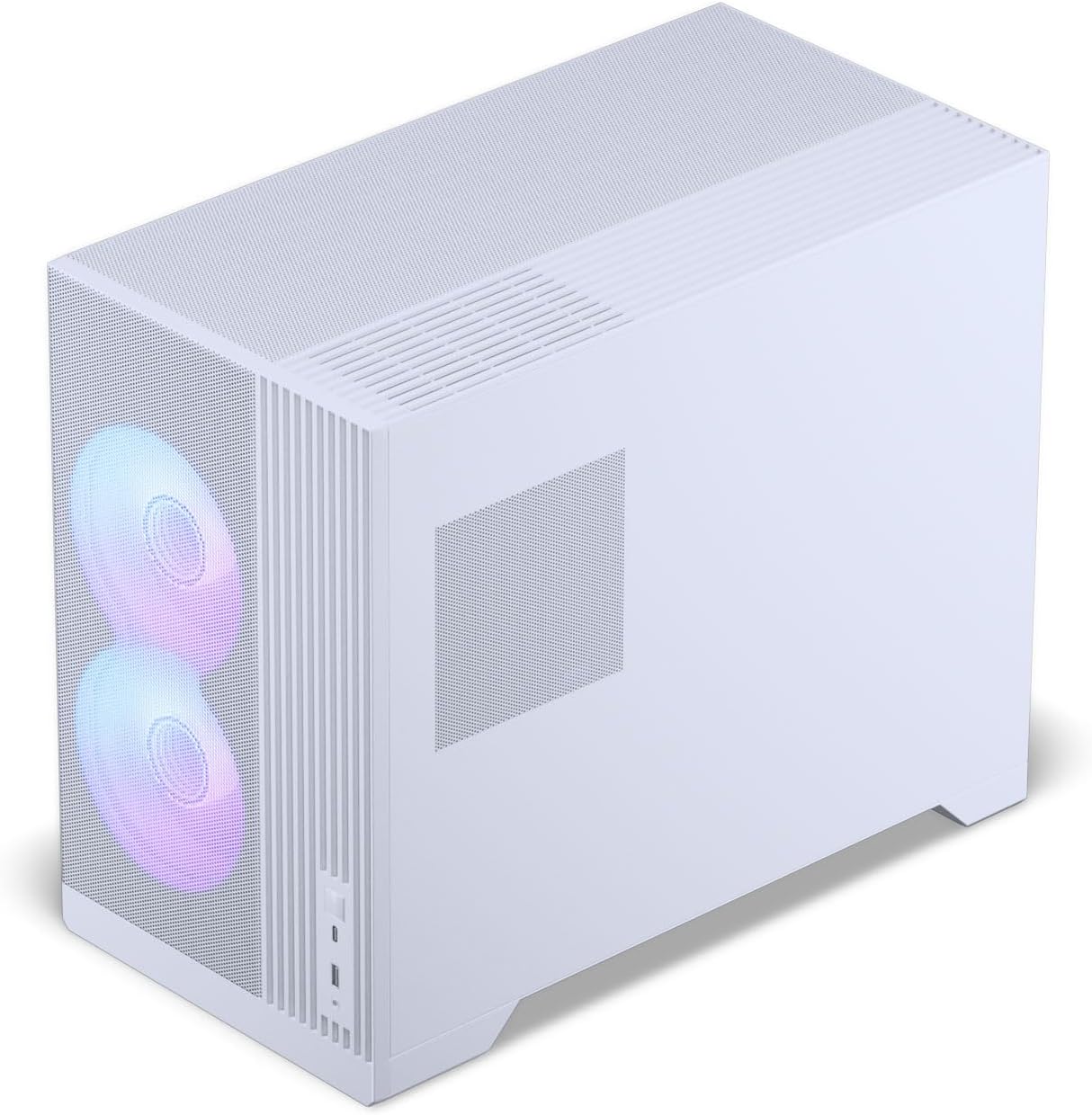

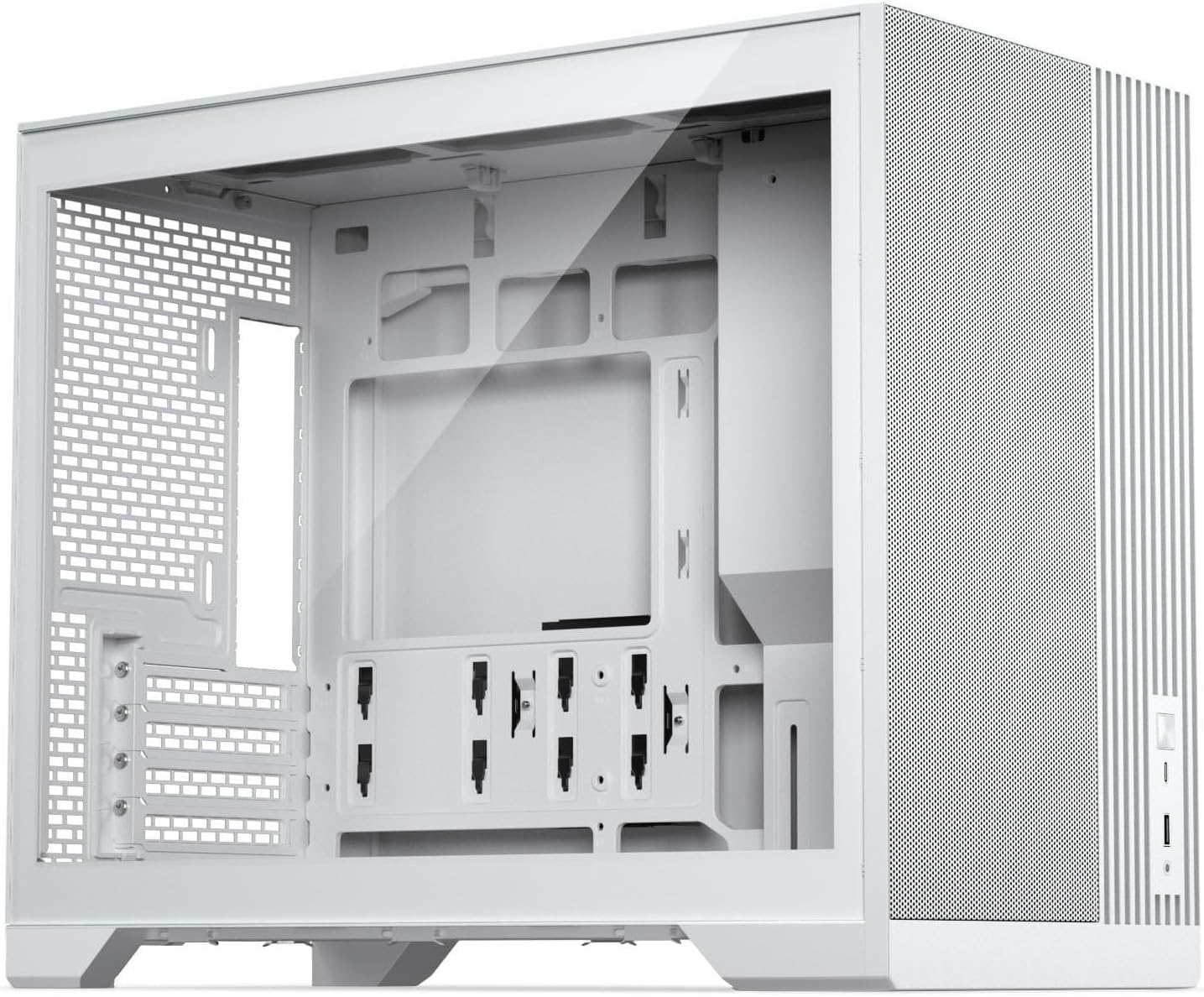

    XT M3

    Compact Micro ATX Gaming Chassis

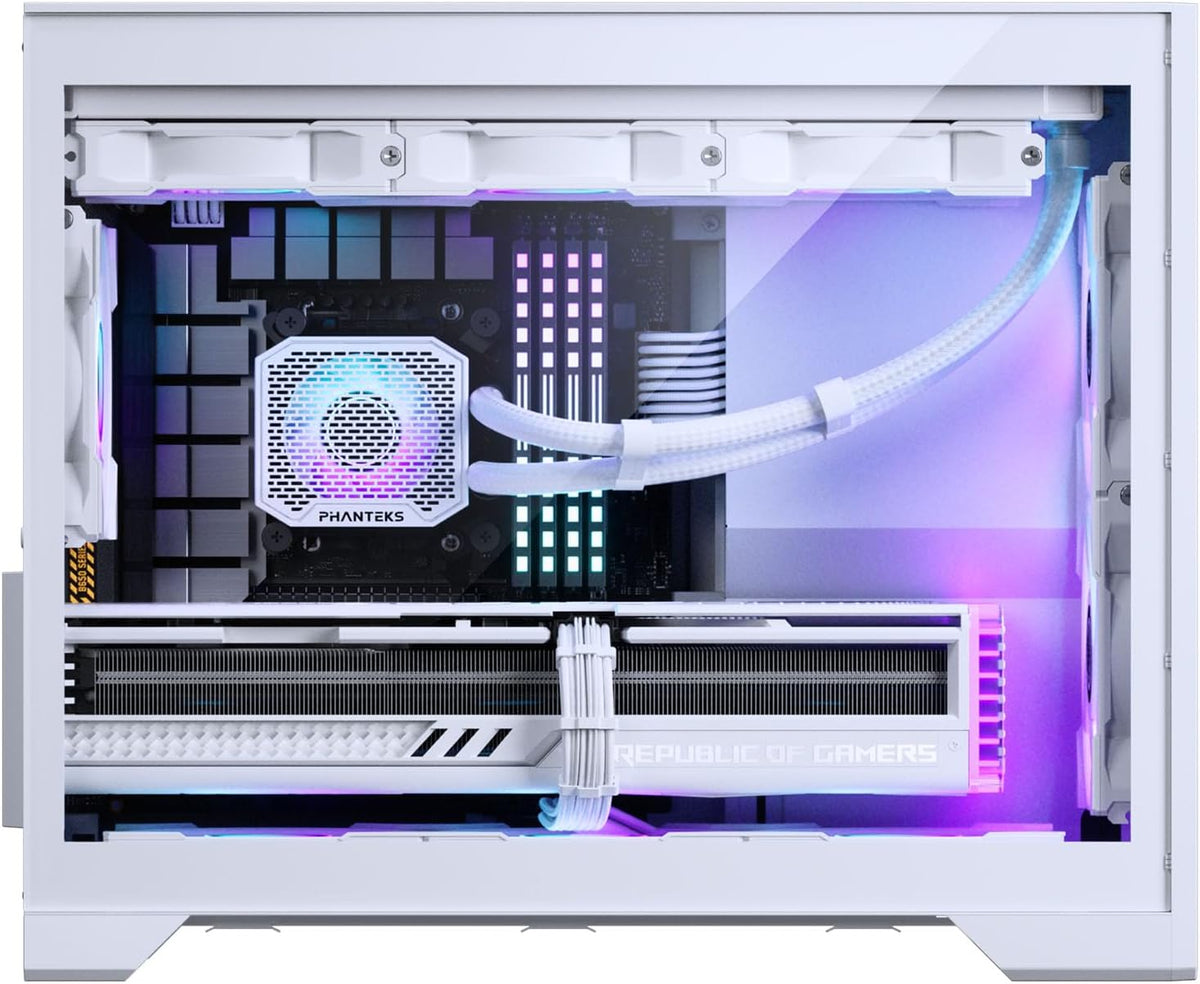

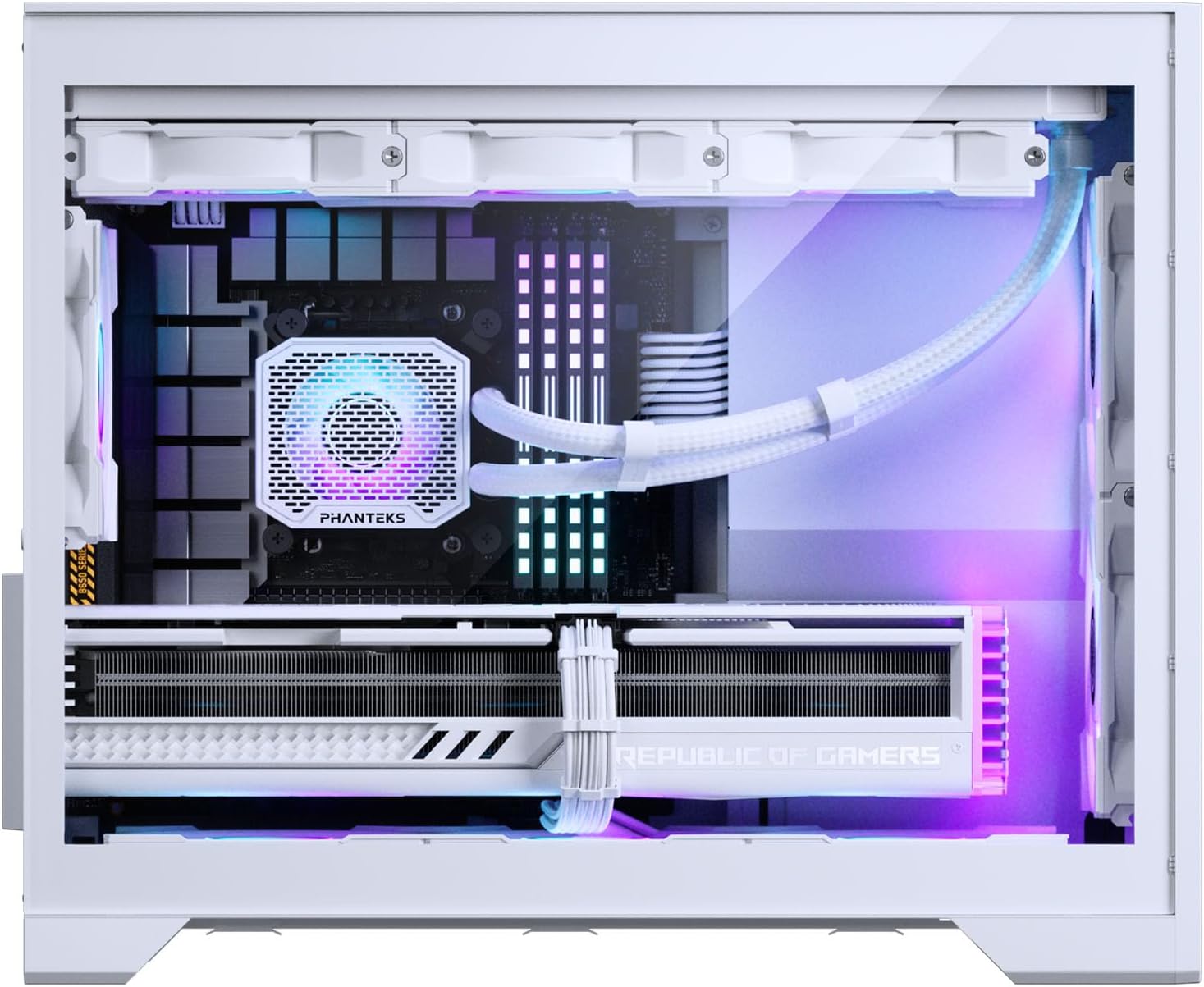

    The XT M3 is a powerful yet compact microATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top, provide plenty of cooling options within its sleek and clean appearance.

    With its innovative layout and strikingly clean design, the XT M3 is a microATX powerhouse ready for any cooling challenge.

    Compact Gaming Chassis

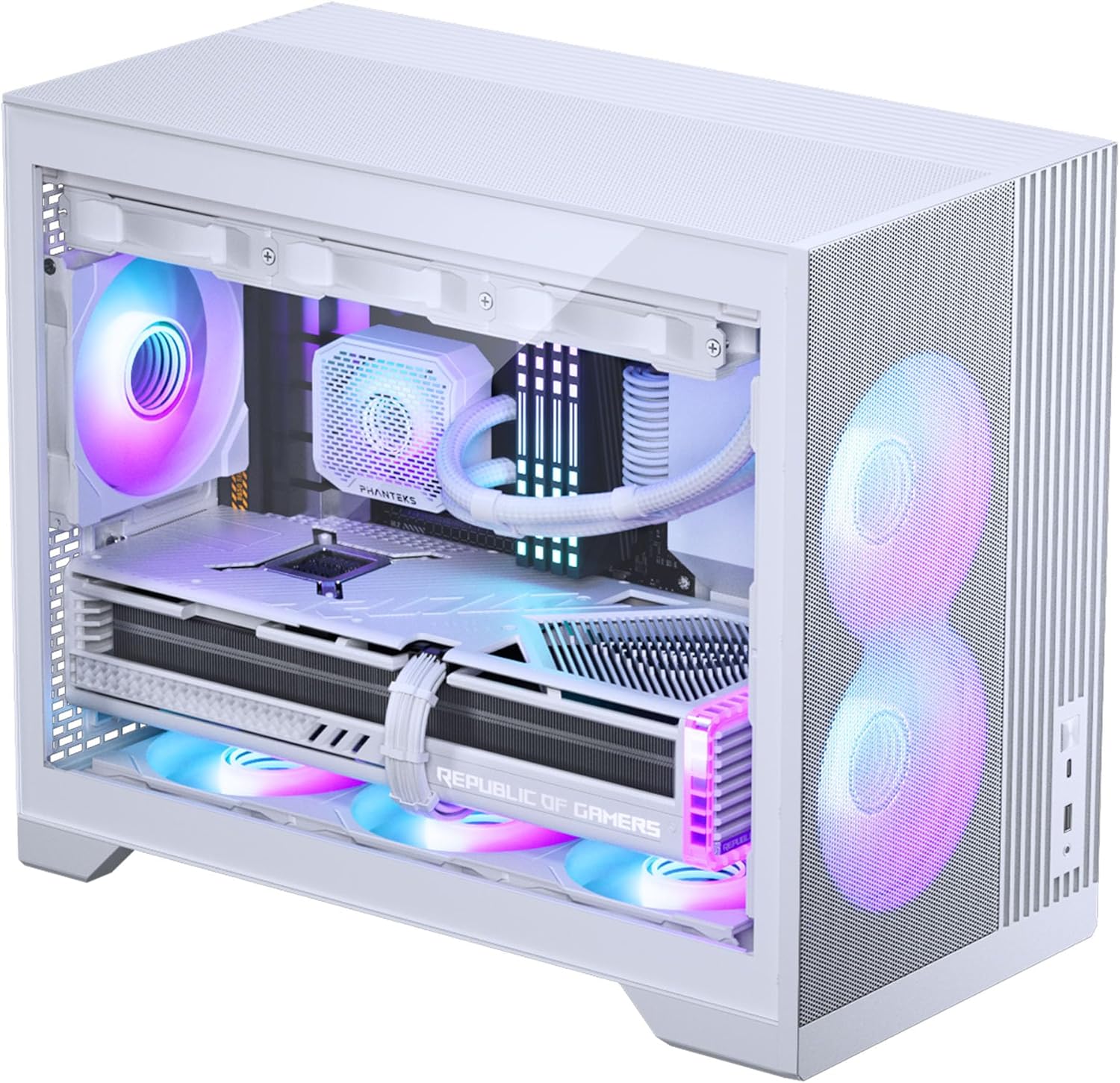

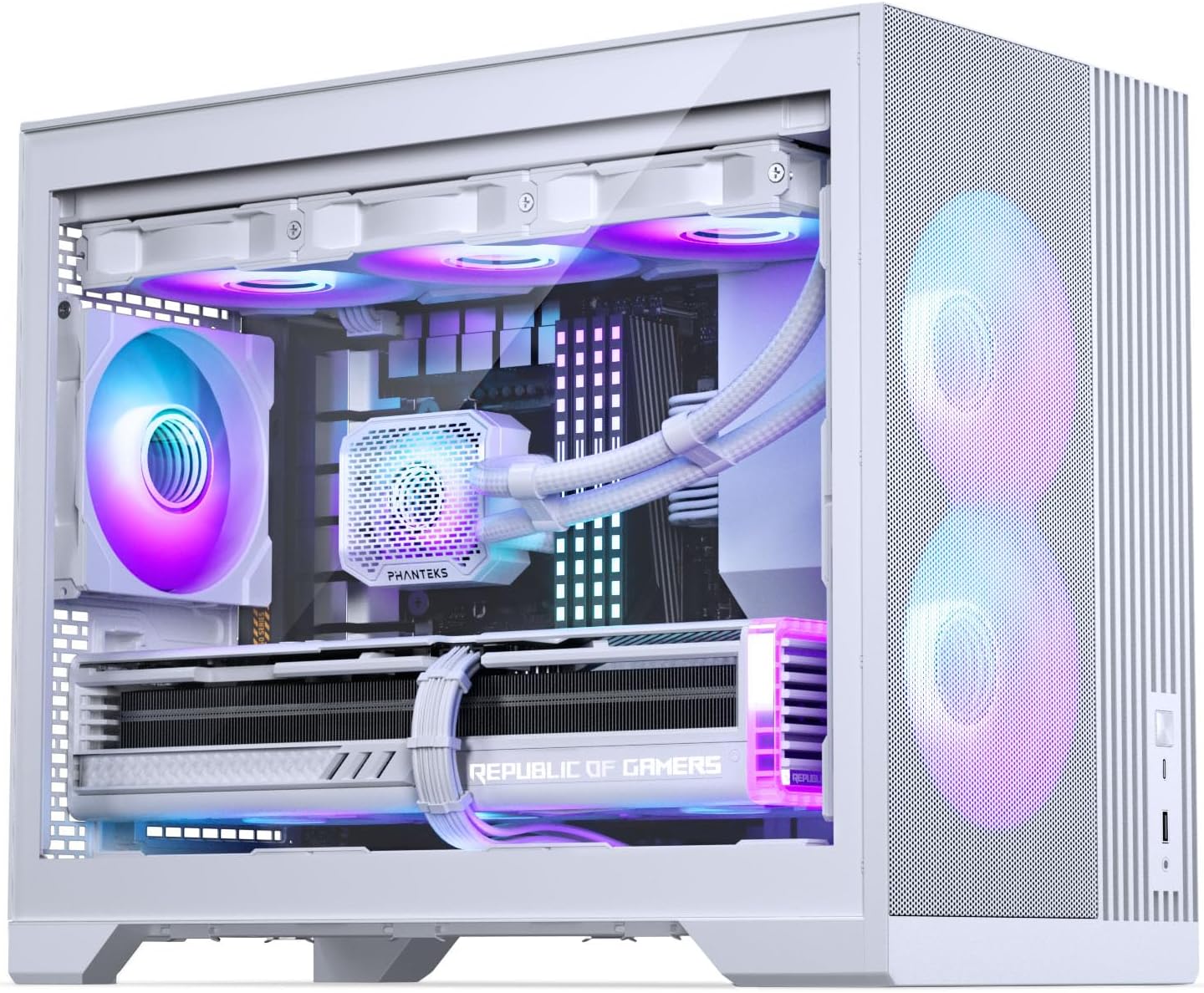

    • Supports a total of nine 120 fans for powerful cooling within this compact chassis.

    • Dedicated 360 radiator space in the top of the chassis.

    • Triple fan locations in the bottom for direct GPU cooling

      Organized by Design

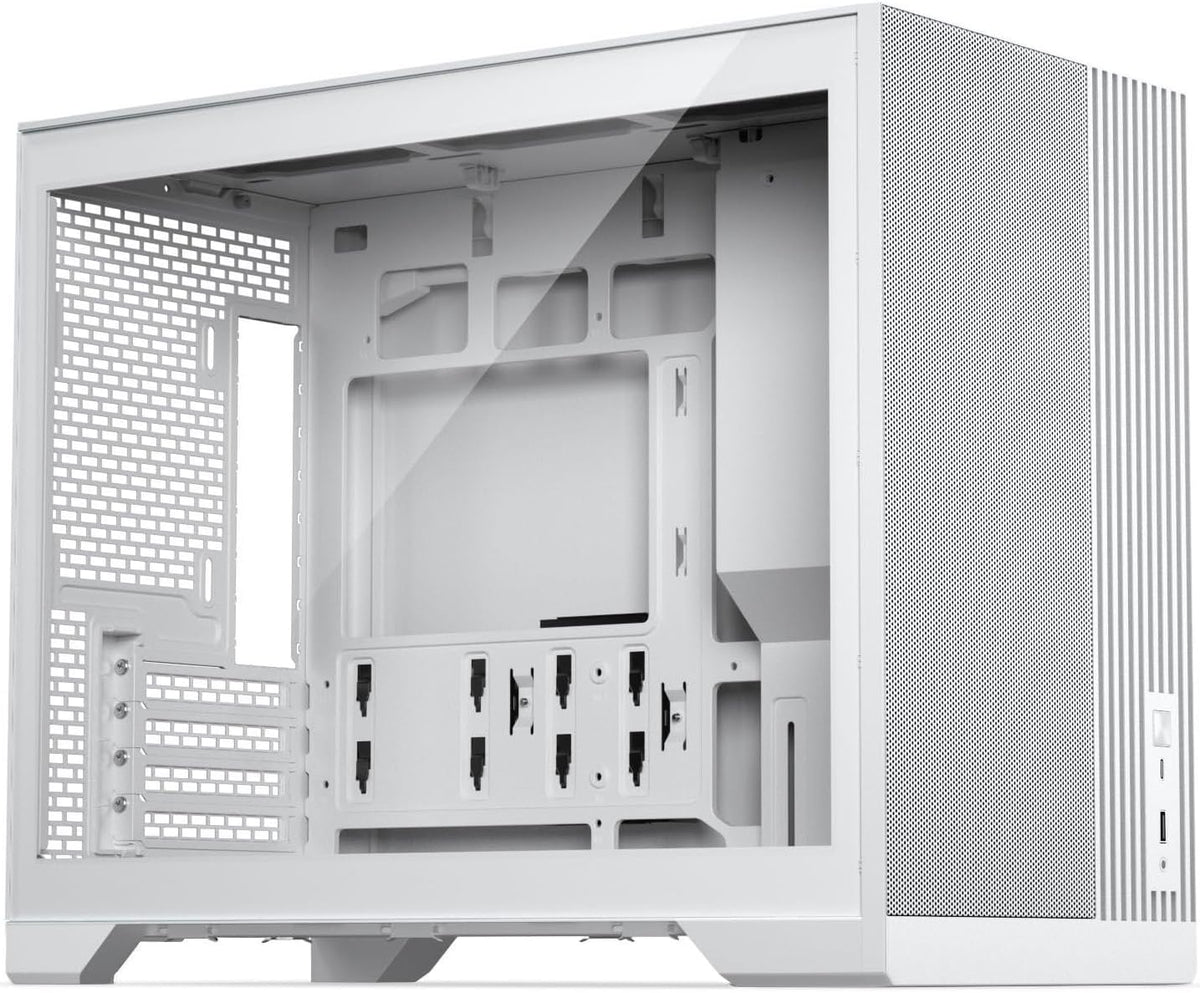

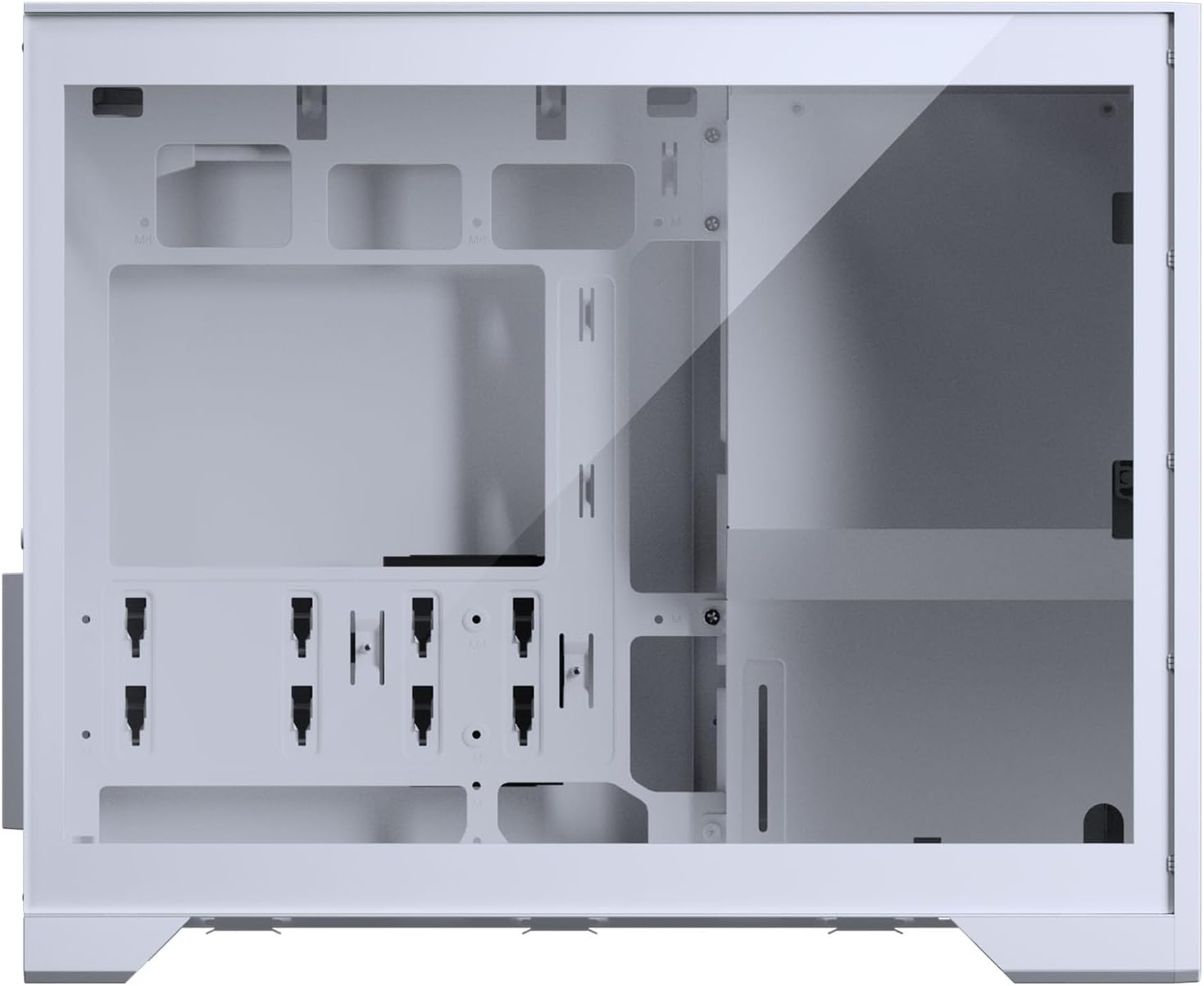

      • Spacious cable routing area for clean and efficient management.
      • Fully compatible with Rear-Connect mainboards for streamlined builds.


      Fan Positions

      • 3x 120 mm top fans.

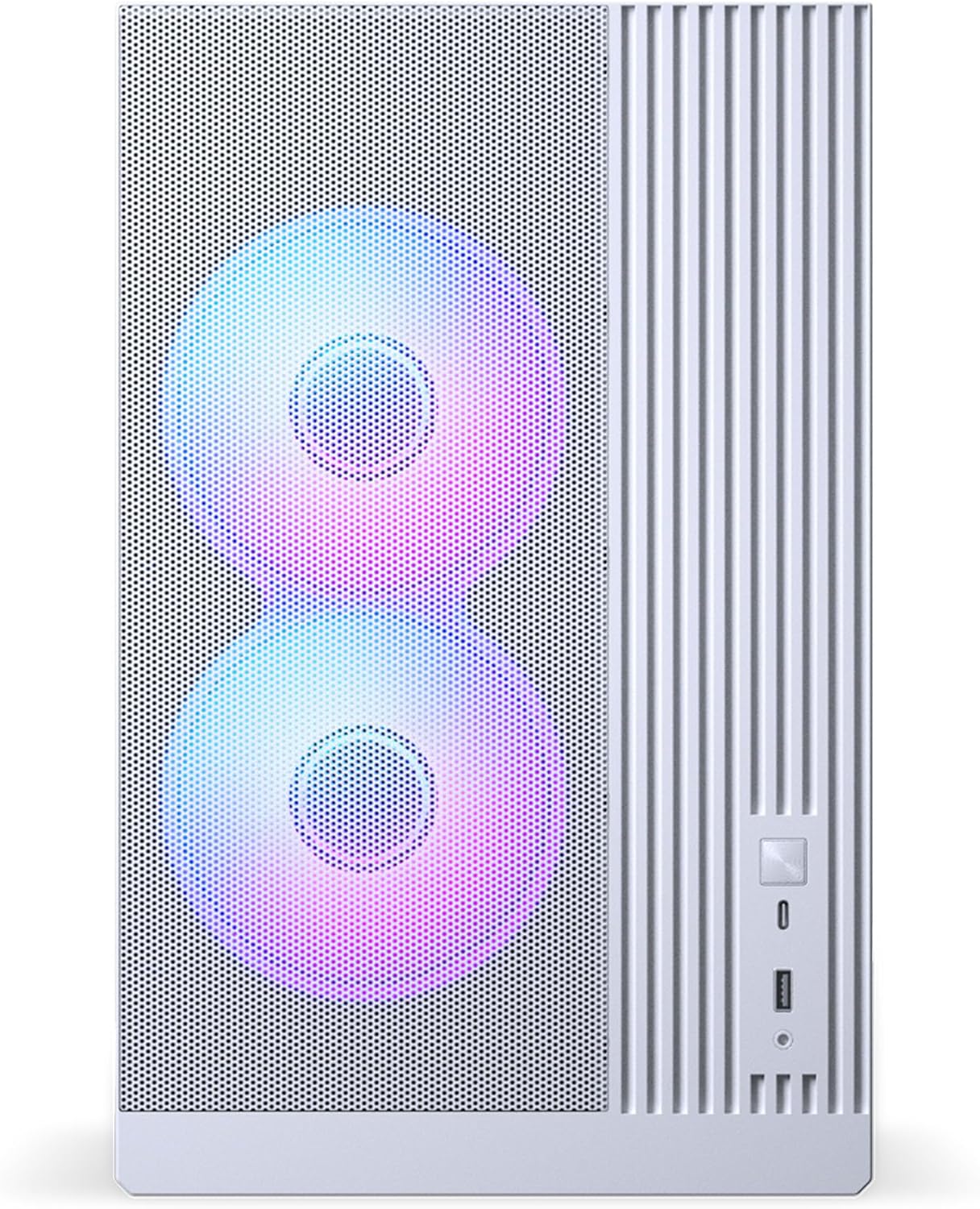

      • 2x 120 mm front fans.

      • 1x 120 mm rear fan.

      • 3x 120 mm bottom fans.


      Radiator Positions

      • 1x 360 top radiator up to 410 x 122 x 60 mm

      Storage

      • SSD Storage Bracket
        Supports 2x 2.5″ SSD drives.
      • HDD Storage Bracket
        Supports 1x 3.5” HDD drive.

      Specifications

      General

      Model No.

      PH-XT325M_WT01

      UPC Code

      886523303916

      Case Dimensions

      460 x 235 x 370 mm | 18.1 x 9.3 x 14.6 in

      From Factor

      Compact microATX tower

      Mainboard Support

      Micro-ATX | Mini-ITX

      Materials

      Steel chassis | Tempered glass window | ABS plastic

      Color

      White

      Expansion Slots

      4

      Vertical GPU Support

      No

      Internal 2.5″ Positions

      2

      + 1x 3.5″ HDD

      Internal 3.5″ Positions

      1

      + 2x 2.5″ SSD

      Front I/O

      1x USB 3.0
      1x USB-C 3.2 Gen2x2
      1x Microphone | Headphone combo
      Power button

      Fans 120 | 140

      Total Fans

      9 | –

      Top

      3 | –

      Front

      2 | –

      Side

      – | –

      Rear

      1 | –

      Bottom

      3 | –

      Radiator 120 | 140

      Top

      Max. 360 | –

      Front

      – | –

      Rear

      – | –

      Bottom

      – | –

      Clearance

      CPU Cooler

      Height

      175 mm | 6.88 in

      GPU

      Length

      430 mm | 15.94 in
      Without front fans installed

      GPU

      Width

      175 mm | 6.88 in

      Power Supply

      150 mm | 5.90 in

      Top 360 Radiator

      Length x Width x Height

      410 x 122 x 60 mm | 16.14 x 4.80 x 2.36 in

      Extra

      Net Weight

      5.57 kg | 12.28 lbs

      Gross Weight

      6.90 kg | 15.21 lbs



      Scope of Delivery

      1x XT M3 chassis
      1x SSD bracket Pre-installed
      1x HDD bracket Pre-installed

      Accessory Box

      9x Zip ties
      1x Stand-off removal tool
      1x GPU support

      Screws

      17x Mainboard | SSD screws
      5x Power supply screws
      4x HDD screws
      1x Mainboard stand-off
