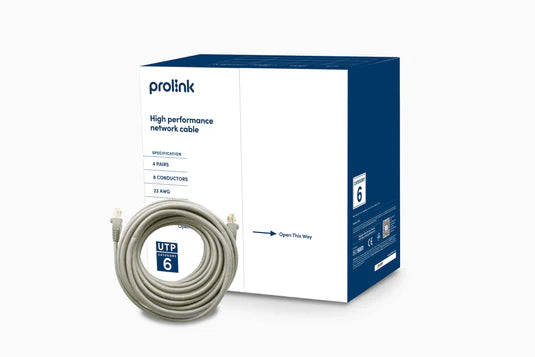

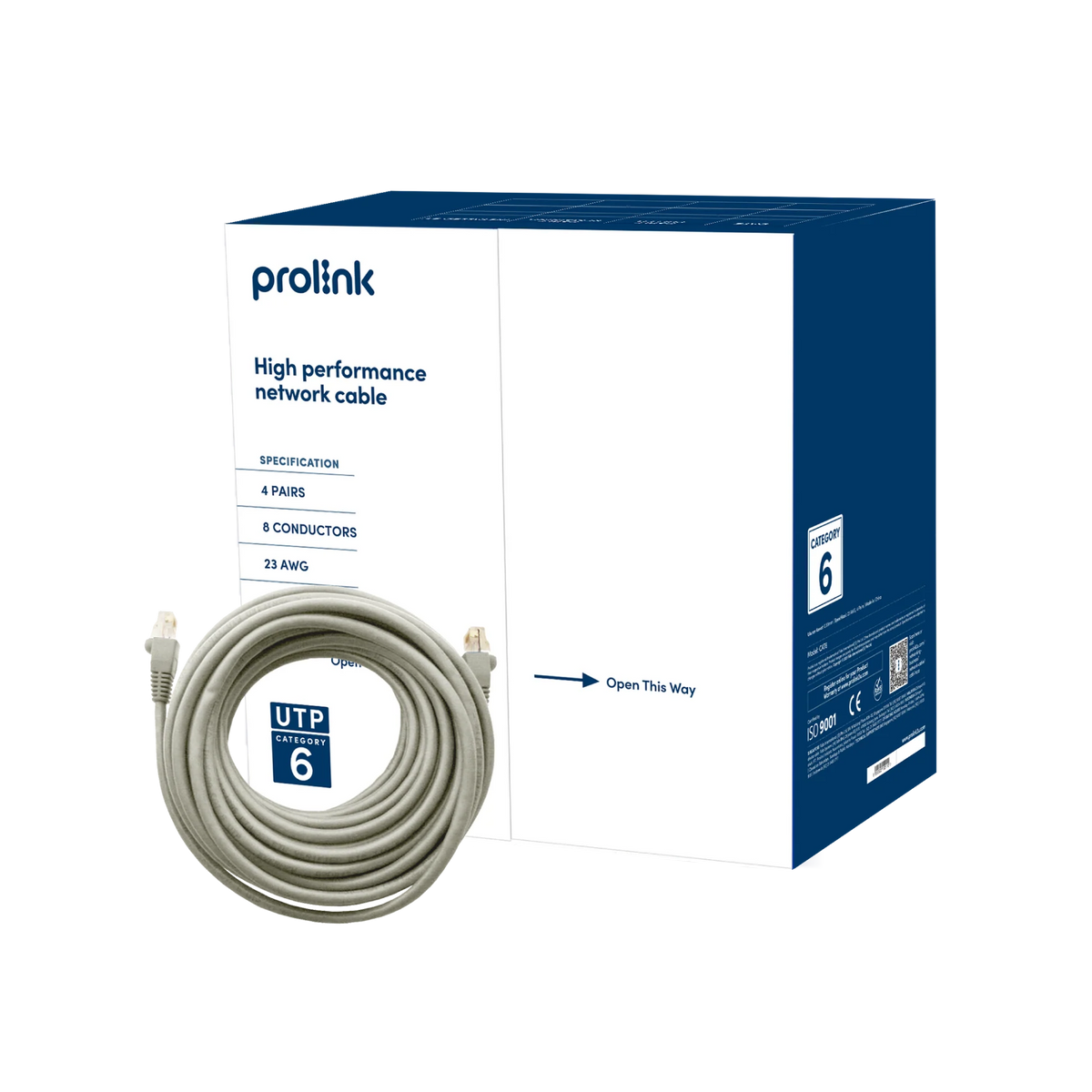

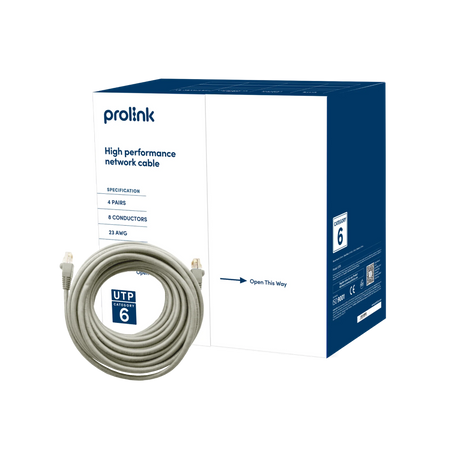

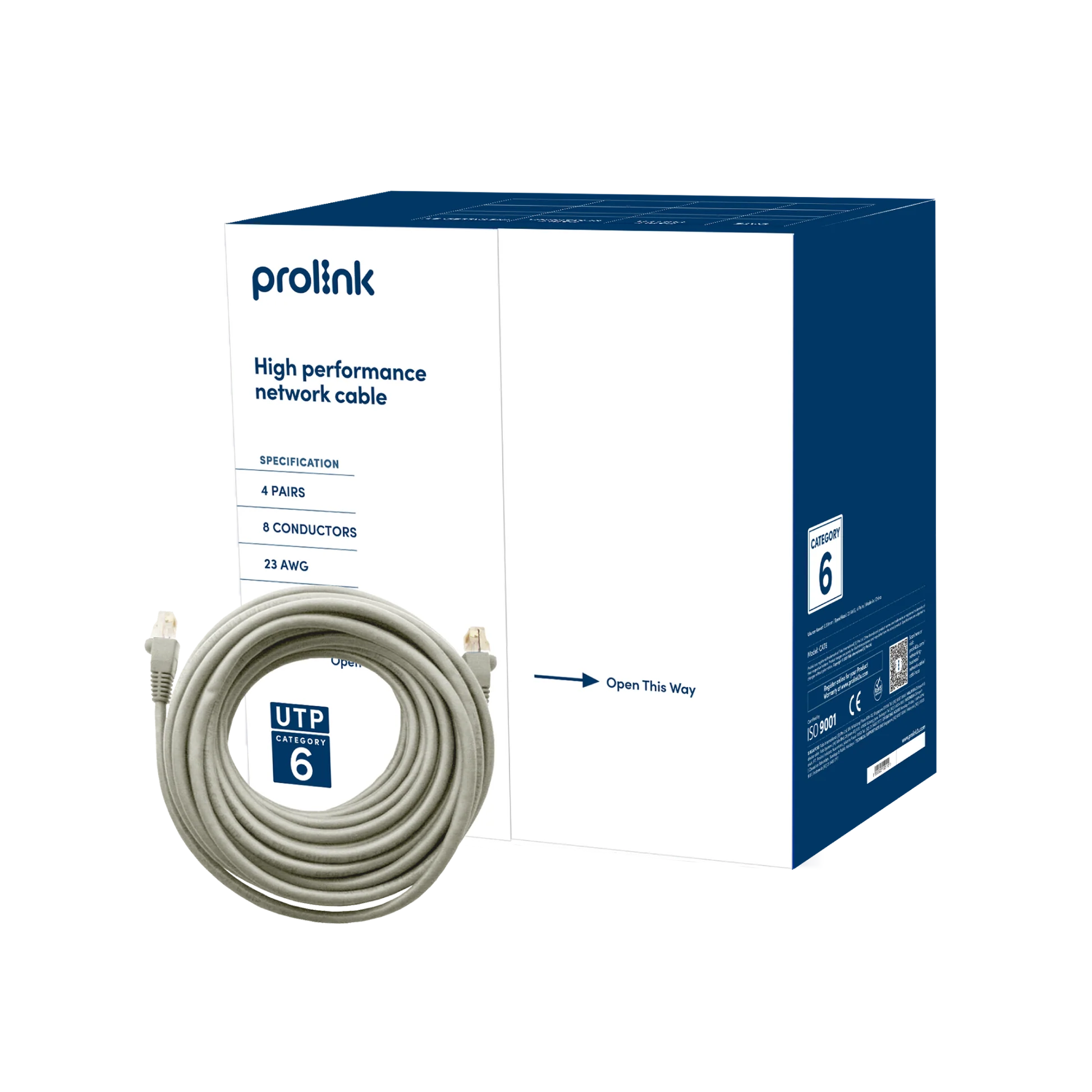

Prolink CAT6/23E Essential Series 4-Pair UTP Network Cable 23AWG 250MHz, 0.57mm, Grey, 305m
Couldn't load pickup availability
- SKU CAT6 23E
Do you have questions about this product?
Help your customers identify what payments are accepted by your store.
DESCRIPTION
CAT6/23E
CAT6 23E Essential Series Cable
The CAT6 23E Essential Series is designed for your LAN networking needs.
4-Pair UTP Network Cable 23AWG 250MHz.
FEATURES
At a glance
23AWG
Transmission bandwidth of 250 MHz
Supports 10 Base-T, 100Base-TX or 1000Base-TX network
TECH SPECS
|
UTP category |
Cat 6 |
|
Conductor construction |
0.57mm/ 23 AWG (4 pair) |
|
Conductor insulation |
High density polyethylene |
|
Conductor insulation diameter |
0.95mm ± 0.03mm |
|
Pairs |
2 insulated conductors twisted together |
|
Insulation Colour |
A. White/Blue Stripe & Blue B. White/Orange Stripe & Orange C. White/Green Stripe & Green D. White/Brown Stripe & Brown
|
|
Characteristic impedance |
64kHz: 125Ω±20% 1-250MHz: 100Ω±15% |
|
Conductor resistance |
MAX 18Ω/100m at 20°C |
|
Insulation resistance |
Min150MΩ/KM |
|
Mutual capacitance |
Max 5600pf/100M |
|
Resistance unbalance |
Max 300pf/100MM, Max 5% |
|
Certifications |
Fluke test passed |
Dimensions and Weight
|
Dimensions |
Product NA With packaging 390mm (L) x 390mm (W) x 235mm (H) |
|
Weight |
Product 9.67Kg With packaging 10.53Kg |
